Inscape Data AirEther CB11 Manuale utente

Version 1.01 i

AirEtherCB11

Outdoor

Wireless Client Bridge

Users Manual

BEFORE INSTALLING THE UNIT,PLEASE READ THIS M ANUAL

THOROUGHLY,AND RETAIN IT FOR FUTURE REFERENCE.

Caution The Part 15 radio device operates on a non-interference basis

with other devices operating at this frequency when using integrated

antennas. Any changes or modification to the product not expressly

approved by Inscape Data Corporation could void the user's authority to

operate this device.

Caution To meet regulatory restrictions and the safety of the installation,

Inscape Data Corporation strongly recommends this product to be

professionally installed.

Version 1.01 ii



Contents

CHAPTER 1. INTRODUCTION................................................................1

1.1 INTRODUCING THE AIRETHERCB11....................................................1

1.2 PRODUCT FEATURES ..............................................................................1

1.3 PACKAGE CONTENTS..............................................................................1

1.4 SYSTEM REQUIREMENTS.........................................................................2

1.5 INLINE POWER INJECTOR (POE)..............................................................2

CHAPTER 2. INSTALLATION AND BASIC CONFIGURATION.........3

2.1 BEFORE YOU START...............................................................................3

2.2 LOCATE THE AIRETHER CB11 AND INLINE POWER INJECTOR PORTS ........4

2.3 PREPARING INSTALLATION .....................................................................6

2.4 BASIC CONFIGURATION..........................................................................7

2.4.1 What you need to know..................................................................7

2.4.2 Basic Configuration Steps.............................................................7

2.4.3 Logging into the Web Interface .....................................................8

2.4.4 Set Operating Mode, IP Address, Subnet Mask, Default Route IP,

DNS Server IP of AirEther CB11................................................................12

2.4.5 Set Wireless Encryption for Wireless Interface............................13

2.4.6 Change Supervisor Account & Password.....................................14

2.4.7 Upgrade the Firmware ................................................................15

2.4.8 Back-up the AirEther CB11s Configuration Files.......................19

CHAPTER 3. NETWORK TOPOLOGIES.............................................21

3.1 WIRELESS CLIENT BRIDGE-TO-CENTRAL WIRELESS BRIDGE ..................22

3.2 WIRELESS CLIENT ROUTER-TO-CENTRAL WIRELESS BRIDGE .................23

3.3 WIRELESS CLIENT BRIDGE-TO-CENTRAL WIRELESS ROUTER .................24

3.4 WIRELESS CLIENT ROUTER-TO-CENTRAL WIRELESS ROUTER ................25

CHAPTER 4. NETWORK PARAMETERS............................................25

4.1 IP CONFIGURATION..............................................................................26

4.2 VIRTUAL SERVER.................................................................................27

4.3 CONFIGURE SNMP ..............................................................................30

4.3.1 Configure Community Pool.........................................................30

4.3.2 Configure Trap Host Pool ...........................................................32

4.4 CONFIGURE WIRELESS RELATED PARAMETERS.......................................34

4.5 SECURITY............................................................................................37

4.5.1 MAC based Access Control.........................................................37

Version 1.01 iii

4.6 UTILITY...............................................................................................38

4.6.1 Software Upgrade........................................................................38

4.6.2 Administration.............................................................................39

CHAPTER 5. MONITOR INFORMATION............................................40

5.1 SYSTEM INFORMATION.........................................................................40

5.2 STATISTIC INFORMATION......................................................................42

5.3 WIRELESS LINK INFORMATION..............................................................43

CHAPTER 6. SPECIFICATIONS............................................................44

6.1 HARDWARE SPECIFICATIONS.................................................................44

6.2 SOFTWARE SPECIFICATIONS..................................................................46

CHAPTER 7. DEFAULT SETTINGS......................................................47

7.1 GENERAL CONFIGURATION...................................................................47

7.1.1 System.........................................................................................47

7.1.2 Virtual Server..............................................................................47

7.1.3 SNMP..........................................................................................48

7.1.3.1 Table of SNMP Community Pool........................................................48

7.1.3.2 Table of SNMP Trap Community Host Pool .......................................48

7.1.4 Wireless LAN ..............................................................................49

7.2 UTILITY...............................................................................................50

7.2.1 Software Upgrade........................................................................50

7.2.2 Administration.............................................................................50

CHAPTER 8. REGULATORY COMPLIANCE INFORMATION........51

Version 1.01 1

Chapter 1. Introduction

1.1 Introducing the AirEtherCB11

The AirEther CB11 is fully interoperable with IEEE 802.11b compliant

Outdoor Wireless Last-mile product. The AirEther CB11 operates in remote

bridge mode, and connects to AirEther RB11 Outdoor Wireless Router

Bridge to construct point-to-point as well as point-to-multipoint topologies,

for maximum flexibility in configuring building-to-building networks and

WISP functions.

1.2 Product Features

Outdoor enclosure in compliance with IP67

RF transmit power 200mW (23dBm) with -85dBm Rx

sensitivity @ 11Mbps data rate

Embedded 9dBi patch directional antenna

Support 24VDC 0.8A Power-over-Ethernet

NAT/NAPT and Virtual Server Mapping support

MIB-II and Private MIB support

MAC address based access control

1.3 Package Contents

The product package contains the following items.

1. One (1) AirEther CB11 Outdoor Wireless Client Bridge unit

2. One (1) 100~240VAC, 50~60Hz AC/DC adapter with wall-

mount plug and DC plug power cord

3. One (1) 24VDC, 830mA Inline Power Injector (PoE)

4. One (1) 30m RJ-45 CAT-5 Ethernet cable

5. One (1) 1.8m RJ-45 CAT-5 Cross Over Cable

6. One (1) 1.8m RS-232 null modem console cable

7. One (1) 1.8m grounding wire

8. One (1) User manual CD-disc

9. One (1) wall/mast mounting kit, including one (1) band clamp

Version 1.01 2

1.4 System Requirements

Installation of the Outdoor Wireless Client Bridge requires the following:

1. A Windows-based PC/AT compatible computer or Ethernet

data device with an available RJ-45 Ethernet port to run the

configuration program or with TCP/IP connection to the

Ethernet network.

2. A 10/100Base-T Ethernet RJ-45 Ethernet cable is connected to

Ethernet network.

3. A RS-232 consol port cable is connected to PC/AT compatible

computer.

4. An AC power outlet (100~240V, 50~60Hz) supplies the power.

1.5 Inline Power Injector (PoE)

The AirEther CB11 is equipped with an Inline Power Injector module. The

Inline Power Injector (PoE) delivers both data and power to AirEther CB11

unit via a signal Ethernet cable, and gives the following benefits to improve

the performance vs. installation cost ratio.

1. This works great in areas where you may not have power

and/or Ethernet easily accessible, like house roof.

2. This also allows you to place the AirEther CB11 unit closer to

the antenna, more easily thus reducing signal loss over

antenna cabling.

3. Ethernet signal travels well over CAT 5 cable but 2.4GHz

signal doesn't do as well over antenna cabling.

4. Ethernet cabling is much cheaper than Antenna cabling.

Version 1.01 3

Chapter 2. Installation and Basic Configuration

This chapter describes the procedures of installing the AirEther CB11.

2.1 Before You Start

After unpacking the system, make sure the following items are present and

in good condition. Refer to Figure 1 for product image.

1. AirEther CB11 Outdoor Wireless Client Bridge unit

2. AC/DC adapter 100~240VAC, 50~60Hz with wall-mount plug

and DC plug power cord

3. Inline Power Injector (PoE) 24VDC, 830mA

4. RJ-45 CAT-5 Ethernet cable 30m

5. RS-232 null modem console cable 1.8m

6. Grounding wire 1.8m

7. User manual CD-disc

8. Wall/mast mounting kit, including one (1) band clamp

Figure 2-1

Version 1.01 4

2.2 Locate the AirEther CB11 and Inline Power

Injector Ports

Interface on the AirEther CB11 Unit

Ethernet Port 1for connecting the 30m RJ-45 CAT-5 Ethernet

cable.

RS-232 Console Port 2for connecting the 1.8m RS-232 null

modem console cable.

Interface on the Inline Power Injector

Data Input Port 3for connecting cross-over Ethernet Cable to

PC or straight Ethernet cable to Hub Switch Router .

110~240VAC, 50~60Hz AC/DC power adapter DC Input Port

Power & Data Output Port 5for connecting the 30m RJ-45

CAT-5 Ethernet Cable.

Grounding Port 6.

Figure 2-2

Power and Data Interface location on the PoE denoted by numbers 1-

Version 1.01 5

Mount AirEther CB11 on A Wall/Pole

The AirEther CB11 can be mounted on the wall, you can use the Wall

Mount kit to mount the AirEther CB11 as shown in Figure 2-3.

Figure 2-3

You can also mount the AirEther CB11 to the mast as shown in Figure 2-4.

Figure 2-4

Version 1.01 6

2.3 Preparing Installation

Before installing AirEther CB11 for outdoor application or hard-to-reach

location, we recommend configuring and test all the devices first.

For configuring the AirEther CB11, please follow the quick steps below to

power up the AirEther CB11. Refer to Figure 2-5 for steps 1 through 5.

Figure 2-5

Step 1 Attach the 1.8m RS-232 null modem console cable to the Console

Port on the AirEther CB11 unit (refer to page 4), and the other end

(DB9 female type) to a terminal or a PC running a terminal

emulation program.

Step 2 Plug the DC plug of the AC/DC power adapter into the DC Input

Port of Inline Power Injector and the wall-mount plug into a power

outlet or power strip (refer to page 4). The Power LED on the Inline

Power Injector will light up.

Step 3 Run the cross-over type uplink Ethernet cable from Data Input

Port (refer topage 4) to the Ethernet port on a PC.

Step 4

Step

Step 3

Step 1:

Console Port

Connection

Version 1.01 7

Step 4. Connect the 30m CAT 5 Ethernet cable into the CB11 unit. Hand

tighten the connector.

Step 5. Connect the remaining end of the 30m CAT 5 cable into the PoE

labeled AP/Bridge. This is the power side of the PoE that will power up the

CB11.

NOTE: This connection is required for setting up initial configuration

information. After configuration is completed, the RS-232 null

modem console cable shall be removed, and run a cross-over

Ethernet cable from Data Input Port to PC, or a straight Ethernet

cable to LAN connection, e.g. Hub.

When the AirEther CB11 receives power over the Ethernet cable, the

AirEther CB11 will start its boot up sequence and the Active LED on the

Inline Power Injector will light up.

You can configure the AirEther CB11 via HTML browser, such as Microsoft

Internet Explorer or Netscape Navigator from a remote host or PC.

2.4 Basic Configuration

2.4.1 What you need to know

The AirEther CB11 can be configured into two operation roles: Wireless

Client Bridge or Wireless Client Router.

The AirEther CB11 is shipped with default configuration to function as a

client bridge between an Ethernet and Wireless network by attaching

AirEther CB11 to a wired LAN. For configuration details of the AirEther

CB11, please refer to the following procedures.

2.4.2 Basic Configuration Steps

This section describes a five-step BASIC configuration procedure to setup

AirEther CB11.

Version 1.01 8

Step 1 Select an operation mode for the AirEther CB11 on the web page

/General Config/System/, and click FINISH to refresh this page.

Step 2 Modify the factory-default parameters on the web page /General

Config/System/, and click FINISH to save the changes.

Step 3 Modify the factory-default parameters on the web page /General

Config/Wireless/, and click FINISH to save the changes.

Step 4 (Optional) Modify other parameters on the web page /General

Config/, and click FINISH to save the changes.

Step 5 Move to page /Utility/Administration/, select the Save

then Restart and then click FINISH to take effect on the previous

configuration changes.

2.4.3 Logging into the Web Interface

The AirEther CB11 supports access to the configuration system through the

use of an HTTP Interface.

Web Configuration

Before configuring AirEther CB11, the user needs to know the IP Address

assigned to the unit. When shipped from the factory, the IP Address

192.168.2.1 was assigned to the AirEther CB11 by default. To start a web

connection, use http://192.168.2.1

Identify the IP Address assigned to the unit

However, user may change the IP Address later and cannot connect the

unit by using the default IP Address. In this case, it is a must to identify the

AirEther CB11 current IP Address before configuring. To identify the IP

Address, user can use the serial port (refer to page 4) to gain access of the

current network status.

To start a Serial Port connection by following the steps below.

Step 1 Attach the RS-232 null modem console cable (refer to page 3 and

page 5) to the RS-232 Console Port on AirEther CB11. Connect

Version 1.01 9

the other end to a terminal or a PC running a terminal emulation

program.

Step 2 Set the terminal to 115200 baud rate, None Parity, 8 data bits, 1

Stop bit, and ANSI compatible.

Step 3 Run a terminal emulation program on PC, such as Hyper

Terminal, and set the following connection properties.

Step 3.1 Click the Start icon > Program > Accessories >

Communication > Terminal.

Step 3.2 Create a new connection file, and select a Com Port

<COM1, COM2, etc., depending on PC> with

115200bps / 8-bits / 1-stop/Flow control OFF.

Step 3.3 Click the properties icon in the Tool Bar > setting >

select Emulation terminal VT100 > ok.

Step 4 Reboot or power on the AirEther CB11.

Step 5 When the AirEther CB11 is powered up, the Current Network

Statuswill be displayed in the terminal program as shown in

Figure 2-6.

Figure 2-6

Version 1.01 10

Web Access Procedures

Once you identify the IP Address assigned to AirEther CB11, use web

browser to configure AirEther CB11 through the HTTP Interface. The

following procedure explains how to configure each item.

Step 1 Open your browser and enter the IP Address

Step 2 Press <ENTER> key and the AirEther CB11 Login screen appears

as shown in Figure 2-7.

Figure 2-7

Step 3 Enter rootin the User Name and the Password fields, and click

OK to enter the web configuration user interface screen as shown

below.

Version 1.01 11

Figure 2-8

Web Configuration Structure

The web configuration user interface shown above in Figure 2-8 is

grouped into a tree structure, and contains the following settings or

information.

General Configuration

System

TCP/IP

Virtual Server

SNMP

Wireless

Security

MAC Filter

Running Status

System Info

Statistic Info

Wireless Link Info

Utility

Software Upgrade

Version 1.01 12

Administration

Move through the tree by clicking on an icon to expand or collapse the tree.

The nodes on the tree represent web pages that allow viewing and

modifying the parameters.

2.4.4 Set Operating Mode, IP Address, Subnet Mask,

Default Route IP, DNS Server IP of AirEther CB11

Operation Mode

When setting up AirEther CB11, you have to decide which Operation Mode

in which AirEther CB11 will function. This option is available in the

/General Config/System/page as shown in Figure 2-9.

Figure 2-9

Host Information

The Host Name is not an essential setting, but it helps to identify the device

in a network. Use this setting to assign a name to the device. Version 1.01 13

Bridge IP Address Information

Use this setting to assign or change the AirEther CB11s IP address.

Bridge Subnet Mask

Enter an IP subnet mask to identify the sub network so the IP address can

be recognized on the LAN.

Default Route IP

Enter the default Gateway IP Address.

DNS Server IP

Enter the Primary/Secondary DNS Server IP Address, and click FINISH at

the bottom of this page to complete the modification of this page.

2.4.5 Set Wireless Encryption for Wireless Interface

The AirEther CB11 supports 64-bit and 128-bit WEP encryption.

For 64-bit WEP encryption, an encryption key is 10 hexadecimal

characters (0-9 and A-F) or 5 ASCII characters.

For 128-bit WEP encryption, an encryption key is 26 hexadecimal

characters or 13 ASCII characters.

Modify the WEP encryption parameters on the web page /General

Config/Wireless/. Enter 1~15 characters into the WEP Key field, and

click KeyGen to generate the WEP64 or WEP128 key patterns.

Version 1.01 14

2.4.6 Change Supervisor Account & Password

Enter the Utility > Administration page. Figure 2-10 below shows the

Utility/ Administration page.

Figure 2-10

Supervisor Account

Change the supervisors user name and password in the Supervisor

Account field, and click FINISH to take effect on the previous

configuration changes.

Apply the New Settings

Step 1 Enter the Utility > Administration page, select the Save then

Restart to apply the new configuration settings.

Step 2 Click FINISH to take effect on the previous configuration changes.

Hint: It takes about 10 seconds, to complete the restart process.

Version 1.01 15

2.4.7 Upgrade the Firmware

Setup your TFTP Server

The Trivial File Transfer Protocol (TFTP) Server allows you to transfer files

across a network. You can download the firmware files for AirEther CB11

upgrades.

After the TFTP Server is installed, make sure you have the proper TFTP

Server IP address, the proper AirEther CB11 firmware files, and the TFTP

Server is operational.

Update the Firmware using the TFTP method

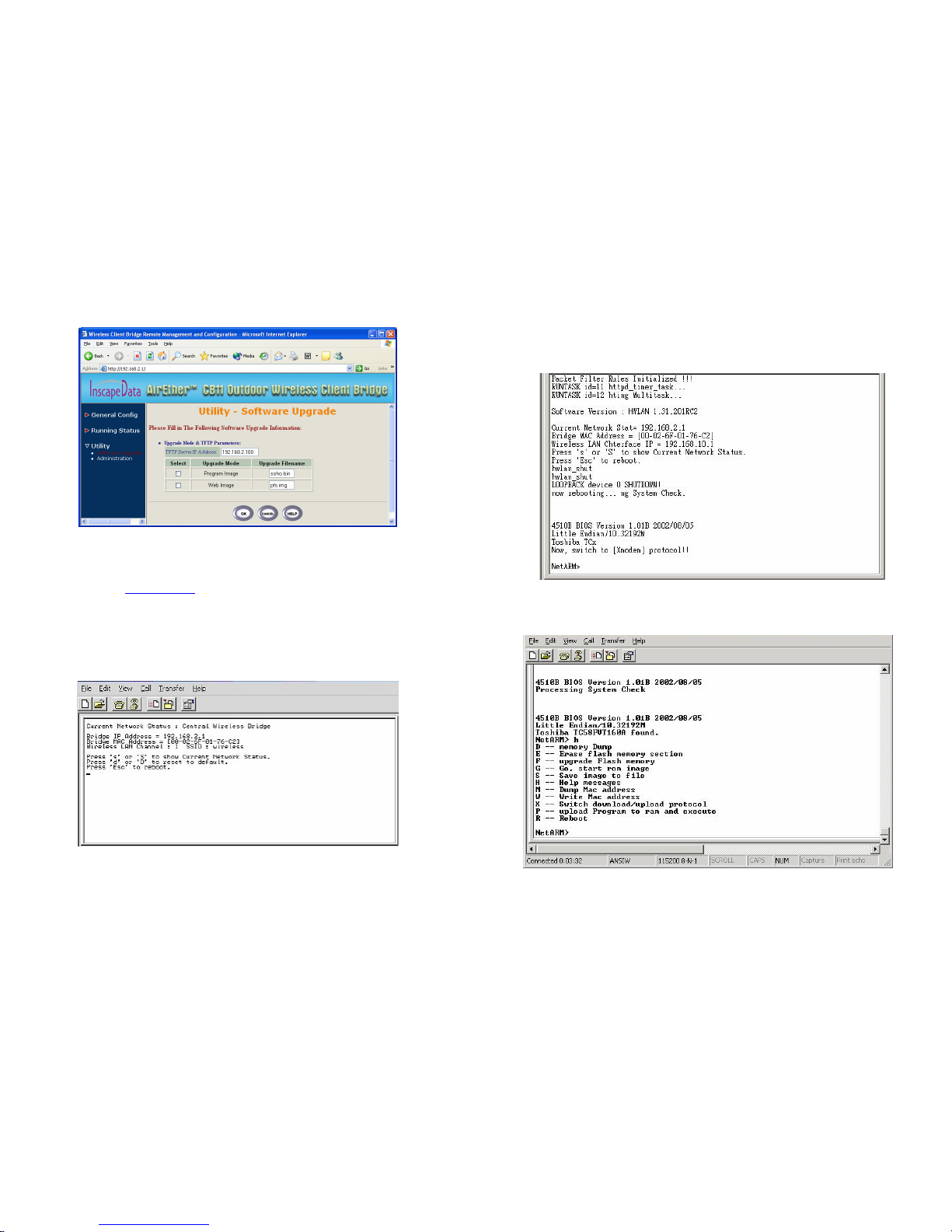

Step 1 Enter the Utility > Software Upgrade page as shown in Figure 2-

11., and can use TFTP to upgrade AirEther CB11. Here, user must

specify the TFTP server IP and select which file you want to

upgrade it (Program image, Web image), then click OK button to

start the TFTP upgrade process.

Step 2 If the upgrade process is success, the AirEther CB11 will apply the

new settings and start rebooting right away.

Hint: You must set up a TFTP Server and this server must contain the

Manuali Punto di accesso wireless popolari di altre marche

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuale utente

Ubiquiti

Ubiquiti NanoStation NSM2 Manuale utente

Cisco

Cisco Aironet 1550 Series Manuale utente

Aruba

Aruba IAP-335 Manuale utente

Advantek Networks

Advantek Networks AWN-AP-54MR Manuale utente

IP-COM

IP-COM AP355 Manuale utente

Buffalo

Buffalo AirStation WLA-L11G Manuale utente

EnGenius

EnGenius EnStationACv2 Manuale utente

D-Link

D-Link DAP-3662 Manuale utente

xG Technology

xG Technology xMax CN1300 Manuale utente

Widelink

Widelink ezWave WAP-1100 Series Manuale utente

Edimax

Edimax CAP1200 Manuale utente

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuale utente

Aruba

Aruba AP-203R Manuale utente

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuale utente

CreatComm

CreatComm TB5F Manuale utente

SineDigital

SineDigital MW-1500AP(H) Manuale utente

TP-Link

TP-Link AP9650 V1 Manuale utente
