Installation Guide

MXOS2000 Sauna

Should you require additional assistance with the

installation of your product,

please call 01908 317512

or email

customerservices@insigniashowers.com.

Installation Guide

MX1515 Sauna

Should you require additional assistance with the

installation of your product,

please call 01908 317512

or email

customerservices@insigniashowers.com.

www.insigniashowers.com Last Modied: 03/02/2023

INSTALLATION MANUAL

MX1515

Sauna Series

30 Day Technical Support:

Call 01908 317512 and request technical support for aiding your

installaon.

Replacements Parts: Inside of your warranty period visit:

hps://www.insigniashowers.com, click support and make a

warranty claim.

Spares/Replacements Parts: Outside of your warranty period visit

hps://www.insigniashowers.com/replacement-parts.html

ATTENTION INSTALLERS:

These instrucons must be

le with the customer CHECK ALL CONTENTS BEFORE BUILD COMMENCES. NO RETURNS CAN BE MADE

ONCE THE BUILD HAS STARTED AS IT IS DEEMED ACCEPTANCE OF PRODUCT!

www.insigniashowers.com Last Modied: 03/02/2023

Contents

Thank you for your purchase 3Interior Light Install 14

Electrical & Tool requirements 4Roof Install 15

Box contents 5Door Handle Install 16

Backwalls Install 6Connecng the Power 17

Le and Right Side Glass Install 7Control Panel Instrucons 18

Door Install 10 Sauna Room Safety Guide 21

Bench Panel Install 11 WEEE Compliance Statement 22

Backrest Install 12

Bench Tops Install 13

www.insigniashowers.com Last Modied: 03/02/2023

Thank you for your recent purchase of an Insignia Sauna. Please read this booklet with

great care to ensure you get the best out of your build and have a Sauna that will last

for many years to come! Like everything, in order to obtain a rst class product that

will serve you well for many years, the eort and correctness put into the assembly

will reect in the quality of your nish.

www.insigniashowers.com Last Modied: 03/02/2023

• Scissors

• Knife

• Spirit Level

• Tape Measure

• Philips Screwdriver

• Electric Drill

• Safety Gloves

• Safety Glasses

Tools Required

Voltage Rang 220-240AC

Frequency Rang 50Hz

Power Rang 8000 Was

Total Amperage 33.3 Amps

Always consult a qualied Electrician before connecon as to suitability

Always Obtain Relevant Cercaon (minor Works Part P etc)

This Sauna must comply with current UK regulaons

Your electrical contractor will understand ALL legal requirements of connecon before undertaking any work or

installaon.

UNDER NO CIRCUMSTANCES UNDERTAKE THIS YOURSELF

Note for electrician:

1) Connect within current laws and IP direcves.

2) (Preferred) Wire into isolated fused feed connecng directly to the house consumer/service box.

Always use protecon against electrical surge. Your shower should be treated the same as a home computer. A

surge protector should eradicate the possibility of burn out.

Subject to connecon type, electrical work needs to be signed o by a fully qualied operave by law. Failure to

adhere to this will not only void your electrical warranty for your sauna, but could void your house insurance.

Electrical Requirements Model RW109

www.insigniashowers.com Last Modied: 03/02/2023

What’s in the Boxes?

Box Number Contents Quanty

Box 1 Back Wall

Floor

Bench top

Roof

Heater guard

Sauna Bucket

Sauna Spoon

Thermostat

[ ]

Screw Pack 40mm Screw

Wooden Dowel

[ ]

VERY IMPORTANT

Have you got everything? If not please contact the Insignia directly on 01908 317 512.

Remember NEVER book your tradesman unl everything has arrived, been checked and is

present. No replacement/missing parts can be obtained free of charge during or aer the

build. Any claims can only be within the mescale permied (48 hours aer delivery) and

always BEFORE build.

Box Number Contents Quanty

Box 2 Front xed glass panel

Door

Front of bench

Screw pack

[ ]

Box 3 Sauna Heater

Sand mer

Sauna rocks (box)

[ ]

www.insigniashowers.com Last Modied: 03/02/2023

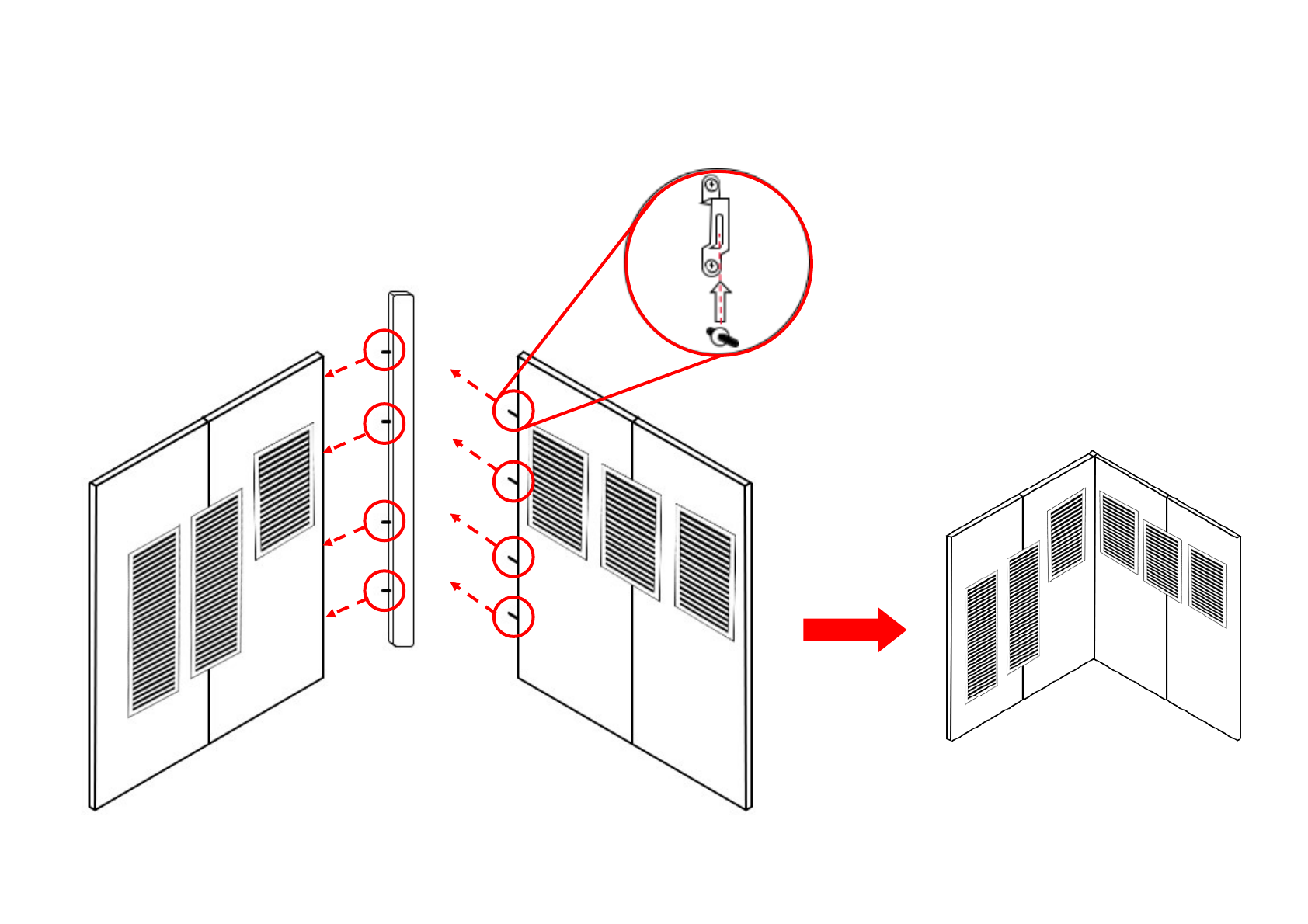

Step 1 — Placing the two back panels into posion

Slide centre post to the le and right backwall panels using the protrud-

ing screws and slot brackets as shown to the right.

www.insigniashowers.com Last Modied: 03/02/2023

Step 2 — Placing the le side glass into posion

Part 1: Slide the glass out of it’s frame and carefully place to one side. Part 2: Slot the le frame onto the le backwall

www.insigniashowers.com Last Modied: 03/02/2023

Step 3 — Placing the le side glass into posion connued

Part 3: Slide the glass back into the frame

www.insigniashowers.com Last Modied: 03/02/2023

Step 4 — Placing the right side glass into posion. Repeat Step 2
