Intec FORCE 3 Manuale utente
3771 Monarch Street • Frederick, CO 80530 • www.inteccorp.com
Local: (303) 833-6644 • Fax: (303) 833-6650 • Toll Free: (800) 666-1611
Instruction Manual
1
FORCE
/3 3.0 & 4.0 DP
Table of Contents
CONTENTS
Machine Information......................................................................2
Introduction ....................................................................................3
Specifications..................................................................................4
Electrical Drawings ........................................................................5
The System ....................................................................................7
How the System Works ................................................................8
Set-Up and Operation..................................................................10
Safety First ....................................................................................11
Operational Guidelines................................................................14
Sidewall Tech Notes ....................................................................15
Operating With a Generator /
Using Additional Extension Cords ..............................................17
Maintenance..................................................................................19
Troubleshooting ..........................................................................23
Making a Claim for Damage or Loss ..........................................28
Returns ..........................................................................................29
How to Receive Replacement Parts Under Warranty ................31
Warranty........................................................................................32
Glossary ........................................................................................34
Rev 3/06
MACHINE INFORMATION
2
Intec appreciates your business
Thank you for purchasing an Intec insulation system. Since 1977, both
professional contractors and do-it-yourself equipment users have looked to
Intec as the industry leader in the design and manufacture of innovative
portable insulation blowing equipment. We take pride in making your job as
easy and profitable as possible.
The right system for your needs: Intec strives to provide you with the best
combination of portability, functionality, and installation versatility to surpass
your desired success. From lightweight polyethylene units with removable
hoppers, to larger units with increased production rates and installation
versatility, all of our durable systems are made to maximize your profit
generating potential.
Best-in-class Customer Service: Total ease of use extends beyond your initial
purchase of an Intec system to your evolving needs thru the entire lifecycle.
Both before and after the sale service is important to keep you running at
peak operating capabilities. Intec’s technical team provides installation
assistance in addition to maintenance suggestions and trouble-shooting
support. In addition to blowing machines, Intec produces a range of
accessories that will increase your productivity when dense packing, damp
spraying, and installing net and blow.
Thank you for partnering with Intec. We appreciate the confidence and trust
you have placed in us, and wish you many profit-generating opportunities!
Ray Lavallee
President
INTRODUCTION
FORCE
/3 3.0 & 4.0 DP
Specifications
SPECIFICATIONS
4
SPECIFICATIONS
Height 51" (129 cm)
Width 31" (76 cm)
Length 53" (130 cm)
Weight 350 lbs (130kg)
Hopper capacity 75 lbs (27kg)
Hose size 3" (7.35 mm)
Blower 5.7 diameter 2-stage 3.0 PSI (2 blowers)
Blower 7.2 diameter 2 Stage 4.0 PSI (2 blowers)
Drive motor 1-1⁄2HP
Transmission Worm gear/Chain
Airlock 12" x 14" steel, 6 vanes
Electrical 3.0 version 115V / 35 amp @ 60 Hz
Electrical 4.0 DP version 115 V / 41 Amps @ 60 Hz
Agitator 5 blade
Wheels 2" x 10" Poly
Warranty One year limited;
90 days electrical, blower,
airlock system.
Note: All specifications aresubject to change without notice.
Height 51"
Width 30"
Length 53"
FORCE
/3 3.0 & 4.0 DP

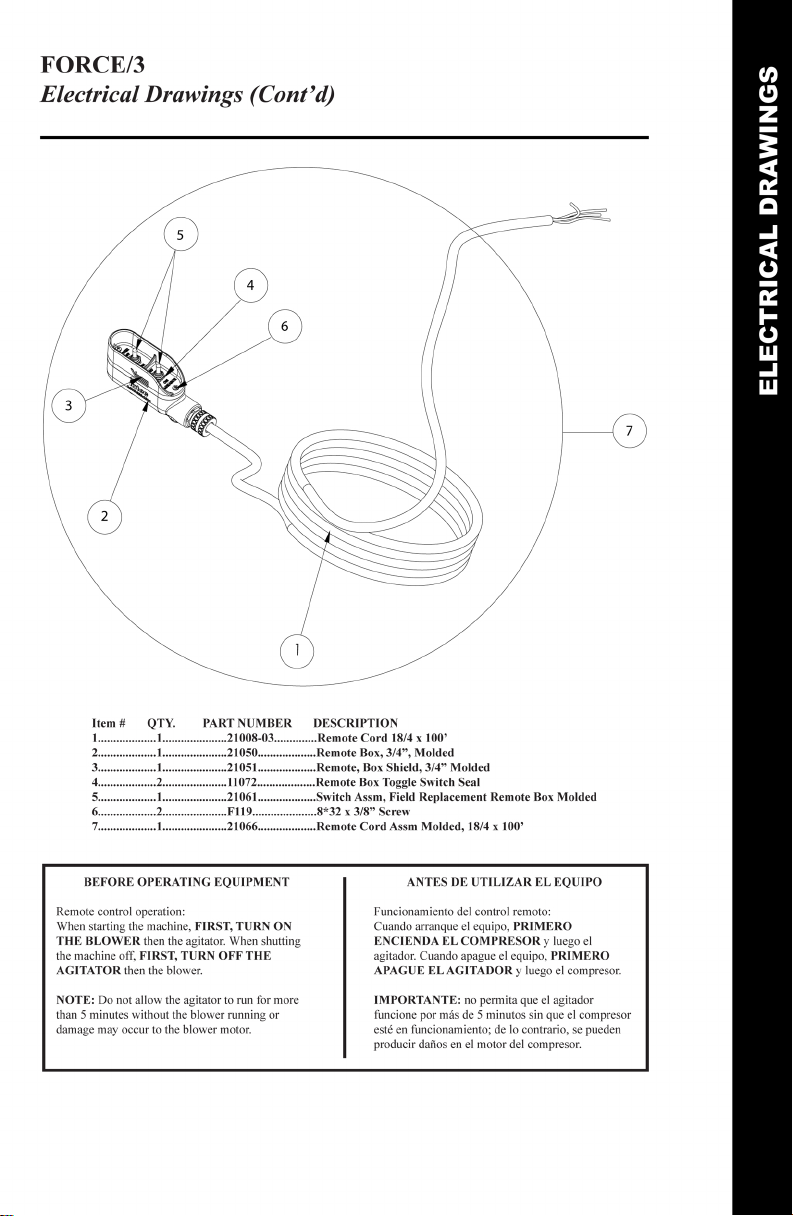

Electrical Drawings
ELECTRICAL DRAWINGS
5
ELECTRICAL DRAWINGS
110V STD. ELECTRICAL WITH VARIABLE SPEED CONTROL
FORCE
/3 3.0 & 4.0 DP
Electrical Drawings, Cont.
ELECTRICAL DRAWINGS, CONT.
6
110V STD. CONTROL WITH NO VARIABLE SPEED. CONTROL
THE SYSTEM
7
FORCE
/3 3.0 & 4.0 DP
The System
Three sub-systems make up your FORCE/3:
THE AGITATOR AND AIRLOCK.
The FORCE/3 uses a 1-1⁄2hp
motor and is coupled to a worm gearbox to reduce the speed of the
motor and increase torque. In addition to the motor and gearbox, chain
and sprockets are used to further reduce the speed of the airlock.
THE BLOWER MOTOR(S).
The FORCE/3 3.0 is equipped with two
5.7" 128 CFM three stage blowers to push the material through the hose
and into the attic with optimum pressure and output. The Force/3 4.0 DP
is equipped with two 116 CFM two stage blowers which produce over 4.0
PSI through the airlock.
ELECTRICAL SYSTEM.
The FORCE/3 3.0 requires 2 separate
dedicated 20 amp grounded circuits.
Low voltage or amperage may likely
cause tripping (blowing) of house
circuit breakers or chattering of
contactor (relay). The Force/3 4.0 DP
requires 2 dedicated circuits, 20 & 30
amp. Due to the high current draw of
this machine you will need to use a
10.5KW generator to properly operate it. Never attempt to operate the
FORCE/3 in standing water!
Always disconnect all power to the equipment before attempting
repair; otherwise bodily injury or death may result.
THE PARTS.
1. Hopper: upper component of the FORCE/3 where insulation is
loaded.
2. Frame: Lower part of the machine that supports the entire
machine.
3. Side panels: surround the outside of the machine to aid in
protection during operation.
4. Electrical: on/off function for both the blower and agitator motors.
