Intellian i2 Manuale utente
i2
Installation and Operation
User Manual
Document Number: 2012D0-UM1004-V1_0
2
Intellian Satellite TV Antenna Systems
Intellian i2 Serial Number
This serial number will be requested for all troubleshooting or service Inquiries.
Notice
All Right Reserved
Intellian i2®and Intellian®are the registered trademarks of Intellian Technologies, Inc., and should not be appropriated without permission by Intellian Technologies, Inc., and the
information contained in this manual is the property of Intellian Technologies, Inc. Any and all parts of this manual shall not be reproduced and distributed in any form without
prior written consent by Intellian Technologies, Inc. The information contained in this manual shall be subject to change at any time without notice due to the functional upgrade
of the product.
3
INTRODUCTION
INTRODUCTION TO INTELLIAN i2
FEATURES OF INTELLIAN i2
BASIC SYSTEM CONFIGURATION OF INTELLIAN i2
INSTALLATION
SYSTEM COMPONENTS
TOOLS REQUIRED FOR INSTALLATION
PLANNING THE INSTALLATION
INSTALLATION AND MOUNTING OF ANTENNA
INSTALLING THE ACU
ACU DIMENSIONS
SELECTING ACU INSTALLATION SITE
CONNECTING THE SYSTEM CABLES
CONNECTING THE SYSTEM TO A GPS
ADJUSTING THE LNB SKEW ANGLE (LINEAR POLARIZATION ONLY)
OPERATION INSTRUCTION
INTRODUCTION
OPERATING USING THE ACU
ACU SOFT KEYS
NORMAL MODE
SETUP MODE
OPERATION USING PC CONTROLLER PROGRAM
INTRODUCTION
PROGRAM INITIALING AND SERIAL PORT SETUP
MAIN MENU
CONTROLLER MENUS
PREPARATION FOR TRANSPORTATION
WARRANTY
APPENDIX : TECHNICAL SPECIFICATION
INTELLIAN i2
4
4
5
6
7
7
10
11
14
17
17
18
19
22
23
24
24
25
25
25
28
49
49
50
51
52
61
62
63
64
Table of Contents
4
Intellian Satellite TV Antenna Systems
Introduction to Intellian i2
Intellian i2 is a digital satellite antenna system designed specically
for all types of vessels (Anchored or transit) to automatically identify,
track and capture satellite signals from the Digital Video Broadcasting
(DVB: the international standard for digital TV transmissions) compatible
satellites.
Specically, Intellian i2 has Wide Range Search (WRS) algorithm, which
minimizes the search time during initialization, and Dynamic Beam
Tilting (DBT) technology, which dynamically shapes the antenna beam
to utilize stabilization. While tracking the target satellite, DBT technology
uses a high-performance, constantly adjusting sub-reector which
allows the antenna to remain relatively still, eliminating the constant
whine of stepper motors while staying locked onto the satellites.
For simplicity and savings, the i2 brings you hassle-free installation
with its single cable design between the antenna and the control unit.
For exibility, there is a second RF connector on the antenna base.
In addition, the i2 has adopted a built-in GPS interface (NMEA 0183,)
allowing boaters to plug-in an external GPS to speed up acquisition
time.
Introduction
5
Features of Intellian i2
Enjoy satellite broadcasts at sea
Intellian i2 is the most modern antenna system that enables you to
receive high quality broadcasting signals at sea where the atmospheric
and environmental conditions are very harsh.
Fully automatic control system
The fully automatic control system allows you to simply turn the power
switch on, and have crystal clear, high quality satellite television in
motion or at anchor.
High quality antenna
High tech parabolic antenna technology has been adopted for this
antenna system, which is optimal for marine conditions. This enables
you to receive the optimal signal level even when it is raining or
snowing.
Fast and efcient search for the satellite
The WRS (Wide Range Search) algorithm allows for the antenna system
to search the satellite within the shortest amount of time and to detect
the satellite signal under any position and within any directional
movement of the ship.
Outstanding reliability
Intellian i2 provides highly reliable system through the implementation
of a modularized design and the usage of strictly proven components.
Easy installation
Intellian i2 uses only one RF cable for installation. This makes
installation easy. Power, RF, and Data signals transfer from the antenna
to the ACU through this single cable.
Compact size
Intellian i2’s small and compact size is perfect for small vessels.
6
Intellian Satellite TV Antenna Systems
Basic System Conguration of Intellian i2
For your satellite TV system to function properly, the system will have to
be connected with all of the provided components as shown on the right
(Refer to the next chapter ‘Installation’ in this manual for more detailed
connection instructions). Separate purchase of a satellite receiver and a
TV is required.
Figure 01 : Basic Conguration with 2 Receivers
ANT RF1
FUSE
FG - +
+ -
TV
(Not Supplied)
Antenna Control Unit
DC Power on Vessel
(DC - 9.0 - 30.0V)
NMEA GPS
PC( Not Supplied)
Satellite Receiver
(Not Supplied)
NMEA
RECEIVER
DC 9~30V PC INTERFACE
TV
(Not Supplied)
Satellite Receiver
(Not Supplied)
Note: Dish Network and Bell TV users please refer to the Intellian Dish
Network MIM Installation and User Manual.
7
The components of the Intellian i2 have been designed to be modular so
that it is suitable for simple installation on all types of vessels.
System Components
Antenna Unit
The antenna of Intellian i2 is comprised with the following components
for optimum search and reception of the satellite signal.
• Mechanical Unit – manipulates the antenna to receive an optimal
satellite signal regardless of the movement of the vessel.
• Control Unit – controls mechanical operation of the antenna.
• RF Unit – transmits an optimum satellite signal to the receiver.
• Radome – protects the antenna from severe marine environmenta
Installation
Figure 02 : Radome
8
Intellian Satellite TV Antenna Systems
Antenna Control Unit (ACU)
The Antenna Control Unit (ACU) provides the power to the antenna
and controls various settings of the antenna. The digital VFD (Vacuum
Fluorescent Display) allows for easy operation of the ACU, even in the
dark.
The functions of the ACU are as follows:
• Provides power to the antenna unit
• Monitors the antenna status
• Changes the target satellite
• Set up the user environment
• Set the current GPS information
• Set satellite information
• Perform self-diagnosis of the antenna
• Set up the interface with a PC
Figure 03 : Front & Rear of ACU
NMEA
ANT RF1 RECEIVER
FUSEDC 9~30V PC INTERFACE
FG - +
+ -
Front
Rear
Antenna Control Unit
9
Hex.Bolt
5
Flat Washer
5
Spring Washer
5
Hex. Nut
5
Item
Qty
Item
Qty
Size
Self-Tapping Screw
5
(M4 X 16L)
Machine Screw
5
(M3 X 8L)
Antenna
ACU
Installation Kit
Contains the items required for securing the antenna unit and ACU to the
vessel.
Other Components
No Components Size Qty
1ACU Bracket - 2
2RG6(Antenna – ACU RF Cable) 15m 1
3RG6(ACU – IRD Cable) 3m 1
4Power Cable 10m 1
5PC Serial Cable 1.8m 1
6NMEA Connector 1.5m 1
7Power Connector AK950-2 1
8
Hex Bolt
M6x35L 5
M6x50L 5
Tapping Screw ø4x16L 5
ø3x8L 5
Flat Washer M6 10
Spring Washer M6 5
Nut M6 5
9Installation CD - 1
10 User Manual - 1
11 Mounting Template 1
12 Quick Installation Guide - 1
Figure 05 : List of the Supplied Parts
Figure 04 : Installation Bolt Kit
10
Intellian Satellite TV Antenna Systems
Tools Required for Installation

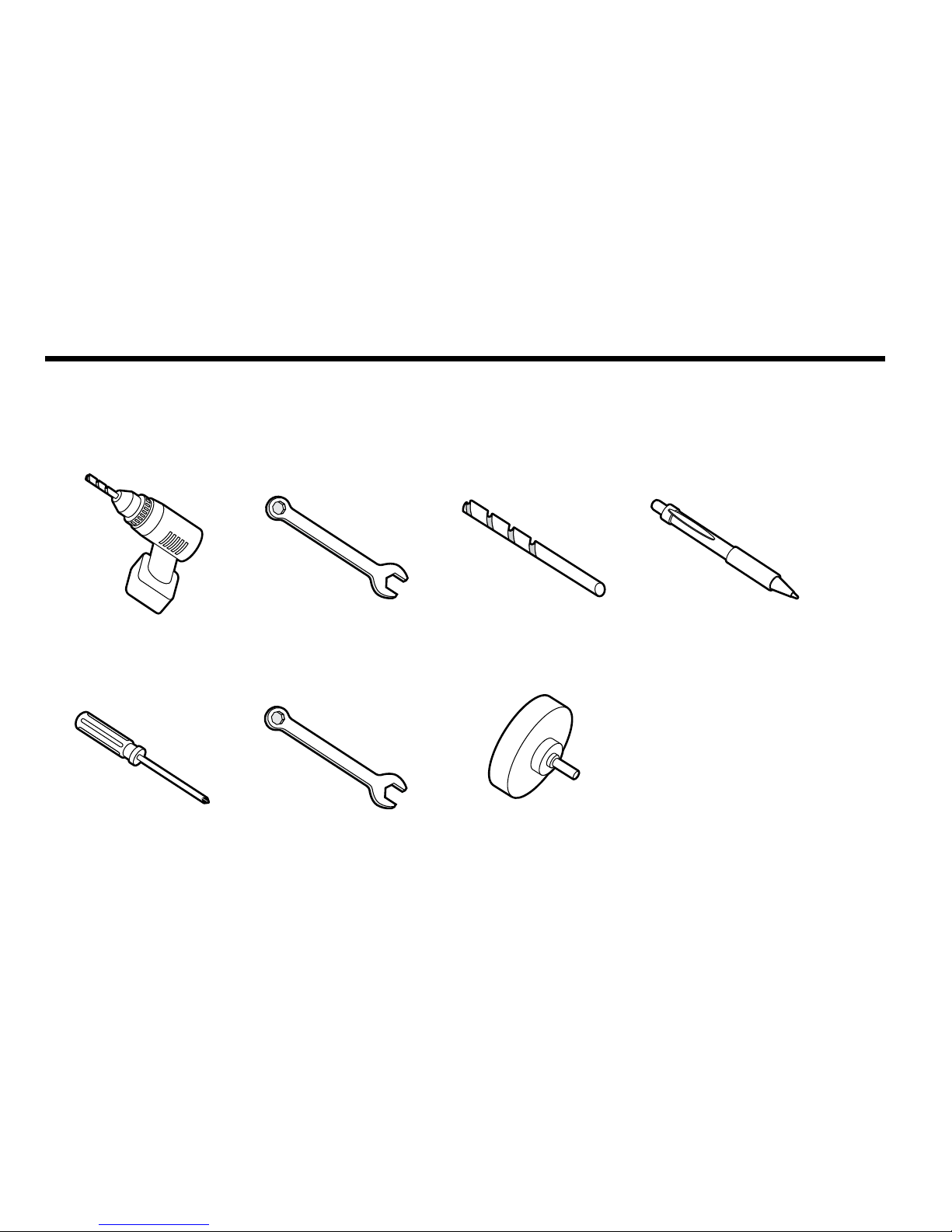

Figure 06 : Required Tools for Installation
Power Drill 11 mm Spanner
Cross-Head
Screwdriver 10 mm Spanner
8 mm Drill Bit
Ø50 mm
Hole Saw
Pencil
Power Drill 11 mm Spanner
Cross-Head
Screwdriver 10 mm Spanner
8 mm Drill Bit
Ø50 mm
Hole Saw
Pencil
