Intellinet NSC10-WG 550918 Manuale utente

NSC10-WG

NETWORK

CAMERA

QUICK

START

GUIDE

MODEL

550918

INT-550918-QSG-0709-01

Thank you for purchasing the INTELLINET NETWORK SOLUTIONS

™

NSC10-WG Network Camera, Model 550918.

This is the ideal camera for home-network-based video streaming. You

can access the camera remotely over the Internet, and you can save

snapshots or record directly from your Web browser to the local hard

drive without installing any software or drivers. Plus, the included Multi-

Viewer utility lets you monitor up to 16 cameras at the same time and

record the video to your local hard drive.

This quick start guide presents the basic steps required to set up and

operate this device. Follow these simple procedures and you’ll soon be

enjoying these additional features:

• Digital 24-bit color Motion-JPEG video

• 300k CMOS image sensor provides excellent image quality

• High-speed hardware-based image compression

• Supports 54 Mbps Wireless 802.11g with WEP, WPA & WPA2 encryption

• Auto-setup for foolproof installation

• Supports image resolutions up to 640 x 480 (VGA)

• Maximum image frame rate: 25 fps

• Integrated motion detection

• Event-triggered FTP and e-mail upload of still images

• Lifetime Warranty

For more detailed instructions and specications, refer to the user manual

1) on the CD enclosed with this product; 2) on the Web site listed below;

or 3) in some cases, printed and enclosed with this product. Contact your

INTELLINET NETWORK SOLUTIONS dealer with comments or questions,

or visit www.networkipcamera.com for information on the latest software

and rmware updates, related products and additional contact information.

Package Contents

• NSC10 Network Camera

• Quick start guide, plus CD with software & user manual

• Camera mounting bracket & stand

• Power adapter

• Network cable (1 m / 3 ft.)

Safety Precautions

• The unauthorized conversion and/or modication of the product is not

allowed for safety and approval reasons (CE).

• This product is not a toy. Devices connected to the power supply

should be kept out of reach of children. Be especially careful when

children are around.

• Do not leave packaging material unattended: It can become a danger

to children.

• The product is intended for use in dry, indoor locations and must not

get damp or wet, as there is a risk of a fatal electric shock.

• Handle the product carefully and do not drop it. Knocks, blows or

even a fall from a low height can damage it.

• Never use the product immediately after moving it from a cold room into

a warm room, as condensation that forms could severely damage it.

Instead, allow the camera to reach room temperature. This can take

several hours.

• Do not attempt to open the camera’s outer case. Any maintenance or

repair work must be performed by authorized personnel only.

NOTE: The warranty becomes void if there is damage caused by

ignoring these safety precautions or the following operating instructions.

No liability is assumed for consequential damage, nor is any liability

assumed for damage to property or personal injury caused by improper

use or a failure to observe the safety instructions.

Disposal

Electric and electronic products do not belong in household waste.

When the product is no longer usable, dispose of it in accordance with

applicable statutory regulations.

Focus ring

Antenna and

reverse SMA

connector

Power LED

WLAN LED

LAN LED

INSTALLATION

Hardware

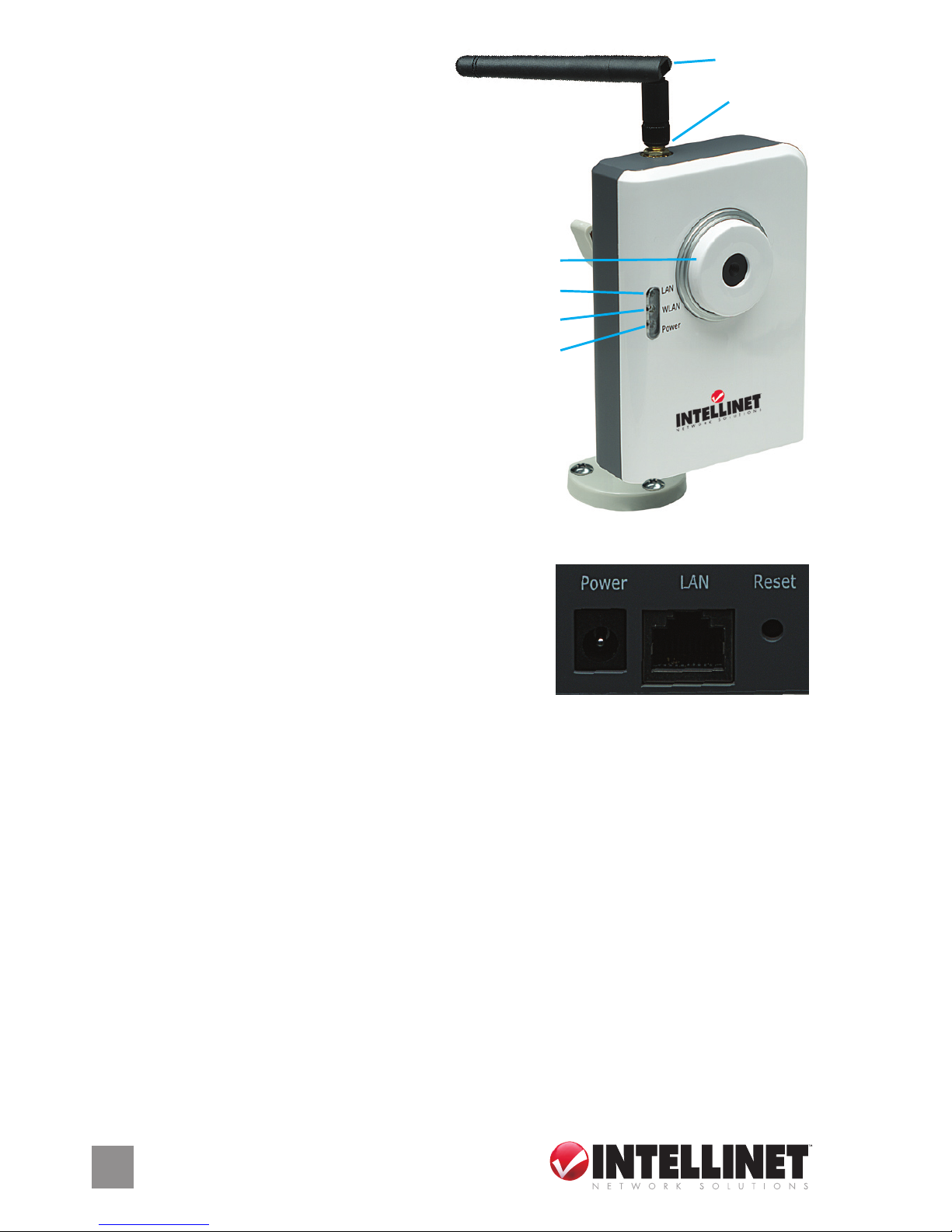

Front / Top:

Focus ring — Rotate to adjust the focus.

LAN — Lights a steady green when the

camera is linked to a wired network;

ashes green when video is

transmitted or received.

WLAN — Lights a steady amber

when the camera is linked to a

wireless network; ashes amber when video is

transmitted or received.

Power — Lights blue when the camera is on.

Reverse SMA connector — Attach the antenna.

Bottom:

Power jack — Connect the power adapter here.

LAN port — Connect the network cable here.

Reset button — Press to reset the camera to

factory default settings. Insert a paper clip

into the hole; press and hold for 5 seconds.

1. Using the included network cable, make your network connection from

the camera’s LAN port to your switch/router or other network device.

2. Connect the power adapter to the camera’s power jack and plug it in to

a power outlet. The camera is now powered on, and the Power LED

will light when the camera is operational.

3. Make sure that the correct VGA driver and DirectX 9.0 or above have

been installed.

NOTE: Use only the power adapter shipped with the camera.

Software

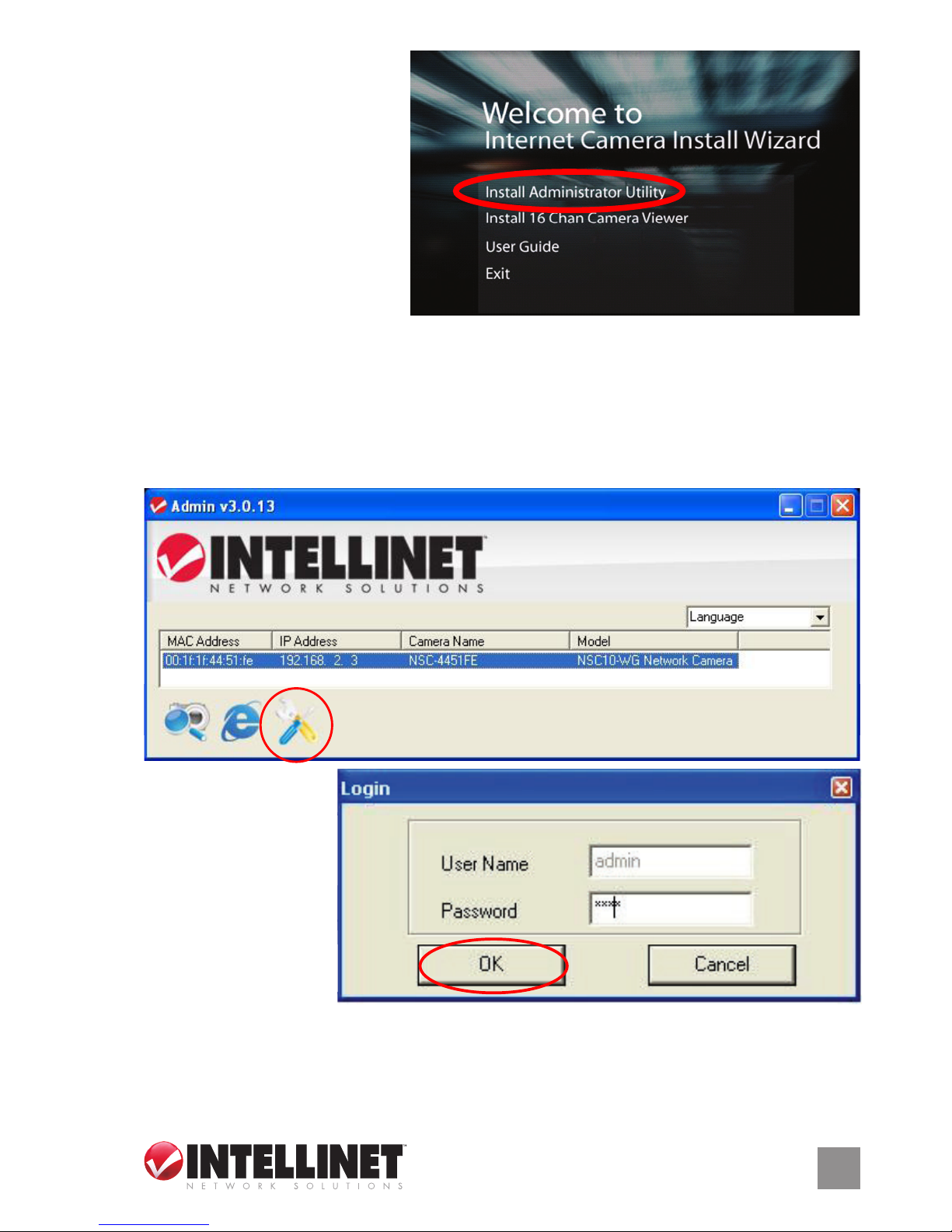

1. Run the Install Wizard by rst inserting the enclosed CD in the CD-ROM

drive. The Autorun.exe program should execute automatically. If not,

run Autorun.exe manually from the Autorun folder on the CD.

2. The Install Wizard will

present four menu

options. Click “Install

Administrator Utility”

and follow the

subsequent on-screen

instructions.

IP Address Setup: Using the Admin Software —

The Administrator utility automatically runs after installation. On the rst

screen (below), the cameras found in the network are listed. To congure

one, highlight it and click the Congure icon (highlighted at the bottom-

left of the screen) to proceed to the Login screen.

Enter the default

password “1234”

and click “OK” to

setup page. (The

default username

is “admin.”)

As the NSC10-WG

Network Camera works through the network (TCP/IP protocol), the IP

address and subnet mask setting must be correct in order to access the

camera.

The utility will automatically detect the IP address status of your network

and suggest a free IP address for the camera. You can either accept

the suggested value or enter the value manually (as shown below by

selecting “Manual IP”). If you enter the value manually, the subnet mask

must be the same for both the camera and the PC. Click “OK” to apply

the conguration settings.

IP Address Setup: Using the Web Browser (Advanced) —

1. Verify the network connection (see Hardware), making sure the camera

has an active link on the network device it’s connected to.

2. Set the computer IP address in the range 192.168.2.2 – 192.168.2.254.

3. Open your Web browser (MS Internet Explorer 6.x or 7.x) and enter

http://192.168.2.3.

4. Log in (username = “admin”; password = “1234”).

5. When the Internet Explorer Security Warning displays, select “Install.”

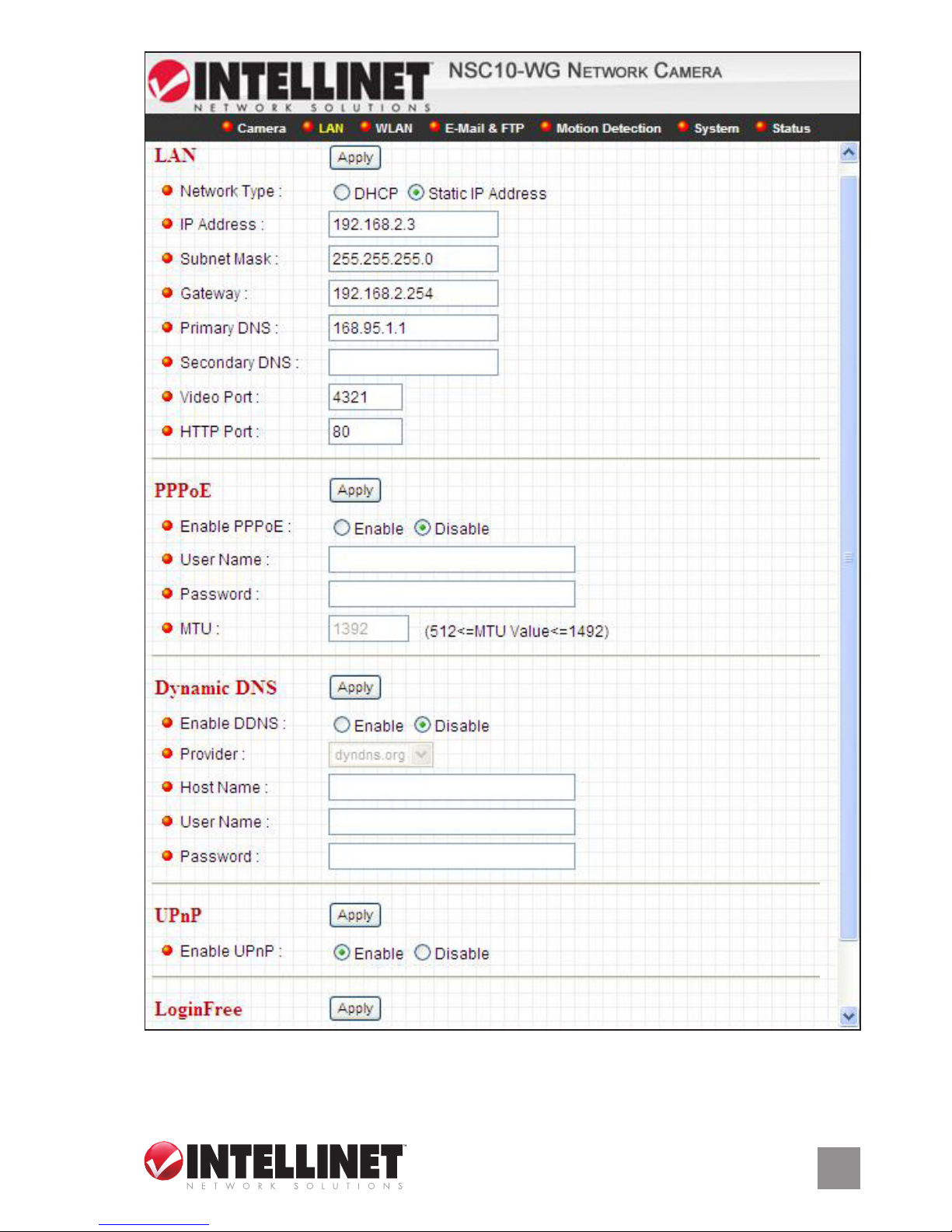

6. Click “LAN” to display the camera’s network conguration screen (below).

7. Make any necessary changes so that the camera can be used in your

existing network.

8. Change the IP setup of your computer back to its original settings.

NOTE: For wireless settings and all additional instructions, refer to the

user manual on the included CD.

INTELLINET NETWORK SOLUTIONS™offers a complete line

of active and passive networking products.

Ask your local computer dealer for more information or visit

www.intellinet-network.com.

SOLUTIONS

All products mentioned are trademarks or registered trademarks of their respective owners.
