Intellinet 503723 Manuale utente

Digital

KVM

oVer iP

Switch

quicK

inStall

guiDe

MODELS 503723

& 503730

INT-503723/503730-QIG-0808-01

Shown: 8-Port , Model 503723

introDuction

Thank you for purchasing the INTELLINET NETWORK SOLUTIONS

™

Digital KVM over IP Switch, Model 503723 (8-Port) or Model 503730

(16-Port).

This quick install guide presents the rudimentary steps required to set up

and operate this device. For more detailed instructions and specications,

refer to the user manual 1) on the CD enclosed with this product; 2) on

the Web site listed below; or 3) in some cases, printed and enclosed

with this product. Contact your INTELLINET NETWORK SOLUTIONS

dealer with comments or questions, or visit www.intellinet-network.com

for information on the latest software and rmware updates, related

products and additional contact information.

FCC Statement

This equipment has been tested and found to comply with the regulations

for a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with this guide, may cause

harmful interference to radio communications. Operation of this equipment

in a residential area is likely to cause harmful interference in which case,

the user will be required to correct the interference at their own expense.

CE Statement

This is a Class B product in a domestic environment. This product may

cause radio interference, in which case the user may be required to take

adequate measures.

harDware

Front Panel (compressed view)

Rear Panel (compressed view)

inStallation/SetuP

Digital KVM over IP Switch Setup

1. Plug the included power adapter into the switch and an AC source,

then turn on the switch.

2. Set up your local console by connecting a keyboard, monitor and

mouse to the corresponding Console (keyboard, video and mouse)

ports on the switch (see Rear Panel above). Refer to Appendix A in

the user manual for an introduction to basic local console operation.

3. Connect to one or more computers/servers as described below. Refer

to Appendix B in the user manual for samples of connector cables,

including the recommended Combo-Free USB PS/2 KVM Cable.

NOTE: Make sure that any PS/2 computers are turned off before

Port-switching buttons (8-port model shown) Link

Video

10/100

Selected Live Bank no.

Power

Serial port 2 (serial power control/external

modem support)

Serial port 1

(console mgmt.)

Restore-to-default

button

Power adapter jack

Ethernet port PC ports (8-port model shown)

Daisy chain out Local console ports: keyboard, video, mouse

connecting to the switch: The non-Plug and Play interfaces may not

recognize the PS/2 keyboard and mouse later in the installation.

• Single Server Mode: To use just one server or computer, simply

connect to a PC port with an appropriate (USB or PS/2) combo cable.

NOTE: Refer to System Architecture in the user manual for examples

of various congurations.

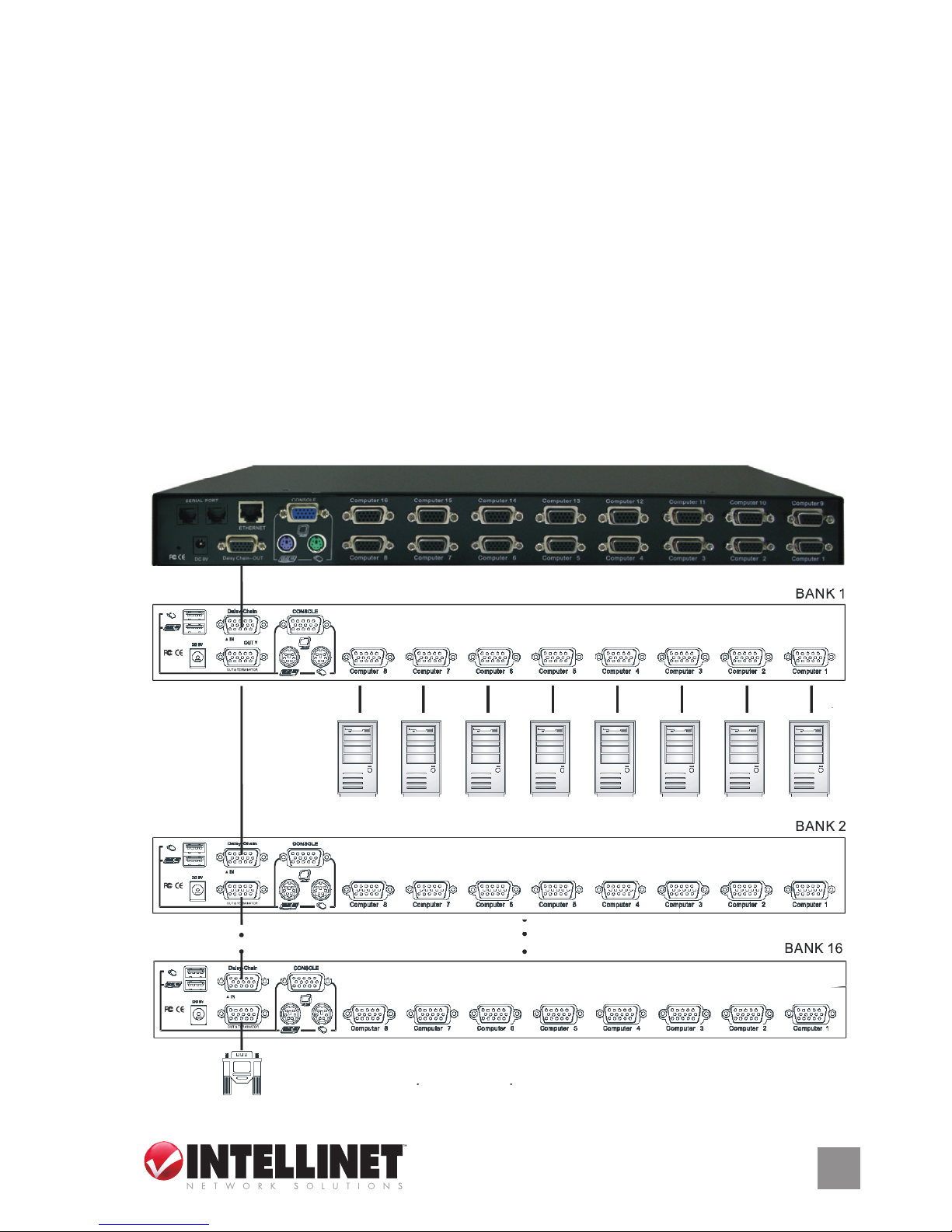

• Multiple Server Mode: To connect to multiple servers/computers,

add a conventional KVM switch to the conguration by connecting

the Daisy Chain Out port of the Digital KVM over IP Switch to the

Daisy Chain In port of the second KVM switch, which is then

connected to additional computers/servers as desired.

4. Boot up connected computers (if not yet powered on and verify the

connections. NOTE: Do not use both USB and PS/2 keyboard

connectors on a computer simultaneously.

Daisy-chain up to 16 levels

Terminator

Connected Computer Setup

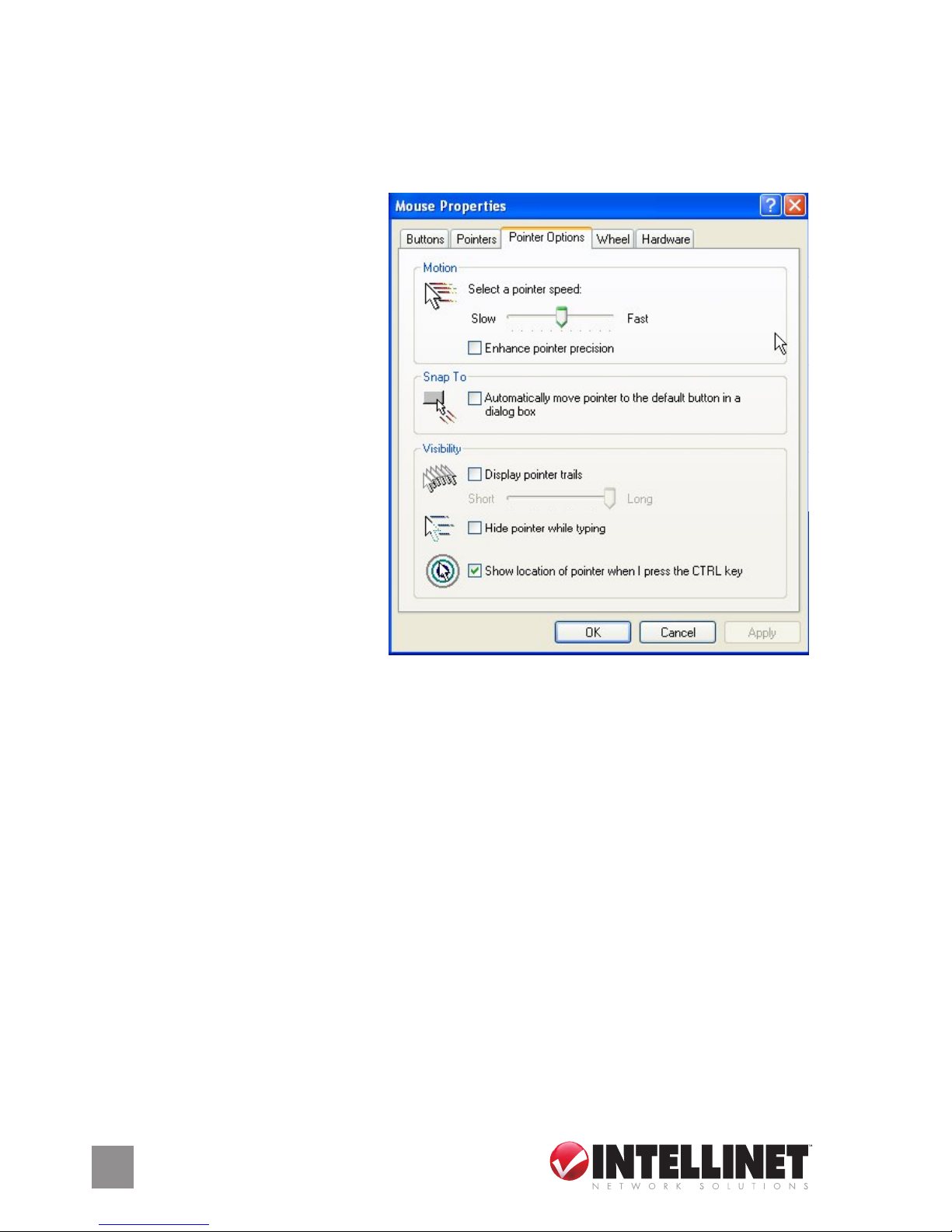

1. Turn off the mouse acceleration feature and the “Snap to” option on

each of the computers/servers included in the network being congured.

Mouse synchronization can function properly only when these two

options are turned off on

all connected computers.

For example, in Windows

XP/2003, go to Control

Panel ‡Mouse Properties

‡Pointer Options and, in

the Motion panel, set the

mouse (pointer) speed at

the middle of the bar scale;

then uncheck both the

“Enhance Pointer Precision”

option and, in the Snap To

panel, the “Automatically

move pointer to the default

button in a dialog box”

option. (For details, see

the Installation / Server Conguration section in the user manual.

2. Check that the settings/modes for display frequency and pixel

dimensions are standard, such as 800 x 600 @60/72/75 Hz;

1024 x 768 @60/70/75 Hz; or 1280 x 1024 @60 Hz.

3. Disable the transitional effect function by going to Control Panel ‡

Display ‡Appearance ‡Effects and unchecking the option. Doing

this will signicantly improve the video quality when using Medium or

Low as your video lter quality setting.

Switch Conguration for LAN Connection

1. Connect the Digital KVM over IP Switch to your LAN by connecting

the Ethernet port of the switch to one of the LAN ports on your network

switch/hub within your LAN using a Cat5 UTP cable. The Link LED

on the front panel of the switch lights to indicate 10 Mbps Ethernet

connectivity; if unlit, the connection isn’t ready. When lit, the amber

LED indicates 100 Mbps connectivity.

NOTE: If your LAN is using a network segment other than 192.168.1.xxx,

consider conguring one of the computers with an IP address of

192.168.1.xxx. The factory defaults of the switch are as follows:

Port base: 5900

IP address: 192.168.1.200

Subnet mask: 255.255.255.0

Default gateway: 192.168.1.254

DNS: 192.168.1.1

2. Go to the Web Management interface of the switch by entering

https://<IP_address>:<PortBase+8> (e.g., https://192.168.1.200:5908)

in the address bar of your browser; then log in (username = superuser;

password = superu).

3. Go to the Main: LAN TCP/IP screen to re-congure the factory default

settings listed above. If, as an example, you establish these settings:

Port base: 6080

IP: 192.168.1.36

Subnet mask: 255.255.255.0

Default gateway: 192.168.1.11

DNS: 192.168.1.1

it means you’ll use 6080 for the viewer port base and 6088 for the

SSL browser connection (<PortBase+8>). Thus, you would enter

https://192.168.1.36:6088 in the browser address bar to obtain Web

Management access, and within the viewer prompt window you

would enter 192.168.1.36:6080. NOTE: The DNS setting is required

only when you want to use the mail alert function to notify users of

specic server alert events via e-mail.

4. Validate the new settings by clicking “Store Settings” to commit them

to the switch’s ash memory. Then go to the Apply Settings screen

and click “Restart Servers” to make any new settings take effect.

5. Verify the presence of the Digital KVM over IP Switch within your LAN

by trying to ping the IP address of the switch from any computer on

the LAN. For example, in the DOS box, enter: ping 192.168.1.36 — a

reply to the ping indicates that you can now access the switch using

any computer within your LAN environment.

Router/Firewall Conguration for Internet Access

NOTE: These settings are for your router, not the KVM over IP Switch.

1. Congure a virtual server on your router as mapped to the switch’s

local IP address.

2. Open a port range (<port_base> — <port_base_+_9>) both inbound

and outbound for the virtual server (based on the conguration in

previous steps). If, as above, the switch has a port base of 6080, then

the port range would be 6080–6089 ( <port_base> — <port_base +9>)

both for inbound and outbound, in which

<port_base> = 6080 (viewer connection port)

<port_base + 8> = 6088 (browser SSL connection port)

<port_base + 9> = 6089 (for viewer internal communication, etc.)

NOTE: Once you’ve changed the port base of the switch, you should

also modify the open port range on your router accordingly if you want

Internet access to come across.

Testing the Viewer Connection via the LAN/Internet

1. Log in to the Web Management interface (using a valid IP address

and the username/password as above).

2. Go to the Download screen and download/install the Win32 viewer

program. A viewer icon will appear on your desktop. NOTE: You can

download either a Win32 or Java version of the viewer, but the Java

viewer requires that Java Runtime Environment 1.5.0 or above be

already installed on your computer client. The Java viewer itself won’t

have an installation process: Just double-click on it to run the program.

3. Run the viewer program by double-clicking the viewer desktop icon

to display the Connection Details screen (Win32 below left; Java

below right).

4. Click “Options” to display

the Connection Options

screen (Win32 at right;

Java below right).

For viewer connection

within a LAN, select “LAN”

in the Compression panel.

For connection across

the Internet, select either

“Slow Internet” (poor

network bandwidth) or

“Fast Internet” (better

network bandwidth).

NOTE: “Restrict to 8-bit”

(in the Display panel) is

an option to consider

under limited-bandwidth

conditions. Also, to prevent others from sharing viewer access while

you’re connected through the switch, de-select “Shared Session” (in

the Session panel). Once you’ve selected your preferred options,

click “OK.”

5. With the Connection Details screen displayed again (see Step 3

images), enter the access IP and viewer port number in the “Server

and Card” eld:

• Within a LAN: <Prima IP_local_IP>:<port_base> (e.g., 192.168.1.36:6080)

• From across the Internet through a rewall/router:

<router_Public_IP>:<port_base> (e.g., 61.232.134.120:6080)

Click “OK.”

At this point, your rst viewer connection has been made! Notice that

there’s also a Select Computer box overlaying the viewer window — the

Win32 viewer is shown below; the Java viewer is on the next page —

with computer icons (PC 1, PC 2, etc.). Later, you can congure the

icon names as your real computer names.

Also, at times you may nd that the local mouse cursor and the remote

mouse cursor are out of sync. You can use the following mouse

synchronization hotkey to bring them into sync:

[Right_Ctrl] – [Right_Ctrl] – [Home]

Use only the right control key, and not the left.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Intellinet Interruttore

Intellinet

Intellinet 561228 Istruzioni per il montaggio

Intellinet

Intellinet 561334 Manuale utente

Intellinet

Intellinet 560542 Manuale utente

Intellinet

Intellinet 503631 Manuale utente

Intellinet

Intellinet IPS-52GM04-10G-400W Manuale utente

Intellinet

Intellinet Cat5e 513579 Manuale utente

Intellinet

Intellinet 503433 Manuale utente

Intellinet

Intellinet 561358 Manuale utente

Intellinet

Intellinet 524124 Manuale utente

Intellinet

Intellinet 561143 Manuale utente

Intellinet

Intellinet 524063 Manuale utente

Intellinet

Intellinet 524117 Manuale utente

Intellinet

Intellinet 523530 Manuale utente

Intellinet

Intellinet 502023 Manuale utente

Intellinet

Intellinet 561747 Manuale utente

Intellinet

Intellinet 503495 Manuale utente

Intellinet

Intellinet 156066 Manuale utente

Intellinet

Intellinet 520409 Manuale utente

Intellinet

Intellinet 502023 Manuale utente

Intellinet

Intellinet 502023 Manuale utente

Intellinet

Intellinet 561433 Manuale utente

Intellinet

Intellinet 524063 Manuale utente

Intellinet

Intellinet 523547 Manuale utente

Intellinet

Intellinet 523929 Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
