Intellitronix N3210 Istruzioni operative e di manutenzione
Made in America Lifetime Guarantee
Thank you for purchasing this instrument from Intellitronix. We value our customers!
INSTALLATION GUIDE
Digital RPM Activated Window Switch
Part Number: N3210
Caution: Do NOT allow any of the switch wires other than the RED
(power source) wire to touch any 12V source, as this will cause the
hardware to malfunction, destroying the functionality of the switch.
* Always disconnect the battery before attempting any electrical work on your vehicle.*
WIRING INSTRUCTIONS
Note: Automotive circuit connectors are the preferred method of connecting wires. However, you
may solder if you prefer.
Note: If doing an LS engine swap, pick up the tach signal wire from the ECM/ECU and then set the tach
switch to 4-cylinders.
INSTALLATION:
Power –Red Connect to a switched +12V source.
Ground –Black Connect to an engine block ground.
Tach Input –Grey Connect to the negative terminal of the ignition coil, or if using a high energy CD
ignition, connect to the TACH output of your ignition system instead of the coil.
Tach Output –Blue Connect to the negative/ground side of the device that you want to activate at the
desired RPM.
Warning: Most Late Model vehicles that don’t have a distributor, or have multiple coils will
require the use of a Tach Adapter.
If the device to which the blue wire is attached draws more than 3 amps, a relay must be used to
drive that device or damage will occur to the unit.
If your vehicle has a separate ignition coil, connect the gray wire to the negative (-) side of the coil –
the wire that goes to the points or electronic ignition module.
If your vehicle has a GM HEI ignition, connect to the terminal marked ‘TACH’, or, on some systems, a
single white wire with a spade terminal.
If your vehicle has an after-market ignition –some systems will connect to the TACH output terminal.
If your vehicle has a computer controlled ignition system, consult the service manual for the wire
color and location.
If your vehicle has a magneto system, connect the tach signal wire to the negative side of the coil. Do
not connect the tach terminal to the positive (+ or high voltage) side of the ignition coil.
This connection is either Normally Open (Blue wire provides ground AFTER the switch reaches desired
RPM) or Normally Closed (Blue wire is grounded UNTIL switch reaches desired RPM) according to the
setting in program mode (OFF means Normally Open and will supply ground when the selected RPM is
reached, ON means Normally Closed and the switch will open when the selected RPM is reached). Factory
default is Normally Open.
OPERATION:
The unit comes with a factory setting for an 8-cylinder engine, with activation at 5000 RPM Normally
Open. The display will stay in Settings Mode until it receives a signal from the ignition system. To
program the unit after starting the engine, shut the engine off and turn on only the ignition.
When in Settings Mode, use push buttons on the device face to change the RPM switch setting in
increments of 100 RPM at a time, up to 9900 RPM. The left button increases, while the right button
decreases. Once you are at the desired setting, the LED display will stay on the RPM setting for a few
seconds. After you have finished, the readout will continue to display your setting for a couple of
seconds, then it will proceed to the next setting which is the Deactivation setting. After setting the
desired ‘turnoff’ RPM, the unit will then jump to the NO and NC settings. Finally, wait a few seconds and

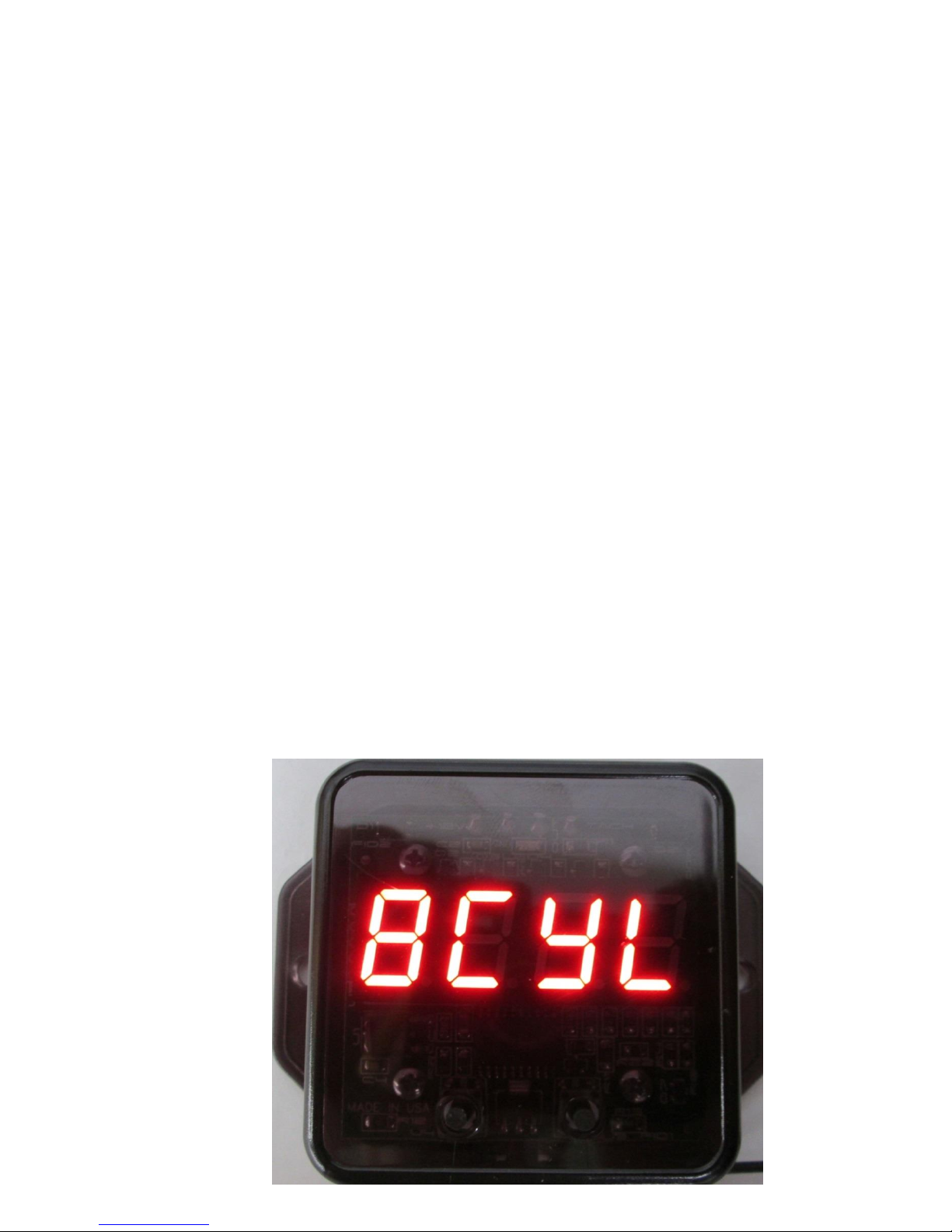

the device will move on to the final selection, number of cylinders. The device is programed for use
with 4, 6, and 8-cylinder engines. Use the left button to make your selection after the unit is done
displaying the NO/NC status. When you are satisfied with your settings, start your engine and your
device will start to operate automatically.
A blue LED will indicate when the switch is activated.
