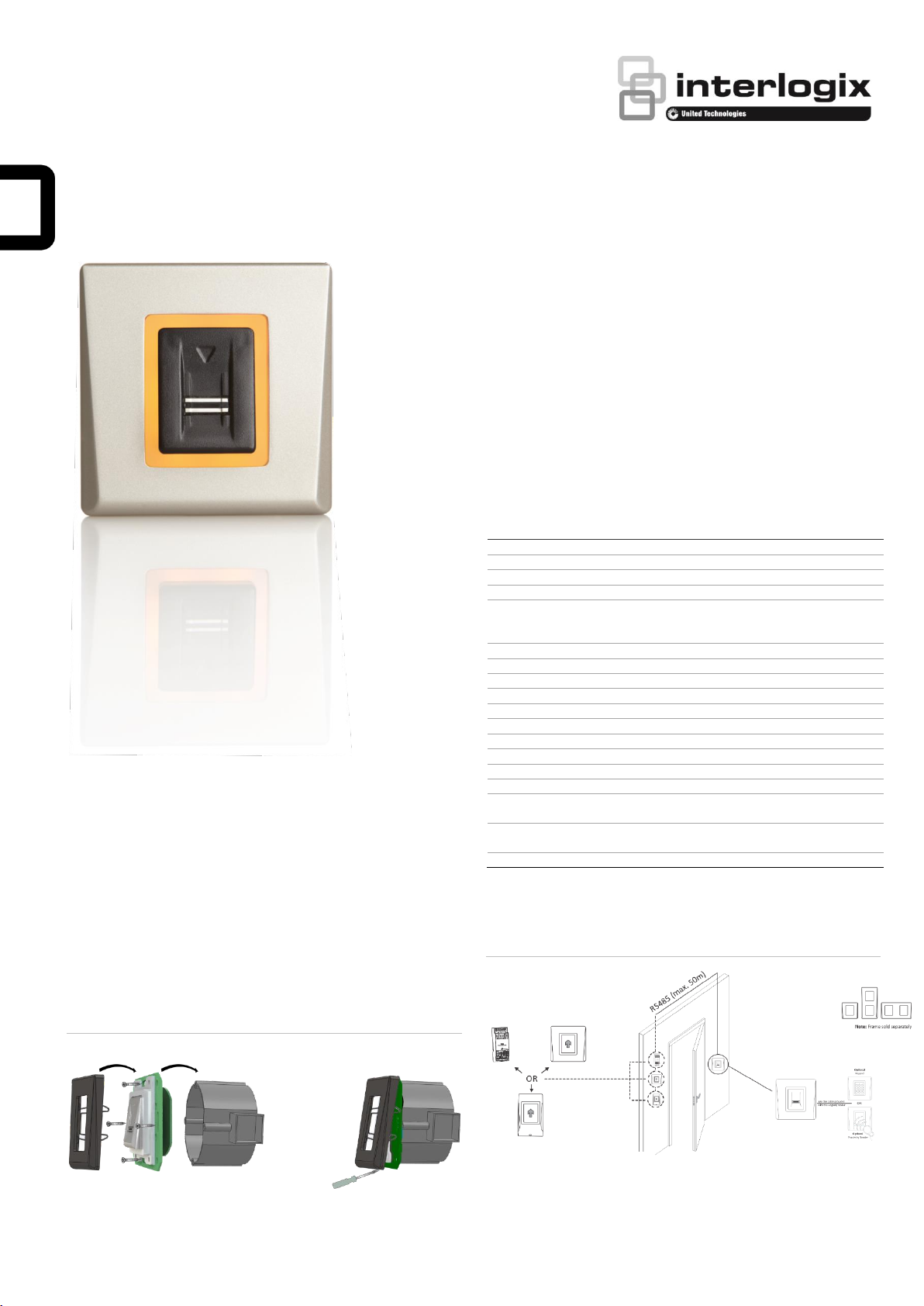

ACL870FL-BS - Standalone Biometric Reader -

Installation Instructions

Description / Operation

ACL870FL-BS is access control fingerprint reader designed for

easy management of the users and configuration. The scanner

is made with advanced capacitive sensing technology that

provides some advantages over optical solutions like:

- making almost impossible to make fake copy of the users

fingers

- same performance in the different light conditions

- good reading of fingers with stains from daily jobs

Built in strong scanning and matching algorithm provides

excellent tolerance in the way finger is swiped over the sensor

reducing to minimum the need to repeat finger swiping at the

sensor.

The reader can store up to 99 finger templates. One template

is reserved for user manager (Administrator), one template is

reserved for reader configuration (Installer) and up to 97

templates are for Users.

Mounting

Figure 1: Mounting instructions

•Do not install the device and cabling close to a source of

strong electro-magnetic fields like radio-transmitting antenna.

•Do not place the device near or above heating equipment.

•If cleaning, do not spray or splash water or other cleaning

liquids but wipe it out with smooth cloth or towel.

•Do not let children touch the device without supervision.

•Note that if the sensor is cleaned by detergent, benzene or

thinner, the surface will be damaged and the fingerprint can't

be entered.

Specifications

Fingerprint Capacity:

97 templates

Output:

1 x Relay (2 A at 24V AC/DC)

Push Button Input:

Yes

Door Open Time:

Pulse (1 to 30 seconds) or Toggle(ON/OFF)

Entry Mode:

Finger (basic installation)

Finger or Card (when used with card reader)

Finger or PIN code (when used with keypad)

Programming:

By swiping

Admin/Installer Fingers

1 Administrator and 1 Installer finger

Backlight ON/OFF:

Yes

Buzzer ON/OFF:

Yes

Tamper

Yes, activated on frame removal

Firmware upgrade:

via RS485 converter and windows application

Current Consumption:

100 mA max.

Power Supply:

9 to14 V DC

Indication:

Tricolor Status LED

IP Factor:

IP40

Storage/Operating

Temperature :

-20 to +50°C

Storage/Operating

Humidity:

5 to 93% noncondensing

Dimensions

80 x 80 x 9 mm

Application diagram

Figure 2: Application diagram

ACL870FL-BS

Outside

Secured Area

ACL800FL-RU2

ACL870FL-PB

ACL870SU-PB

2 / 9 P/N 1073516A• REV 01.01 • ISS 27AUG18

ACL800FL-RU2 : Optional) 2 Relay Remote Unit

ACL870FL-PB (Optional): 2 Relay Remote Unit and request-to-

exit Button

ACL870SU-PB (Optional) : 1 Relay Remote Unit and request-

to-exit Button

Wiring

Figure 3: Wiring

Recommended swiping technique

Figure 4: Swiping technique

Follow the below instructions for correct finger swiping. Starting

from the first finger joint, place the selected finger on the swipe

sensor and move it evenly downwards in one steady

movement.

Result:

For a valid swipe: Tricolour Status LED turns green + OK

beep(short + long beep)

For an invalid or misread swipe: Tricolour Status LED turns red

+ error beep ( 3 short beeps)

Indication

Adding admin finger

Close the jumper on the back of the

device

Reset the Power of the device

12/24VAC/DC

Wait for One long + multiple short

beeps

Open the jumper. (short beeps will

stop)

Wait for about 15 seconds for the LED

to blink in Orange

Swipe the Master finger min.6 times.

(Until Ok Beep)

Warning:

•This procedure also deletes all the users and the installer

finger.

•This procedure will unpair the connected relay unit

(ACL870SU-PB, ACL870FL-PB or ACL800FL-RU2)

Pairing - biometric reader and remote relay

unit

If secure installation is needed, the reader can be connected to

remote relay unit at secured area, which also can play the role

of request-to-exit push button. Follow the instructions bellow to

pair (couple) both devices or refer to the Remote Relay’s

Manual.

Pairing ACL870FL-BS with ACL870FL-PB

Figure 5: Wiring

1. Close the jumper. ACL870FL-PB beeps continuously and

the red led blinks.

2. Open the jumper.

3. Wait for beep + OK beep (short + short + long beep)

After the OK beep, the coupling is done.

Relay Output

Jumper (Adding Master Finger)

Connection to additional

card reader or keypad

Electric

Door

Strike

(DC

powered)

Tricolor Status LED :

Green - Access Granted

Red - Access denied

Orange - Idle Mode

OK Beep - short + long beep

Error Beep - 3 short beeps

Swipe Finger - 2 short beeps

P/N 1073516A• REV 01.01 • ISS 27AUG18 3 / 9

Pairing ACL870FL-BS with ACL870SU-PB

Figure 6: Wiring

1. Put dipswitch No.1 to position ON. ACL870SU-PB beeps

continuously and the red led blinks.

2. Put dipswitch No.1 to position OFF.

3. Wait for beep + OK beep (short + short + long beep)

After the OK beep, the coupling is done.

Pairing ACL870FL-BS with ACL800FL-RU2

Figure 7: Wiring

1. Put the jumper to closed position. ACL800FL-RU2 beeps

continuously and the red led blinks.

2. Put the jumper to open position.

3. Wait for beep + OK beep (short + short + long beep)

After the OK beep, the coupling is done.

Warning: Changing the ADMIN finger will also unpair the

remote relay unit.

Administrator programming

Use point fingers as Administrator and Installer. You can use the other fingers as access fingers. Administrator finger is enrolled at

the end of the system installation. Initial enrollment of the Admin finger is described in installer manual

Figure 8: Finger

ADD Finger Relay 1 (Finger that will activate relay 1)

Action

Finger

Backlight

Buzzer Sound

Swipe Admin Finger 1 time

X 1

slow

blinking

short beep

Wait 5 seconds (until fast blinking)

short beep

Swipe User Finger min. 6 times

(until short + long beep)

X 6

Fast blinking

short + long beep

Present card/tag 1 time

fast blinking

short + long beep

ADD Finger Relay 2 (Finger that will activate relay 2)

Action

Finger

Backlight

Buzzer Sound

Swipe Admin Finger 2 times

X 2

slow

blinking

short beep

Wait 5 seconds (until fast blinking)

short beep

Swipe User Finger min. 6 times

(until short + long beep)

X 6

fast

blinking

short + long beep

Present card/tag 1 time

fast blinking

short + long beep

INSTALLER

RIGHT

ADMIN

LEFT

4 / 9 P/N 1073516A• REV 01.01 • ISS 27AUG18

Relay 2 is available if the reader is used with remote relay unit with 2 relays (ACL870FL-PB and ACL800FL-RU2). Consult the

installer if Relay 2 is available in your system.

ADD Finger Relay 1&2 (Finger that will activate relay 1&2)

Action

Finger

Backlight

Buzzer Sound

Swipe Admin Finger 3 times

X 3

slow

blinking

short beep

Wait 5 seconds (until fast blinking)

short beep

Swipe User Finger min. 6 times

(until short + long beep)

X 6

fast

blinking

short + long beep

Present card/tag 1 time

fast blinking

short + long beep

Relay 2 is available if the reader is used with remote relay unit with 2 relays (ACL870FL-PB and ACL800FL-RU2). Consult the

installer if Relay 2 is available in your system.

DELETE Finger

Action

Finger

Backlight

Buzzer Sound

Swipe Admin Finger 4 times

X 4

slow

blinking

short beep

Wait 5 seconds (until fast blinking)

short beep

Swipe User Finger

X 1

fast

blinking

short + long beep

Present card/tag 1 time

fast blinking

short + long beep

DELETE ALL Fingers and Cards

Action

Finger

Backlight

Buzzer Sound

Swipe Admin Finger 4 times

X 4

slow

blinking

short beep

Wait 5 seconds (until fast blinking)

slow

blinking

short beep

Swipe Admin Finger 2 times

X 2

fast

blinking

multiple beeps

CHANGE ADMIN Finger

Action

Finger

Backlight

Buzzer Sound

Swipe Admin Finger 5 times

X 5

slow

blinking

short beep

Wait 5 seconds (until fast blinking)

slow

blinking

short beep

Swipe NEW Admin Finger

min.6 times

X 6

fast

blinking

short + long beep

CHANGE INSTALLER Finger

Action

Finger

Backlight

Buzzer Sound

Swipe Admin Finger 6 times

X 6

slow

blinking

short beep

Wait 5 seconds (until fast blinking)

slow

blinking

short + long beep

Swipe NEW Installer Finger

min.6 times

X 6

fast

blinking

3 short beeps

Connecting ACL870FL-BS with ACL800FLW proximity reader

P/N 1073516A• REV 01.01 • ISS 27AUG18 5 / 9

Connect both devices with the cable provided. The proximity reader will be powered via that cable. No extra power supply for the

proximity reader is needed. Once connected, no further settings are needed.

Administrator Programming block diagram

Swipe the ADMIN Finger 1 to 6 times depending of the desired menu

Installer programming

Set Relay 1 Time

Action

Finger

Backlight

Buzzer Sound

Swipe Installer Finger 1 time

X 1

slow

blinking

short beep

Wait 5 seconds (until fast blinking)

short beep

Swipe the INSTALLER Finger

and start counting seconds

X 1

fast

blinking

beeps on 1 second

Swipe the INSTALLER Finger

to stop or wait 30 seconds to

put the relay in toggle mode

X 1

fast

blinking

short + long beep

Set Relay 2 Time

Action

Finger

Backlight

Buzzer Sound

Swipe Installer Finger 2 times

X 2

slow

blinking

short beep

Wait 5 seconds (until fast blinking)

short beep

Swipe the INSTALLER Finger

and start counting seconds

X 1

fast

blinking

beeps on 1 second

Swipe the INSTALLER Finger

to stop or wait 30 seconds to

put the relay in toggle mode

X 1

fast

blinking

short + long beep

Relay 2 is available if the reader is used with remote relay unit with 2 relays (ACL870FL-PB and ACL800FL-RU2). Consult the installer if Relay 2 is

available in your system.

BUZZER ON/OFF

Action

Finger

Backlight

Buzzer Sound

Swipe Installer Finger 3 times

X 3

slow

blinking

short beep

Wait 5 seconds (until fast blinking)

short beep

Only in combination with

ACL870FL-PB andACL800FL-RU2

6 / 9 P/N 1073516A• REV 01.01 • ISS 27AUG18

Swipe Installer Finger

X 1

fast

blinking

short + long beep

BACKLIGHT ON/OFF

Action

Finger

Backlight

Buzzer Sound

Swipe Installer Finger 4 times

X 4

slow

blinking

short beep

Wait 5 seconds (until fast blinking)

short beep

Swipe Installer Finger

X 1

fast

blinking

short + long beep

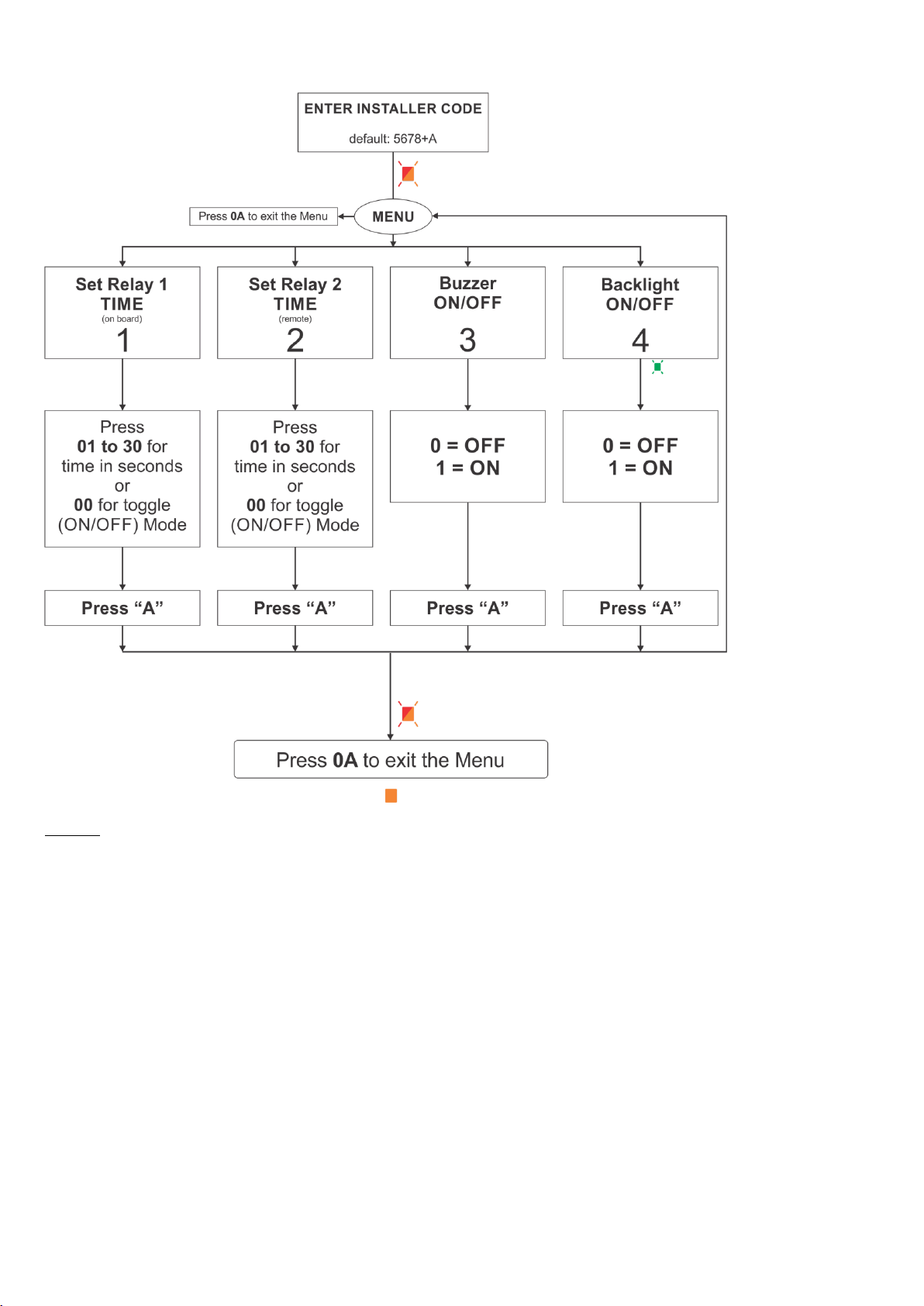

Installer Programming block diagram

Swipe the Installer Finger 1 to 4 times depending of the desired menu

Administrator programming by keypad

Programming by keypad can be done only if the ACL870FL-BS reader is connected to keypad ACL805FLW as shown in the

pictures bellow. The connection is done by the cable provided with the biometric reader. Once connected, the keypad must be put

in slave mode.

Connect both devices with the cable provided.

Only in combination with

ACL870FL-PB andACL800FL-RU2

P/N 1073516A• REV 01.01 • ISS 27AUG18 7 / 9

Put the keypad in slave mode:

Press B (3 seconds) + 000000

Press 0

Press 2

Press A to exit

Reset the device

Note: In some previous versions of our keypads, you can enter the menu only by pressing B + 000000. Please refer to the

Keypad’s Manual.

Administrator programming by keypad

Note: The Fingerprint can be deleted by keypad,

only if it is enrolled with keypad.

Example 1: Add user finger to Relay1 - Press 1234 + A + 1 + 1 + 1 + 01 + A + Enroll finger 6 times. 0A to exit.

Example 2: Add user PIN 147 to Relay2 - Press 1234 + A + 1 + 2 + 2 + 02 + A + 147 + A. 0A to exit.

Note: Entering this menu is done

by admin PIN Code. You cannot

enter with Admin Finger.

8 / 9 P/N 1073516A• REV 01.01 • ISS 27AUG18

Installer programming by keypad

Example: Change relay1 time to 2 seconds - 5678 + A + 1 + 02 + A.

Note: Entering this menu is done by

installer PIN code. You cannot enter

with Installer Finger.

P/N 1073516A• REV 01.01 • ISS 27AUG18 9 / 9

Regulatory information

Trademarks and

patents

The trade names used in this document may be

trademarks or registered trademarks of the

manufacturers or vendors of the respective

products.

Manufacturer

Interlogix.

2955 Red Hill Avenue, Costa Mesa, CA 92626

5923, USA

Authorized EU manufacturing representative:

UTC Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

Certification

European Union

directives

This product and - if applicable - the supplied

accessories too are marked with "CE" and

comply therefore with the applicable harmonized

European standards listed under the EMC

Directive 2014/30/EU, the RoHS Directive

2011/65/EU.

2012/19/EU (WEEE directive): Products marked

with this symbol cannot be disposed of as

unsorted municipal waste in the European Union.

For proper recycling, return this product to your

local supplier upon the purchase of equivalent

new equipment, or dispose of it at designated

collection points. For more information see:

www.recyclethis.info.

2013/56/EU & 2006/66/EC (battery directive):

This product contains a battery that cannot be

disposed of as unsorted municipal waste in the

European Union. See the product documentation

for specific battery information. The battery is

marked with this symbol, which may include

lettering to indicate cadmium (Cd), lead (Pb), or

mercury (Hg). For proper recycling, return the

battery to your supplier or to a designated

collection point. For more information see:

www.recyclethis.info.

Product warnings

and disclaimers

THESE PRODUCTS ARE INTENDED FOR

SALE TO AND INSTALLATION BY QUALIFIED

PROFESSIONALS. UTC FIRE & SECURITY

CANNOT PROVIDE ANY ASSURANCE THAT

ANY PERSON OR ENTITY BUYING ITS

PRODUCTS, INCLUDING ANY “AUTHORIZED

DEALER” OR “AUTHORIZED RESELLER”, IS

PROPERLY TRAINED OR EXPERIENCED TO

CORRECTLY INSTALL FIRE AND SECURITY

Manuali Sensore di sicurezza popolari di altre marche

THORLABS

THORLABS PDA10JT Manuale utente

Waeco

Waeco UV-DETECT Manuale utente

Intermatic

Intermatic IOS-DSIMF Manuale utente

urmet domus

urmet domus 1083 Manuale utente

Siemens

Siemens AZL66 Series Manuale utente

BTI

BTI Profiline Multi Finder Manuale utente

Challenger

Challenger SL01 Manuale utente

DMP Electronics

DMP Electronics 1122INT Manuale utente

Rielta

Rielta Ladoga MK-RK Manuale utente

Mirion Technologies

Mirion Technologies ACCURAD PRD Manuale utente

Bosch

Bosch DS835 Manuale utente

DBI SALA

DBI SALA EZ Stop Manuale dell'operatore

Lamptime

Lamptime ST05C Manuale utente

Ubiquiti

Ubiquiti MFI-MSC Manuale utente

Subsite

Subsite 910R Istruzioni per l'installazione

Satel

Satel OPAL Pro Manuale utente

Aleph

Aleph XC-1XTEU Manuale utente

Pima

Pima LARIS QUAD Manuale utente
