Intermatic T8845PV Manuale

MODEL: T8845PV

24 HR. DIAL TIME SWITCH WITH

14-DAY "SKIPPER®" AND TRANSFORMER

IN DUSTPROOF/RAINPROOF PLASTIC ENCLOSURE

INPUT: 110/125 VOLT A.C.

OUTPUT: 24 VOLT - 20 VA

CLOCK MOTOR: 110/125 VOLTS - 60 HZ.

PROGRAMMING INSTRUCTIONS:

1. TO SET FIRST ZONE: For watering, push gold pin into slot on yellow

dial at desired ON time. For each 12 minutes of additional watering

add one pin WITHOUT skipping a slot.

2. TO CHANGE ZONES: Leave one blank slot on yellow dial after ON

line (gold pin), and valve will automatically advance to next zone.

3. TO SET ADDITIONAL ZONES: Repeat steps 1 and 2. REMEMBER

to leave blank space between zones

4. TO SET TIME OF DAY: Turn yellow dial CLOCKWISE, until correct

line is at end of silver time pointer. Do NOT turn silver pointer.

5. TO SKIP DAYS: Turn black skipper wheel COUNTER-CLOCKWISE

until todays day is in front of "14" arrow. Press pins DOWN on days

of NO watering. The skipper wheel must have all pins UP for daily

watering.

6. PUT SELECTOR SWITCH IN AUTO: This switch can be used to turn

the system ON or OFF for manual operation without affecting the set

program.

IMPORTANT NOTICE: Use the one silver pin that is located at Midnight

on the yellow dial, it advances the skipper wheel automatically. Do NOT

use multiple silver pins.

CAUTION: Always disconnect power at main panel before servicing

this Switch or the equipment it controls.

INTERMATIC INCORPORATED

SPRING GROVE, ILLINOIS 60081-9698

158TS10974

TIME

POINTER

DIAL

SKIPPER

AUTO

TIME

DAY

SELECTOR

SWITCH

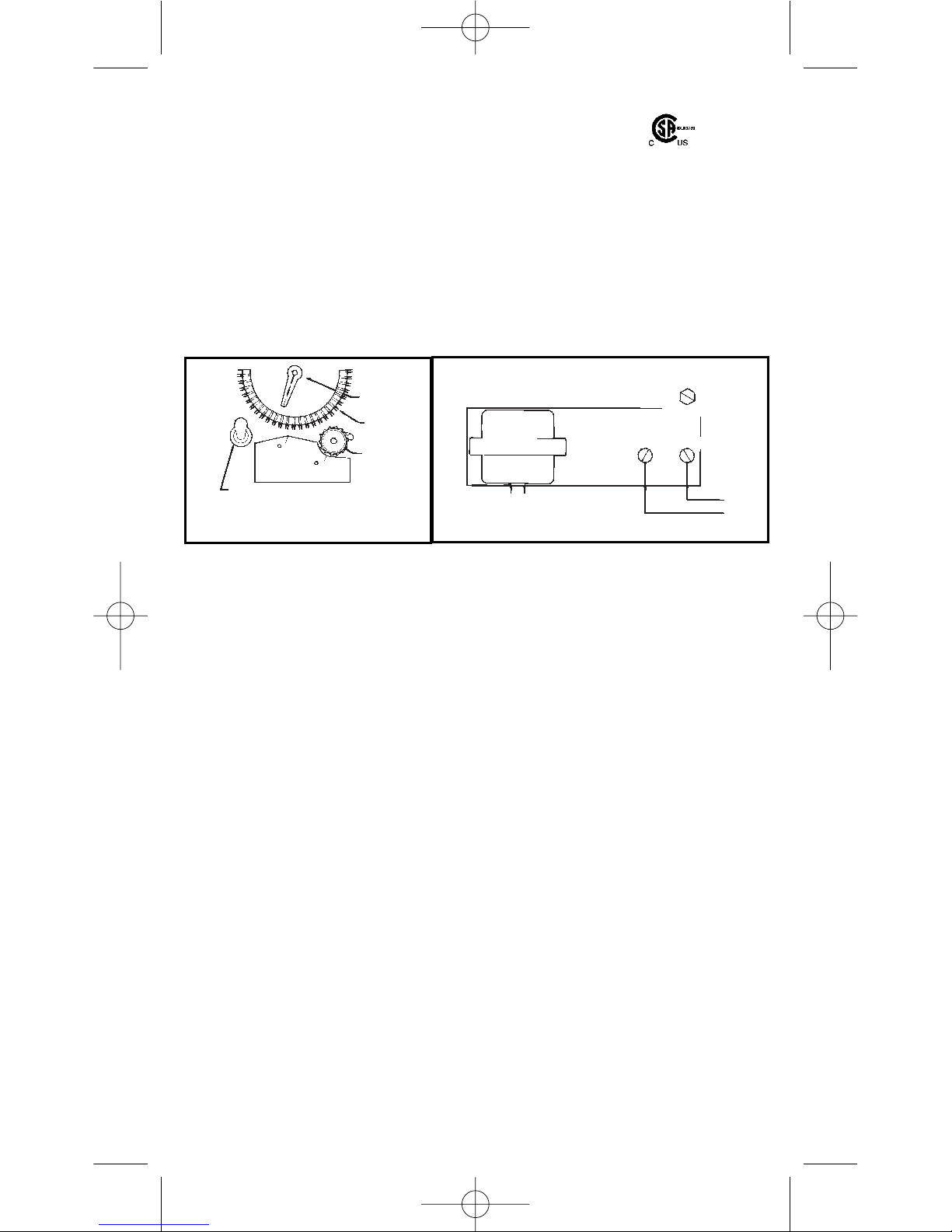

FIGURE 1

TRANSFORMER

WIRING DIAGRAM

GROUND

LINE NEUTRAL

BLACK WHITE

POWER IN

TO: 24 VOLT SOLENOID

LR3730

Project2 3/4/04 10:30 AM Page 1
