Intermec SF51 Manuale utente

USB Bluetooth Adapter

Adaptador USB Bluetooth

Instructions

Instruções

Contents

USB Bluetooth Adapter Instructions . . . . . . . . . . . . . . . . . . 3

Instruções para uso do adaptador USB Bluetooth. . . . . . . . 13

USB Bluetooth Adapter Instructions

The USB Bluetooth™ Adapter (Model BU-2073-J) (P/N 203-

771-xxx) lets you connect an SF51 or SR61 Cordless Scanner to

your host PC. Your shipping contents include these items:

• USB Bluetooth adapter

• Sheet of three Bluetooth association bar codes

• These instructions

If you need a software wedge tool, Intermec recommends

Intermec SmartWedge™. SmartWedge allows you to scan data

directly to your host PC application. To order SmartWedge,

contact your local Intermec sales representative.

Before you get started, you need to:

•installEasySet

®version 5.4.1 or later. EasySet is available on

the CD that ships with the scanner or from the Intermec web

site at www.intermec.com.

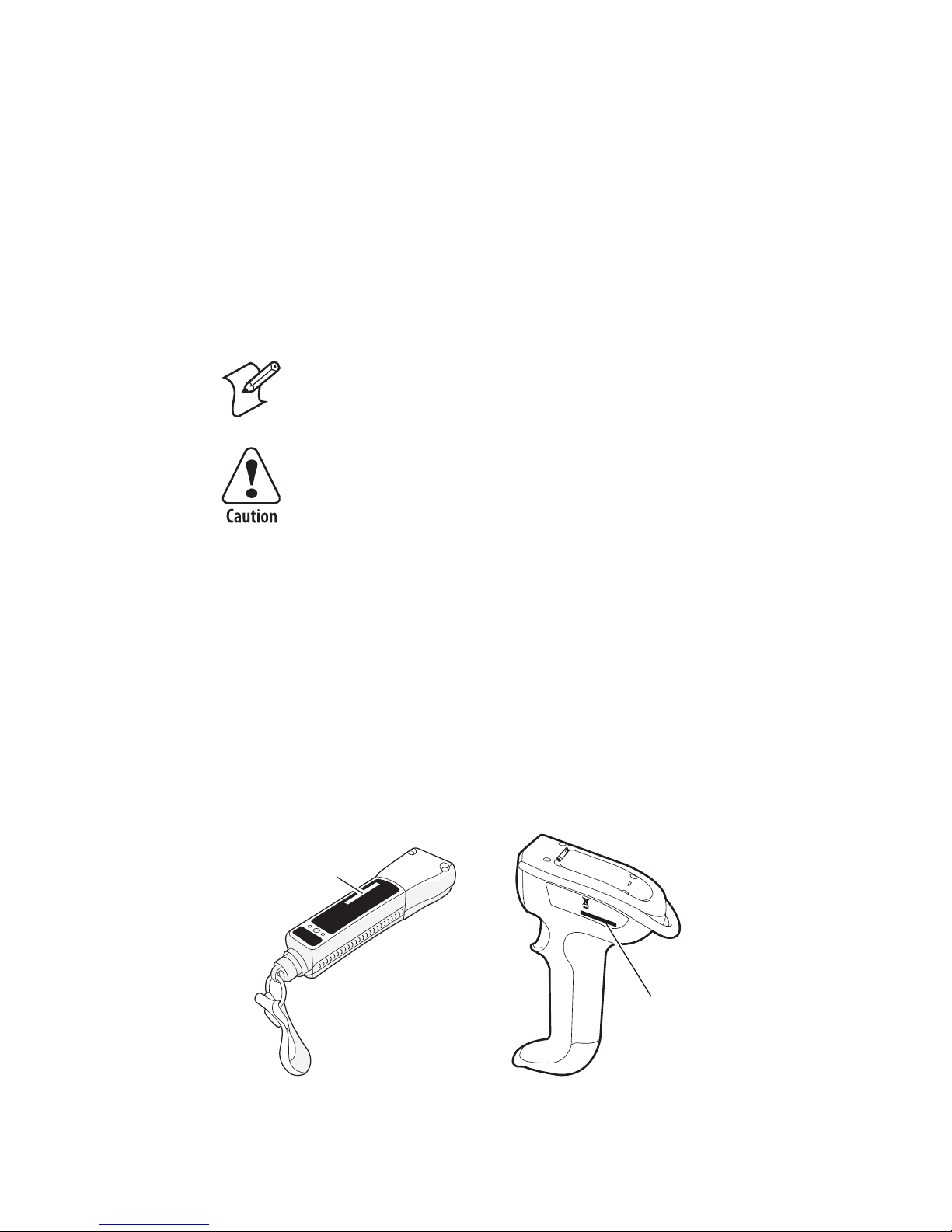

• note the Bluetooth address of your scanner.

SF51 Bluetooth Address SR61 Bluetooth Address

Note: Bluetooth is a trademark owned by Bluetooth

SIG, Inc., USA.

See Compliance Insert for use restrictions

associated with this product.

Bluetooth

address

BDA: xxxxxxxxxxxxxxxxx

XXXXXXXXXXXX

SN:XXXXXXXXXXX

CN:XXXXXXXXX

Made

in U.S.A.

Intermec Technologies Corporation

Everett,WA98203

MODEL: SR51

MFD:XXXXXXXXX2XXX

Bluetooth

address

• note the Bluetooth address of your Bluetooth adapter.

Bluetooth Adapter Bluetooth Address

To use the Bluetooth adapter

1Install the Bluetooth adapter on your host PC.

2(Microsoft Windows XP with SP1 and Microsoft Windows

2000 only) Set up your Bluetooth COM port.

3Pair your scanner with your host PC, and create a Bluetooth

connection between your scanner and host PC.

4Collect data with your scanner.

These instructions describe how to perform each step depending

on whether your host PC is running Microsoft Windows XP

with SP2, Microsoft Windows XP with SP1, or Microsoft

Windows 2000.

Microsoft Windows XP with SP2

Follow these procedures to use your SF51 or SR61 with your host

PC running Microsoft Windows XP with SP2.

Installing the Bluetooth Adapter

• Insert the adapter into a USB port on your PC. Windows XP

automatically detects and installs the adapter.

Pairing Your Scanner and Host PC

If you are planning on using the scanner with your host PC on a

regular basis, you should pair the two devices. Pairing saves

connection information between the scanner and your host PC.

To pair your scanner with your host PC

1Press the Scan button or pull the trigger on your scanner. The

scanner enters a discoverable state.

2On your PC desktop, double-click the Bluetooth icon on the

taskbar. The Bluetooth Devices window appears.

Bluetooth v2.0

Model: BU-2073-J CE0681

FCC ID:QQCBU2073J

BD:

000A35A5F2C3C3308T60944

USB Adaptor

Bluetooth

address

3Click Add. The Add Bluetooth Device wizard appears.

4Follow the onscreen instructions.

When you get to the passkey step, select Use the passkey

found in the documentation, and enter the default

Bluetooth PIN, which is 0000.

5Click Next. The Bluetooth Device wizard verifies the passkey,

and then the final screen of the wizard appears.

6Note the COM ports that are being used for incoming and

outgoing communication and click Finish.

Connecting Your Scanner to Your Host PC

There are two ways to create a Bluetooth connection:

• Connect from your scanner. Using this method, you can only

connect one scanner to your host PC. When you place the

SF51 in a 1-bay charger or remove and install the battery in

an SR61, the scanner resets and the Bluetooth connection is

lost. After the scanner resets, it automatically reconnects to

your host PC.

• Connect from your host PC. Using this method, you can

connect more than one scanner to your host PC.

Connecting From Your Scanner

You can connect from your scanner to your data collection

application or EasySet on your host PC. This section describes

how to connect to EasySet.

To connect from your scanner to EasySet on your host PC

1To turn on your scanner, press the Scan button or pull the

trigger.

2Scan the Bluetooth association bar code that ships with the

adapter.

The scanner beeps once, the green status light flashes once,

and the blue Intermec Ready-to-Work™ indicator starts

blinking.

3Start EasySet version 5.4.1 or later. Make sure that SF51 or

SR61 is selected as your product.

4To verify your connection with EasySet, select

Communication > Connect. The Online Setup dialog box

appears.

5Select the incoming COM port that you previously noted and

click OK.

When the scanner connects to your host PC, it emits a series

of beeps from low to high, and the blue Intermec Ready-to-

Work indicator turns on and stays on.

6To disconnect from EasySet, select Communication >

Disconnect.

The scanner disconnects from EasySet, emits a series of beeps

from high to low, and the blue Intermec Ready-to-Work

indicator starts blinking.

You are now ready to connect to your application. The method

for connecting depends on your data collection application.

To disconnect from your host PC

•Scanthisbarcode:

Bluetooth DeviceDisconnect

\60\02\52\05\00\00\06\00\00\00\00\00\00\00\00\00

The scanner disconnects from your host PC, emits a series of

beeps from high to low, and the blue Intermec Ready-to-Work

indicator turns off.

Connecting From Your PC

You can connect from your PC through your data collection

application or EasySet. This section describes how to connect

using EasySet.

To connect from your PC using EasySet

1To turn on your scanner, press the Scan button or pull the

trigger. The scanner enters a discoverable state.

2Start EasySet version 5.4.1 or later. Make sure that SF51 or

SR61 is selected as your product.

3Select Communication > Connect. The Online Setup dialog

box appears.

4Select the outgoing COM port that you previously noted and

click OK.

When the scanner connects to your host PC, it emits a series

of beeps from low to high, and the blue Intermec Ready-to-

Work indicator turns on and stays on.

5To disconnect from EasySet, select Communication >

Disconnect.

Collecting Data With Your Scanner

1If necessary, configure your data collection application to

receive data from the incoming (connecting from your

scanner) or outgoing (connecting from host PC) COM port

that you previously noted.

2Connect to your PC from your scanner and start your data

collection application.

Or, connect to your scanner from your host PC using your

data collection application.

3Scan a bar code with your scanner. The data is entered into

your application.

Microsoft Windows XP with SP1 and Microsoft

Windows 2000

Follow these procedures to use your SF51 or SR61 with your host

PC running Microsoft Windows XP with SP1 or Microsoft

Windows 2000.

Installing the Bluetooth Adapter

1Go to the Intermec web site at www.intermec.com.

2From the Service & Support menu, select Downloads.

3From the Select A Product drop-down list, choose the SF51

or SR61 scanner.

Note: Do not insert the adapter until you are

prompted to by the software.

4Click the link to download the Windows Driver for USB

Bluetooth Adapter (P/N 203-771-xxx), and save the software

to your PC.

5Install the Windows Driver software on your PC, and follow

the onscreen instructions.

When prompted, insert the Bluetooth adapter into a USB

port on your PC and click OK. When the installation is

complete, a message box appears telling you to restart your

system.

6Click Yes to reboot your PC. The Windows drivers and

Bluetooth Settings application are installed.

Setting Up Your Bluetooth COM Port

1On your PC desktop, from the Start menu, select Settings >

Control Panel.

2Double-click Bluetooth Local COM.

3In the Existing COM Ports list, find the COM port whose

owner is LocalCOM-Server.

4Select the COM port, and click Delete. A message box

appears.

5Click Yes to confirm that you want to delete the COM port.

6Click Add. The Bluetooth Local COM Setup Wizard

appears.

7On the first screen of the wizard, select Create a Bluetooth

virtual COM port for a server.

8Follow the onscreen instructions to create the COM port.

9Note the COM ports for the LocalCOM-Server and the

LocalCOM-Client.

10 To close the Bluetooth Local COM window, click OK.

11 Close the Control Panel.

Connecting and Pairing Your Scanner and Host PC

Pairing saves connection information between the scanner and

your host PC. Your scanner and host PC are automatically paired

the first time you create a Bluetooth connection.

There are two ways to create a Bluetooth connection:

• Connect from your scanner. Using this method, you can only

connect one scanner to your host PC. When you place the

SF51 in a 1-bay charger or remove and install the battery in

an SR61, the scanner resets and the Bluetooth connection is

lost. After the scanner resets, it automatically reconnects to

your host PC.

• Connect from your host PC. Using this method, you can

connect more than one scanner to your host PC.

Connecting From Your Scanner

1Start your data collection application.

2Select the LocalCOM-Server COM port that you noted in

Step 9 of the previous procedure.

3To turn on your scanner, press the Scan button or pull the

trigger.

4Scan the Bluetooth association bar code that ships with the

adapter.

The first time you connect, the scanner beeps once and the

green status light flashes once.

When the Bluetooth Manager window appears, in the BT

Security field, enter 0000 and click OK.

The scanner connects to your host PC, emits a series of beeps

from low to high, and the blue Intermec Ready-to-Work

indicator turns on and stays on.

To disconnect

•Scanthisbarcode:

Bluetooth DeviceDisconnect

\60\02\52\05\00\00\06\00\00\00\00\00\00\00\00\00

The scanner disconnects from your host PC, emits a series of

beeps from high to low, and the blue Intermec Ready-to-Work

indicator turns off.

To determine the Bluetooth COM port

1Double-click the Bluetooth icon on the taskbar. The

Bluetooth Settings window appears.

2Select your SF51 or SR61, and click the Detail button.

3Note the COM port listed in the Port Name field.

Connecting From Your PC

1Press the Scan button or pull the trigger on your scanner. The

scanner enters a discoverable state.

2On your PC desktop, right-click the Bluetooth icon on the

taskbar and select Add New Connection. The Add New

Connection Wizard appears.

3Select Custom Mode, and click Next. The wizard searches for

Bluetooth devices.

4In the Bluetooth Device list, select your scanner, and click

Next. The wizard tries to connect to your scanner, and the

Bluetooth Manager - Bluetooth Security box appears.

5In the Bluetooth Passkey (PIN) field, enter the default

Bluetooth PIN, which is 0000 and click OK.

6In the Service Selection list, make sure that Serial Port is

selected, and click Next.

7In the Assignment of COM Port Name box, deselect the Use

default COM port check box. A message box appears

recommending using the default setting.

8Click OK.

Altri manuali per SF51

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Intermec Adattatore

Intermec

Intermec CK60 Ethernet Multidock Manuale utente

Intermec

Intermec 1004UA02 Manuale utente

Intermec

Intermec CN2 Manuale utente

Intermec

Intermec Trakker Antares 2400 Manuale utente

Intermec

Intermec CN3 Series Manuale utente

Intermec

Intermec AA12 Manuale

Intermec

Intermec CN2A Manuale utente

Intermec

Intermec CN50 Manuale utente

Intermec

Intermec CK60 Ethernet Multidock Manuale utente

Intermec

Intermec CK70 RFID Manuale utente

Intermec

Intermec CN51 Manuale utente

Intermec

Intermec AA23 Manuale utente

Intermec

Intermec USB Bluetooth Adapter Manuale utente

Intermec

Intermec EasyLAN 10I2 Manuale utente

Intermec

Intermec Sabre 1552 Scanner Manuale utente

Intermec

Intermec CN50 Manuale utente

Intermec

Intermec CN70 RFID Manuale utente

Intermec

Intermec Ethernet Adapter Manuale utente

Intermec

Intermec EasyLAN 100E Manuale utente

Intermec

Intermec ColorCoder 901 Manuale utente

Intermec

Intermec BSM-RN41 Manuale utente

Intermec

Intermec SF51 Manuale utente

Intermec

Intermec CN3 Series Manuale utente

Intermec

Intermec CN70 RFID Manuale utente

Manuali Adattatore popolari di altre marche

PCB Piezotronics

PCB Piezotronics 090B274 Manuale utente

Auvidea

Auvidea J20 Manuale del prodotto

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manuale utente

Akribis

Akribis ITF-21-BISS-MIT Manuale utente

Tenda

Tenda W54U Manuale utente

ROHO

ROHO AGILITY Manuale utente

PROLiNK

PROLiNK WN2001 Manuale utente

Hawking

Hawking HUF2 Manuale utente

Airlink101

Airlink101 AWLC4030 Manuale utente

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manuale utente

Philips

Philips SWA4554S/10 Manuale utente

JVC

JVC TS-C9D2B Manuale di istruzioni

NETGEAR

NETGEAR A6100 Manuale utente

D-Link

D-Link DWA-121 Manuale utente

Philips

Philips SWA2037 Manuale utente

Basalte

Basalte 0610-20 Manuale utente

Yealink

Yealink EHS40 Manuale utente

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manuale utente
