Intermec SG20B Manuale utente
Charge Base
SG20B
Instructions
SG20B 充电基座说明
SG20B 充電座說明
Instructions relatives au socle de charge SG20B
Anleitung für das SG20B Akkuladegerät
SG20B 충전 거치대 안내서
Instruções para base de carga SG20B
Инструкции к базовой станции SG20B
Instrucciones para la Base cargadora SG20B
คำ�แนะนำ�ก�รใช้ฐ�นช�ร์จ SG20B
ii SG20B Charge Base Instructions
Contents
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
SG20B Charge Base Instructions. . . . . . . . . . . . . . . . . . . . . . . 3
SG20B 充电基座说明 . . . . . . . . . . . . . . 7
SG20B 充電座說明 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Instructions relatives au socle de charge SG20B . . . . . . . . 15
Anleitung für das SG20B Akkuladegerät . . . . . . . . . . . . . . 20
SG20B 충전 거치대 안내서 . . . . . . . . . . . . . . . . 24
Instruções para base de carga SG20B . . . . . . . . . . . . . . . . . . 28
ИнструкцииѝкѝбазовойѝстанцииѝSG20Bѝ.ѝ.ѝ.ѝ.ѝ.ѝ.ѝ.ѝ32
Instrucciones para la Base cargadora SG20B . . . . . . . . . . . 37
คําแนะนําการใชฐานชารจ SG20B. . . . . . . . . . . . . . . . . . . . . . . . . 42
SG20B Charge Base Instructions 3
SG20B Charge Base Instructions
These instructions explain how to install and use the SG20B
charge base.

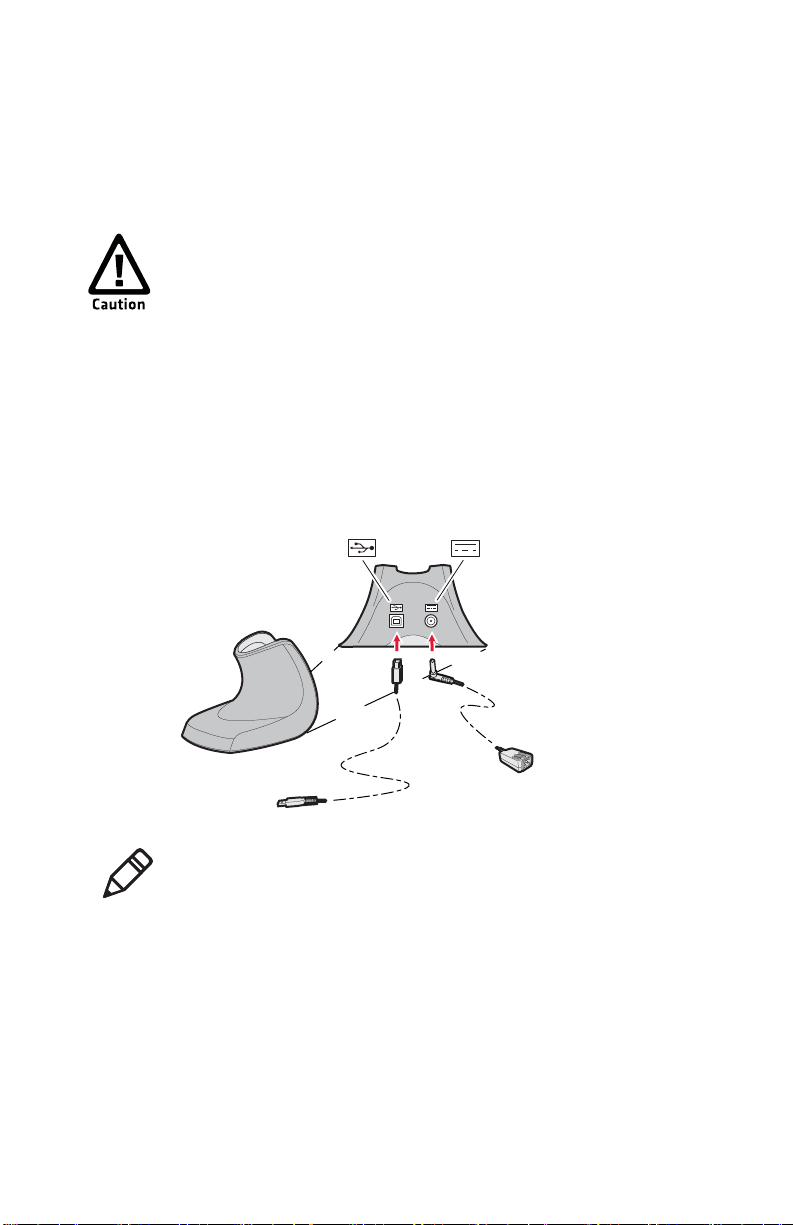

Connecting Power
You need one of the following cables sold and ordered separately:
•DC power supply (P/N 851-089-xxx), which requires a
country-specific power cord, or
•A standard USB cable
See the SG20B Charge Base Compliance Insert for use
restrictions associated with this product.
Note: The host USB port must deliver 500 mA to power the
charge base. If you have a message that the host does not
provide enough power use a different USB hub or disconnect
other USB devices.
4 SG20B Charge Base Instructions

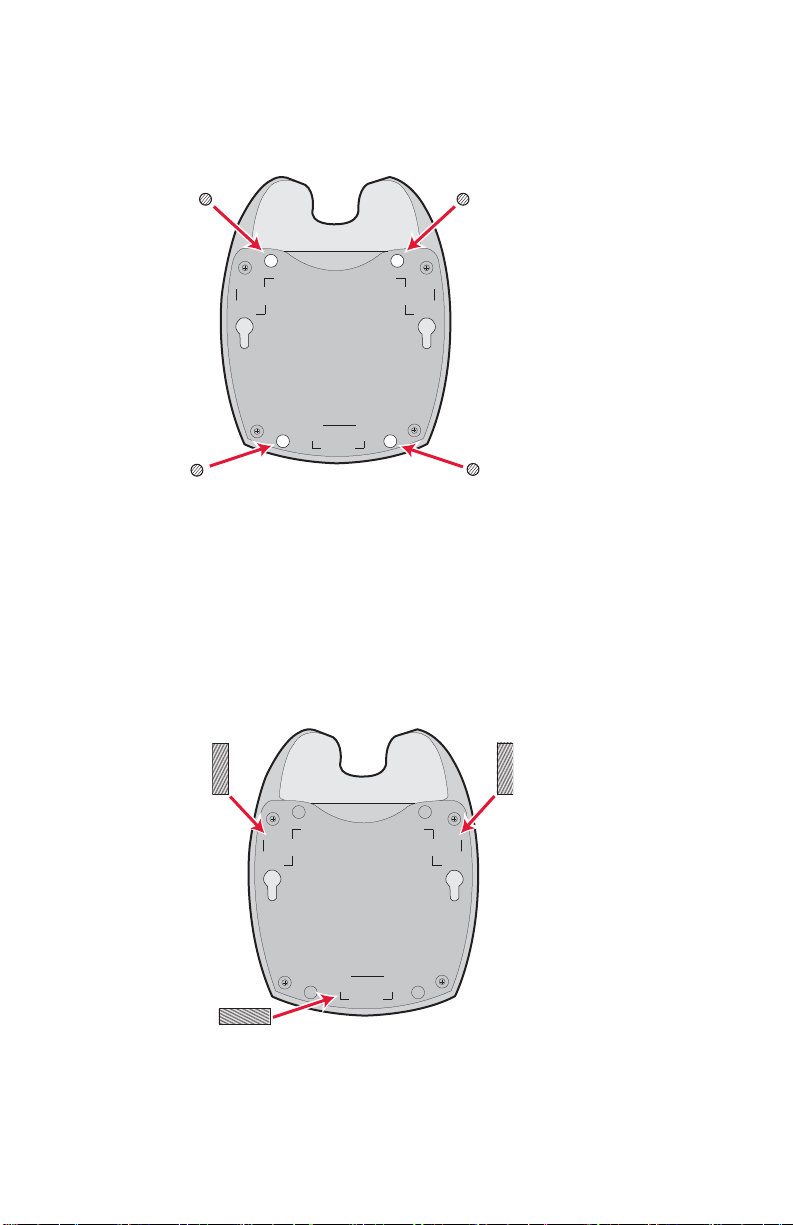

Unmounted Installation
Attach the rubber feet (provided) to the feet locations.
Mounted Installation
Mount the charge base:
•Using double-sided foam tape (provided) or
•Using mounting hardware (not provided)
To install using double-sided foam tape
•Attach the foam tape to the tape location and stick the
charger on a flat and clean surface.
SG20B Charge Base Instructions 5

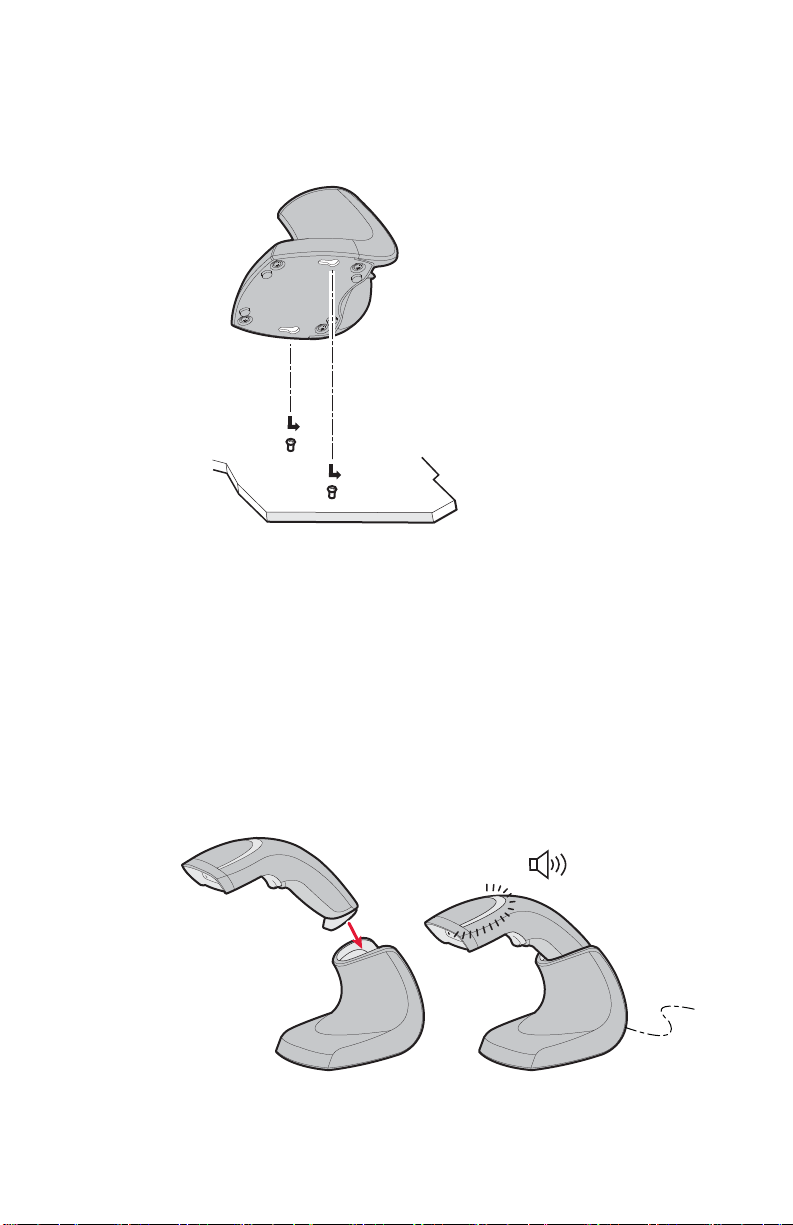

To install using mounting hardware
•Use the mounting template on the back cover to correctly
install mounting hardware.
Charging the SG20B Scanner
When the scanner is correctly docked in the charger it beeps
twice.
If the scanner does not beep when inserted in the charge base
check the following:
•Scanner is correctly inserted in the charger base.
•Power is supplied to the charge base via the correct DC power
supply or USB cable (= 500 mA).
•Battery contacts are clean. To clean the contacts, rub them
with a pencil eraser and remove any eraser debris.
6 SG20B Charge Base Instructions
Understanding the Status Light
Specifications
Electrical requirements: x5V ± 10%
Operating temperature: 0° C to 50° C (32° F to 131° F)
Storage temperature: -20°C to 60°C (-4°F to 140°F)
Relative humidity: 5% to 95% non-condensing
Where to Find More Information
To download manuals, go to www.intermec.com. For Product
Support, go to intermec.custhelp.com or call 1-800-755-5505.
Charging Times
Charging Mode Charging Time
Fast charge (DC connector) Approximately 3 hours
Slow charge (USB connector) Approximately 6 hours
Color Description
Flashing green Charge in progress
Flashing red
(scanner not in charge base)
Battery low
Flashing amber Battery fault
Green light on Battery is fully charged.
SG20B Charge Base Instructions 7
SG20B 充电基座说明
这些说明介绍如何安装和使用 SG20B 充电基座。

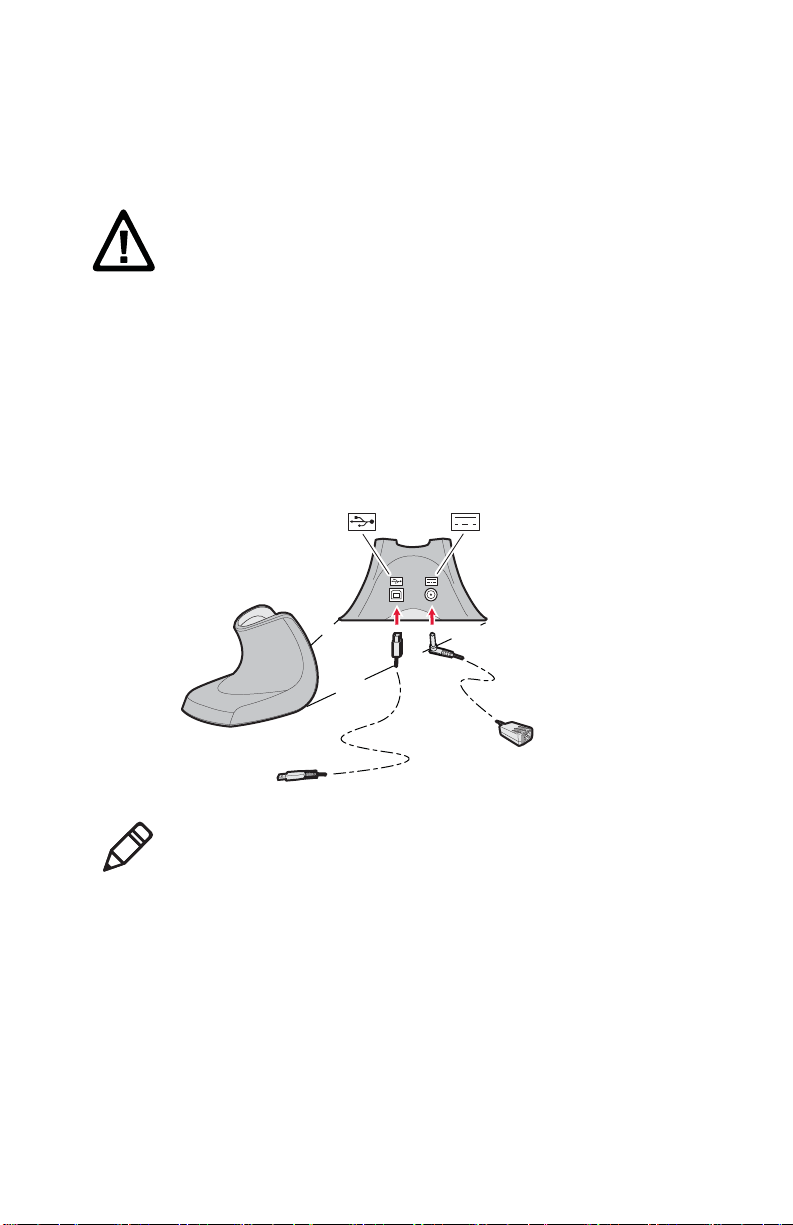

连接电源
您需要以下单独出售或订购的电缆之一：
•直流电源 (P/N 851-089-xxx)，需要特定国家 / 地区专用的
电源线，或
•标准 USB 电缆
注意 : 有关本产品相关的使用限制，请参阅 SG20B 充电基座
符合性插页。
注：主机 USB 端口必须为充电基座提供 500 mA 的电源。如
果您收到主机未提供足够电源的消息，请使用不同的 USB 集
线器或断开其他 USB 设备。
8 SG20B Charge Base Instructions
已取消装配的安装
将橡胶脚垫 （提供）连接到脚垫位置。
已装配的安装
安装充电基座：
•使用双面泡棉胶带 （提供）或
•使用固定五金器件 （未提供）
使用双面泡棉胶带安装
•将泡棉胶带粘到胶带位置，并将充电器粘在平整干净的表
面上。
SG20B Charge Base Instructions 9

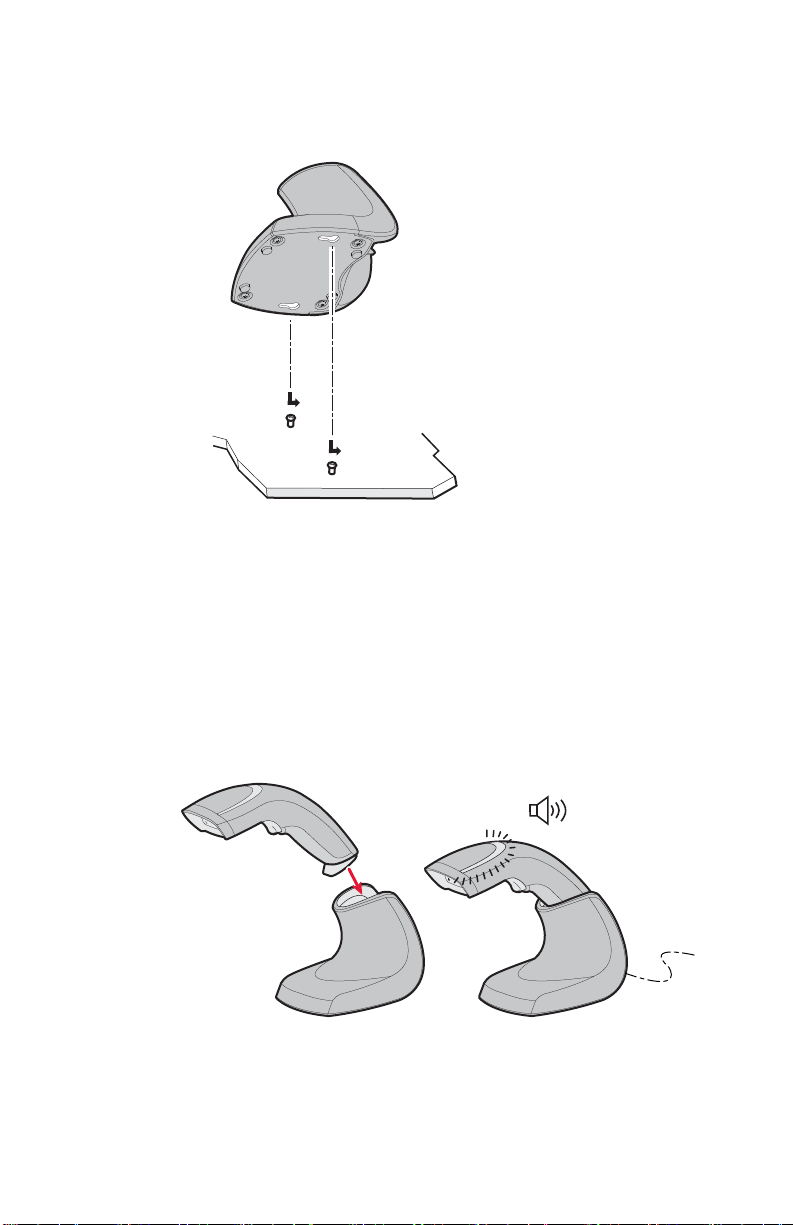

使用固定五金器件安装
•在背面使用固定面正确安装固定五金器件。
为 SG20B 扫描仪充电
当扫描仪正确对接到充电器中后，会发出两次嘟嘟声。
如果扫描仪插入充电基座后未发出嘟嘟声，请检查以下事项：
•扫描仪正确插入到充电基座中。
•通过正确的直流电源或 USB 电缆 (= 500 mA) 向充电基座
供电。
•电池触点清洁。要清洁电池触点，请使用铅笔橡皮擦拭，
之后将橡皮屑清理干净。
10 SG20B Charge Base Instructions
了解状态指示灯
规格
电气要求：x 5V ± 10%
工作温度： 0° C 至 50° C （32° F 至 131° F）
存储温度： -20°C 至 60°C （-4°F 至 140°F）
相对湿度： 5% 到 95% 非冷凝
有关详细信息
要下载手册，请访问 www.intermec.com。要获取产品支持，
请访问 intermec.custhelp.com 或致电 1-800-755-5505。
充电时间
充电模式 充电时间
快速充电 （直流电连接器） 大约 3 小时
慢速充电 （USB 连接器） 大约 6 小时
颜色 说明
闪烁绿色 正在充电
闪烁红色
（扫描仪未在充电基座中）
电量低
闪烁黄色 电池故障
绿灯亮 电池已充满
