IOGear MiniView Extreme GCS1732 Manuale utente
MiniView™ Extreme
Multimedia KVMP Switch
User Manual (GCS1732 / GCS1734)
®
Thank you for purchasing one of the most feature rich KVM and peripheral sharing switch on the market.
IOGEAR’s MiniView™ Extreme Multimedia KVMP Switch brings extra value to conventional KVM switches
by offering USB peripheral sharing capabilities, audio and microphone support, and multi-platform support
for Mac, Sun, USB and PS/2. You can save money and space by eliminating the need for multiple monitors,
keyboards, mice, and peripheral devices such as printers, scanners, zip drives, and more. Up to 127
different USB devices can be daisy chained from this KVMP switch. Sharing speakers and a microphone
also offers extra value and convenience for the users.
USB and KVM technology together makes cross-platform management easy. A single USB console can
control a PC and a Mac, or even a Sun workstation, and share peripherals and audio devices between the
computers. Any USB-enabled computers, using any USB-compatible operating system, can benefit from
the efficiency, expense reduction and convenience of IOGEAR’s Miniview Extreme KVMP switch.
We hope you enjoy using your Miniview™ Extreme Multimedia KVMP switch, yet another first-rate
connectivity solution from IOGEAR.
©2005 IOGEAR. All Rights Reserved. PKG-M0085C
IOGEAR, the IOGEAR logo, MiniView, VSE are trademarks or registered trademarks of IOGEAR, Inc. Microsoft and Windows are registered trademarks of
Microsoft Corporation. IBM is a registered trademark of International Business Machines, Inc. Macintosh, G3/G4 and iMac are registered trademarks of
Apple Computer, Inc. IOGEAR makes no warranty of any kind with regards to the information presented in this document. All information furnished here is
for informational purposes only and is subject to change without notice. IOGEAR, Inc. assumes no responsibility for any inaccuracies or errors that may
appear in this document.
1
Table of Contents
Package Contents
Overview
Features
Requirements
Introduction
Installation
Operation
Keyboard Emulation for Mac and SUN
The Firmware Upgrade Utility
Appendix
Specification
Technical Support
Radio & TV Interference Statement
Limited Warranty
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
02
03
04
05
06
10
13
24
26
34
35
37
38
39
○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○
○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○
2
Package Contents
This package contains:
1 MiniView™ Extreme Multimedia KVMP Switch (GCS1732 or GCS1734)
2 or 4 bonded KVM Cables (2 for GCS1732, 4 for GCS1734)
1 Power Adapter
1 Firmware Upgrade Cable
1 User Manual
1 Quick Start Guide
1 Warranty/Registration Card
If any items are damaged or missing please contact your dealer.
3
Overview
Overview
IOGEAR’s new MiniView™ Extreme Multimedia KVMP Switch brings extra value to conventional KVM
switches by offering USB peripheral sharing capabilities, audio and microphone support, and multi-platform
support for Mac, Sun, USB and PS/2. You can save money and space by eliminating the need for multiple
monitors, keyboards, mice, and peripheral devices such as printers, scanners, zip drives, and more. Up to
127 different USB devices can be daisy chained from this KVMP switch. Sharing speakers and a microphone
also offers extra value and convenience for the users.
USB and KVM technology together makes cross-platform management easy. A single USB console can
control a PC and a Mac, or even a Sun workstation, and share peripherals and audio devices between the
computers. Any USB-enabled computers, using any USB-compatible operating system, can benefit from the
efficiency, expense reduction and convenience of IOGEAR’s Miniview™ Extreme Multimedia KVMP switch.
4
Features
Features
• Multi functional switch allows multiple USB or PS/2 (additional cables needed) computers to share one USB
console and two USB peripheral devices such as printers and scanners, as well as speakers and a microphone
• User can conveniently switch USB peripheral devices from one computer to another using Hot Keys
• USB peripheral devices and USB consoles can be switched asynchronously from one computer to
another using Hot Keys
• Fully compliant with USB 1.1 specifications and delivers a 12 Mbps data transmission rate
• Complete keyboard and mouse emulation for error free booting
• Support special keys on Mac and Sun keyboard
• Allows PC keyboards to simulate Mac and Sun special keys through Hotkeys
• Features AutoScan mode to monitor all computers
• LED display for easy status monitoring
• Superior video quality - supports resolutions up to 2048 x 1536
• Extra convenience offered through sharing of speakers and microphone
• Easy installation: no software required, hot swappable
• Compact design for easy placement
5
System Requirements
• Computers with USB or PS/2 connections (additional cables needed for PS/2 computers)
• Windows 98, 98SE, ME, 2000, XP
• Mac OS 8.6 or greater
• Sun Solaris work station
• Linux, UNIX and other USB supported systems*
*Additional drivers and support may be needed
Audio
Only 2-piece, powered speaker system is supported
Requirements
Accessories
•PS/2 KVM Cable (G2L5302P)
• USB KVM Console Extender (GCE700)

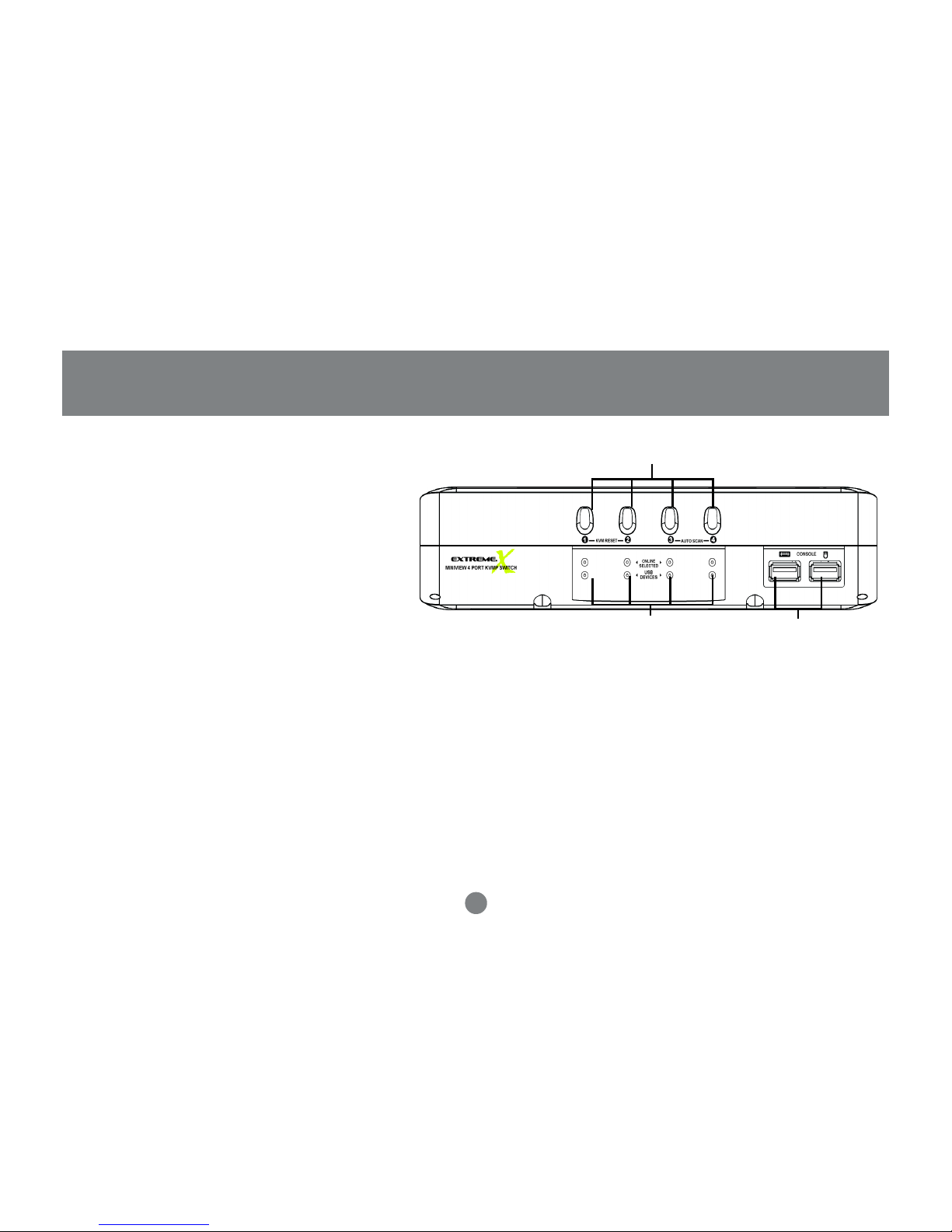

Front View
1. Port Selection Buttons
•Press a switch for less than two (2)
seconds to bring only the KVM focus
to the computer attached to its
corresponding port
•Press a switch for longer than two
(2) seconds to bring the KVM, USB
hub, and Audio focus to the
computer attached to its
corresponding port
•Press switches 1 and 2
simultaneously for two (2) seconds
to start Auto Scan Mode.
•Press switches 3 and 4
simultaneously for two (2) seconds
to perform a keyboard and mouse
reset
1
23
2. Port LEDs
The Port LEDs are built into the Port Selection Switches. The
upper ones are the KVM Port Status LEDs; the lower ones are
the USB Peripheral Selected LEDs:
KVM Status LEDs: Lights DIM ORANGE to indicate that
the computer attached to the corresponding port is up and
running (On Line); lights BRIGHT ORANGE to indicate that
the computer attached to its corresponding port is the one
6
Introduction
that has the KVM focus (Selected); flashes to
indicate that the computer attached to its
corresponding port is being accessed under Auto
Scan mode.
USB Peripheral Selected LEDs: Lights to
indicate that the computer attached to its
corresponding port is the one that has access to
the USB peripherals.
3. USB Console Ports
Your USB keyboard and USB mouse plug in here.
7
Introduction

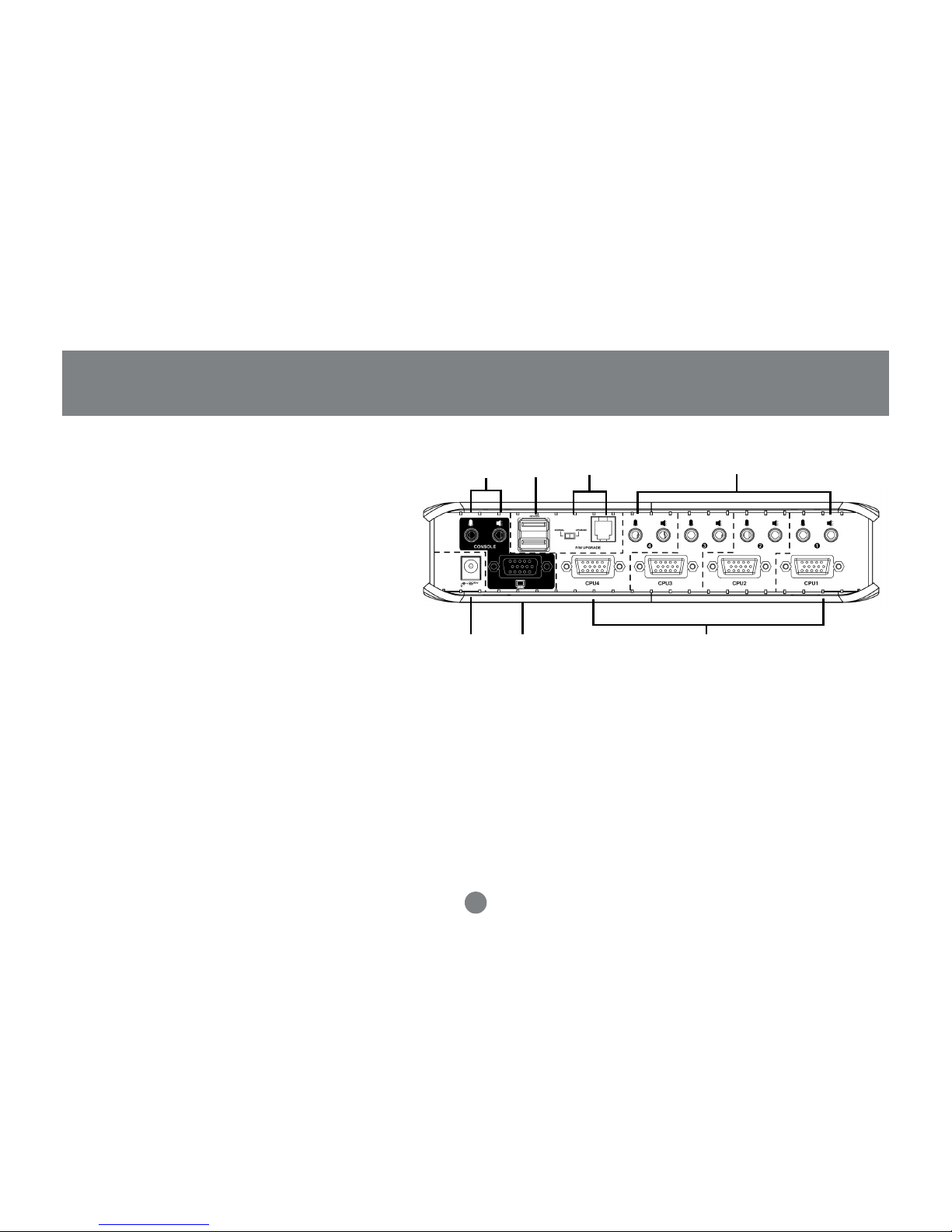

Back View
1. Console Audio Jacks
The cables from your microphone and
speakers plug in here. Each jack is marked
with an appropriate icon to indicate itself.
2. USB Peripheral Section
USB peripherals (printers, scanners, etc.)
plug in here.
3. Firmware Upgrade Section
• Firmware Upgrade Recovery Switch:
During normal operation and while performing
a firmware upgrade, this switch should be in
the NORMAL position.
• Firmware Upgrade Port:
The Firmware Upgrade Cable that transfers
the firmware upgrade data from the
administrator’s computer to the GCS1732 /
GCS1734 plugs into this RJ-11 connector.
See Pg. 25 for firmware upgrading details.
4. Power Jack
The power adapter cable plugs into this jack.
5. Monitor Port
The video cable from your monitor plugs in here.
6. CPU Port Section
The cables that link the switch to your computers plug
in here. Each CPU port is comprised of a microphone
1236
654
8
Introduction
