Irrigreen2 Installation Manual
Irrigreen® Digital Sprinklers
Wi-Fi Cloud Connected Controller Waterproof Plug-n-Play Cabling
16 Digital Zones 12 Valve Zones
Installation Video
1.1.1
0921 1
Smart Irrigation Zone
Design Video - IOS
Irrigreen Products
Controller Cable
(50 ft w/end plug)
Digital Sprinkler
(1 per zone, ~2000 sq. ft.)
Irrigreen2 Wi-Fi / Cloud Controller
16/12: 16 Digital Zones, 12 Valve Zones
32/24: 32 Digital Zones, 24 Valve Zones
24 VAC Transformer
w/ 10’ wire (40VA, indoor)
1” Ultrasonic
Flow Sensor
(optional) 2
Cable Tee (w/end plug)
Sprinkler Cable (50ft)
CableLok
Secures water-proof
cable connectors
FlexPipe (15 in.)
Connects head to mainline
1” MPT to mainline tee
Other Items Needed
(Not supplied by Irrigreen)
1“ Mainline
PVC or poly
6” valve boxes
*One for each Digital Zone
Protects cable connections
Holds extra sprinkler cable length
*One for optional flow sensor
*As needed for valve zones
1” Tees with 1” female pipe thread
PVC or poly
For connecting Flex-Pipe to mainline
1” Elbows and connectors
PVC or poly
3
Irrigreen System Requirements
Good flow, Constant pressure, Clean Water
•8 gpm Lower flow = shorter throw)
•Important to check flow, some homes have 3/4” pipe inside the home,
which restricts flow to the irrigation system, lessening throw
•40 - 80 psi (Any constant pressure between 40 - 80 psi)
•Well systems require a constant pressure pump or regulated constant pressure supply, e.g. with
a pressure regulating valve (PRV) set below the lowest pump setting
•Filter required for any water source with particulates (sand, grit, lake water)
500 Micron filter (similar to drip systems)
4
System Design (1 of 2)

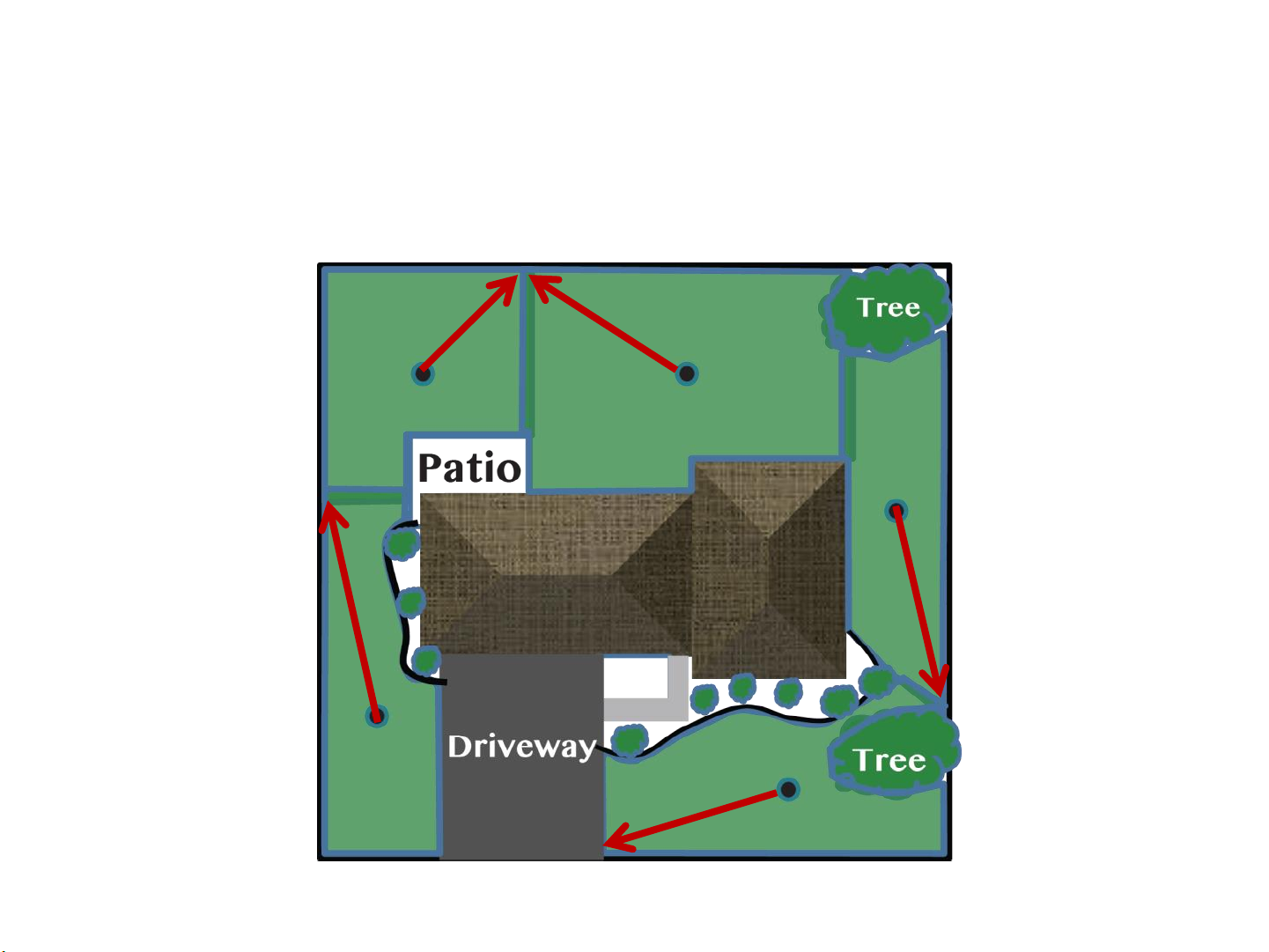

One Head per Zone
Place Head to Reach Farthest Corner, 25-35 Feet
Exact placement
not critical as you
can program the
head to the shape
of the zone
Don’t overlap
sprays or zones
Installation hint:
Walk in from the
corner with a wheel
and place a flag at
25-30’ for head
placement.
NOTE: The zone
start up point
(Position 1)
must be set at
least 10 feet so
the head has
enough
flow/pressure to
fully “pop up”.
After head is
fully popped up,
OK to set points
as short as 5
feet.
5
System Design (2 of 2)
One Head per Zone
Place head 5 feet or more from the nearest edge*
*For narrow
zones less than
10’ wide, place
head along edge
and program in
a ~180 degree
pattern
6
Irrigreen Throw Distances
Verify psi before placing heads
Low flow may affect throws
Maximum Throw
40 psi 25’
50 psi 27.5’
60 psi 30’
70 psi 32.5’
80 psi 35’
Minimum Throw
40 psi 5’
50 psi 5’
60 psi 5’
70 psi 5’
80 psi 5’
7
Total Area
At 60 psi, one Irrigreen head will evenly water up to ~2000 sq.ft.
Any line-of-sight shape within a 60 foot diameter circle
8
6” Valve box next to each head for
cable connectors and extra cable
Download the IG2 mobile app (raindrop logo)
Follow IOS App Instructions. Scan barcode with App
For Android, connect to Irrigreen Wi-Fi network and enter system password
(Calibration and Auto Water require IOS App)
Controller broadcasts an Irrigreen Wi-Fi signal
Wi-Fi Range: As a low-power radio signal;
range can be greatly affected by surroundings
Controller location, landscape elevations (soil,
hardscapes), house construction (stucco, steel, etc.)
can all lessen Wi-Fi range. A Wi-Fi extender may
needed to extend range while mapping zones.
IrriGreen has Wi-Fi extenders available.
9
Irrigreen2
App Icon
(The Green and
Blue Icon apps are
for legacy systems)
10
2 AAA
System Wiring
