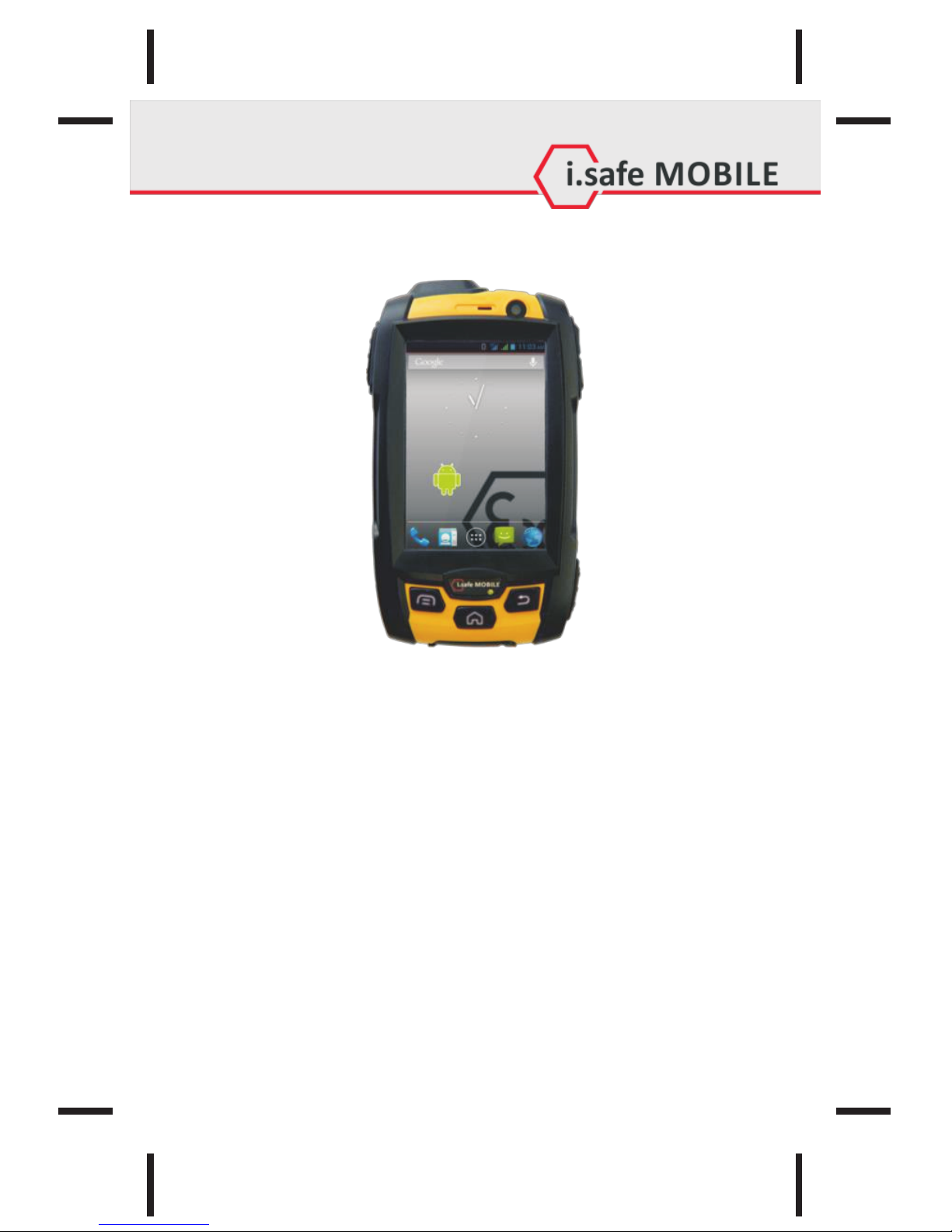

ISAFE MOBILE Innovation 2.0 Manuale dell'operatore

INNOVATION 2.

Quick Start Manual

and

Safety Instructions

Schnellstartanleitung

und

Sicherheitshinweise

Template: TEMPMD01REV00

Document No. 1008DI02REV01

Version: 2013-11-04

Reservation: Technical Data is subject to change without notice. Changes,

errors and misprints may not be used as a basis for any claim for damages.

i.safe MOBILE GmbH

cannot be held responsible for any data or other loss

and direct or indirect damages caused by any improper use of this phone.

Vorbehalt: Technische nderungen behalten wir uns vor. nderungen, ä ä

Irrt mer und Druckfehler begr nden keinen Anspruch auf Schadensersatzü ü .

F r üDatenverluste oder andere Sch den ägleich welcher Art, die durch den

unsachgem en Gebraäßuch des Telefons entstanden sind, bernimmtü die

i.safe MOBILE GmbH

keine Haftung.

i.safe MOBILE GmbH

i_PARK TAUBERFRANKEN 14

97922 Lauda-Koenigshofen

Germany

Tel. +49 9343/60148-0

info@isafe -mobile.com

www.isafe-mobile.com

Note / Hinweis

This document contains a quick start guide and the safety instructions

necessary for the safe use of the smartphone

INNOVATION

2.0

in ex-

plosive atmospheres. The first part details the English instructions, the

second part the German translation.

More detailed instructions on the use of the phone

can be found at

www.isafe-MOBILE.com

or directly at i.safe MOBILE GmbH.

Dieses Dokument enth lt die notwendigen Sicherheitshinweise f r die ä ü

sichere Verwendung des Smartphones INNOVATION 2.0

in explosions-

f higen Bereichen. Der erste Teil enth lt die englischen Anweisungen, ä ä

der zweite Teil die deutsche bersetzuüng.

Detailliertere Informationen erhalten sie unter www.isafe-MOBILE.com

oder direkt bei der i.safe MOBILE GmbH.

Contents

Introduction

Ex-Specifications

Faults and Damages

Ex-relevant Safety Regulations

Further Safety Advises

i.safe PROTECTOR 12

Keys 13

First Steps 14

8.1

Battery 14

8.2

Installation of the SIM Cards 16

8.3

Installation of the Micro-SD Card 17

8.4

First Use 17

8.5

Locking and Unlocking the phone

8.6

Using the Touchscreen 19

8.7

Connecting the phone with a computer

Display Layout 20

9.1

Status Bar 20

9.2

Quick Access Panel 22

9.3

Home Screen 23

Specifications 25

Troubleshooting

Maintenance

Safety Instructions

Introduction

This document contains information and safety regulations which are to

be observed without fail for safe operation of the smartphone

INNOVATION 2.0

under the described conditions Non.-observance of

this information and instructions can have serious consequences and /

or may violate regulations.

Please read the manual and these safety instructions before using the

phone. In case of contradicting information the text of these safety .

instructions shall apply.

In case of any doubt, the German version shall apply.

The current EC declaration of conformity, EC and IECEx certificates of

conformity, safety instructions and manual can be found at www.isafe-

mobile.com, or requested from i.safe MOBILE GmbH.

Note

This document contains only the instructions necessary for setting up

and safe use of your phone. A complete Quick Start Manual can be

found in the root folder of the Micro-

SD card

of the phone

or at

www.isafe-mobile.com.

Please consult 8.7

to learn how to access the Micro-SD card from any

computer.

Safety Instructions

Ex-Specifications

The

INNOVATION 2.0

is a

smartphone

suitable for use in potentially

explosive atmospheres (zones 1, 21, 2 and 22) in accordance with direc-

tives 94/9/EC (ATEX 95) and 99/92/EC (ATEX 137), as well as the IECEx

scheme.

Ex-markings

ATEX

II 2G Ex ib IIC T4 Gb

II 2D Ex ib IIIC T135 C Db IP6X

EPS 13

ATEX 1 579

2004

IECEx: Ex ib IIC T4 Gb

Ex ib IIIC T135 C Db

IP6X

IECEx EPS 13.0025X

Temperature range: -20

...

+60 C

Manufactured by: i.safe MOBILE GmbH

i_PARK TAUBERFRANKEN 14

97922 Lauda-Koenigshofen

Germany

Safety Instructions

Faults and Damages

If there is any reason to suspect that the safety of the phone

has been

compromised, it must be withdrawn from use and removed from any

ex-hazardous areas immediately.

Measures must be taken to prevent any accidental restarting of the

phone.

The safety of the phone

may be compromised, if, for example:

malfunctions occur .

the housing of the phone

or the battery shows damage.

the phone

has been subjected to excessive loads.

the phone

has been stored improperly.

markings or labels on the phone are illegible.

It is recommended that a phone which shows or which is suspected of

faults and damages is returned i.safe MOBILE GmbH

for inspection.

Safety Instructions

Ex-relevant Safety Regulations

Use of this phone

assumes that the operator observes the conventional

safety regulations and has read and understood manual, safety instruc-

tions and certificate.

The following safety regulations must also be complied with:

Inside ex-hazardous areas

the phone must be closed.

The battery has

to be fixed by the two screws and the cover of the USB interface has

to be closed.

The battery may only be exchanged or charged outside ex-hazardous

areas.

The phone may only be charged outside ex-hazardous

areas using the i.safe PROTECTOR USB-cable or other equipment ap-

proved by i.safe MOBILE GmbH.

USB-connections to other equipment are only allowed outside ex-

hazardous areas using the i.safe PROTECTOR

USB-cable or other

equipment approved by i.safe MOBILE GmbH.

Use only the appropriate battery type BPI02A.

It is not allowed to carry spare batteries into ex-hazardous areas.

The phone

may be charged only at temperatures in between 0 C

...

45 C.

The phone

must not be exposed to abrasive acids or bases.

The phone

must not be taken into zones 0 or 20.

Only accessories approved by i.safe MOBILE GmbH

may be used.

Safety Instructions

5 Further Safety Advises

Do not touch the screen of the phone with sharp objects. Dust parti-

cles and nails may scratch the screen. Please maintain the screen

clean. Remove dust on the screen with a soft cloth gently, and do not

scratch the screen.

Charge the

phone

under indoor conditions only.

Please do not put the phone

in environments with excessive temper-

atures, as this could lead to heating

of the battery, resulting in

fire or

explosion.

Do not charge the phone

near any flammable or explosive substanc-

es.

Do not charge the phone

in environments

with much dust, humidity,

or excessively high or low temperatures

(the permitted charging

temperature range is 0

...

45 C).

Do not use the phone

in areas where regulations or legislatives pro-

hibit the use of a mobile phone.

Do not expose the phone, battery or charger

to strong magnetic

fields, such as are emitted from induction ovens or micro-waves.

Do not attempt to open or repair the phone.

Improper repair or

opening can lead to the destruction of the phone, fire or explosion.

Only authorized personnel are allowed to repair the phone.

Only use accessories approved by i.safe MOBILE GmbH.

Please do not directly connect the poles of the battery, to avoid

short-circuiting

the battery.

Power off the phone

in hospitals or other places where the use of

mobile phones

is prohibited. This phone

may

affect proper work of

medical equipment, such as pacemakers, so always keep a

distance

of at least 15 cm between the phone

and these devices.

Observe all

corresponding laws that are in force in the respective

countries

regarding the use of mobile phones while operating a vehi-

cle.

Please power off the phone

and disconnect the charging cable before

cleaning

the phone.

Do not use any chemical cleaning agents to clean

the phone

or the

charger. Use a damp and anti-static soft cloth

for cleaning.

Safety Instructions

Do not discard

old and abandoned lithium batteries into the trash,

send them to designated waste disposal locations or return them to

i.safe MOBILE GmbH.

The user alone is responsible for any and all damages and liabilities

caused by malware downloaded when using the network or other da-

ta-exchange functions of the phone. i.safe MOBILE GmbH cannot be

held responsible for any of those claims.

Warning

i.safe MOBILE GmbH

will not assume any liability for damages caused by

disregarding any of these advices or by any inappropriate use of the

phone.
