ENGLISH

EX MARKINGS

ATEX:

II 3G Ex ic IIC T4 Gc

II 3D Ex ic IIIC T135°C Dc

EU Type Examination Certicate:

EPS 21 ATEX 1 126 X

CE-designation:

IECEx:

Ex ic IIC T4 Gc

Ex ic IIIC T135°C Dc

IECEx Certicate: IECEx EPS 21.0043X

Temperature range:

-10°C … +60°C (EN/IEC 60079-0)

-10°C … +50°C (EN/IEC 62368-1)

Manufactured by:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Germany

EXRELEVANT SAFETY REGULATIONS

Use of this device assumes that the operator observes the conventional safety regulations and

has read and understood Operating Manual, Safety Instructions and certicate.

When used in explosion hazardous areas, the following Safety Instructions must also be

complied with:

Inside explosion hazardous areas the covers of all interfaces (USB) must be closed.

To ensure the IP-protection, it has to be ensured that the all gaskets are present and functi-

onal. There must be no large gap between the two halves of the housing and between the

battery compartment cover and housing.

The device may only be charged outside explosion hazardous areas using the Type C USB

Cable or other equipment approved by i.safe MOBILE GmbH.

The device may only be charged at temperatures between +5 °C to +35 °C.

Physical connections to to IS360.2 are only allowed outside explosion hazardous areas using

the Type C USB Cable or other equipment approved by i.safe MOBILE GmbH.

The device may not be exposed to any aggressive acids or alkalis.

The device may only be used in zones 2 or 22.

INFORMATION CONCERNING SAR CERTIFICATION

SPECIFIC ABSORBATION RATE

The SAR limit of Europe is 2.0 W/kg for the head and body, 4.0 W/kg for the limbs. The device

has been tested against this SAR limit. The highest SAR value reported under this standard

during product certication for use at the ear is 0.816 W/kg and when correctly worn on the

body is 0.774 W/kg , limbs is 1.453 W/kg.

This device was tested for typical body worn operations with the back of the handset kept 5

mm from the body. The device complies with RF specications when used at 5 mm from the

body. Belt clips, holsters and similar accessories used should not contain metallic components

in the assembly. The use of accessories that do not satisfy these requirements may not comply

with RF exposure requirements, and should be avoided.

READ AND UNDERSTAND THE INSTRUCTIONS

PROTECT YOUR LIFE AND READ THE OPERATING MANUAL

This Operating Manual is part of the device IS360.2 (model M360A01). This Operating

Manual provides important information for safe use of the device.

Before using the device, read this Operating Manual carefully and pay particular attention

to the “Safety” section and the warnings highlighted with the warning symbol.

Also read the Safety Instructions before using the device.

You can nd these at www.isafe-mobile.com/en/support/downloads.

Make sure you have access to this Operating Manual when you need it. You can nd the

current Operating Manual at www.isafe-mobile.com/en/support/downloads.

Follow all instructions given on the device and on the packaging.

Follow local safety regulations.

INTENDED USE

The IS360.2 is an Internet-capable communication device for industrial use in explosion

hazardous areas of Zone 2/22, in accordance with Directives 2014/34/EU,

2014/53/EU and the IECEx system, among others.

Only use the device as described in this Operating Manual. Any other use is considered impro-

per and can lead to death, severe injuries and damage to the device.

The manufacturer i.safe MOBILE GmbH does not assume any liability for damage caused by

improper use. The warranty expires in the event of improper use.

EN 5

WARRANTY

You can nd the warranty conditions at www.isafe-mobile.com/en/support/service.

For any damage caused by computer viruses that you download while using the Internet

functions responsibility is at your hand.

There is no right of recourse against i.safe MOBILE GmbH.

EU DECLARATION OF CONFORMITY

You will nd the EU declaration of conformity at the end of this Operating Manual or at

www.isafe-mobile.com/en/support/downloads.

EX MARKINGS

ATEX:

II 3G Ex ic IIC T4 Gc

II 3D Ex ic IIIC T135°C Dc

EU Type Examination Certicate:

EPS 21 ATEX 1 126 X

CE-designation:

IECEx:

Ex ic IIC T4 Gc

Ex ic IIIC T135°C Dc

IECEx Certicate: IECEx EPS 21.0043X

Temperature range:

-10°C … +60°C (EN/IEC 60079-0)

-10°C … +50°C (EN/IEC 62368-1)

Manufactured by:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Germany

DEVICE OVERVIEW/FUNCTIONS

13 14

EN 7

1 3.5 MM AUDIO JACK: Connect to the 3.5mm headphone or the 3.5mm wired

hand microphone.

2 FUNCTION KEY: Optional key used by dierent apps.

3 LED INDICARTOR: Indicates charging and notication.

4 POWER KEY: A long press switches the device on/o. A short press to turn on/o

the display.

5 FUNCTION KEY: Optional key used by dierent apps.

6 LOUDNESS CONTROL: Volume up/Volume down.

7 CURRENT APPLICATION: Shows all open applications.

8 HOME KEY: Switch to the main screen.

9 BACK KEY: Go to the previous screen.

10 MICROPHONE: Use for calling

11 LOUDSPEAKER

12 USB INTERFACE:

Connection for the Type C USB Cable or for connection to

other devices.

13 REAR CAMERA.

14 MICROPHONE: Noice reduction microphone for hands-free calls

15 BELT CLIP

16 CHARGING CONTACTS

SAFETY

Read the “Safety” section of this Operating Manual carefully before using the device. If you

do not follow these instructions or do not understand them, this could lead to death, severe

injuries and damage to the device.

USER

Only trained users who are qualied in the use of Ex devices in explosion hazardous areas and

who have read and understood this Operating Manual may use this device.

USE IN EXPLOSION HAZARDOUS AREAS

DANGER

Improper use can result in death or severe injuries!

Only use the device in explosion hazardous areas of zones2/22 or outside of

explosion hazardous areas.

Before entering a explosion hazardous area with the device,

•make sure that only approved accessories are connected to the device, see section

“Connecting approved accessories”,

•make sure that no gap can be seen between the two halves of the device,

•make sure the device is not damaged,

•make sure that all the labels on the device are readable,

•make sure the battery is screwed tight.

If you use the device in a explosion hazardous area,

read and follow the instructions in the “Possible User Errors” section.

Switch o the device immediately and leave the explosion hazardous area without delay if

•malfunctions occur on the device,

•you have damaged the housing of the device,

•you have exposed the device to excessive loads,

•the labels on the device are no longer readable.

USE OUTSIDE OF EXPLOSION HAZARDOUS AREAS

DANGER

Improper use can result in death or severe injuries!

Do not use the device in places where its use is prohibited.

Turn o the device in clinics or other medical facilities.

Always keep a safety distance of at least 15cm between the device and a pacemaker or

hearing aid. The device can aect the functioning of medical devices such as pacemakers and

hearing aids.

Make sure the volume level is not set at an excessive level when connecting

earphones and headphones to protect your hearing.

When using the device while driving a motor vehicle, be sure to comply with applicable

national laws.

Make sure you prevent the user errors described in the section entitled “Possible User Errors”.

Only charge the device as described in the “Charging” section.

EN 9

NOTICE

Incorrect use can damage the device.

Only use accessories approved by i.safe MOBILE, as described in the section on

“Connecting approved accessories”.

Protect the device and the Adapter from strong electrical magnetic elds as for example those

emitted by induction cookers or microwave ovens, for example.

Do not touch the display with sharp objects.

POSSIBLE USER ERRORS

DANGER

Improper use can result in death or severe injuries! Follow the instructions below:

Do not modify the device structurally.

Do not expose the device to high temperatures.

Do not expose the device to strong UV radiation.

Do not expose the device to processes with high electrical charges.

Do not expose the device to aggressive acids or bases.

When working in explosion hazardous areas, please note:

Do not loosen the screws on the device.

Do not connect any accessories to the device.

Do not open any interface cover.

Do not charge the device.

Do not open the device.

Do not damage the device.

SCOPE OF DELIVERY

Your device packaging contains the following:

1 x IS360.2

1 x Battery

1 x Quick Start Manual

1 x Safety Instructions

1 x Display Protection Foil

1 x Type C USB Cable

1 x Adapter universal (power supply and various country-specic power adapters)

1 x Screwdriver

1 x Display cleaning cloth

CELL BROADCAST

The device supports cell broadcast. Cell broadcast is a cellular service for sending messages to

all recipients within a cell.

INSTALLING THE BATTERY

DANGER

Installing the wrong battery in the device, poses a risk of explosion, which could result in

death or serious injuries! Only t the battery supplied or an approved replacement battery in

the device outside of explosion hazardous areas. The approved replacement battery can be

found on the website www.isafe-mobile.com/en/products.

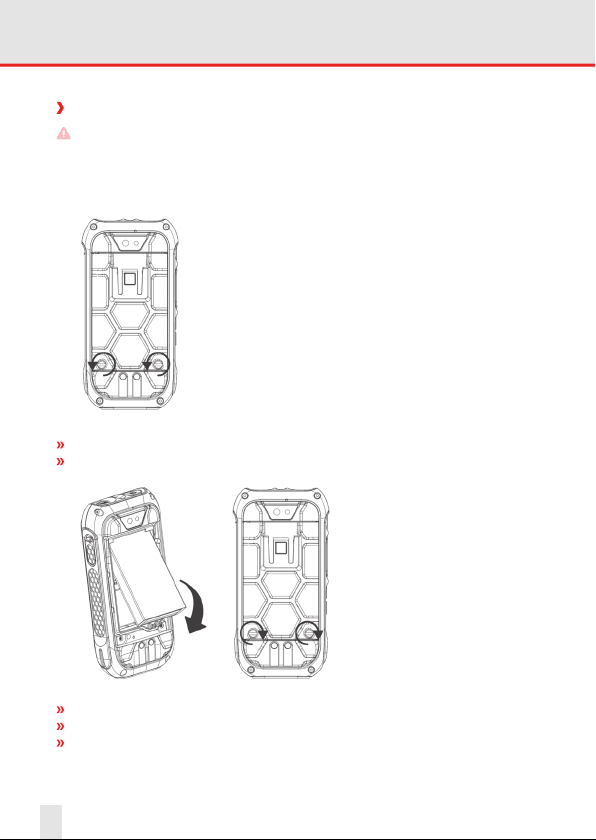

Loosen the screws on the battery compartment using the Screwdriver provided.

Remove the battery compartment cover.

Place the battery in the battery compartment as shown.

Check that the battery is seated correctly and securely.

Reinstall the battery compartment cover and hand-tighten the screws using the Screwdriver

provided.
