ISE SY-9826 Manuale utente
PRODUCT MAY VARY SLIGHTLY FROM THE ITEM PICTURED DUE TO MODEL UPGRADES.
PLEASE READ THIS INSTRUCTION VERY CAREFULLY BEFORE USING THIS
ITEM. YOU WILL FIND IMPORTANT INFORMATION REGARDING SAFETY OF
YOUR MAGNETIC BIKE.
INSTRUCTION MANUAL
EXERCISE BIKE
SY-9826 (517E)
(ENGLISH)
1.
ENGLISH
100 KG
MAX USER
WEIGHT [email protected]
+33 344 762 166
WWW.ISEFIT.COM
CONTENTS
This device concerned has been manufactured under an EU
Declaration of Conformity and compliance with all relevant EU
Directives, including CE(EN55014-1,EN55014-2);
EN957( EN ISO 20957-1, EN ISO 20957-5)
Please be assured that the box of this product is recycling, the rest of the packaging can be trashed.
In case the product contains batteries, do not trash directly.
DISTRIBUTED BY:
ISE GMBH
THEODOR-HEUSS-STRASSE 7
66130 SAARBRÜCKEN GÜDINGEN.
DEU - DEUTSCHLAND
TEL: +490681 98845400
WWW.ISEFIT.DE
IMPORTER:
SAS ISE
1 CHEMIN D’ARMANCOURT
60200 COMPIÈGNE. FRANCE
TEL: +33 344 762 1 66
PORT.: +33 6 32 91 85 26
CONTACT@ISEFIT.COM
WWW.ISEFIT.COM
WARNING:
A CORRECT LUBRICATION OF THE PRODUCT WITH SILICON OIL OR TEFLON IS REALLY IMPORTANT. THIS LUBRICATION
MUST BE PERFORMED REGULARLY DEPENDING ON EACH PERSON, EVEN BEFORE ITS FIRST USE.
YOU MUST PRESERVE THE ORIGINAL PACKAGING WITH ITS PROTECTIONS, PURCHASE RECEIPT, MANUAL AND
COMPONENTS DURING THE GUARANTEE PERIOD.
CHECK IN THE MANUAL THE MAXIMUM WEIGHT YOUR EQUIPMENT CAN SUPPORT. AN EXCESSIVE WEIGHT COULD
LEAD TO A MALFUNCTION IN THE OPERATING SYSTEM, WHICH WON’T BE COVERED BY THE GUARANTEE.
IMPORTANT SAFETY INSTRUCTIONS
PARTS LIST AND EXPLODED DIAGRAM
INSTALLATION GUIDE
EXERCISE INSTRUCTIONS
RESISTANCE LEVELS
HEART RATE
LEVELLING
CLEANING AND MAINTENANCE
MOVING THE BIKE
CUSTOMER CARE
DISPLAY INSTRUCTIONS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
3.
4.
6.
12.
13.
13.
13.
14.
14.
14.
15.
2.
ENGLISH
PRODUCT PARAMETERS
MODEL: SY-9826 (517E)
PRODUCT SIZE: 1200*650*1600MM
RESISTANCE SYSTEM: MAGNETIC
ADJUSTABLE RESISTANCE: 8 LEVELS
MATERIAL: Q235 STEEL, PLASTIC SIDES
MAX. USER WEIGHT: 100 KG
G.W / N.W: 29 KG/26 KG
MANUAL IN FR / EN / DE / ES / IT
TEST STANDARD(S):EN ISO 20957-1, EN ISO 20957-5
CLASS: HC (HOME USE)
Importer:
SAS ISE
1 Chemin d’Armancourt
60200 Compiègne France
TEL : +33 3 44 76 21 66
PORT : +33 6 32 91 85 26
www.isefit.com
1. IMPORTANT SAFETY INSTRUCTIONS
NOTETHE FOLLOWING PRECAUTION BEFORE ASSEMBLING OR OPERATINGTHE MACHINE
1. Assemble the machine exactly as the descriptions in the instruction manual.
2. Check all the screws, nuts and other connections before using the machine for the first time and ensure that
the trainer is in the safe condition.
3. Set up the machine in a dry level place and leave it away from moisture and water.
4. Place a suitable base (e.g. rubber mat, wooden board etc.) beneath the machine in the area of assembly to
avoid dirt and etc..
5. Before beginning training, remove all objects within a radius of 2 meters from the machine.
6. Do not use aggressive cleaning articles to clean the machine, Only use the supplied tools or suitable tools of
your own to assemble the machine or repair any parts of machine. Remove drops of sweat from the machine
immediately after finishing training.
7. Your health can be affected by incorrect or excessive training. Consult a doctor before beginning a training
program. He can define the maximum setting (Pulse. Watts. Duration of training etc) to which you may train
yourself and can get precise information during training. This machine is not suitable for therapeutic purpose.
8. Only do training on the machine when it is in correct working way. Use only original spare parts for any
necessary repairs.
9. This machine can be used for only one person’s training at a time.
10. Wear training clothes and shoes, which are suitable for fitness training with the machine. Your training shoes
should be appropriate for the trainer.
11. If you have a feeling of dizziness, sickness or other abnormal symptoms, please stop training and consult a
doctor asap.
12. People such as children and handicapped persons should only use the machine in the presence of another
person who can give aid and advice.
13. The power of the machine increases with increasing the speed, and the reverse. The machine is equipped
with adjustable knob, which can adjust the resistance. Reduce the resistance by turning the adjusting knob
for the resistance setting towards stage 1. Increase the resistance by turning the adjusting knob for the
resistance setting towards stage 8.
14. The maximum user’s weight is 100kgs/220Lbs.
3.
ENGLISH
CARE MUST BE TAKEN WHEN LIFTING OR MOVING THE EQUIPMENT SO AS NOT TO INJURE YOUR BACK. ALWAYS
USE PROPER LIFTINGTECHNIQUES AND/OR USE ASSISTANCE.

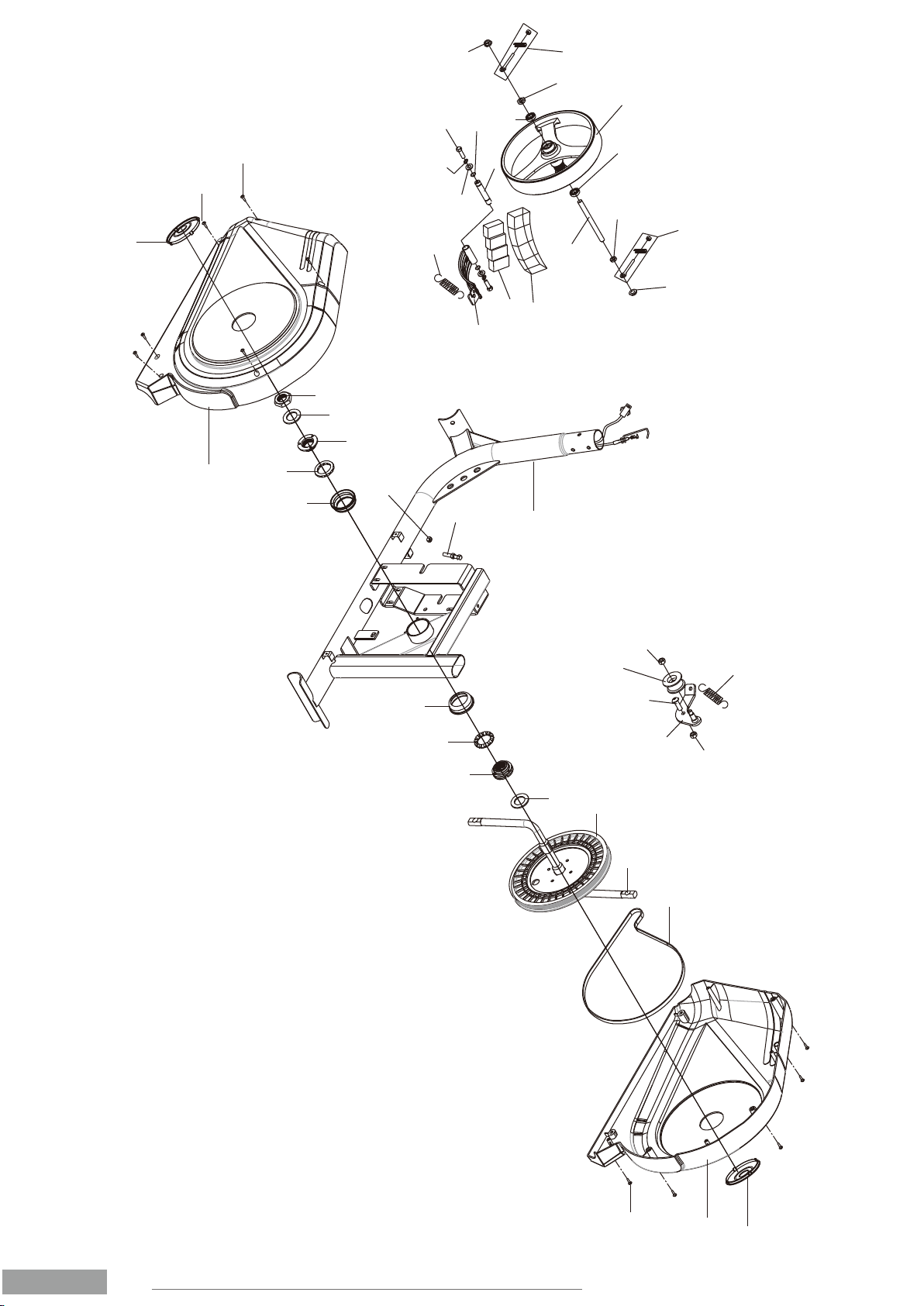

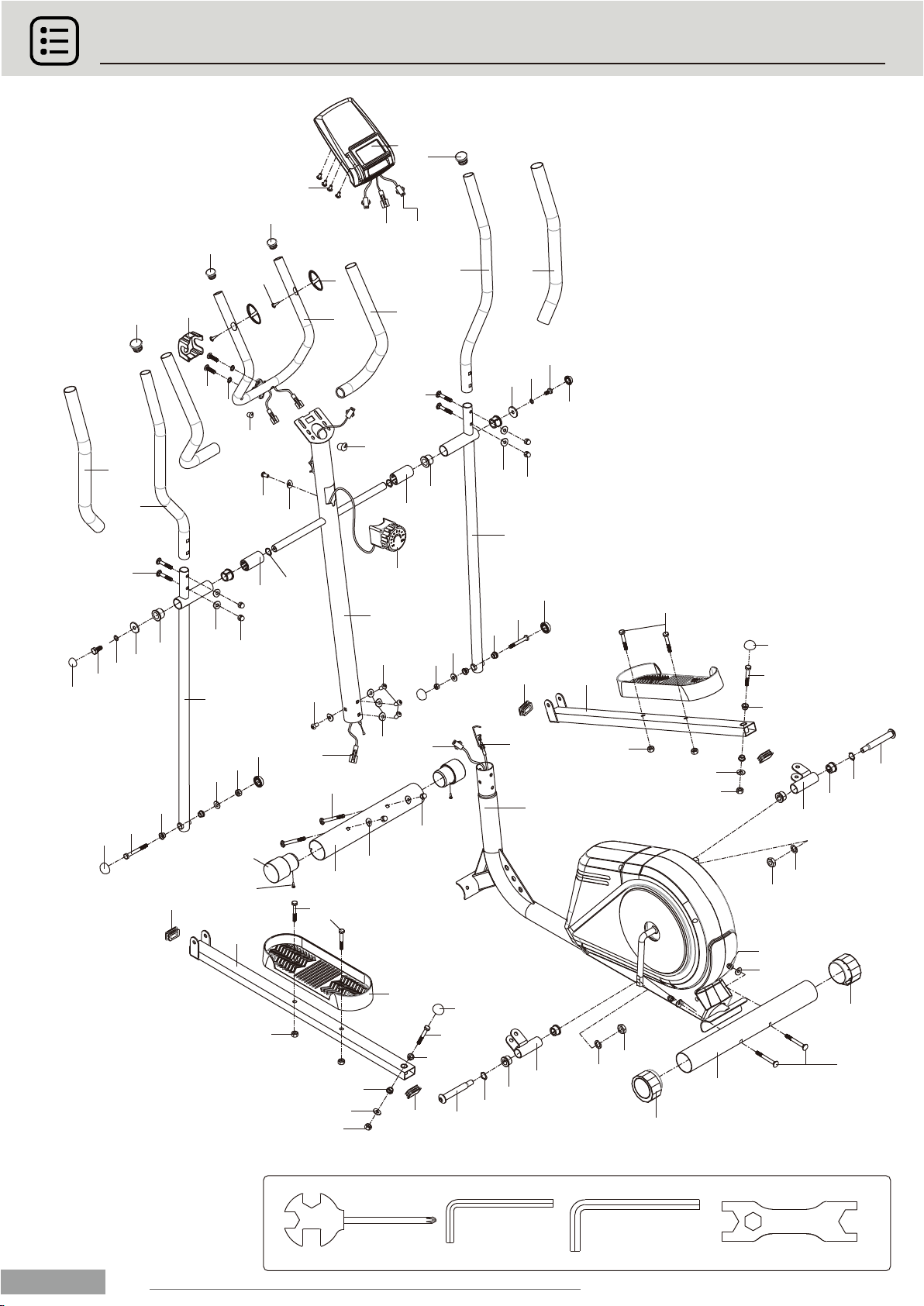

2. PARTS LIST AND EXPLODED DIAGRAM
4.
ENGLISH
4
3
5
6
6
7
8914
11L
12
13
14
11R
13
12
15
53
9
9
18
17 1920
21
8523
24
2420
25L
25R
21
8523
19 18
17
22
26
28 29 30 313228
32 3029 28
31
22 23
34
33
35
33
22
23
36
37
37
38 39
40
30
41 42L
32
43
44
32
31 41
30
45
28
46L4748 49L 5051L
51R50
49R484746R
41 42R
43
32
28
45
30
32
31
10
16
5455
1
1b 1a
2
26
58
52
80 81 82 83
5.
ENGLISH
64 63 65
66
67 77 68
606162
63 64
56
56
64
90
91
75
92 78
75
79
76
69
72
74
69 73
73
70
70
71
93
86
27
91 94 95
88
89
87
40
58 59L
57
57
59R
84
6.
ENGLISH
Nº NAME QTY. Nº NAME QTY.
1 COMPUTER 1 49 U BRACKET 2
2 SCREW M5 4 50 SPRING WASHER 1/2’’ 2
3 PULSE 2 51 NYLON NUT(L/R) 1/2’’ 2
4 MIDDLE HANDLEBAR 1 52 ARC WASHER D19 2
5 SCREW ST4.2X19 2 53 TENSION CONTROL 1
6 END CAP 25 2 54 SCREW M5 1
7 SMALL COVER 1 55 ARC WASHER D6 1
8 BOLT M8X30 2 56 CROSS WRENCH S13-14-15 1
9 ARC WASHER D8 4 57 ALLEN WRENCH S6 1
10 FOAM GRIP 2 58 ALLEN WRENCH S8 1
11 HANDLEBAR (L/R) 2 59 OPEN-END WRENCH S17-19 1
12 FOAM GRIP 2 60 NUT 1
13 END CAP 28 2 61 WASHER 1
14 STOPPLE 12.6X 6 2 62 LEFT COLLAR HOUSING 1
15 UPRIGHT POST 1 63 COLLAR BALL 2
16 WIRE 1 64 COLLAR HOUSING 2
17 END CAP S13 2 65 RIGHT COLLAR HOUSING 1
18 BOLT M8X16 2 66 WASHER 1
19 WASHER D8X 32X2 2 67 CHAIN WHEEL 1
20 BUSHING 32X 19X28 4 68 BELT 1
21 BOLT M8X40 4 69 U BRACKET 2
22 ARC WASHER D8X 20X1.5XR30 8 70 BEARING 2
23 DOMED NUT M8 8 71 AXLE 1
24 PLASTIC INSERT 2 72 NUT M10 2
25 LOWER HANDLEBAR(L/R) 2 73 NUT M10 2
26 SCREW M8X16XS6 4 74 FLYWHEEL 1
27 AXLE 1 75 NYLON NUT M8 2
28 END CAP S17 6 76 TENSION SPRING I 1
29 BOLT M10X60 2 77 CRANK 1
30 BUSHING 14X12.5X 10.1 8 78 BOLT 1
31 WASHER D10X 20X2 4 79 BRACKET 1
32 NYLON NUT M10 8 80 OPEN-END WRENCH S13 14 15 1
33 CARRIAGE BOLT M8X60 4 81 HEX WRENCH S6 1
34 END CAP 50 2 82 HEX WRENCH S8 1
35 FRONT STABILIZER 1 83 OPEN-END WRENCH S17 18 19 1
36 REAR STABILIZER 1 84 SNAP SPRING D12 2
37 END CAP 50 1 85 ARC WASHER D8X 16X1.5XR30 4
38 SENSOR 1 86 MAGNETIC BOARD 1
39 TENSION WIRE 1 87 TENSION SPRING 2 2
40 MAIN FRAME 1 88 PLASTIC LATTICE 1
41 END CAP J40X25 4 89 MAGNET 4
42 PEDAL TUBE (L/R) 2 90 NUT M6 2
43 BOLT M10X45 4 91 BOLT M6*20 3
44 PEDAL 2 92 IDLE WHEEL 1
45 BOLT M10X50 2 93 HEXAGON THIN NUT M10*1.0*2 1
46 BOLT (L/R) 1/2’’ 2 94 SPRING WASHER D6 2
47 ARC WASHER D17 2 95 WASHER D6 2
48 BUSHING 24X20X 16.1 4
3.2 ASSEMBLY INSTRUCTION:
Attach the front stabilizer (35) and the Rear
Stabilizer (36) to the Main Frame (40) with Carriage
Bolt (33), Domed Nut (23) and Arc Washer (22).

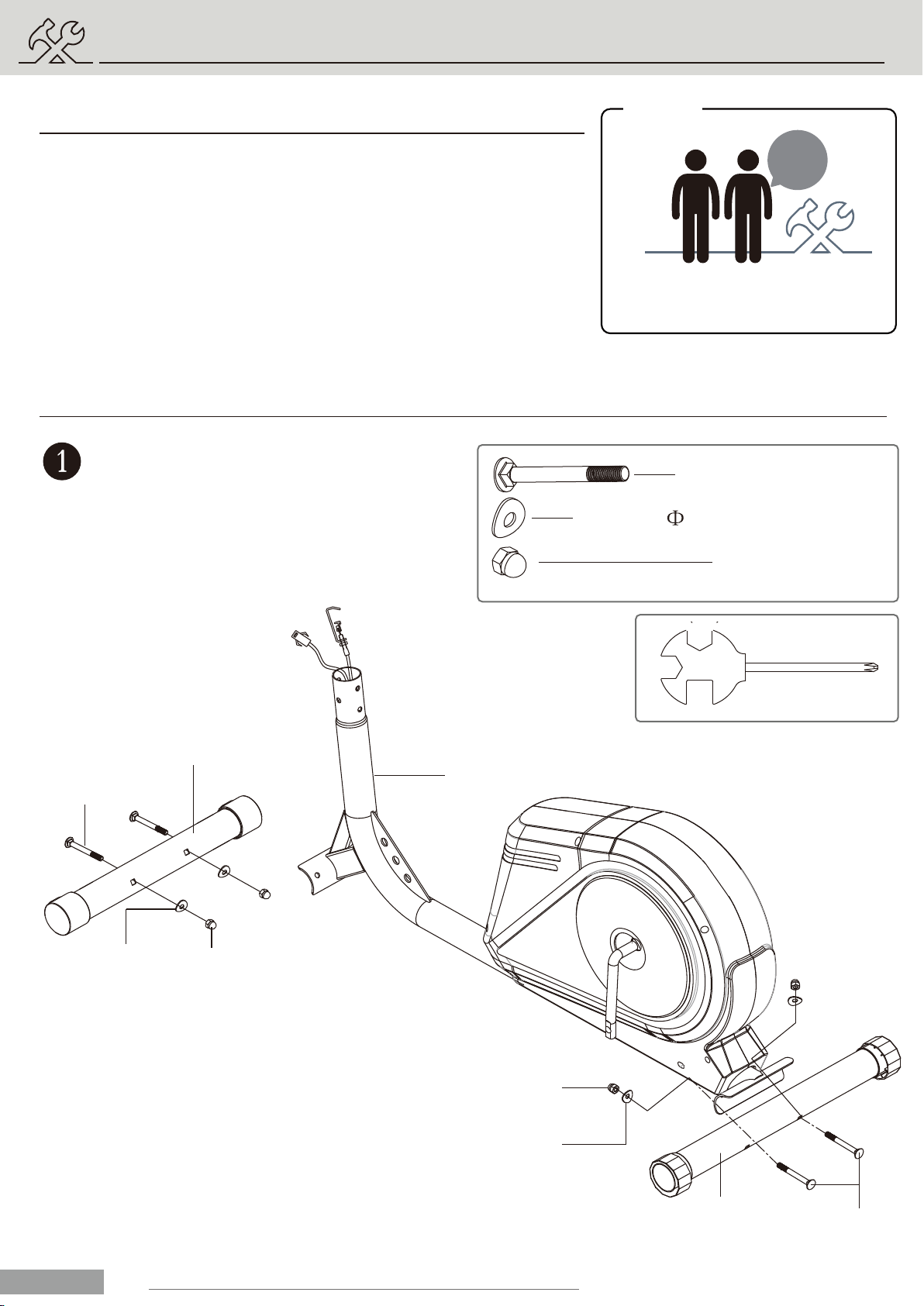

FIGURE 1.
3. INSTALLATION GUIDE
3.1 PREPARATION:
A. Before assembling make sure that you will have enough space
around the item.
B. Use the present tooling for assembling.
C. Before assembling please check whether all needed parts are
available (at the above of this instruction sheet you will find an
explosion drawing with all single parts (marked with numbers)
which this item consists of. ASSEMBLY REQUIRES
TWO PERSONS.
x2.
7.
ENGLISH
#33 M8*60 4PCS
#22 d8* 20*1.5*R30 4PCS
#23 M8 4PCS
S13
33
33
22 23
35 40
36
22
23

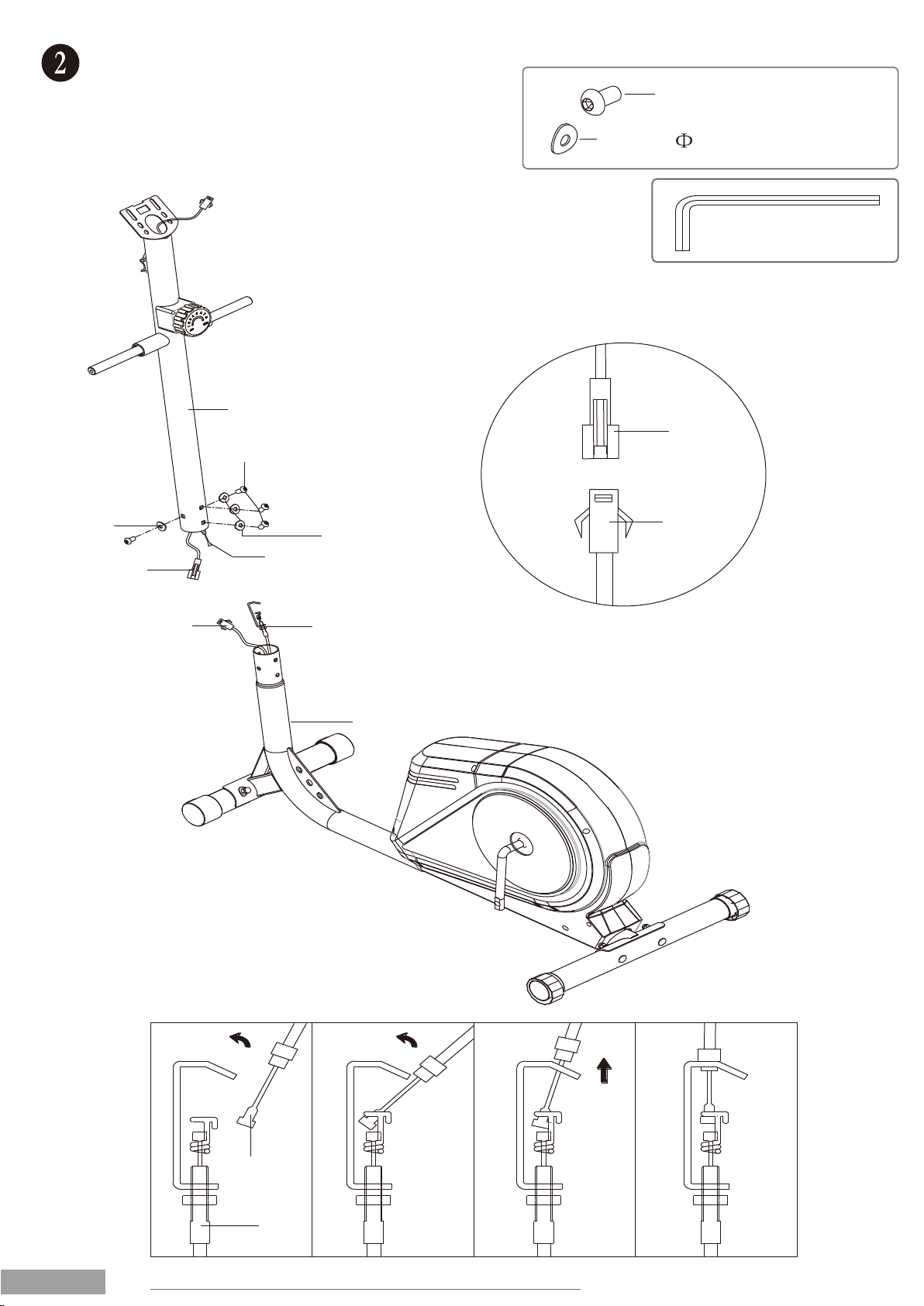

FIGURE 2.
Connect the Sensor 16 and 38,and Tension Control wire 53
and 39 as shown in FIG.2, fix the Upright Post (15) with the
Main Frame (40) with Bolt (26), Arc Washer (22).
8.
ENGLISH
5339
16
38
#26 M8*16*S6 4PCS
#22 d8* 20*1.5*R30 4PCS
40
15
16 53
22
26
39
38
22

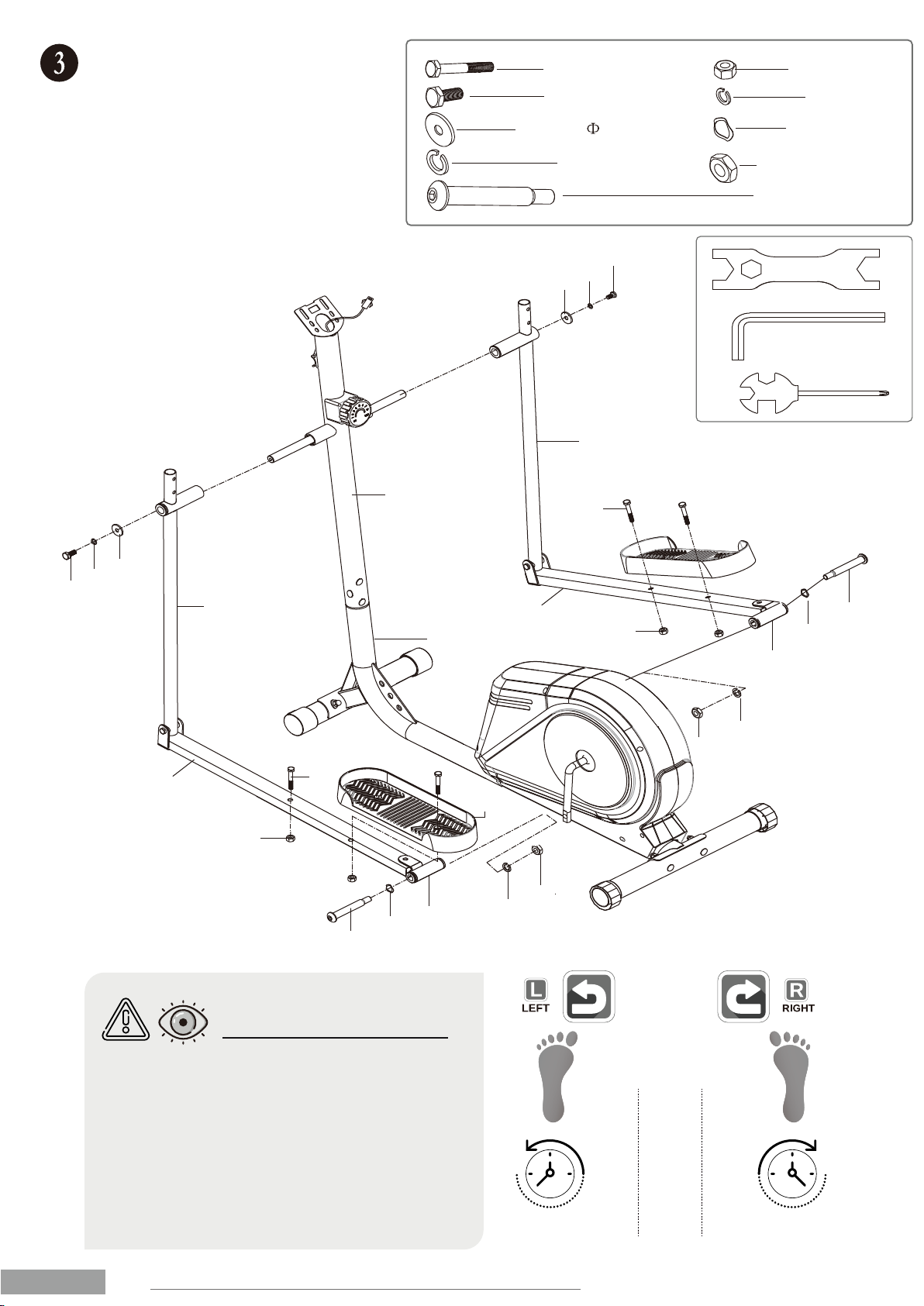

FIGURE 3.
9.
ENGLISH
LEFT PEDAL RIGHT PEDAL
LEFT PEDAL: The left pedal is marked on its
axis with the letter L (left).
Screw the shaft in the counterclockwise
direction.
RIGHT PEDAL: The right pedal is marked on
its axis with the letter R (right).
Screw the shaft in a clockwise direction.
ATTENTION:
#43 M10*45 4PCS #32 M10 4PCS
#18 M8*16 2PCS #9 d8 2PCS
#19 d8* 32*2 2PCS
#46L/R 1/2" 2PCS
#47 d17 2PCS
#50 1/2" 2PCS #51L/R 1/2" 2PCS
S19
S13
S8
40
15
9
18 19 25L
32
44
43
42L
46L47 49L 5051L
9
19 18
43
32
25R
42R 46R
47
51R50
49R
Fix the Lower Handle Bar (25L/R) to the
Upright Post (15) with Bolt (18) ,Washer (9),
D Washer (19). Fix the Pedal Tubes (42L/R)
with the Pedal Crank by Pedal Hinge Bolt
(46L/R) Curved Washer (50), and Nylon Nut
(51L/R). Install the Pedal (44) on the Pedal.
FIGURE 4.
10.
ENGLISH
#21 M8*40 4PCS
#85 d8* 16*1.5*R30 4PCS
#23 M8 4PCS
#9 d8 2PCS
#8 M8*30 2PCS
11R
8523
14
21
85
11L
7
89
4
4a
25L 25R
15

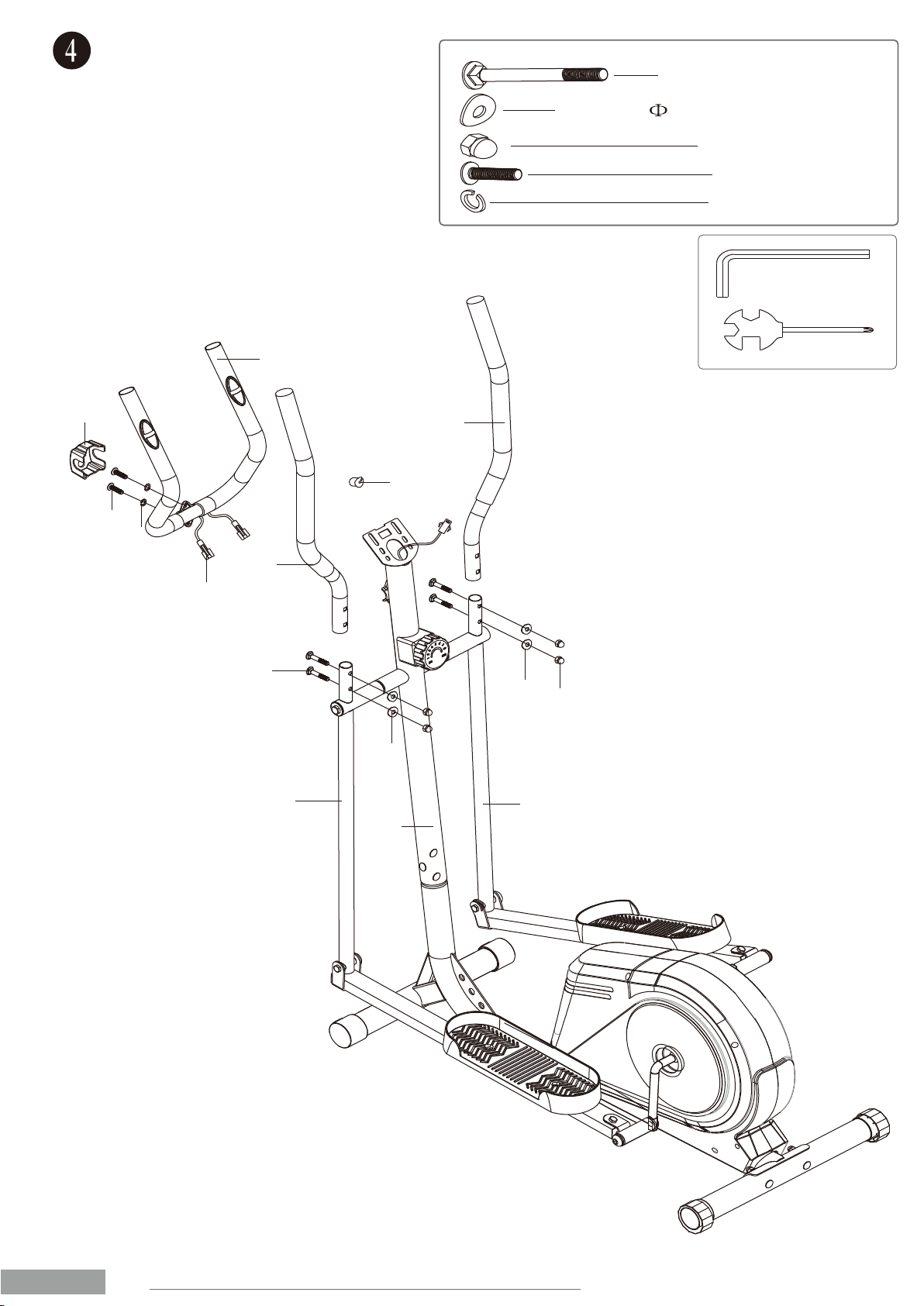

Connect the Sensor shown in FIG.4,Install
the Middle handlebar (4) on the Upright Post
(15) with bolt (8) Arc Washer (9).
Fix the Handlebar (11L/R) to the Lower
Handle Bar (25L/R) with Bolt (21), Arc
Washer (85) and Domed Nut (23).
S13
S6
