ISLABIKES Icons Jimi Manuale utente
www.islabikes.co.uk
Icons Jimi
Owner’s manual
Icons - Jimi
5
1
11
9
12
6
15
17
19
18
21
22
23
14
4
10
13
16
23
7
8
20

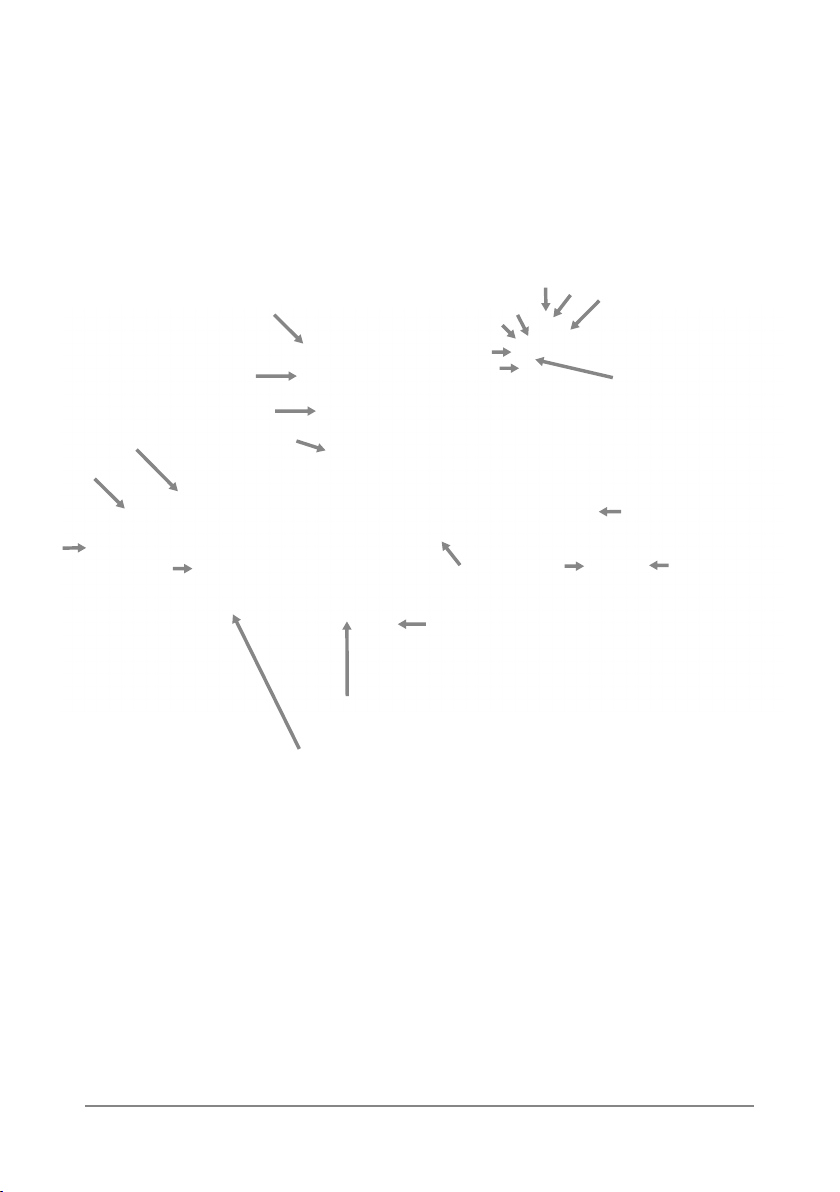

1. Brake levers
2. Brake calipers
3. Rotors
4. Saddle
5. Seatpost
6. Seatpost clamp
7. Saddle clamp
8. Stem
9. Stem bolts
10. Headset
11. Headset spacers
12. Headset adjuster bolt
13. Handlebars
14. Grip shift
15. Rim
16. Spokes
17. Tyres
18. Chain
19. Rear derailleur
20. Cassette
21. Frame
22. Forks
23. Cranks
www.islabikes.co.uk
Setting up your Islabike
Step 1 of 6: Remove front wheel and fork packaging
1. Remove front wheel
protection packaging.
2. Remove brake caliper spacer
DO NOT PULL BRAKE when caliper spacer is removed.
Please keep caliper spacer for transportation when wheel
is removed.
Icons - Jimi

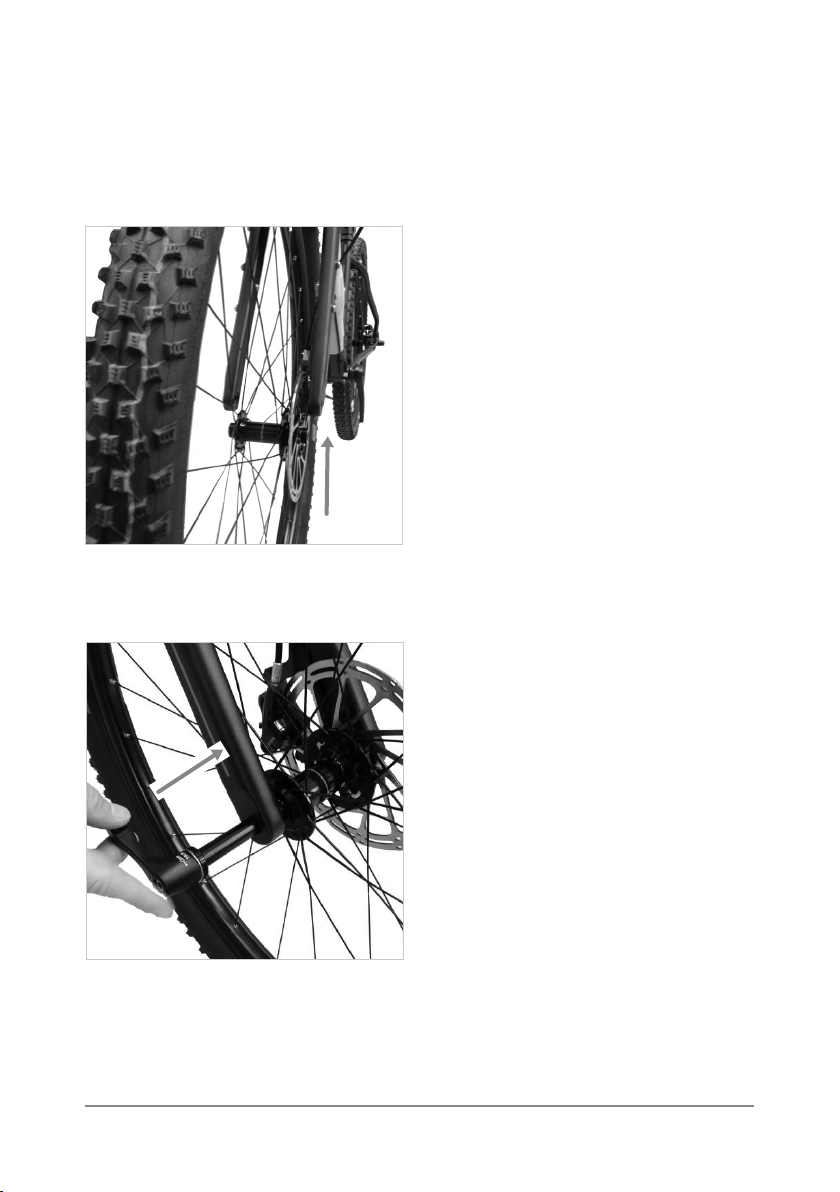

Step 2 of 6: Place front wheel in fork and install
the thru axle
1. Place the front wheel into
the fork dropouts.
2. Push the thru axle through
the clearance hole in the right
(driveside) leg of the forks and
through the wheel hub up until
the axle reaches the thread in
the opposite fork leg.
www.islabikes.co.uk

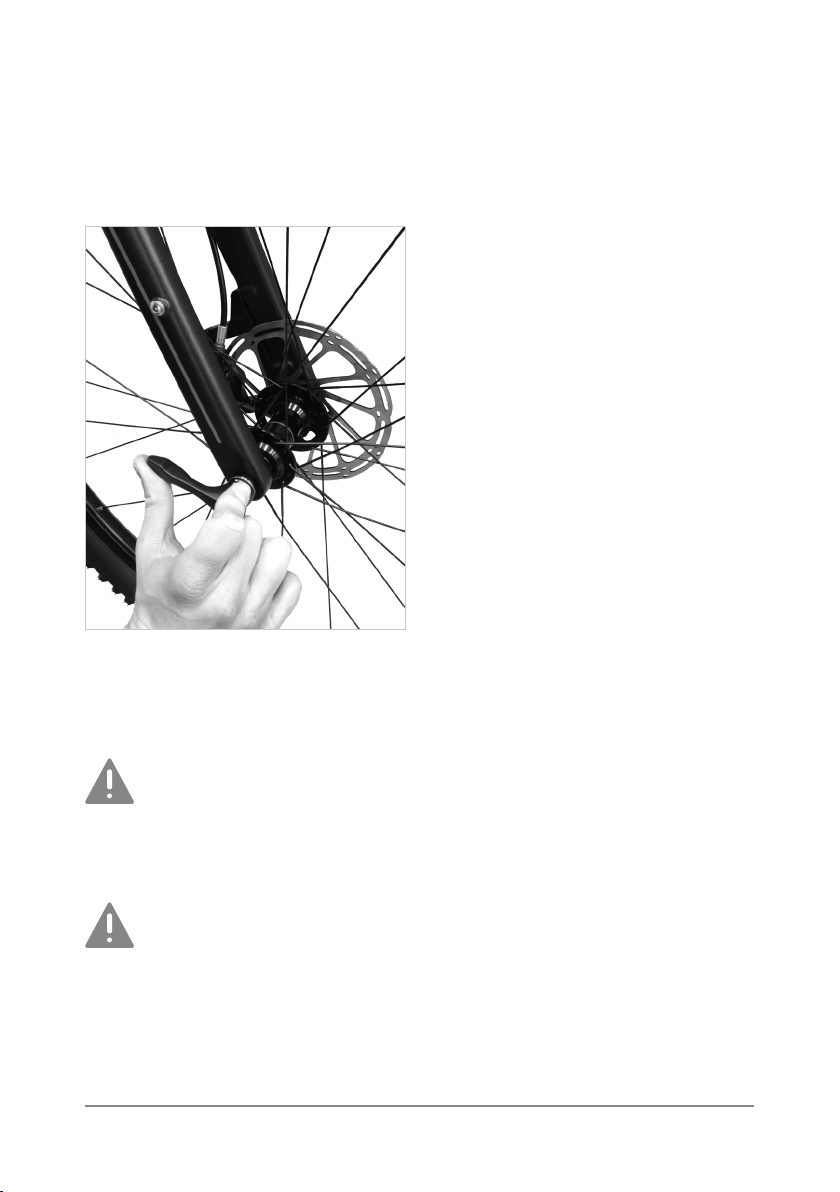

Step 2 of 6: Place front wheel in fork and install
the thru axle continued
3. Hold the thru axle handle and
turn clockwise until hand-tight.
Check front wheel is correctly installed. Firstly, lift the front end of
the bike o the ground by the handlebars and strike the top of the
wheel rmly with the palm of your hand. Secondly, push and pull
the wheel from side to side. If there is no movement from either of
these actions the wheel is installed correctly.
We strongly recommend routinely checking that the thru axle
is still tight.
Icons - Jimi
Step 3 of 6: Handlebar setup
1. Turn handlebars clockwise and align with front wheel
2. Tighten the two stem clamp bolts Max. 7Nm
Caution: The fork steerer tube is carbon bre construction, which
can be seriously damaged by over tightening.
Failure to correctly tighten stem clamp bolt may result in serious
injury or death. If in doubt, please consult our technical support
Before riding check front brake operation is correct. To check this,
apply both the front and rear brake, they should feel the same.
Secondly, push the bike forward whilst holding the front brake to
ensure it is working.
Turn
Do Not Over
Tighten
Tighten
www.islabikes.co.uk
Step 4 of 6: Pedal installation (not supplied with bike)
1. Left pedal: Rotate pedal axle clockwise towards front of bike
2. Right pedal: Rotate pedal axle anti-clockwise towards front of bike
Tighten max. 30Nm
Please ensure you identify the left and right pedals before installing.
Tighten
Tighten
a. Left pedal
b. Right pedal
Icons - Jimi
Step 5 of 6: Adjust saddle height
1. Loosen seatpost-clamp
2. Move to desired height
3. Tighten clockwise max. 4Nm
Seatposts are clearly marked with minimum insertion mark.
Please do not raise saddle above this line.
Tighten
www.islabikes.co.uk
Step 6 of 6: Brake pad bed-in
It is important to bed-in your new brake pads to achieve optimal
performance, increase pad longevity and reduce the likelihood of brake
fade and noise.
To safely achieve optimal results, remain seated on the bike during the entire
bed-in procedure. Accelerate the bike to a moderate speed (12mph / 20kph),
then rmly apply the brakes until you are at walking speed. Repeat approximately
twenty times. Next, accelerate the bike to a faster speed, then rmly apply the
brakes until you are at a walking speed. Repeat approximately ten times.
Important: do not lock up the wheels at any point during the bed-in
procedure. Allow the brakes to cool prior to any additional riding.
If you require further information about your brakes, contact our technical
Icons - Jimi
Ready to ride
Safety rst
Before you head off please read our advice for safe cycling.
Ensure that your helmet is adjusted correctly in accordance with
the manufacturer’s instructions.
Ensure you are wearing sturdy footwear and nothing can become
entangled in the pedal or drivetrain.
Ensure that you familiarise yourself with your new bicycle in a safe
environment. We pride ourselves on light action brakes. Check you
can come to a stop safely using the brakes.
Your Islabike is set up so that the right-hand brake lever operates
the front brake. Where the destination country drive on the right the
right hand brake lever will operate the rear brake.
Be aware braking performance and grip will be drastically reduced
in wet conditions.
Ride carefully on busy streets or highways.
Always observe national legal requirements if riding on public
roads. If you are cycling in any other countries or in the EU, please
check national guidelines.
It is important that your bike is regularly maintained. It should be
inspected if an accident occurs.
