Ives Offset Top Pivot 7212 Manuale utente

7212

3/4” Offset Jamb Mounted Bottom Pivot

Improper pivot set installation can lead to personal injury or property damage. Follow

all instructions carefully. For questions contactTechnical Support at 1-888-371-7331.

CAUTION

1. Prepare and mortise bottom of door and side jamb to receive pivot set. Determine pivot

location using dimensions on reverse side. Be sure to properly locate and mark center

point of the jamb leaf spindle. Care must be taken to ensure that jamb leaf is completely

level. Place level against jamb leaf surfaces as shown in Figure 1. The bottom pivot set is

handed.Hand of pivotmust match handof door.Todeterminehand of door,see diagrams above.

2. Locate, drill, and tap 1/4-20 mounting holes for metal door or metal frame. Locate anddrill

pilot holes for #14 wood screws for wood door or wood frame. Mount jamb leaf to side jamb

and door leaf in bottom of door with 1/4-20 x 3/4” FHMS or #14 FHWS screws provided.

3. At this point, the top pivot of the set should be installed. After top pivot installation, hang door.

Refer to instruction sheet packed with top pivot for details.

4. If height adjustment is necessary for proper door clearance, adjust bottom pivot as follows:

A. Remove top pivot pin and take door down.

B. Use 3/32” Allen wrench provided to loosen set screw in jamb leaf (see diagam above).

C. Adjust bearing spindle height with 5/8” Allen wrench. Range is plus 1/8”, minus 1/16”.

D. Re-install door.

Figure 1

Door

leaf

Set

screw

Bearing

spindle

Jamb

leaf 3/32” Allen

wrench Lefthand

installation

Right hand

installation

Right hand

installation shown;

left hand opposite

Installation Instructions

16000 Rev. 4

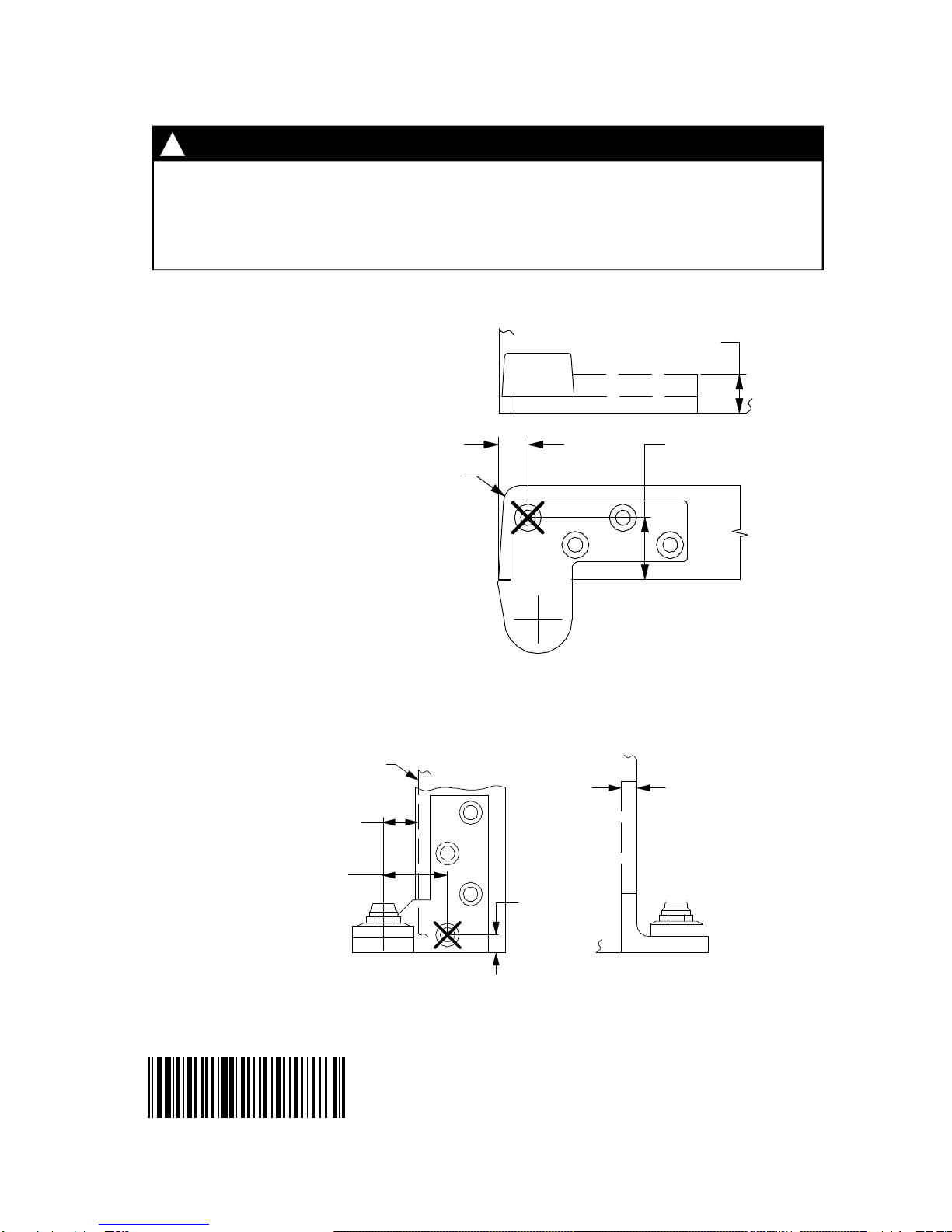

It is very important for installer to verify that center line of top pivot point lines up

with center line of bottom pivot point before final installation. Heel edge of door

must be beveled 1/8” in 2” as shown below. The bottom pivot set should be

mounted first in most installations.

NOTE

Frame Leaf

3/4”

19 mm

Face of door

1-3/8”

35 mm 3/8”

10 mm

5/16”

8 mm

Depth of mortise will vary

depending upon installation

and/orthresholdheight.

Door Leaf

Bevel heel edge of door

1/8” in 2” with 3/16” rad, typ

9/16”

14 mm 1-1/8”

29 mm

3/8”

10 mm

*15/16”

24 mm

16000-00
