iWave iW-RainboW-G36S Manuale utente
Zynq Ultrascale+ MPSoC
Single Board Computer
iW-RainboW-G36S
Quick Start Guide
R1.0
iW-RainboW-G36S
Quick Start Guide
Disclaimer
iWave Systems reserves the right to change details in this
publication including but not limited to any Product specification
without notice.
No warranty of accuracy is given concerning the contents of the
information contained in this publication. To the extent
permitted by law no liability (including liability to any person by
reason of negligence) will be accepted by iWave Systems, its
subsidiaries or employees for any direct or indirect loss or
damage caused by omissions from or inaccuracies in this
document.
Trademarks
Certification
iWave Systems Technologies Pvt. Ltd. is an ISO 9001:2015
Certified Company.
All registered trademarks, product names mentioned in this
publication are the property of their respective owners and used
for identification purposes only.
Introduction
Quick Start Guide (QSG)
This Quick Start Guide (QSG) is designed for users to quickly
understand the iW-RainboW-G36S Zynq Ultrascale+ MPSoC
Single Board Computer (SBC) and start the evaluation. It
provides the instructions for setting-up the Single Board
Computer from the packed box.
SBC Overview
g Zynq Ultrascale+ MPSoC (ZU5/ZU4/ZU3/ZU2) - upto 256K LBS
The iW-RainboW-G36S Zynq Ultrascale+ MPSoC SBC is an Off-
the-self board which contains all necessary interfaces & on-
board connectors required for a complete embedded
application. This board can be used as it is for wide range of
applications.
Some Key Features of the Board Include:
Quick Start Guide
01
g 2GB 64 bit PS DDR4 RAM & 1GB 32 bit PL DDR4 RAM
g 8GB eMMC Flash (Boot & OS storage)
g Dual Gigabit Ethernet RJ45 Magjack
g WLAN & BT Module
g Display Port
g Dual USB 3.0 Type A Port
g M.2 Key B Connector with SATA & USB 3.0
g SFP+ Connector or 12G SDI IN & OUT Connectors*
g HDMI Video IN & Video OUT Connectors
g Board to Board Connectors with GPIO support
g Pico ITX form factor (100mm x 72mm)
This SBC is ESD sensitive. Handle the
product only in accordance with the
installation instructions given in the
manual. Therefore ESD precautions
should be taken care during transport
and handling.
Safety
iW-RainboW-G36S Zynq Ultrascale+
MPSoC SBC is designed by using RoHS
and REACH compliant components
and manufactured on lead free
production process.
Check the local regulations for
disposal of electronic products before
disposing.
ESD Protection
Product Disposal
Environmental Compliance
Quick Start Guide
iW-RainboW-G28D
iW-RaniboW-G28D
iW-RainboW-G28DiW-RainboW-G28D
iW-RainboW-G36S
02
Must use a ESD ground strap or other
grounded source before unpacking or
handling the hardware.
Quick Start Guide
Step 1 - Unpacking
Remove the SBC from antistatic cover and place it above the
ESD free area. Use anti-static pad/mat with proper grounding
to place the SBC. Don't touch inside surface of the circuit board.
iW-RainboW-G28D
Quick Start Steps
Avoid using board in extreme dust, humidity and temperature
conditions. Also this SBC is not water proof. Keep away from
wet surface.
Package Box
Quick Start Guide
03
iW-RainboW-G28D
Zynq Ultrascale+ MPSoC Pico ITX
Single Board Computer
iW-RainboW-G36S
Quick Start Guide
R1.0
iW-RainboW-G36S
Quick Start Guide
R2.0

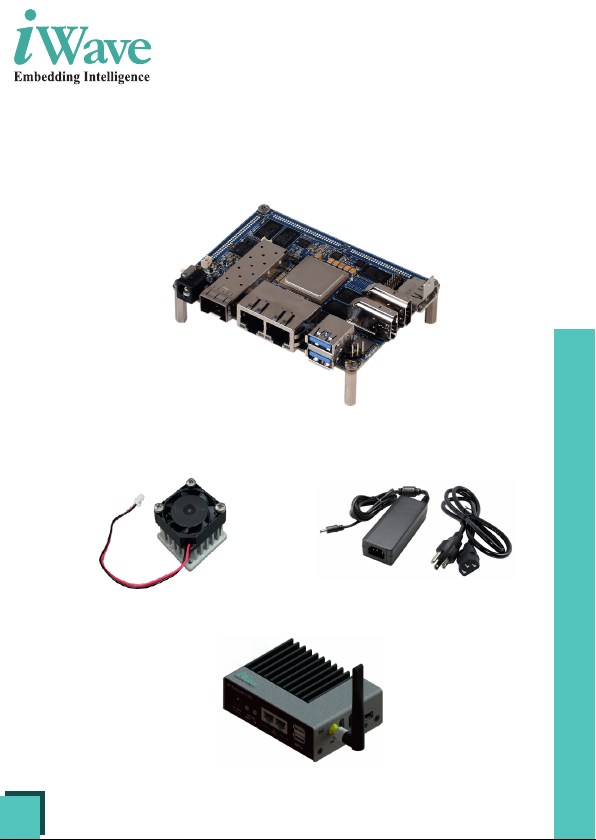

Make sure that, below deliverables are received without any
physical damage.
12V,5A Power Supply
SBC
Step 2 - What's Inside The Box ?
Quick Start Guide
iW-RainboW-G28D
iW-RaniboW-G28D
iW-RainboW-G28DiW-RainboW-G28D
iW-RainboW-G36S
04
Enclosure
Optional Accessories
FAN with Heat Sink
Step 3 - Download FTP Contents
Quick Start Guide
05
For FTP Credentials, Contact : [email protected]
All the technical resources of iW-RainboW-G36S Zynq
Ultrascale+ MPSoC (ZU5/ZU4/ZU3/ZU2) SBC is available in
iWave FTP server.
iW-RainboW-G30D
Hardware
Datasheet-UserGuides
PCB-CAD Files
QuickStartGuide
HardwareUserGuide
Enclosure Datasheet
Fansink-Datasheet
FPGA-Example-Design
PetaLinux
Tools
FPGAUserGuide
ReleaseNotes
SoftwareUserGuide
Binaries
Patch
Integrated Design
IBERT Design
PCB-CAD Files
Mechanical Files
Compliance Report
MPSoC Name
SBC Part Number
Vivado Version
Documents
Software+FPGA
Hardware
iW-RainboW-G36S
FTP Folder Structure
Step 4 - Read Documents
Quick Start Guide
iW-RainboW-G28D
iW-RaniboW-G28D
iW-RainboW-G28DiW-RainboW-G28D
iW-RainboW-G36S
06
Before moving to next step, one must go through all the
documents including Hardware User Guides and get familiar
about iW-RainboW-G36S Zynq Ultrascale+ MPSoC SBC.
SBC Documents:
■ Quick Start Guide (This document)
■ Hardware User Guide
■ Release Notes
■ Software User Guide
■ FPGA User Guide

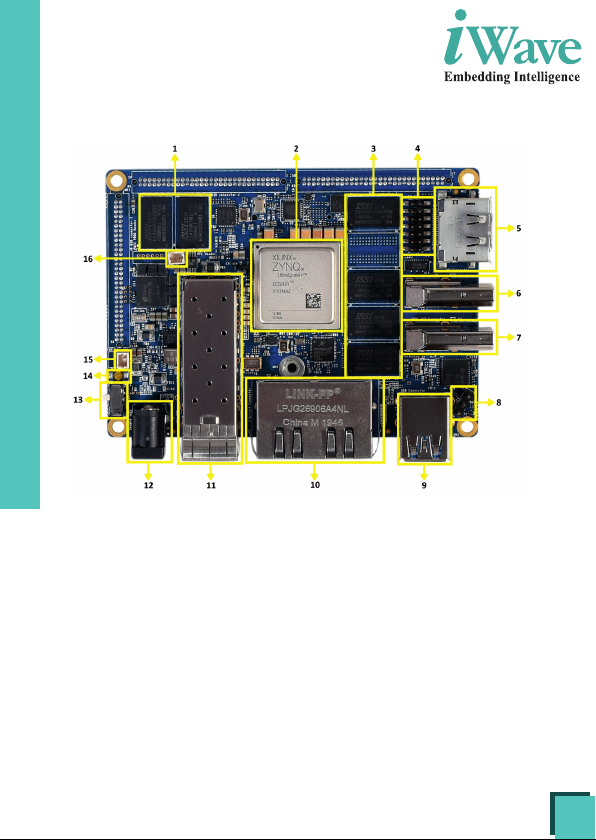

Step 5 - Quick View-SBC Top View
01. PL DDR4 RAM
02. Zynq US+ MPSoC
03. PS DDR4 RAM
04. JTAG Header
05. Display Port Connector
06. HDMI IN Connector
07. HDMI OUT Connector
08. Debug UART Header
09. Dual USB 3.0 Connector
10. Dual Gigabit Ethernet Jack
11. SFP+ Connector
12. Power IN Jack
13. Power ON/OFF Switch
14. RESET Button
15. FAN Header
16. RTC Battery Header
Quick Start Guide
07
17. Board to Board Connector 1
18. Board to Board Connector 2
19. Board to Board Connector 3
20. eMMC
21. SIM Connector
22. Wi-Fi/BT Module
23. M.2 Key B Connector
Step 6 - Quick View-SBC Bottom View
Quick Start Guide
iW-RainboW-G28D
iW-RaniboW-G28D
iW-RainboW-G28DiW-RainboW-G28D
iW-RainboW-G36S
08
