IWCS iriStore Manuale utente
iriStore
Ver. 01-01
Installation Guide
1.1 Unpacking
1.2 Tools
1.3 Drill Template
1.4 Installation
1.5 Connections to iriSound
User Guide
2.1 Connect your Recording Device
2.2 Recording
2.3 Play Back
Miscellaneous
3.1 Maintenance
3.2 Precautions
3.3 Disclaimer
3.4 Warranty
Manufactured by
IWCS
Porthusvej 7A
3490 Kvistgaard
Denmark
CVR: 35845631
www.iwcs.eu
Service and Support
Please Contact your Local Dealer
Backside of Drill Template
Miscellaneous
3.1 Maintenance
If your IWCS iriStore has been exposed to saltwater, chemicals or any other sol-
vents/liquids, immediately rinse with freshwater and wipe with a dry cloth.
WARNING - The USB connector ( 1 ) is only IP67 Waterproof when protecting lid is
mounted.
3.2 Precautions
Do not use excessive force when operating your IWCS iriStore. The button only
require a light press to react (typically 3-500 grams). To prevent strong pulls or
twists in the USB cable, it is recommended that the cable is mechanically relieved
to a xed point next to the iriStore
3.3 Disclaimer
IWCS iriStore contains electronic circuit boards and must, in case of disposal, be
handled according to local laws.
Iridium Waterproof Communication Systems (IWCS) is a member of El-retur
Denmark, who handles disposal of electronics devices.
3.4 Warranty
Your IWCS iriStore is covered by a 2 year limited warranty.
User Guide
2.1 Connect your USB recording device ( 1 )
Being able to store any recordings, your iriStore must use a USB Flash Drive. Your
iriStore supports up to 32 GB USB Flash Drive.
Insert a USB Flash Drive into USB connector on your iriStore ( 1 )
2.2 Recording
When the USB Flash Drive is connected and the iriSound system is ON, your
iriStore is ready to record.
• Press the Record button ( 2 ) once to start recording
• REC MODE LED ( 3 ) will light up red - indicates that recording is ON
• Press the Record button ( 2 ) to STOP recording
• REC MODE LED ( 3 ) ashes one time to indicate that recording has
stopped and are saved
2.3 Play Back
Your recordings are stored as MP3 les on your USB Flash drive. Remove the USB
Flash Drive and insert the USB into a PC / MAC. The recorded les can now be
saved or played directly from your PC / MAC.
Installation Guide
1.1 Unpacking
Congratulations on your new IWCS product. Before you start installation, please
make sure that all parts are included in the box.
• IWCS iriStore
• Bracket
• Installation Guide/User Manual (this)
• IWCS Data Cable, if ordered.
1.2 Tools
Before installation please prepare the following tools:
• Tape
• 3,3 or 2,5 mm drill bits
• 22 mm hollow drill bit
• Drill
1.4 Installation
Place the Drill Template in an appropriate position. Make sure that the IWCS data
connector underneath, will have free access from the inside. Also make sure that
the USB connector ( 1 ) is placed so the USB Flash Drive can be connected easily.
Mount the iriStore in such way that the USB connector and USB Flash Drive will
not be stressed or forced in the bracket. Make sure to prevent excessive tension to
the USB wire.
Drill holes according to the drill Template (next page) and mount the bracket with
M3 Pan Head screws. Mount the IWCS data cable from iriSound in the rear con-
nector, and feed the wire through the M22 centre hole. Carefully press the iriStore
into the gap of the bracket, and make sure that the taps are fully inserted.
1.5 Connect to iriSound
Install the other end of your IWCS data cable in any port of your iriSound. Your
iriStore is now ready to use.
Note: If your system includes an iriSelect you need to make sure to connect to the
correct port on iriSound. Otherwise the correct channels will not be recorded.

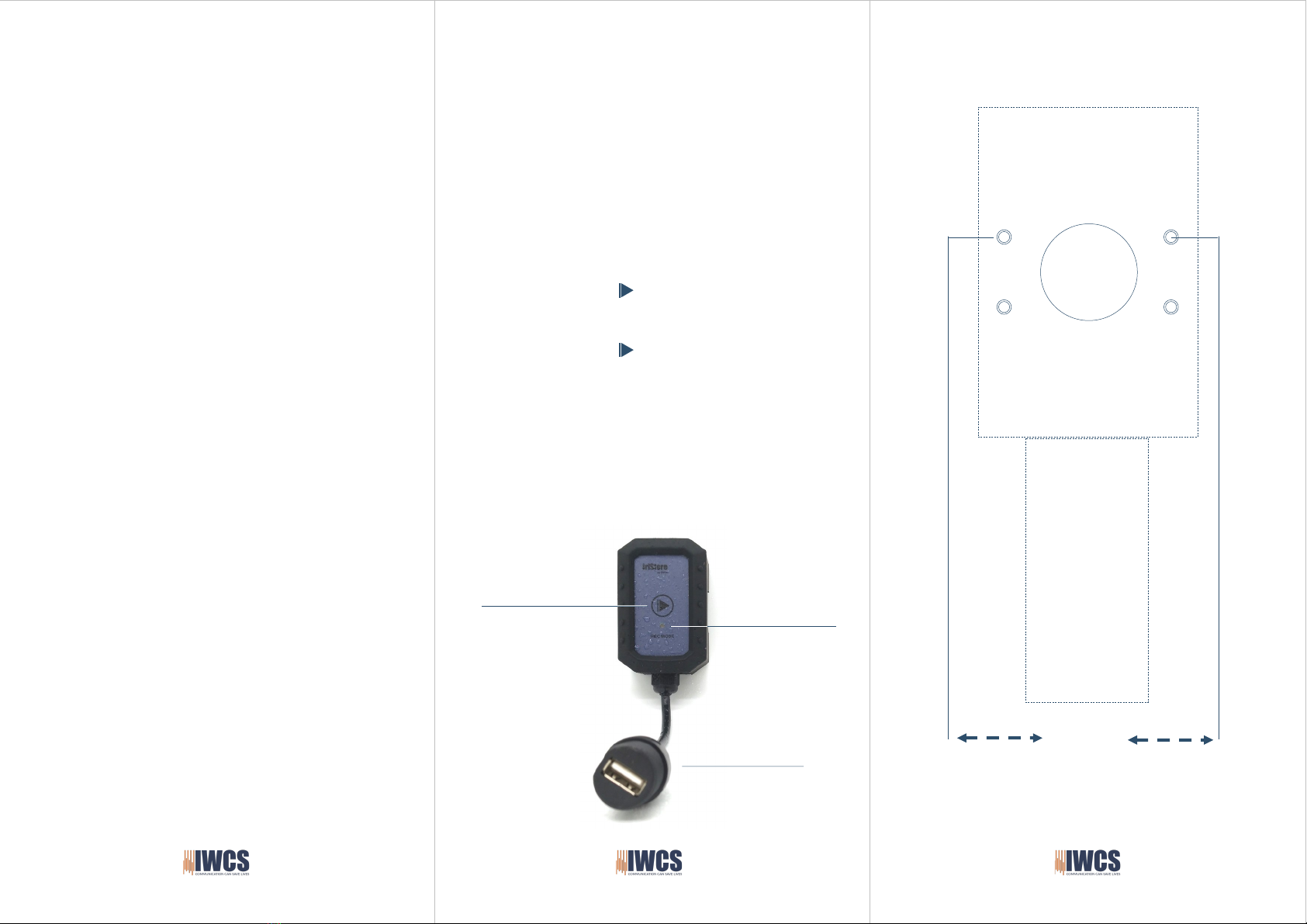

REC / PLAY button ( 2 )
REC indicator ( 3 )
USB Connector
Keep this space free
Keep this space free
1.3 Drill Template
Dia 22,0 mm
Drill 4 x 3,3 mm and use self-tapping pan head screws with at head
OR drill 4 x 3,3 mm and use M3 machine screws with a nut and pan head screws with at head
Either or
X 4
