Jabra Evolve 65 Manuale utente

jabra.com/evolve65

User Manual

JABRA EVOLVE 65

Made in China

MODEL: HSC018W

FCC ID: BCE-HSC018W

IC: 2386C-HSC018W

Jabra®is a registered trademark of GN Netcom A/S. All other

trademarks included herein are the property of their respective

owners. The Bluetooth®word mark and logos are owned by the

Bluetooth SIG, Inc. and any use of such marks by GN Netcom A/S is

under license.

Declaration of Conformity can be found on

www.jabra.com/CP/US/declarations-of-conformity

MSIP-CMM-

GNM-HSC018W

ENGLISH

JABRA EVOLVE 65

1. WELCOME.......................................... 4

2. JABRA EVOLVE 65 OVERVIEW........... 5

2.1 STEREO VARIANT

2.2 MONO VARIANT

2.3 OPTIONAL ACCESSORIES (STEREO AND MONO)

3. HOW TO WEAR.................................. 7

3.1 STEREO AND MONO

3.2 ADJUST THE HEADBAND

3.3 POSITION THE MICROPHONE

3.4 STORING THE MICROPHONE

4. HOW TO CHARGE THE BATTERY..... 10

5. HOW TO CONNECT...........................11

5.1 CONNECT TO PC (USING JABRA LINK 360)

5.2 CONNECT TO MOBILE DEVICE (USING BLUETOOTH)

5.3 CONNECT TO PC (USING USB CABLE)

6. HOW TO USE ...................................14

6.1 CALLS

6.2 MULTIPLE CALL HANDLING

6.3 BUSYLIGHT

7. SUPPORT..........................................18

7.1 FAQ

7.2 HOW TO CARE FOR YOUR HEADSET

8. TECHNICAL SPECIFICATIONS ...........19

ENGLISH

JABRA EVOLVE 65

1. WELCOME

Thank you for using the Jabra Evolve 65. We hope

you will enjoy it!

JABRA EVOLVE 65 FEATURES

Connects to PC via Jabra Link 360 bluetooth

adapter or USB cable

Connects to mobile devices via Bluetooth

Integrated busylight

Discreet microphone boom-arm that integrates

into the headband when not on calls

Superior music and voice capabilities

Hi-Fi Sound

ENGLISH

JABRA EVOLVE 65

2. JABRA EVOLVE 65

OVERVIEW

2.1 STEREO VARIANT

Adjustable headband

Magnetic

microphone groove

Busylight indicator

Battery

indicator

Bluetooth

indicator

USB connect &

charging port

On/o/connect switch

Microphone

boom-arm

Volume up

Volume down

Multi-function

button

ENGLISH

JABRA EVOLVE 65

2.2 MONO VARIANT

Busylight indicator

Battery

indicator

Bluetooth

indicator

USB connect &

charging port

On/o/connect switch

Microphone

boom-arm

Volume up

Volume down

Multi-function

button

2.3 INCLUDED ACCESSORIES

STEREO AND MONO

USB cable

Carry pouch

Adjustable headband

Magnetic

microphone groove

ENGLISH

JABRA EVOLVE 65

3. HOW TO WEAR

3.1 LEFT OR RIGHT WEARING STYLE

The Jabra Evolve 65 can be worn on the left or

right by flipping the microphone to the other side

(270° limit).

270°

ENGLISH

JABRA EVOLVE 65

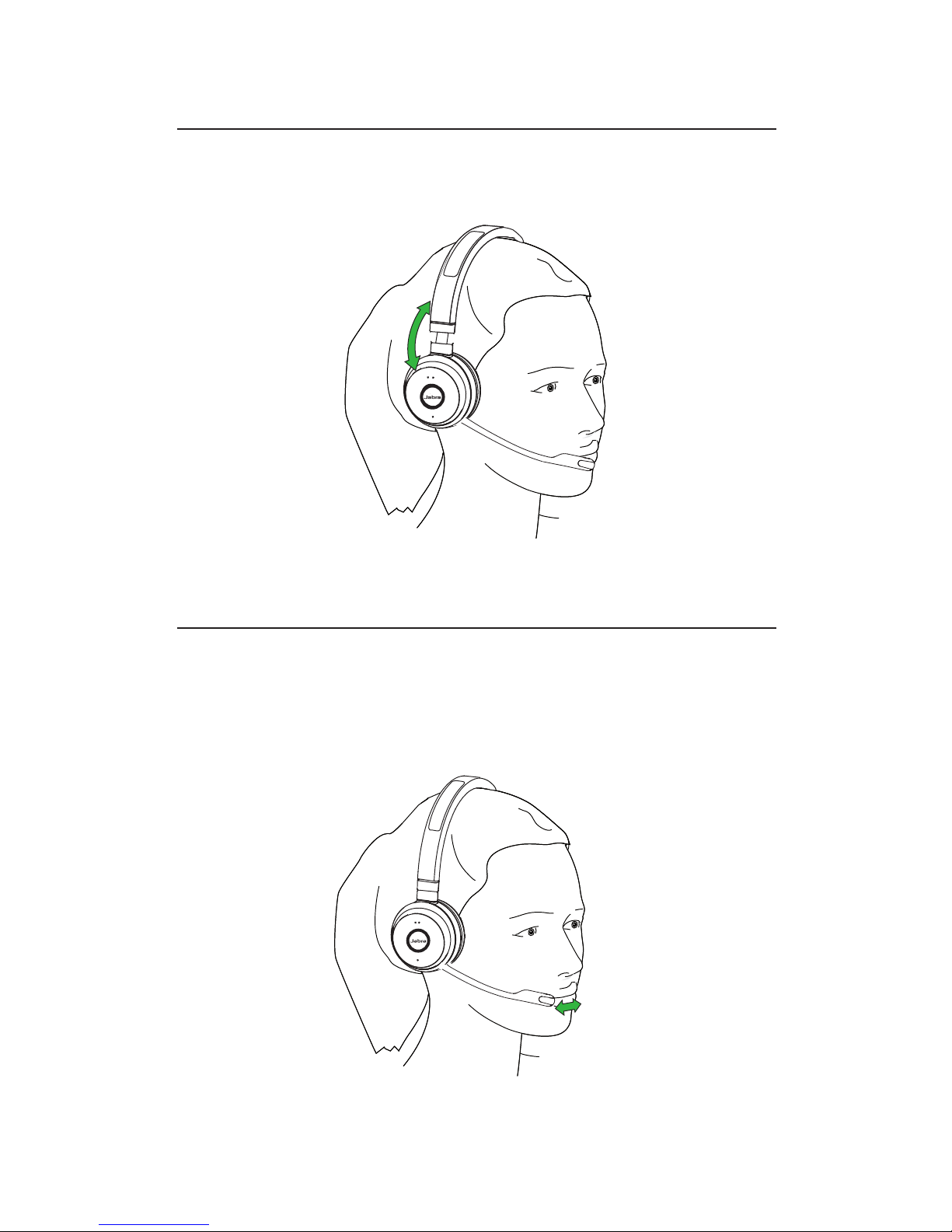

3.2 ADJUST THE HEADBAND

Adjust the headband to find the most comfortable

fit.

3.3 POSITION THE MICROPHONE

It is recommended to position the microphone

close to your mouth (0.5 inches).

ENGLISH

JABRA EVOLVE 65

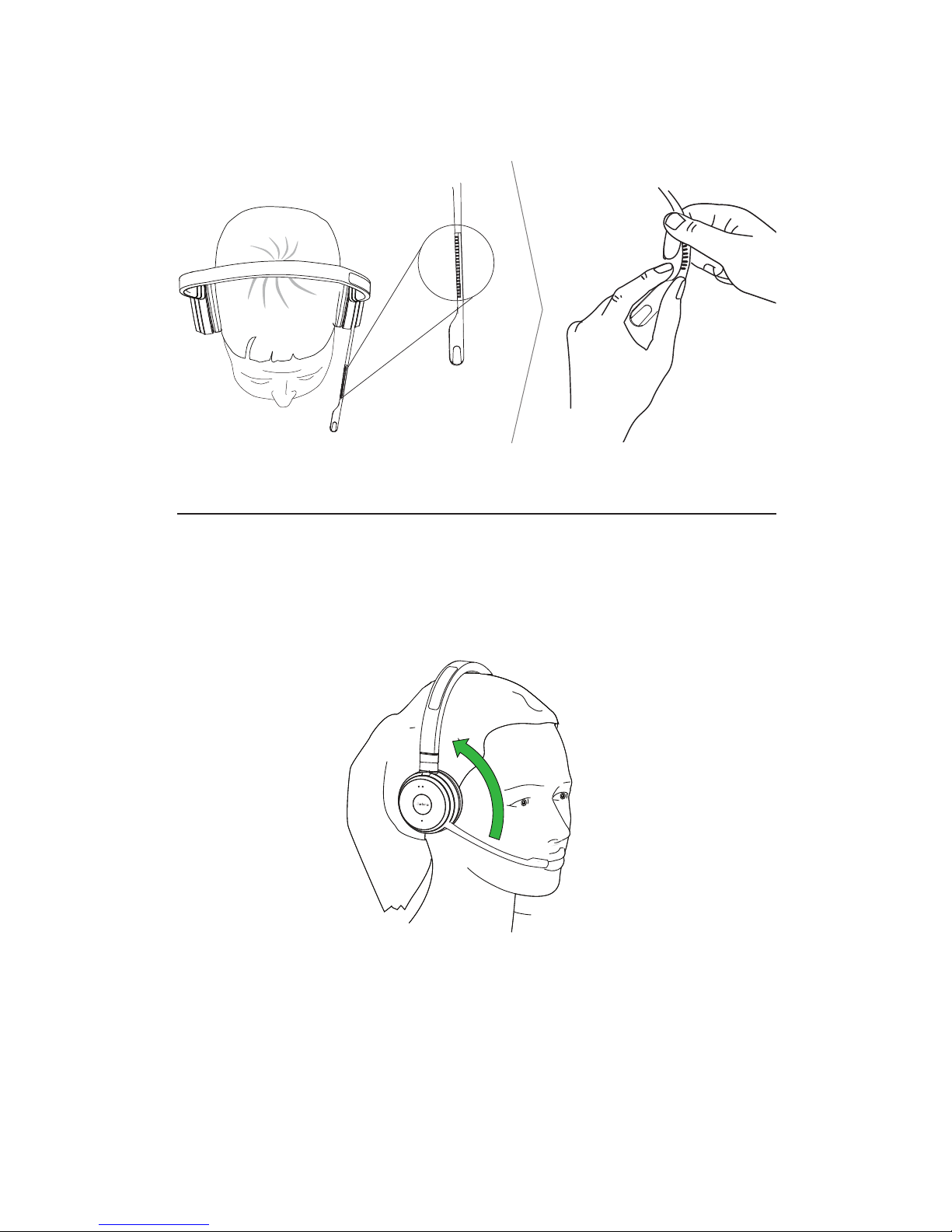

The microphone is bendable for personal

preference.

3.4 STORING THE MICROPHONE

When listening to music or outdoors, the

microphone can be magnetically stored in the

headband groove.

ENGLISH

JABRA EVOLVE 65

4. HOW TO CHARGE THE

BATTERY

The headset battery will charge when connected

to a PC using a USB cable, or when using any USB

charger supplied with your mobile device.

The headset can still be used for calls while

charging using a USB cable connected to a PC.

It takes approx. 3 hours to charge the battery.
