Jabra GN 4150 Manuale utente

GN 4150 amplified headset

Hands-free ease for virtually any phone and PC

User Guide

For more information and technical specifications:

www.gnnetcom.com

CORPORATE HEADQUARTERS

77 Northeastern Blvd.

Nashua, NH • 03062

1-800-826-4656

1-603-598-1100

Fax: 1-603-598-1122

54-0373A • Printed in China.

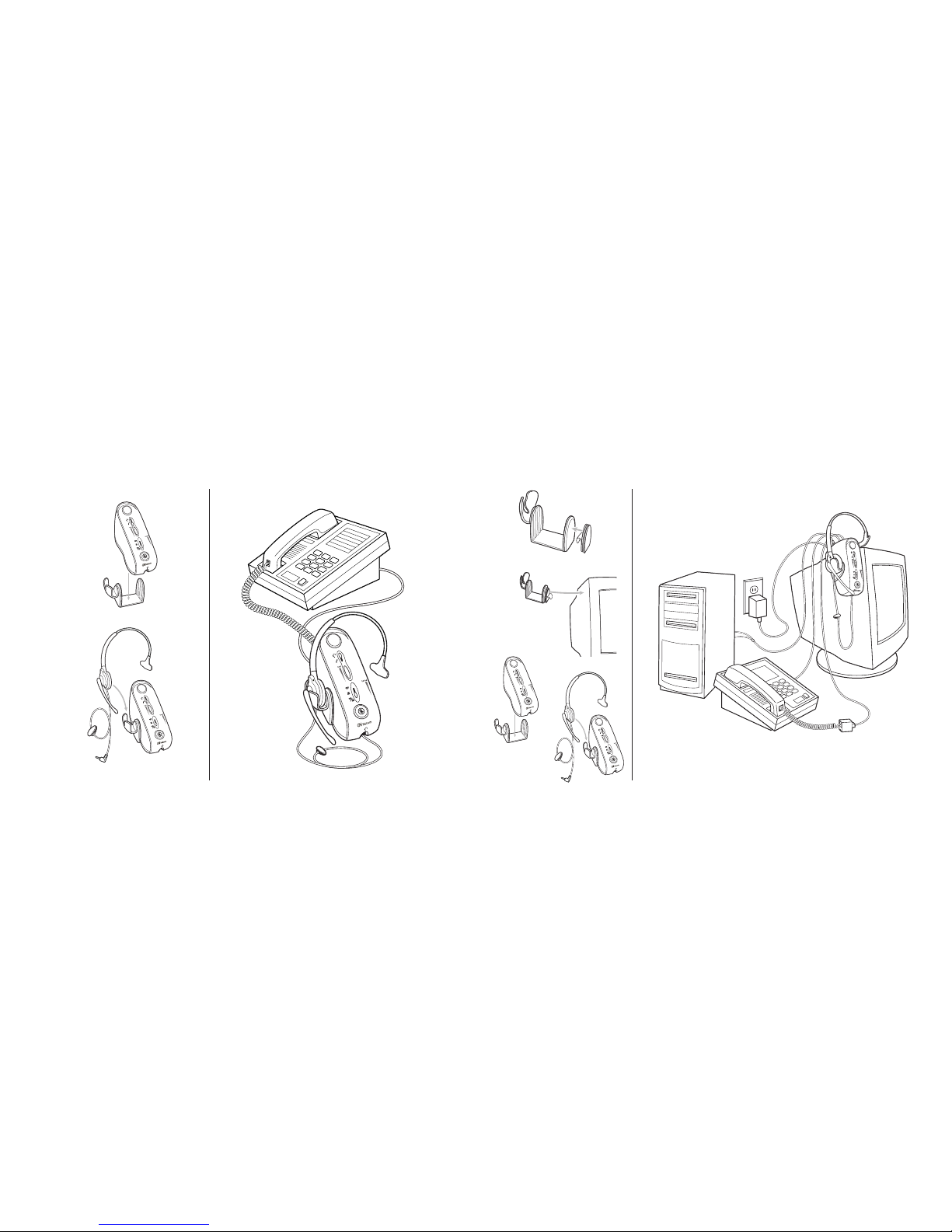

Components

1. Amplifier

2. Headset Holder

3. Headset with Earwrap Wearing Style

4. Headband with Leatherette Ear Cushion

5. Foam Ear Cushion

6. Clothing Clip

7. 2 AA Batteries

8. Telephone Cord

9. Handset Cord Extension

10. PC Audio Cable

11. Dual LockTM

Headband Use & WearingEarwrap Use & Wearing

Converting from Headband to Earwrap

Converting from Earwrap to Headband

Left Ear Wearing Proper Positioning Attach Clothing Clip

Left Ear Wearing

Proper Positioning Attach Clothing Clip

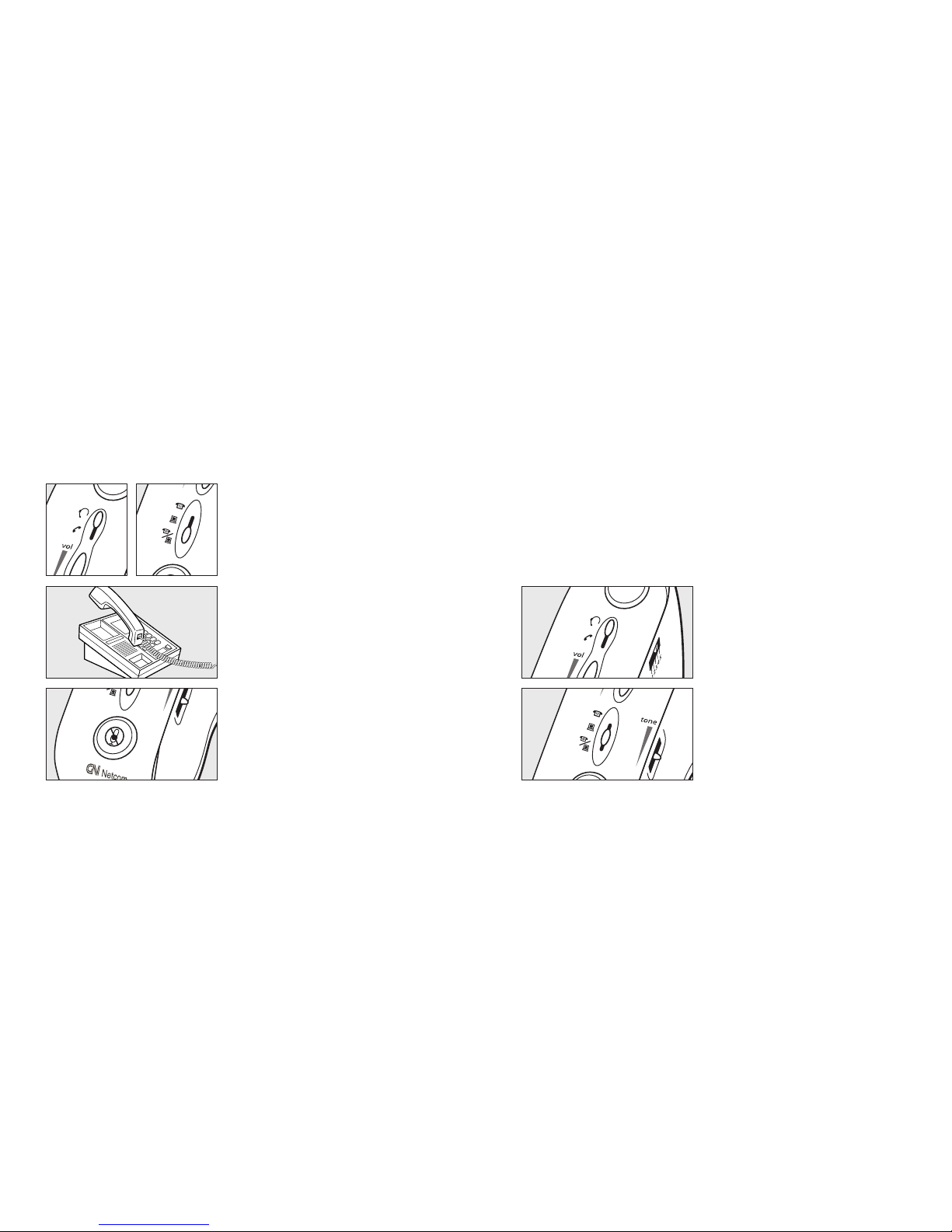

1. Headset/Handset Selector: Top position for Headset use, bottom position

for Handset use.

2. Speaker Volume Wheel: Adjusts the volume of the sound you hear

through the headset.

3. Telephone/Computer Selector: Top position for Telephone use, middle

position for PC use, bottom position for simultaneous PC and Telephone use.

4. Mute Button: Press (button down) to activate Mute and disable the

microphone, press again (button up) to enable microphone; Online

Indicator blinks rapidly when Mute is on.

5. Microphone Volume Selector: Four position switch adjusts the volume

of your voice through the microphone (1 is softest, 4 is loudest).

6. Online Indicator: Blinks slowly when you are on a call.

7. Telephone Compatibility Selector: Fine tunes the amplifier to your

telephone system.

8. Bass/Treble Tone Control: Adjusts the tone of the other party’s voice

to your preference.

Amplifier Functions

Connecting the System

1. Connect all Cords.

1. Headset Cord

2. Telephone Cord

3. Handset Cord with Handset Cord Extension

4. PC Audio Cable

Plug the Telephone Cord into the vacated handset cord port on the

telephone. The location of this port is different for each phone and

is often on the underside of the phone.

Some phones must be programmed for headset use; refer to the

instructions that came with the phone.

Standard Telephone Configuration Telephone and Computer Configuration

1110

2. Install the 2 AA batteries

at the bottom of the amplifier.

You can also purchase an optional

9VDC @ 50ma AC Adapter, available

at most electronics stores or through

GN Netcom (Part No. 760-0050).

3. Put the Headset on and set the

Headset/Handset Selector to Headset.

4. Position the Speaker Volume Wheel

to mid-range.

5. Set the Telephone/Computer Selector

to Telephone (top position).

1312

Setting Up

11. Make a call. Switch between

the Headset (A) and the phone’s

handset while adjusting the

Microphone Volume Selector (B)

until your voice is the same volume

on both devices.

8. Lift the telephone handset and listen

for clear dialtone in your headset.

7. Set the Microphone Volume Selector

to position 3.

6. Set the Mute Button to Off

(button in the up position).

1514

10. Set the Bass/Treble Tone Control

to your preferred setting.

9. If there is no dialtone, or if it isn’t clear,

try all of the Telephone Compatibility

Selector positions until dialtone is clear.

2. Position the Telephone/Computer

Selector to the Computer

(middle position).

Placing and Answering Calls with the Headset

3. Use the Mute Button to temporarily

turn off the transmission of your voice

while on a call.

2. Lift the handset from the telephone

cradle to place or answer a call.

To end the call, replace the handset

in the telephone cradle.

1. Put the Headset on and position

the amplifier to the Headset (A)

and the Telephone (B) settings.

PC Audio Use

1. Put the Headset on and position

the amplifier to the Headset mode.

When using your computer as the audio connection for your headset, both

the microphone and speaker will be connected to your computer through

the computer’s sound card. (See Telephone and Computer Configuration on page 11.)

Frequently Asked Questions

Do I need to lift the handset to make calls?

Some telephones allow on-hook dialing; refer to your telephone user guide for

instructions. For phones that do not allow on-hook dialing, you will need to lift

your handset for calls.

Why can’t I hear a dial tone through my headset?

You may have selected a telephone switch type that does not correspond to you

telephone. Try selecting another Telephone Compatibility setting (numbers 1-6

on the side of the amplifier).

Make sure you have inserted both the Telephone Cord and the Handset Cord

into the appropriate ports.

Why did my amplified headset system stop working?

Your batteries may be low; replace the 2 AA batteries. You can also purchase

an optional 9VDC @ 50ma AC Adapter, available at most electronics stores or

through GN Netcom (Part No. 760-0050).

1918

Simultaneous Telephone & Computer Use

2. Position the Telephone/Computer

Selector to the Phone/Computer

(bottom position).

1. Put the Headset on and position

the amplifier to the Headset mode.

Your GN 4150 amplifier is capable of delivering simultaneous audio across your

phone, computer and headset. Audio from your computer can be played across

your phone conversation or you can play your phone conversation into the

computer for recording. (See Telephone and Computer Configuration on page 11.)
