Set-Up Guide

GN9330e

Welcome to Microsoft Ofﬁce Communicator!

Using this headset with Ofﬁce Communicator will provide a simple, more consistent audio experience than using the microphone and speakers on your

computer (if available).You can also use this headset to answer calls on your Deskphone.

Setup Instructions:

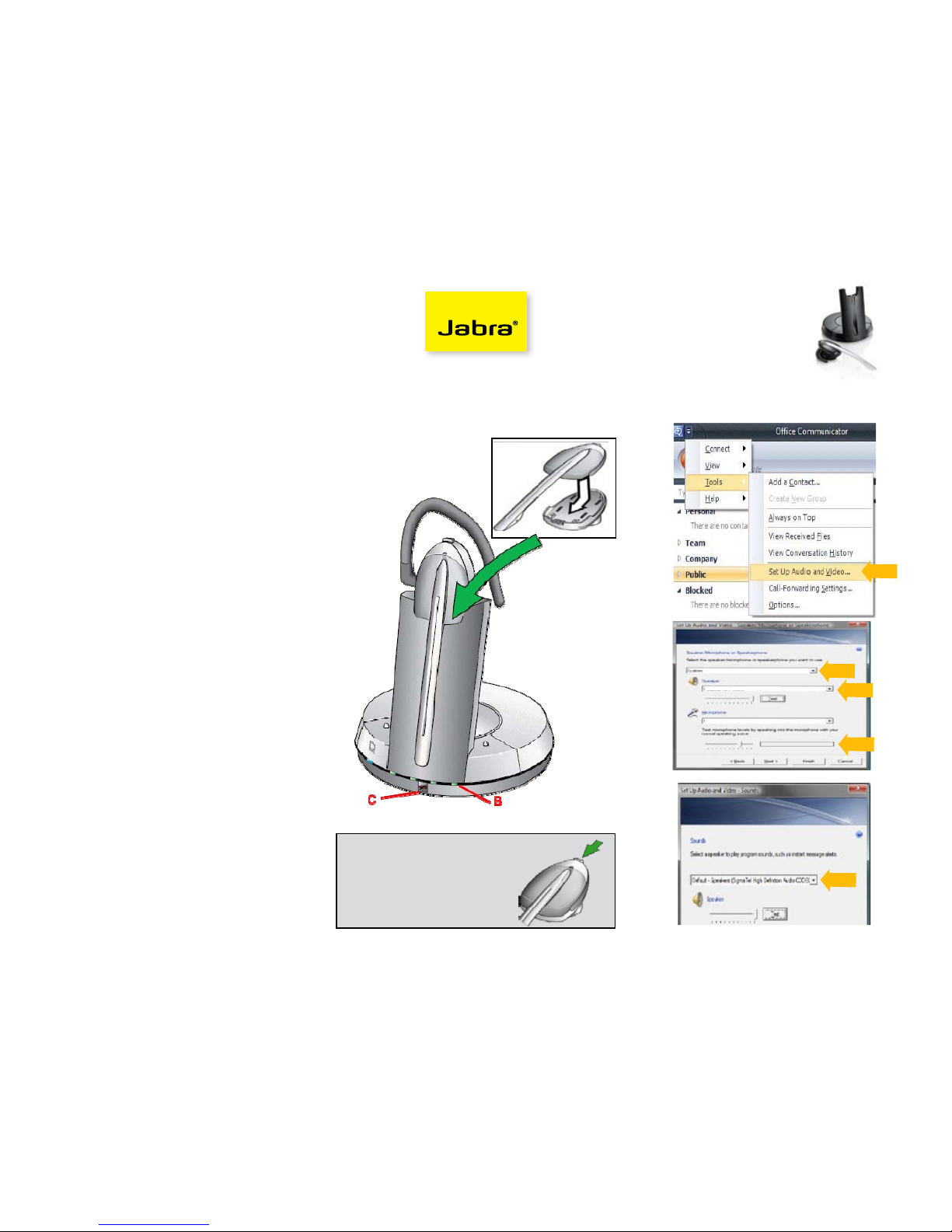

1. Connect the power cable to the base and to a power

outlet.

2. Connect the USB cable to the base and to a USB port

on your PC.

3. Connect the two halves of the headset together (A).

4. Connect the headset to the base and allow to fully

charge. 4 green LED’s on the front of the base will

light up from left to right as the headset charges.

The headset is fully charged when all 4 LED’s are lit

(B) (this will take about 3 hours).

5. Open Communicator 2007.

6. Click the drop down arrow on the upper left corner.

7. Select the Tools option.

8. Select “Set Up Audio and Video…”

9. On the ﬁrst pane you will set the Handset or Headset

you want to use. Make sure that Headset (GN9330)

is selected in the drop down menu.Then click Next.

10. Make sure the Headset (GN9330) is listed as your

speaker and microphone in the appropriate boxes.

(See graphic at right) You may need to set the top

drop down menu to Custom in order to change

these settings.Then click Next.

11 On this pane, you will set the audio output location

for your program sounds. It is recommended that

you use your PC speakers for this setting if you have

a sound card and speakers available.

12. When you have selected the output location,

click the Finish button.

TIP: The GN9330’s microphone can be

muted by pressing in on the volume

rocker on the headset. A red LED will

be lit on the base while the

microphone is muted (C).

Headset (GN9330e)

Microphone (GN9330e)

Set-Up Guide

GN9330e

Jabra®is a registered trademark of gN Netcom a/s

www.Jabra.com

To receive a call with Ofﬁce Communicator

1.You will see a call notiﬁcation on your computer

screen when you receive a telephone call.

2. If your headset is on base, remove it from the base

and the call will automatically be picked up.

3. If you are wearing the headset, answer the call by

either pressing the answer/release button on the

headset (A) or the one on the base (B).

4.You can also answer the call by clicking on the call

notiﬁcation, but keep in mind that this will pick up

the call on the speakerphone device you setup in the

Setup Audio and Video wizard in Communicator.

To make a call with Ofﬁce Communicator

One click calls:

1. Remove the headset from it from the base.It will

automatically start an audio connection with your

computer and you will hear dialtone. If you already

have the headset off the base but don’t have dialtone,

press the answer/release button on the headset (A)

or the one on the base (B). A blue LED will ﬂash on

the headset and on the base (C) when the headset is

offhook.

2. Make one-click phone calls to contacts in your

contact list by selecting their name and clicking the

call button. A call window will pop up.

3.You can also call other numbers for a contact by

clicking the calling options arrow to the right of the

call button and choosing which number to call.

PRESS TO

ANSWER/END

VOLUME

CONTROL

AND PRESS

TO MUTE
