How do I connect my Jabra Pro 9400 / Go 6400 with Aastra

6753i, 6755i, 6757i?

Requirements:

Jabra Link 14201-10

DHSG connection cable from Aastra

Aastra 53i / 55i / 57i / 57iCT / 6753i / 6755i / 6757i / 6757iCT phone with

firmware 2.5.1.2000 or later.

To connect your headset to your phone follow these steps:

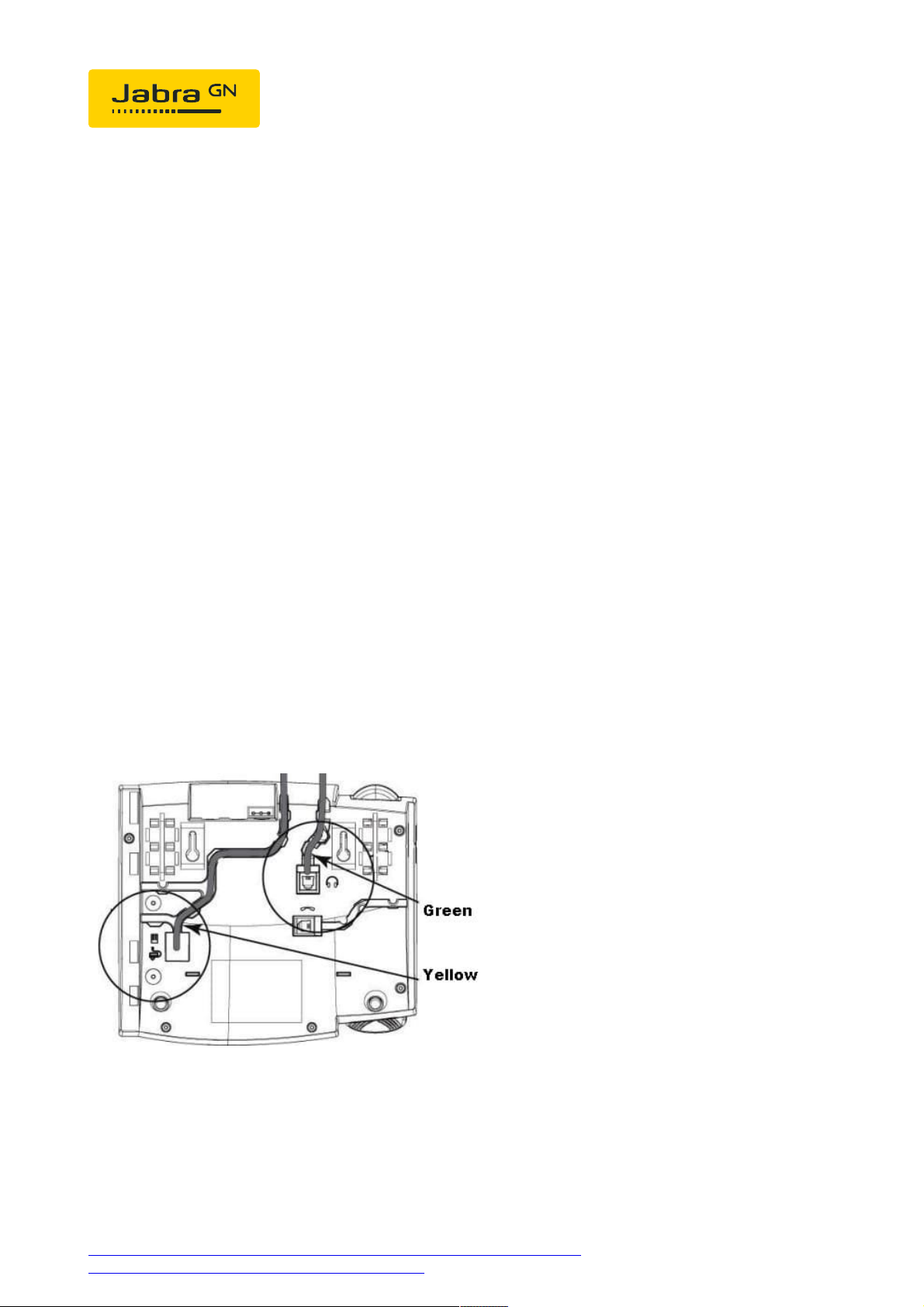

1. Plug the RJ10 connector (green) from the split end of the Aastra

DHSG cord into the headset socket.

2. Plug the RJ45 connector (yellow) from the split end of the Aastra

DHSG cord into the socket for the expansion module.

3. Plug the single end of the Aastra DHSG cord (blue) in the RJ45

adapter.

4. Plug the single end of the Jabra Link 14201-10 cable (blue) into the

free socket on the RJ45 adapter.

11/02/2024 07:03

https://www.emea.jabra.com/supportpages/jabra-pro-9460/9460-29-707-

101/faq/4b3cba38-ca36-4410-8a36-3e1fbff5b658

Page 1 of 4

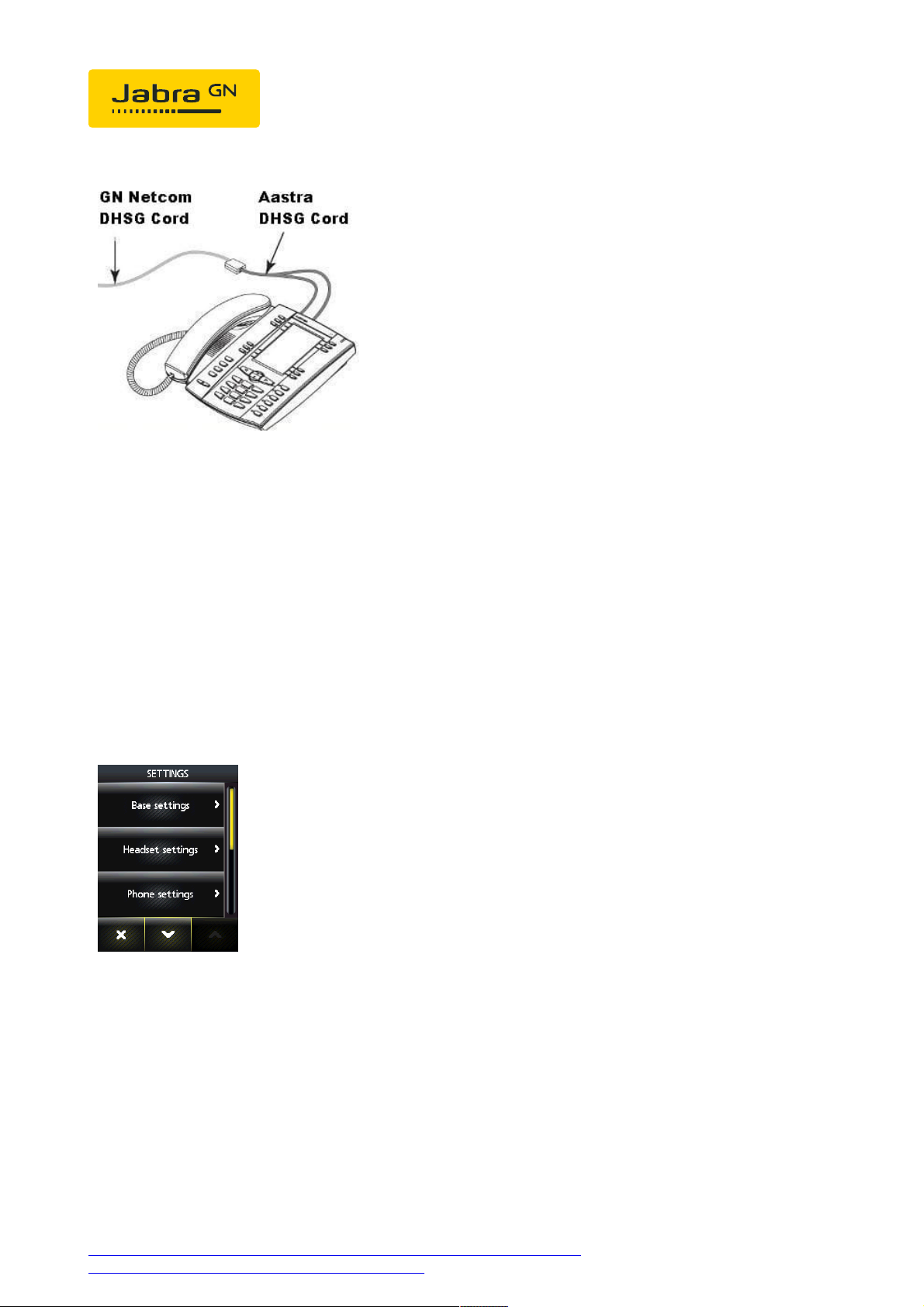

5. Connect the split end of the DHSG cable to the Jabra device base as

follows:

a. Plug the RJ10 connector into the socket with the complete “phone”

symbol.

b. Plug the RJ45 connector into the socket marked “AUX”.

6. Follow the instructions on the Jabra device touchscreen:

a. Select Phone settings.

b. Select Connect to a desk phone.

11/02/2024 07:03

https://www.emea.jabra.com/supportpages/jabra-pro-9460/9460-29-707-

101/faq/4b3cba38-ca36-4410-8a36-3e1fbff5b658

Page 2 of 4

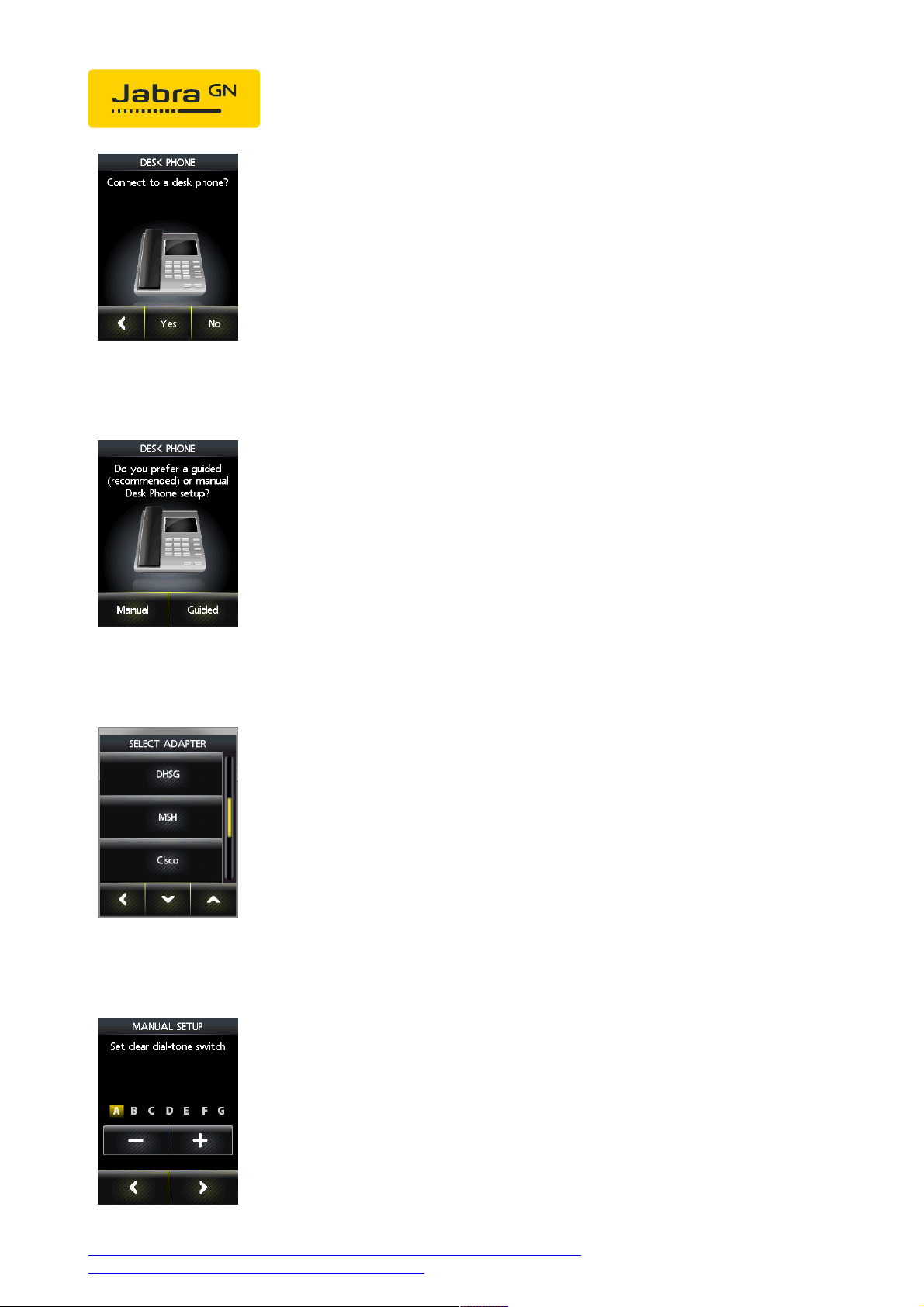

c. Select Manual.

d. Select adapter type DHSG.

7. Set the phone setup switch to position A.

11/02/2024 07:03

https://www.emea.jabra.com/supportpages/jabra-pro-9460/9460-29-707-

101/faq/4b3cba38-ca36-4410-8a36-3e1fbff5b658

Page 3 of 4

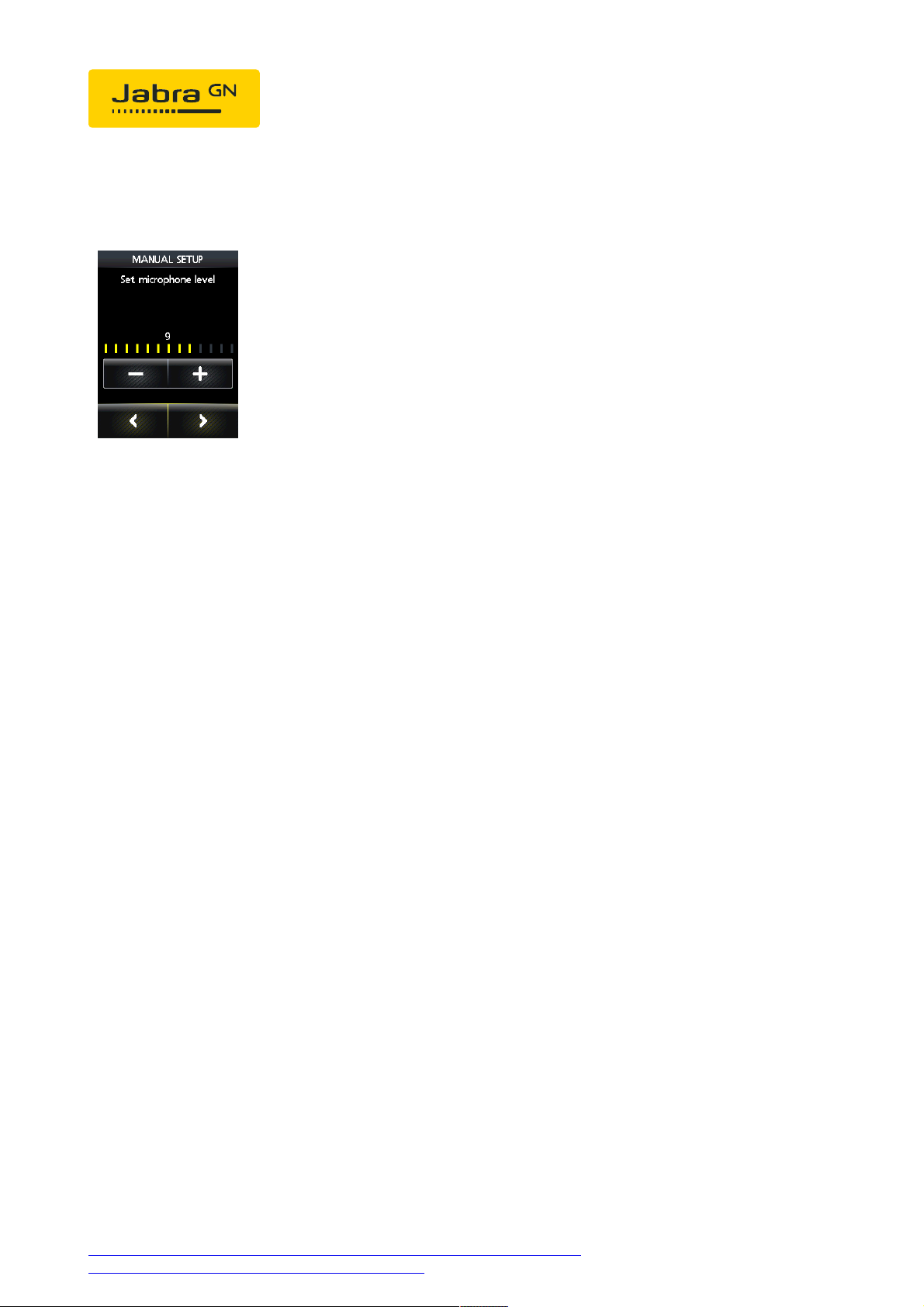

8. We recommend setting the microphone volume to 7 out of 13.

As part of the installation, you can dial into your local Jabra Setup server

which will configure the audio path. Follow the instructions shown on

the display. If your Jabra setup server is unavailable, contact your local

Jabra Support team.

Additional phone settings:

In version 2.5.1.2000, the DHSG mode is deactivated by default. You

need to activate it using Aastra.cfg or mac.cfg using the command

“dhsg:1”.

Set the Audio mode to Headset/Speaker:

Options>Default settings>Audio settings>Audio mode>Headset/Speaker

Note:

There is no possibility for remote call control when using an expansion

keypad.

11/02/2024 07:03

https://www.emea.jabra.com/supportpages/jabra-pro-9460/9460-29-707-

101/faq/4b3cba38-ca36-4410-8a36-3e1fbff5b658

Page 4 of 4
