Thank you

Thank you for purchasing Jabra T5330, we hope you will be delighted with its operation.

Please read the user guide to get started and to make best use of the headset’s many features.

English

Headset

[1] Visual indicator

[2] Answer/end button

[3] Volume up/down

[4] Ear hook

[5] Mute button

[6] Microphone

[7] Reset button

[8] Snap-on cover (replaceable)

Base unit

[9] Charge cradle

[10] Visual indicator

[11] Clear dial tone switch

[12] AUX port

[13] Telephone port

[14] Handset port

[15] AC power adapter port

[16] Transmit volume

[17] Reset button

[18] Headset switch

19 20

11 16

1. Overview

Cords & adapters

[19] Connection cord

[20] AC power adapter

English

2.1

2.2

2.3

2.4

2.5

2.6

Fitting to ear

2.1 Open hinged ear hook as wide as

possible. 1)

2.2 Hold headset to the ear so speak-

er ﬁts comfortably and microphone

points toward the mouth.

2.3 Close hinged ear hook over the

ear.

2.4 Bend or twist ﬂexible rubber part

of the ear hook for a com-fortable ﬁt.

Further adjustment

2.5 Ear hook hinge can be placed in

either of 2 slots,to provide the best

possible ﬁt.

Fitting to left ear

2.6 Pull ear hook hinge from the

slot and insert it on opposite side of

headset marked with L. Perform steps

2.1 – 2.4 above.

2.1

2.2

2.3

2.4

2.5

2.6

Revideret 20/03/06

Revideret

29/05/06

2.1

2.2

2.3

2.4

2.5

2.6

Revideret 20/03/06

Revideret

29/05/06

2.2

2.1

2.2

2.3

2.4

2.5

2.6

Revideret 20/03/06

Revideret

29/05/06

2.3

2.1

2.2

2.3

2.4

2.5

2.6

Revideret 20/03/06

Revideret

29/05/06

2.4

2.5

2. Fitting the headset

Note: The new headset is conﬁgured for use with the right ear.

2.6

English

3.1

3.2

3.3

3.4

3.5

3.1

3.2

3.3

3.4

3.5

3.1

3.2

3.3

3.4

3.5

3.3

3. Setting up

3.2

Note: AUX port is used for Remote Handset Lifter (RHL).Please refer to Appendix.

If your telephone has a headset port,

go directly to 3.2b.

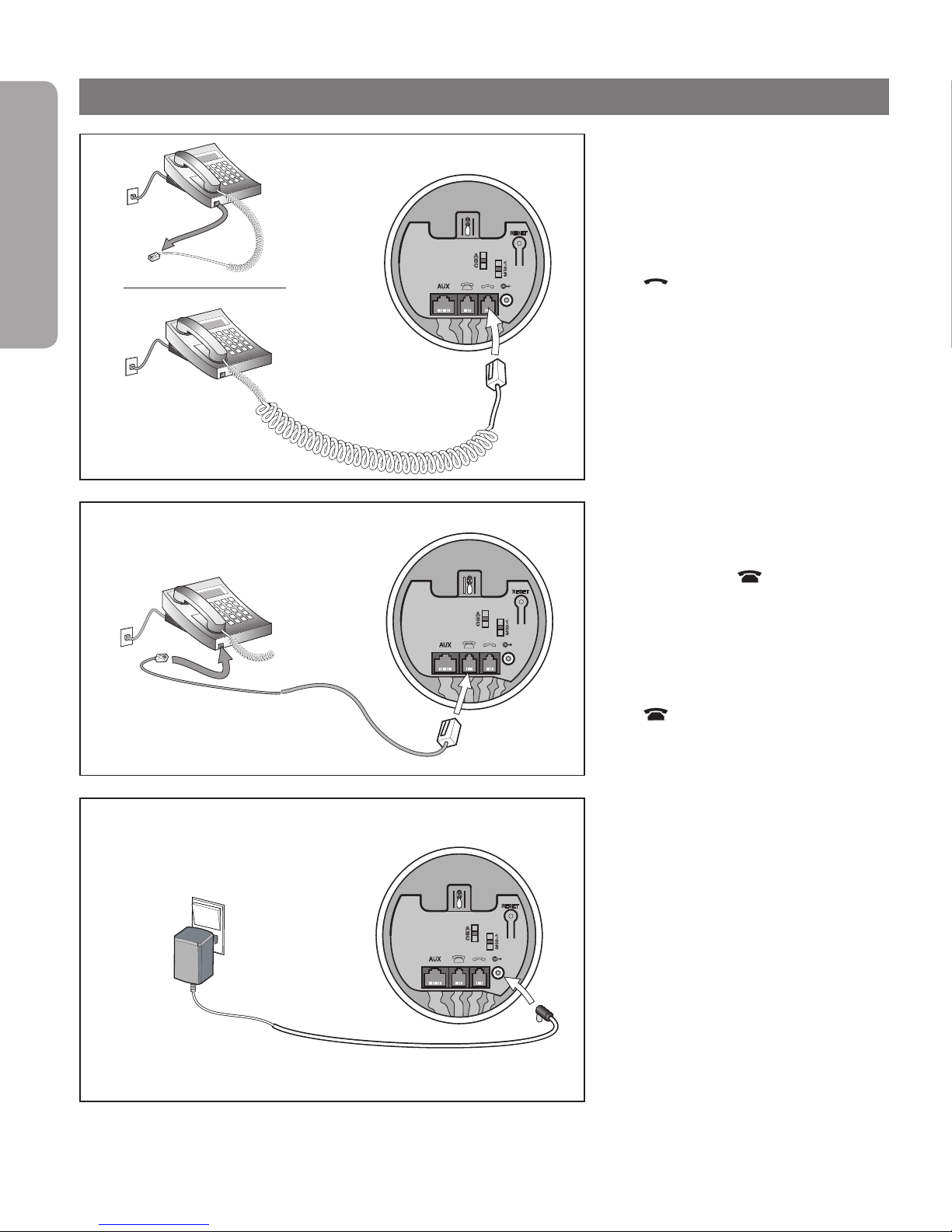

3.1 Unplug handset cord from your

telephone and connect to the port on

base unit marked

with .

3.2a Connect enclosed telephone

cord to the now empty handset port

on telephone,and to the port on base

unit marked with .

3.2b (Headset port use only)

Connect enclosed telephone cord

to the headset port on telephone,

and to the port on base unit marked

with .

3.3 Connect AC power adapter to

port on bottom of base unit, then

connect to AC power outlet.Visual

indicator on base will light green.

3.1

English

3.7

3.6

3.9

3.8

3.4

4.1 4.5

4.6

4.7

4.8

4.2

4.3

4.4

revideret

20/03/06

27/05/06

revideret

20/03/06

4.1 4.5

4.6

4.7

4.8

4.2

4.3

4.4

revideret

20/03/06

27/05/06

revideret

20/03/06

3.1

3.2

3.3

3.4

3.5

3.1

3.2

3.3

3.4

3.5

3 sec

5.1

5.2

5.3

5.4

4.1 4.5

4.6

4.7

4.8

4.2

4.3

4.4

revideret

20/03/06

27/05/06

revideret

20/03/06

3.5

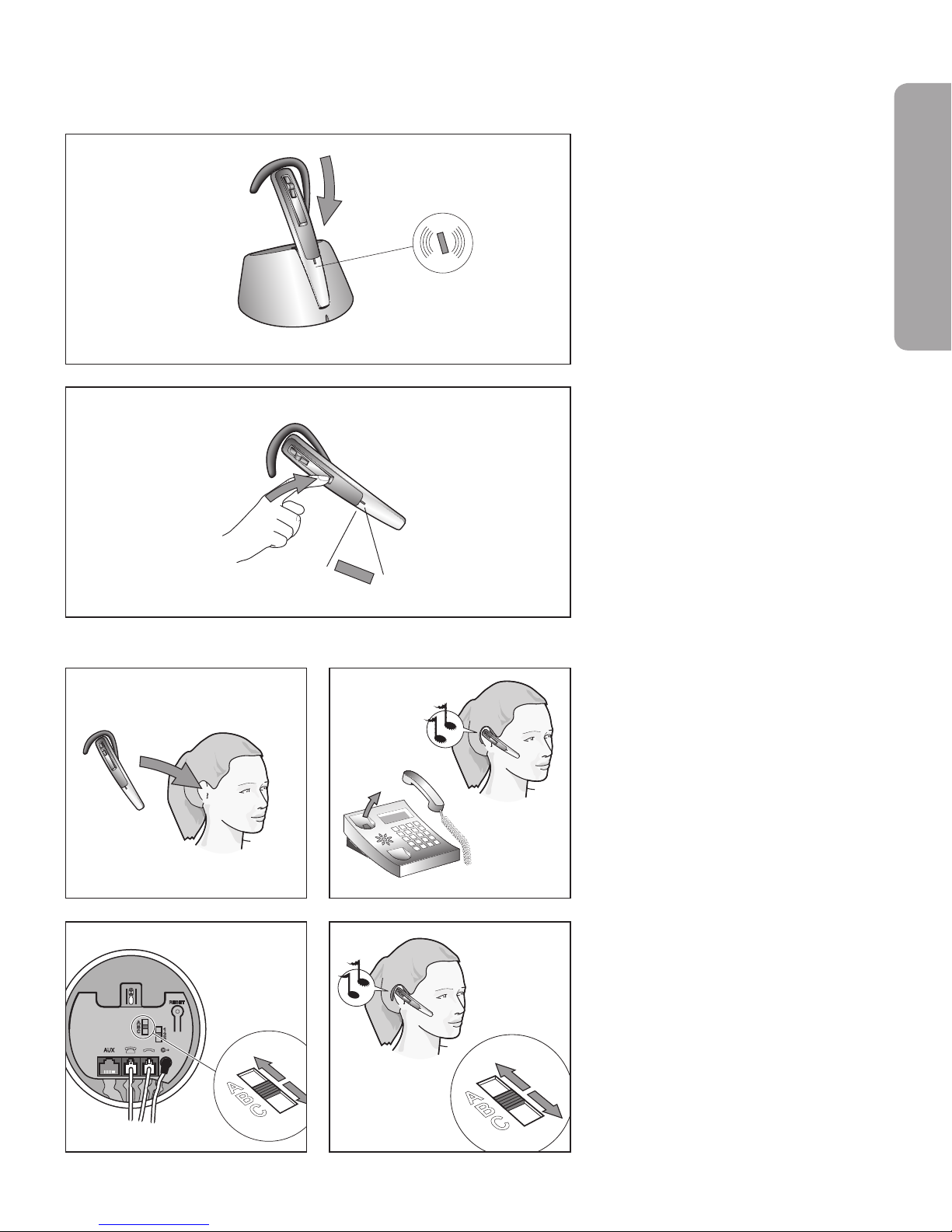

3.4 Place headset in charge cradle

and charge a minimum of 30 min.

before use. A full charge takes about 2

hours.Visual indicator on headset will

ﬂash green while headset is charging,

and light steady green when fully

charged.

3.5 Turn on headset by pressing

answer/end button for 3 sec. (visual

indicator will light green for 2 sec.

and two“beeps”will be heard), or by

placing headset in charge cradle.Turn

off headset by pressing answer/end

button for 3 sec. (visual indicator will

light red for 2 sec. and two“beeps”will

be heard).

Clear dial tone

3.6 Take headset out of charge

cradle and put it on.

3.7 Lift handset from telephone and

listen for a dial tone in headset.

3.8 If dial tone is missing or unclear,

slowly slide the clear dial tone switch

on bottom of base unit through the 3

settings.

3.9 Set switch to the position that

gives the clearest dial tone.

English

Setting transmit volume

3.10 Make a call (see section 4) to

someone who can act as a test person.

3.11 Adjust outgoing volume with

transmit volume control on base unit.

Switch through the 3 settings until

test person conﬁrms the appropriate

volume. 1)

Setting incoming volume

3.12 During a call, adjust incoming

volume by pressing Volume button on

headset.

3.13 A tone in headset will indicate

when min./max. volume is reached.

3.11

3.10

Note: If you can hear your own voice, transmit volume is probably too high.

4.1 4.5

4.6

4.7

4.8

4.2

4.3

4.4

4.1 4.5

4.6

4.7

4.8

4.2

4.3

4.4

revideret

20/03/06

27/05/06

revideret

20/03/06

4.1 4.5

4.6

4.7

4.8

4.2

4.3

4.4

revideret

20/03/06

27/05/06

revideret

20/03/06

3.133.12

English

4.1 Put on headset.1)

4.2 Lift handset from telephone,

or press telephone´s“line”button if

connected to the headset port.

4.3 Wait for dial tone, then dial

number.

4.4 To end call, replace handset on

telephone,or press telephone´s“end

call”button if base is connected directly

to telephone´s headset port.

Making a call with handset

4.5 Place headset in charge cradle.

4.6 Use handset as usual.

4. Making a call

4.1

4.4

4.2

4.3

Note: If making a call with telephone handset,make sure the headset is placed in charge cradle.

Otherwise,the call will be routed through to the headset.

4.6

4.5

5.1

5.2

5.3

5.4

5.1

5.2

5.3

5.4

5.1

5.2

5.3

5.4

5.1

5.2

5.3

5.4

5.5 5.6

English

Note: If answering a call with telephone handset,make sure the headset is placed in charge cradle.Otherwise,the call

will be routed through the headset.

5.1 Puton headset. 1)

5.2 Lift handset from telephone,

or press telephone’s“line”button if

connected to the headset port.

5.3 To end call, replace handset

on telephone, or press telephone’s

“end call”button if base is connected

directly to telephone’s headset port.

5. Answering a call

6.1

6.2

6.3

6.4

6.5

6.1

6.2

6.3

6.4

6.5

5.2

6.1 6.2

5.1

6.1

6.2

6.3

6.4

6.5

5.3

6. Features

Muting & unmuting

6.1 Press mute button on headset.

Visual indicator on base unit will

turn red and a dual tone will be

heard in the headset.

6.2 To unmute, press mute button

again.Visual indicator on base unit

will change from red to ﬂashing

green and a dual tone will be heard

in the headset.

6.1

6.2

6.3

6.4

6.5

6.1

6.2

6.3

6.4

6.5

English

6.3

6.4

Switching from handset to headset

6.3 During a call using telephone

handset,take headset from charge

cradle.The call will automatically be

routed through the headset.1)

Switching from headset to handset

6.4 During a call using the headset,

pick up telephone handset and replace

headset to charge cradle. Call will not

be routed through to the telephone

handset, before headset is in the

charge cradle.

Important: Do not replace handset on telephone,as this will disconnect the call.

7.1

7.2

7.3

7.4

7.5

7.1

7.2

7.3

7.4

7.5

English

7.1

7.2

7.3

7.4

7.5

7.1

7.2

7.3

7.4

7.5

Important: If headset is out of range for more than 1 min.,the link between base and headset will be terminated.

Low battery

6.5 App. 10 minutes before the

headset runs out of battery, the visual

indicator on headset will start to ﬂash

with a red light and a series of tones

will be heard.

If the battery runs out of power, visual

indicator on headset will switch off

automatically. Replace headset to

charge cradle, and continue the call

using telephone handset.

Out of range

6.6 If going out of range (approx.10

meters/30 feet),all buttons except

answer/end button will stop working

until back in range again.2)

If headset is muted when going out

of range it will also be muted when

going within range again.

Headset switch

6.7 If the headset is absent, the

headset switch must be activated in

order to use the handset.

6.5

6.7

Features:

Range 10 m / 30 feet

Talk time / standby time 4 hours / up to 60 hours

Transmission protocol Bluetooth

Frequency band 2,4 GHz

10 m / 30 feet

6.6

Features:

Range 10 m / 30 feet

Talk time / standby time 4 hours / up to 60 hours

Transmission protocol Bluetooth

Frequency band 2,4 GHz











MFEET

MIN

10 min

Altri manuali per T5330

Indice

Lingue:

Altri manuali Jabra Cuffia

Jabra

Jabra Connect 5t Titanium Black Manuale utente

Jabra

Jabra BT2040 - Headset - In-ear ear-bud Manuale utente

Jabra

Jabra BT8040 Multiuse Manuale utente

Jabra

Jabra PRO 935 Manuale utente

Jabra

Jabra GN2100 - DATASHEET FOR WIDEBAND IP TELEPHONY Manuale utente

Jabra

Jabra BT500 - Headset - Over-the-ear Manuale utente

Jabra

Jabra M5390 Manuale utente

Jabra

Jabra Evolve2 75 Manuale utente

Jabra

Jabra EVOLVE 75 Manuale utente

Jabra

Jabra BT5010 Multiuse Manuale utente

Jabra

Jabra BT350 - Headset - Over-the-ear Manuale utente

Jabra

Jabra BT250v - Headset - Over-the-ear Manuale utente

Jabra

Jabra BIZ 360 Manuale utente

Jabra

Jabra SUPREME UC Manuale di istruzioni

Jabra

Jabra CLEAR Manuale utente

Jabra

Jabra WAVE-CORDED Manuale utente

Jabra

Jabra GN 6110 Manuale utente

Jabra

Jabra GO 6470 Manuale utente

Jabra

Jabra BIZ 2400 Series Manuale utente

Jabra

Jabra BT 125 Manuale utente

Jabra

Jabra GN9120 Midi Manuale dell'operatore

Jabra

Jabra EXTREME Guida di riferimento

Jabra

Jabra GN 502 USB Manuale utente

Jabra

Jabra EASYGO Manuale utente

Manuali Cuffia popolari di altre marche

Sena

Sena SMH10 Manuale utente

IASUS

IASUS Stealth IA-NT4-BASIC-BT Manuale utente

Sennheiser

Sennheiser EPOS ADAPT 230 Manuale utente

Doro

Doro Flexus HS2005 Manuale utente

GE 98971 Manuale utente

Hama

Hama 00184070 Manuale utente

Plantronics

Plantronics Blackwire 3200 Series Manuale utente

Blue Tiger

Blue Tiger Advantage PLUS Manuale utente

Jawbone

Jawbone Icon Manuale utente

Roxcore

Roxcore Flow A+ Manuale utente

Turtle Beach

Turtle Beach XP 510 Manuale utente

Philips

Philips SHB6101 Manuale utente

HyperX

HyperX HyperX Cloud Flight Manuale utente

Bose

Bose MIE2 Mobile Manuale utente

HyperX

HyperX cloud ii Manuale utente

Southwing

Southwing SA505 Manuale utente

Plantronics

Plantronics VOYAGER 520 Manuale utente

Blueant

Blueant X5i Manuale utente
