Jabra SP200 - QUICKSTART GUIDE 1 Manuale utente

Jabra SP200

User manual

www.jabra.com

USER MANUAL - LANGUAGES

ENGLISH - EUROPE (click here for manual)..........................4

ENGLISH - NORTH AMERICA (Click here for manual) . . . . . . . . . . . . . . . 21

ENGLISH - ASIA PACIFIC (Click here for manual)....................39

DANSK (Klik her for at se vejledningen) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

FRANÇAIS (Cliquez ici pour le manuel). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

FRANÇAIS - NORTH AMERICA (Cliquez ici pour le manuel) . . . . . . . . . 91

DEUTSCH (Klicken Sie hier für Handbuch) . . . . . . . . . . . . . . . . . . . . . . . .111

РУССКИЙ (Щёлкните здесь, чтобы скачать

руководство) ..................................................129

YКРАЇНА (Клацніть тут для завантаження посібника) ......148

NEDERLANDS (Klik hier voor de handleiding).....................166

SUOMI (Avaa käyttöohje napsauttamalla tässä) . . . . . . . . . . . . . . . . .185

SVENSKA (Klicka här för bruksanvisning) .........................202

ITALIANO (Fare clic qui per il manuale) . . . . . . . . . . . . . . . . . . . . . . . . . . .219

PORTUGUÊS (Clique aqui para acessar o manual) . . . . . . . . . . . . . . . .237

ESPAÑOL (Haga clic aquí para obtener el manual)................255

ESPAÑOL - NORTH AMERICA (Haga clic aquí para

accederalmanual)..............................................272

ČESKY (Zde klikněte pro manuál).................................291

POLSKI (Kliknij tutaj, żeby przejść do instrukcji) . . . . . . . . . . . . . . . . . . .308

ΕΛΛΗΝΙΚΑ (Κάντε κλικ εδώ για το εγχειρίδιο) . . . . . . . . . . . . . . . . . . . . .326

TÜRKÇE (Kullanım kılavuzu için buraya tıklayın)..................344

MAGYAR (Kattintson ide a kézikönyvért) . . . . . . . . . . . . . . . . . . . . . . . . .361

ROMÂNĂ (Faceţi clic aici pentru manual) . . . . . . . . . . . . . . . . . . . . . . . .378

简体中文（单击此处查看手册）

............................428

繁體中文（按下此處檢視手冊）

............................443

日本語 (取扱説明書をご覧になるには、ここをクリック

してください )

..................................................460

한국어(설명서를 보려면 여기를 클릭하십시오)

............478

BAHASA MELAYU (Kullanım kılavuzu için buraya tıklayın) . . . . . . . .495

ภาษาไทย (คลิกที่นี่เพื่ออ่านคู่มือ) .......................................513

english

JABRA SP200

CONTENTS

THANK YOU....................................................2

ABOUT YOUR JABRA SP200 ....................................2

WHAT YOUR SPEAKERPHONE CAN DO .........................3

GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

CHARGING YOUR SPEAKERPHONE .............................4

TURNING YOUR JABRA SP200 ON AND OFF ....................5

PAIRING YOUR JABRA SP200 WITH YOUR MOBILE PHONE ......6

CONNECTING WITH YOUR PHONE .............................7

PLACING THE SPEAKERPHONE IN YOUR VEHICLE ...............7

HOW TO .......................................................8

WHAT THE LIGHTS MEAN ......................................9

TROUBLESHOOTING & FAQ ....................................9

NEED SUPPORT? ..............................................10

TAKING CARE OF YOUR SPEAKERPHONE ......................10

WARNING! ....................................................11

SAFETY INFORMATION! .......................................12

BUILTIN BATTERY CARE: ......................................13

CHARGER CARE: ..............................................14

WARRANTY ...................................................14

CERTIFICATION ...............................................16

GLOSSARY ....................................................17

english

JABRA SP200

THANK YOU

Thank you for purchasing the Jabra SP200 Bluetooth® speaker-

phone. We hope you enjoy it! This instruction manual will get you

started and ready to make the most of your speakerphone.

ABOUT YOUR JABRA SP200

1 Answer/end button

2 LED light

3 Charging socket

4 Volume wheel

5 On/o switch

6 Visor clip

ON OFF

english

JABRA SP200

WHAT YOUR SPEAKERPHONE CAN DO

Your Jabra SP200 lets you do all this:

- Answer calls

- End calls

- Reject calls*

- Voice dialing*

- Last number redial*

- Mute

- Adjust volume

Specications

- Talk time up to 12 hours / Standby time up to 550 hours

(23 days)

- Rechargeable battery with charging option from car charger or

via USB cable.

- Sleep mode automatically turns the speakerphone o after 15

minutes if not connected to your phone

- Noise reduction & Echo cancellation via DSP technology

- Size: L 124 mm x W 56 mm x H 16 mm

- Weight 84 grams

- Operating range up to 10 meters (approximately 33 feet)

- Supported Bluetooth proles: HFP, HSP

- Bluetooth specication (see glossary) version 2.0

- e-SCO for enhanced audio quality

GETTING STARTED

You should follow three steps before using your speakerphone

1) Charge your speakerphone

2) Activate Bluetooth on your mobile phone (refer to the

manual for your Mobile phone)

3) Pair your speakerphone with your mobile phone

The Jabra SP200 is easy to operate. The answer/end button on the

speakerphone performs dierent functions depending on how

long you press it.

* Phone dependent

english

JABRA SP200

Instruction Duration of press

Tap Press briey

Double tap 2 quickly repeated taps

Press Approximately 1 second

Press and hold Approximately 5 seconds

CHARGING YOUR SPEAKERPHONE

Make sure that your speakerphone is fully charged for two hours

before you start using it. Use the car charger or the USB cable to

charge. When the light indicator (LED) has a solid red light, your

speakerphone is charging. When the light turns green, it is fully

charged.

Use only the charger provided in the box - do not use chargers

from any other devices as this may damage your speakerphone.

Please note: The lifetime of the battery will be signicantly

reduced if your device is left uncharged for a long period. We

therefore recommend that you recharge your device at least once

a month.

english

JABRA SP200

TURNING YOUR JABRA SP200 ON AND OFF

- Slide the on/o switch forward on the side of the speaker-

phone to turn on the speakerphone.

- Slide the on/o switch backward to turn o the speakerphone.

Sleep Mode

When not connected to a phone, the speakerphone turns o

automatically after 15 minutes. Tap the answer/end button to turn

the speakerphone on again.

ON OFF

On/O switch

english

JABRA SP200

PAIRING YOUR JABRA SP200 WITH

YOUR MOBILE PHONE

The Speakerphone can be connected to a mobile phone using a

procedure called‘pairing’. By following a few simple steps, a phone

can be paired with the speakerphone in a matter of minutes.

1 Put the speakerphone in pairing mode

- When you turn on your Jabra SP200 for the rst time, the

speakerphone will automatically start up in pairing mode – i.e.

it can be detected by your phone. When the speakerphone is in

pairing mode the blue LED will ash rapidly.

2 Set your Bluetooth phone to‘search’ for the Jabra SP200

- Follow your phone’s instruction guide. First make sure that

Bluetooth is activated on your mobile phone. Then set your

phone to search for devices. This usually involves going to a

‘setup,’‘connect’or‘Bluetooth’menu on your phone and select-

ing the option to‘search’or ‘add’ a Bluetooth device.*

3 Your phone will nd the Jabra SP200

- Your phone will nd the speakerphone under the name“Jabra

SP200”. Your phone then asks if you want to pair with the

Jabra SP200. Accept by pressing‘Yes’ or‘OK’on the phone and

conrm with the passkey or PIN = 0000 (4 zeros). Your phone

will conrm when pairing is complete.

CONNECTIVITY

SELECT

MobilSurf

BLUET O OT H

Infrared port

Wap options

Synchronization

Networks

DEVICES FOUND

Jabra SP200

Passkey:

****

HANDSFREE

SELECT

Jabra SP200

added.

The handsfree is

now ready for use

SELECT

Manual pairing mode

If you wish to use the speakerphone with a dierent phone, or

if the pairing process was interrupted, you can manually set the

speakerphone to pairing mode.

Turn the speakerphone on. Press and hold the answer/end button

for approximately 5 seconds until the blue LED light stars blinking

rapidly. Then repeat steps 2. and 3. in the above pairing guide.

* Phone dependent

english

JABRA SP200

CONNECTING WITH YOUR PHONE

Pairing is only needed the rst time a speakerphone and phone

are used together. When the speakerphone and phone have

been paired once, they will automatically connect when the

speakerphone is on and Bluetooth is activated on the phone. The

speakerphone can be used when it is“connected”to the phone.

If the devices are paired, but do not immediately connect, tap the

answer/end button.

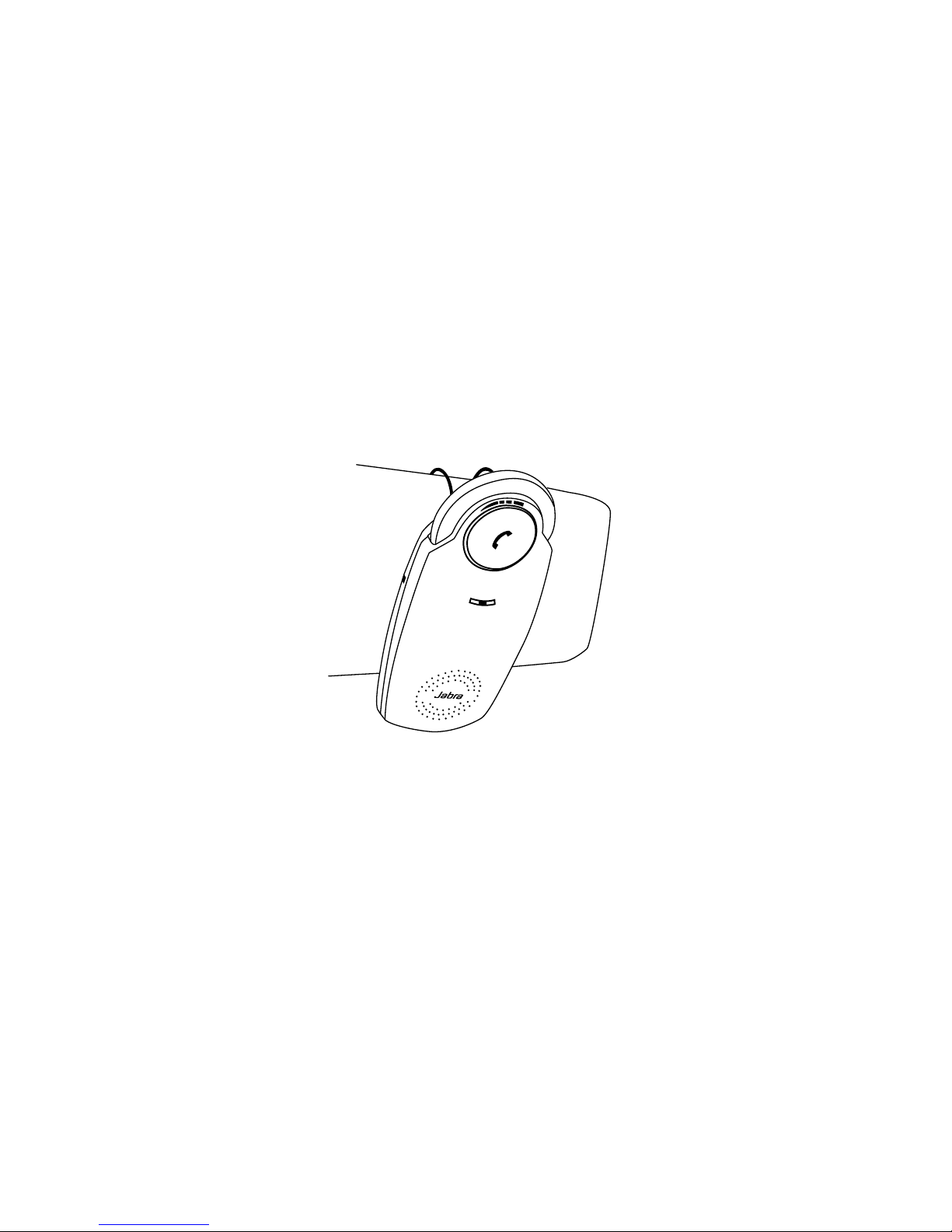

PLACING THE SPEAKERPHONE IN YOUR VEHICLE

The Jabra SP200 sits discreetly and conveniently on the sun visor

using the attached clip.
