Jackson Grills JLS400-LP Lux Manuale utente

ASSEMBLY, USE AND CARE MANUAL

MANUAL FOR MODELS: JLS400-LP / JLS550-LP / JLS700-LP

MODEL NAMES: LUX Series 2/3/4 Burner Pedestal Model

FOR OUTDOOR

USE ONLY

DANGER

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open lid.

4. If odor continues, keep away from the

appliance and immediately call your gas

supplier or your fire department.

WARNING

1. Do not store or use gasoline or other

flammable liquids or vapors in the

vicinity of this or any other appliance.

2. An LP cylinder not connected for use

shall not be stored in the vicinity of this

or any other appliance.

JACKSON GRILLS INC.

#106-2480 Mt. Lehman Rd.

Abbotsford, BC

V4X 2N3

TELEPHONE: (604) 855-6756

FAX: (604) 855-5373

SUPPORT: support@jacksongrills.com

WEB SITE: www.jacksongrills.com

Table of Contents

Messages to Our Users -----------------2 Installer Final Check List-------------------16

Important ------------------------------------4 Grill Lighting Instructions-------------------16

Installation Safety Precautions----------5 Operation Instructions-----------------------18

Exploded View & Parts List-------------6 Care & Maintenance-------------------------20

Assembly Instructions-------------------10 Trouble Shooting-----------------------------21

Gas Connections-------------------------11 Grilling Tips-------------------------------------22

Natural Gas Conversion----------------13 Placement of Grill-----------------------------22

Leaking Test-------------------------------15 Limited Warranty -----------------------------23

Message to Our Users

Thank you for purchasing your new Jackson Grill. We hope you will have great enjoyment

in using our fine product.

Do not attempt to assemble and use this grill unless you read this entire manual thoroughly.

Keep the manual in a handy place as it has answers for questions that may occur in your

future use. Please record the serial number of your grill in your owner’s manual.

Any questions please feel free to contact our service center or your local dealer; please

refer to this Model No. JLS400-LP (LUX Series 2 Burner), JLS550-LP (LUX Series 3

Burner) or JLS700-LP (LUX Series 4 Burner). Thank you.

VERY IMPORTANT: ANY PROBLEMS, PLEASE CONTACT OUR SERVICE CENTER AT

1-888-287-3333.

NOTE: THIS APPLIANCE IS NOT INTENDED TO INSTALL IN OR ON RECREATIONAL

VEHICLES OR BOATS.

THIS APPLIANCE IS FOR OUTDOOR USE ONLY.

DEAR INSTALLER / ASSEMBLER: PLEASE LEAVE THIS MANUAL WITH THE

CONSUMER.

DEAR CONSUMER: PLEASE KEEP THIS MANUAL FOR FUTURE USE.

!!! WARNING !!!

Failure to follow all manufacturers’ instructions could result in serious

bodily injury and/or property damage.

!!! CAUTION !!!

Some parts of this grill may have sharp edges—especially as mentioned

in this manual! Wear suitable protective gloves if necessary.

A special message to our customers:

Thank you for choosing the Jackson Grill for your new gas grill. This appliance is

designed with quality components and we are confident that it will provide you with years of

excellent operation. Please take the time to read the whole manual and familiarize

yourself with all of the features of the Jackson Grill. This manual also contains important

safety information and operation instructions. Ensure that this manual remains handy to

the barbeque for quick reference. If you need to obtain replacement parts for your

Jackson Grill, contact your local dealer.

NOTE: It is normal for stainless steel surfaces to discolor due to high heat given off from

the barbeque burners.

Please take the time to fill out and return the Ownership and Registration Card below. It

can be mailed to:

Jackson Grills Inc.

#106-2480 Mt. Lehman Rd.

Abbotsford, BC

V4X 2N3

Or Fax: 1-877-855-5373

Please complete and return within 10 days. Thank you.

Mr. Mrs. Ms.Miss

First Name:

Initial:

Last Name:

Street:

Apt. #:

City:

State/Province:

Zip/Postal:

Phone:

Email:

Date of Purchase:

Dealer:

Model:

Serial #:

Comments:

Thank you for taking the time to fill out this Ownership and Registration Card

Important

The symbols and boxes shown below explain what each symbol means.

Read and follow every message found in this manual.

!!! DANGER !!!

DANGER: Indicates an imminently hazardous situation which will result in death or

serious bodily injury if not followed.

!!! WARNING !!!

WARNING: Warning of the possibility of serious bodily injury if the instructions are

not followed strictly. Be sure to always read and follow all of the instructions.

!!! CAUTION !!!

CAUTION: Indicates a potentially hazardous situation, which may result in minor or

moderate bodily injury if not followed.

!!! WARNING !!!

FOR YOUR SAFETY

1. Shut off the gas to the appliance.

2. Extinguish any open flame.

3. Open lid.

4. If odor continues, immediately call your gas supplier or your fire

department.

!!! WARNING !!!

FOR YOUR SAFETY

1. Do not store or use gasoline or other flammable vapors and liquids in

the vicinity of this or any other appliance.

2. An L.P. cylinder not connected for use shall not be stored in the

vicinity of this or any other appliance.

Installation Safety Precautions

!!! WARNING !!!

Do not try to install this appliance without reading the “INSTALLATION

SAFETY PRECAUTIONS” section of this manual.

1. This grill is designed to use L.P. gas only. Only use this grill with L.P. gas and the

regulator assembly supplied by the manufacturer. This grill is supplied with a Natural

Gas Conversion Kit. When converting to Natural Gas, a qualified Gas installer should

perform all gas conversions. See conversion section of this manual.

2. The installation of this appliance must conform with local codes or, in the absence of

local codes, with the National Fuel Gas Code, ANSI Z223. 1, or CAN/CGA-B149.2

Propane Installation Code.

3. The L.P. tank used must conform with the specification for L.P.-gas cylinders of the

U.S. Department of Transportation (DOT) or the National Standard of Canada,

CAN/CSA-B339, Cylinders, Spheres and Tubes for the Transportation of

Dangerous Goods.

4. The motor must be electrically grounded in accordance with local codes or, in the

absence of local codes, with the National Electrical Code, ANSI/NFPA 70-1990, or

the Canadian Electrical Code, CSA C22.1. Keep the power cord of the motor away

from the hot surfaces of the grill while in use. Remove and store the motor in a dry

place when not in use.

5. This grill is safety certified for use in the United States and Canada only. Never modify

to use in other places. Modification may cause serious body injury or property loss.

Exploded View & Parts List –JLS550 & JLS700

** Part number format for ordering replacement parts is as follows: JLS550-REF# or

JLS700-REF#

Example: JLS700-30 : LUX 700 Grease Pan Handle

REF#

DESCRIPTION

Q’TY

REF#

DESCRIPTION

Q’TY

Hood

Control Panel

Thermometer

Pedestal Base Hole Cover

Black Insulator

Rear Burner Ignition Module

Hood Handle

Gas Manifold Bracket & Fitting

Inner Hood

Pedestal Door Right

Warming Rack

Grease Pan

Rotisserie Handle

Grease Pan Handle

Rotisserie Rod/Forks

Grease Cup

Cooking Grids (A& B each one)

1+1

Pedestal Door Stop

Rear Burner Mount

Locking Swivel Casters

Rear Burner Cell

Swivel Casters

Rear Burner Electrode

Pedestal Base

Rear Burner Electrode Cover

Pedestal Door Left

Flame Diffusers

3/4

Propane Hose and Regulator

Main Burners

3/4

Outer Hood Liner

Firebox

Side Shelf Left

Pedestal Side Right

Pedestal Side Left

18A

Gas Valve, Rear Burner

Pedestal Back

18B

Gas Valve, Main Burners

3/4

Burner Cotter Pin

3/4

Cutting Board

Rotisserie Motor

Side Shelf Right

LED Rotisserie Light

Logo Badge

Rotisserie Motor Bracket

Control Knobs

4/5

Hood Spacer

Control Knob Bezels

4/5

Inner Hood Cover

Hood Washer

Hood Rubber Bumpers

Exploded View & Parts List –JLS400

** Part number format for ordering replacement parts is as follows: JLS400-REF#

Example: JLS400-45 : LUX 400 Control Panel

REF#

DESCRIPTION

Q’TY

REF#

DESCRIPTION

Q’TY

Thermometer

Ball Head Nuts

Hood Rubber Bumpers

Step Bolts

Black Insulator

Main Burners

Hood Handle

Logo Badge

Warming Rack

Control Knob Bezels

Cooking Grids

Control Knobs

Hood

Grease Pan Handle

Hood Spacer

Grease Pan

Rotisserie Motor Bracket

Pedestal Side Right

LED Rotisserie Light

Pedestal Crossbeam

Rotisserie Motor

Pedestal Front

Hood Washer

Pedestal Support Tube F/L

Rear Burner Mount

Locking Swivel Casters

Rear Burner Electrode

Burner Cotter Pin

Rear Burner

Rotisserie Kit

Rear Burner Electrode Cover

Firebox

Side Shelf Bumpers

Gas Valve Assembly

Pedestal Back

Grease Pan Rails

Pedestal Support Tube R/L

Control Panel

Pedestal Side Left

Heat Panel

Propane Hose & Regulator

Pedestal Support Tube R/R

Pedestal Base Hole Cover

Pedestal Support Tube F/R

Pedestal Base

Rear Burner Ignition Module

Swivel Casters

Inner Hood Cover

Flame Diffusers

Inner Hood

Side Shelves

Grease Cup

Grease Tray Plug

Assembly Instructions

Please ensure the proper tools are used for ease of installation.

Please remove all components from the packaging and inspect all components to ensure there is no

damage to any components in the packaging. Please remove all packaging from all components of the

gas grill before operating.

Tool Required for Assembly:

1. #2 Phillips screwdriver.

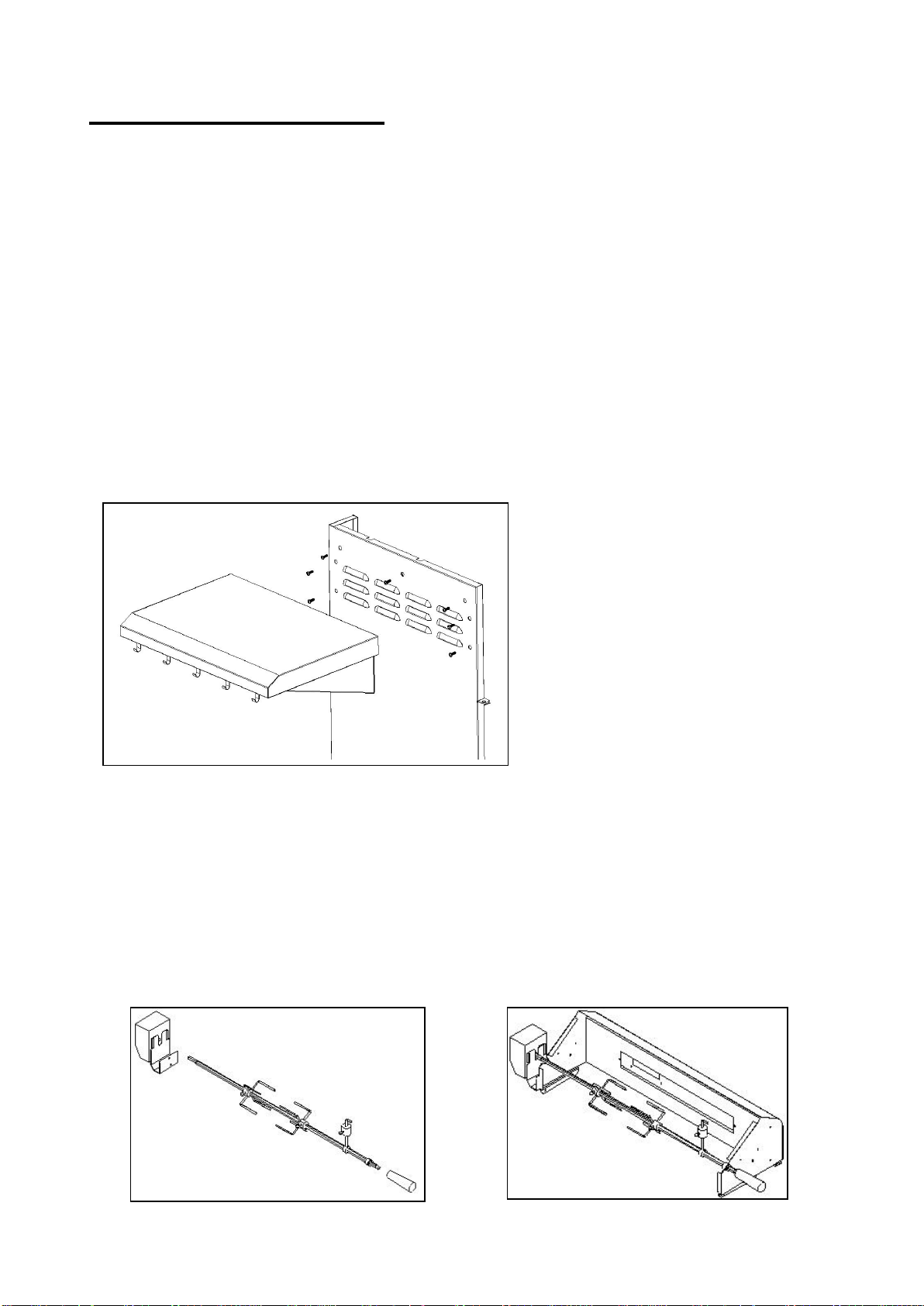

Side Shelf Installation:

1. Carefully remove the side shelves from the packaging.

2. The side shelf that has the cutting board cutout willALWAYS be installed on the RIGHT side.

3. Each side shelf is secured in place using 7 Phillips screws. DO NOT tighten screws until all 7 are

installed and the side shelf is lined up correctly.

4. Install side shelf cutting board insert into the right side shelf.

Rotisserie Kit Installation:

1. Carefully remove the rotisserie kit parts from the packaging.

2. Install the motor mounting bracket supplied to the left hand side of the inner hood.

3. Install the motor on the motor bracket.

4. Place the forks and counter balance on the rotisserie rod in the desired location.

5. Place the rotisserie rod into the motor. Slide the rotisserie rod bushing over the opposite end of the

rod and drop into the cut out provided in the inner hood side. Tighten the thumb-screw provided with

the rotisserie rod bushing.

6. When in use, spin the rod with your desired food until the weight of the food is at the bottom. Install

the counter balance straight up to effectively balance the rotisserie system.

Altri manuali per JLS400-LP Lux

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Jackson Grills Griglia

Jackson Grills

Jackson Grills Premier 700 Manuale utente

Jackson Grills

Jackson Grills JLS400-NG Manuale utente

Jackson Grills

Jackson Grills PREMIER700-BI Manuale utente

Jackson Grills

Jackson Grills LUX550 Manuale utente

Jackson Grills

Jackson Grills JLS550BI-LP Manuale utente

Jackson Grills

Jackson Grills Premier JPG700 series Manuale utente

Jackson Grills

Jackson Grills LUX Built In Series Manuale utente

Jackson Grills

Jackson Grills JPG75 Versa Manuale utente

Jackson Grills

Jackson Grills LUX700 Manuale utente

Jackson Grills

Jackson Grills JSS850BI-LP Manuale utente

Jackson Grills

Jackson Grills Keystone Series Manuale utente

Jackson Grills

Jackson Grills LUX400 Manuale utente

Jackson Grills

Jackson Grills JLS700-LP Lux Manuale utente

Jackson Grills

Jackson Grills Keystone Black JKS400BLK-LP Manuale utente

Jackson Grills

Jackson Grills LS700BI-LP Manuale utente

Jackson Grills

Jackson Grills JG3 Manuale utente

Jackson Grills

Jackson Grills 700 Series Manuale utente

Jackson Grills

Jackson Grills Patio Fire Manuale utente

Jackson Grills

Jackson Grills JLS700-LP Lux Manuale utente

Jackson Grills

Jackson Grills JGSBSEAR Manuale utente

Jackson Grills

Jackson Grills Versa 100 JPG100-PKG1 Manuale utente

Jackson Grills

Jackson Grills JSS550BI-LP Manuale utente

Jackson Grills

Jackson Grills JLS700BI Manuale utente

Jackson Grills

Jackson Grills JLS400 Lux Manuale utente

Manuali Griglia popolari di altre marche

Orbegozo

Orbegozo GR 2300 Manuale utente

bora

bora PT11 Manuale utente

Klarstein

Klarstein 10031664 Manuale utente

Garland

Garland MWE3W Manuale utente

Char-Broil

Char-Broil 463722714 Manuale utente

Nexgrill

Nexgrill 720-0830HK Manuale utente

Kenmore

Kenmore 415.16123800 Manuale utente

Camp Chef

Camp Chef PG24CLAU Manuale utente

Tucker Barbecues

Tucker Barbecues GTR Series Istruzioni per il montaggio

Monogram

Monogram ZGG540NCP1SS Manuale utente

Equipex

Equipex Sodir Savoy Manuale utente

Gaggenau

Gaggenau VR 414 610 Manuale utente

Miele

Miele KM 408-1 Manuale utente

George Foreman

George Foreman GGR50B Manuale utente

AOG

AOG T series Manuale utente

Gorenje

Gorenje TG2000CB Manuale di istruzioni

Weber

Weber Genesis Silver-B Permamount NG 051701 Manuale utente

Glen

Glen SA 3037 Manuale utente
