capella® 60 spacesaver whirlpool bath and soaking bath with integral skirt

to the Italians, “la capella”—the chapel—is a sacred place. step into our capella®whirlpool, and you’ll understand.

capella®60 spacesaver

whirlpool bath

model number: U950

exterior dimensions:

60" long x 60" wide x 20½" high

interior dimensions:

50" long x 34" wide(mid) x 18" wide(end)

# of Jets/type of Jets:

4 TheraPro™ Jets,

3 AccuPro™ Jets,

operating gallons:

60 gallons

The Capella’s®unique corner conﬁguration

allows for roomy relaxation.

whirlpool bath features:

• 4 fully adjustable TheraPro™ jets

• 3 directionally adjustable AccuPro™ jets

• Electronic on/off controls

• Patented Fixed Air Flow System

• Sculpted armrest and contoured backrest

• Built-in tile ﬂange and integral skirt with

access panels on skirted models

• Drain included on whirlpool baths

capella®60 spacesaver

soaking bath

model number: U960

exterior dimensions:

60" long x 60" wide x 20 ½" high

interior dimensions:

50" long x 34" wide

Capella® Space Saver Corner Whirlpool Bath w/Integral Skirt

Model: U950

Capella® Space Saver Corner Bath with Integral Skirt

Model: U960

Installation Notes

Refer to installation instructions included with ﬁxture before beginning installation.

Please conﬁrm product availability and speciﬁcations before commencing with any

installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE

WITHOUT NOTICE.

Electrical Components and Electrical Speciﬁcations do not apply to non-jetted baths.

Ordering Information

Product Code:

U960 Capella® 60 Space Saver

Corner Bath w/Integral Skirt

U950 Capella® 60 Space Saver

Corner Bath Whirlpool w/

Integral Skirt Right Hand

• Center Drain Location

• Accessories / Hardware:

Trip-Lever Drain Kit: #X559

TheraPro™ Jet Rings Kit #D095

AccuPro™ Jet Rings Kit #P556

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(849) – Oil Rubbed Bronze

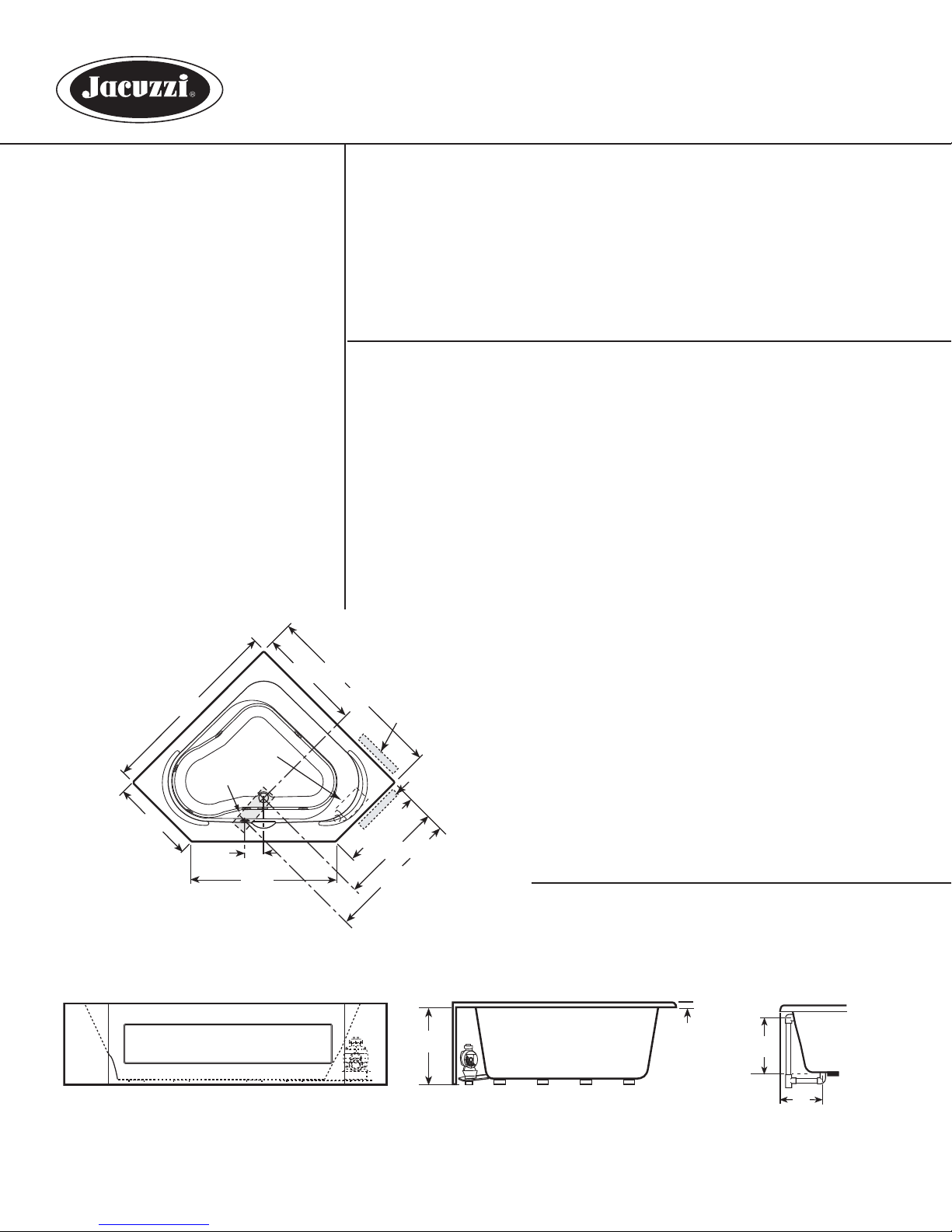

Technical Speciﬁcations

Dimensions

60” L x 60” L x 20-1/2” H

(1524 mm) L x (1524 mm) L x (520 mm) H

Drain/Overﬂow

A: 18” (457 mm) B: 12-3/8” (314 mm)

Cutout

Not Applicable

Total Weight

U950: 880 lb (399 kg) / 35 lb/sq. ft. (172 kg/m2)

U960: 855 lb (388 kg) / 34 lb/sq. ft. (167 kg/m2)

Operating Gallonage

60 U.S. Gal. (227 Liters)

Max. 90 U.S. Gal. (341 Liters)

Product Weight

U950: 130 lb (59 kg)

U960: 105 lb (48 kg)

Skirt Mounting

Integral

Electrical Speciﬁcations Model U950 only

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 15 AMP, 60 Hz.

Heater

Not available

25-1/4"

49"

25-1/4"

60"

41-9/16"

60"

33-13/16"

14" X 4"*

33-13/16"

Motor

Service

Access

Opt.

Service

Access

90˚

FRONT VIEW SIDE VIEW

#FQ91 06/07

Product Shown: Capella® 60 Space Saver Corner Whirlpool Bath Right Hand w/ Integral Skirt Model: U950

* Measurements inside unit represent cutout in ﬂoor to allow for drain/overﬂow.

Minimum Service Access dimensions given.

DRAIN/OVERFLOW
