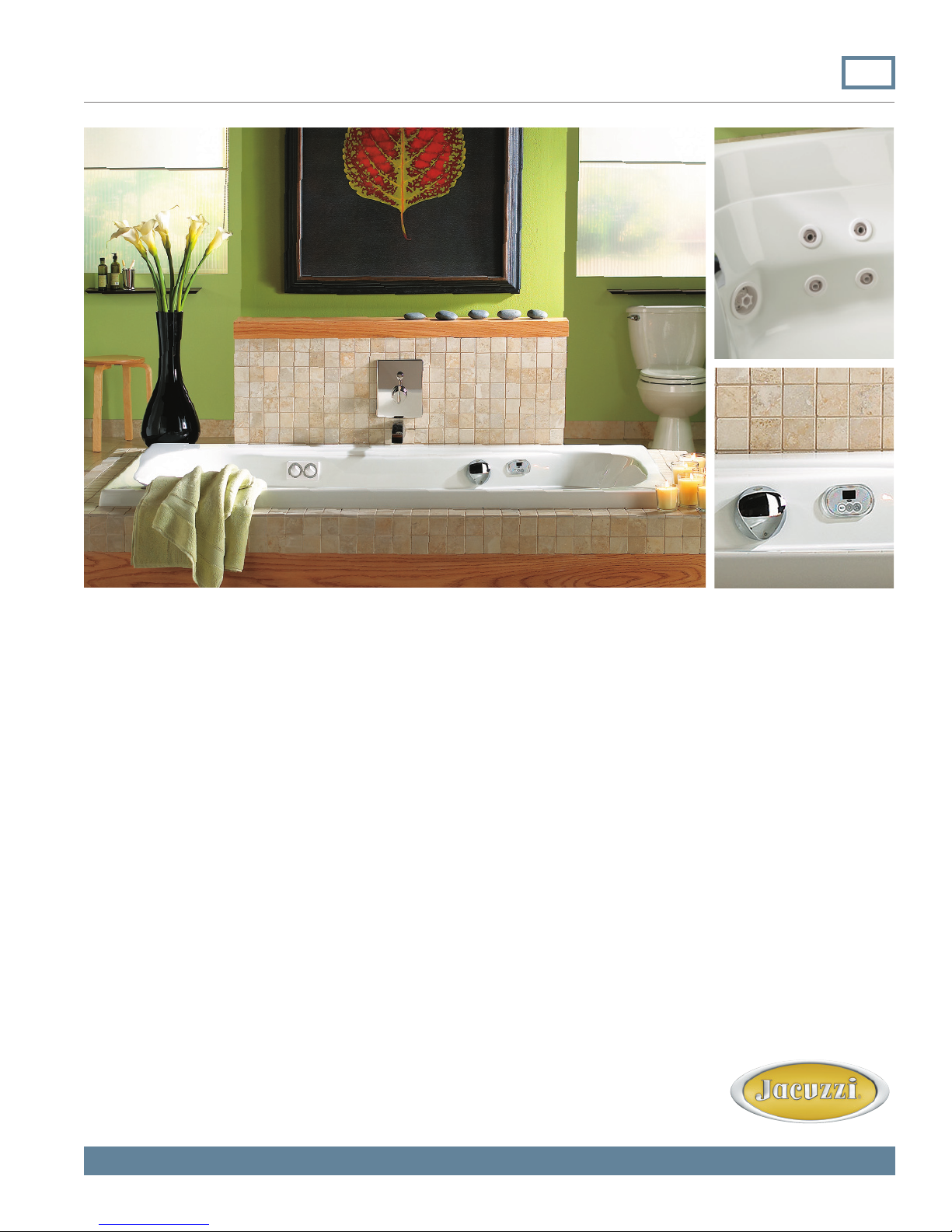

signa®6 plus whirlpool bath

the signa®whirlpool bath takes its name from the medieval central italian walled city, lastra a signa.

Like the walled city for which it is named,

Signa®6 was specially developed and

designed for walled surround spaces.

whirlpool bath features:

• 4 fully adjustable TheraPro™ jets

• 4 directionally adjustable AccuPro™ jets

• RapidHeat™ in-line heater

• Electronic on/off control with

temperature readout

• Patented Adjustable Silent Air™ Induction

System

• Chromatherapy™ lighting system capable of 256

colors

• Contoured backrest

• PrO

™

Sanitation System

signa®6 plus whirlpool bath

model number: BP87 - RH Pump,

EP40 - LH Pump

exterior dimensions:

72" long x 42" wide x 22" high

interior dimensions (at bottom):

50" long x 24" wide

# of Jets/type of Jets:

4 TheraPro™ Jets

4 AccuPro™ Back Jets

operating gallons:

55 gallons

Signa™ 6 Plus Whirlpool Bath

Model: BP87, EP40

Installation Notes

Refer to installation instructions included with ﬁxture before beginning installation.

Please conﬁrm product availability and speciﬁcations before commencing with any

installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE

WITHOUT NOTICE.

Ordering Information

Product Code:

BP87 Signa™ 6 Whirlpool Bath

Right Hand

EP40 Signa™ 6 Whirlpool Bath

Left Hand

• Center Drain Location

• Accessories / Hardware:

Trip-Lever Drain Kit #X559

Rotary Trip-Lever Drain Kit: #K606

TheraPro™ Jet Rnigs Kit: #D095

AccuPro™ Jet Rings Kit (2Req’d): #P556

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(845) – Oil Rubbed Bronze

Technical Speciﬁcations

Dimensions

72” L x 42” W x 22” H

(1829 mm) L x (1067 mm) W x (559 mm) H

Drain/Overﬂow

A: 16-7/8” (429 mm) B: 14” (356 mm)

Cutout

70” x 40”

Total Weight

826 lb (375 kg) / 39 lb/sq. ft. (192 kg/m2)

Operating Gallonage

55 U.S. Gal (208 Liters)

Max. 103 U.S. (390 Liters)

Product Weight

118 lb (54 kg)

Skirt Mounting

Not Available

Electrical Speciﬁcations

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 15 AMP, 60 Hz.

RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

Heater (Standard)

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N S750000

12-1/2"

36"

11-

1/4"

42"

72"

18-1/2" x 5"*

END VIEW

SIDE VIEW

#FS19 06/07

DRAIN/OVERFLOW

Product Shown: Signa™ 6 Plus Whirlpool Bath Right Hand Model: BP87

* Measurements inside unit represent cutout in ﬂoor to allow for drain/overﬂow.

Minimum Service Access dimensions given.
