Jacuzzi Mito 5 Manuale utente

Mito

™5

SOAKING BATH

MODEL NUMBER:

H521

EXTERIOR DIMENSIONS:

60" long x 42" wide x

21" high

INTERIOR DIMENSIONS:

34½" long x 25½" wide

x 22" wide

Mito

™5

WHIRLPOOL BATH

MODEL NUMBER:

H520 – (RH pump)

H519 – (LH pump)

EXTERIOR DIMENSIONS:

60" long x 42" wide x

21" high

INTERIOR DIMENSIONS:

34½" long x 25½" wide

x 22" wide

# OF JETS/TYPE OF JETS:

4 TheraPro™ Jets,

2 AccuPro™ Foot Jets

OPERATING GALLONS:

62 gallons

Mito—in Italian, “myth.” Our Mito™—a whirlpool of fabled

luxury. Think of the Mito™ as a fantastic experience.

Legendary hydrotherapy in a roomy, bow-tie shaped

bathing well.

WHIRLPOOL BATH FEATURES:

• 4fullyadjustableTheraPro™jetswithamaximumow

rateof30GPMperjet

• ElectronicControl

• 2directionallyadjustableAccuPro™footjets

• Sculptedarmrest

• Contouredbackrest

• ExclusiveTru-Level™base

system

• Slip-resistantbottom

Mito

™5 |WHIRLPOOL BATH and SOAKING BATH

Detail: The Mito

whirlpool bath’s sculpted

interior features gracious curves, a deep

bathing well, and integral armrests.

Mito™5

WHIRLPOOL BATH

Technical Speciﬁcations

DIMENSIONS

60” L x 42” W x 21” H

(1524 mm) L x (1067 mm) W x (533 mm) H

DRAIN/OVERFLOW

A: 17-1/2” (445 mm) B: 11-7/8” (302 mm)

CUTOUT

58” x 40”

TOTAL WEIGHT

H520, H519: 866 lb (393 kg) / 50 lb/sq. ft. (242 kg/m2)

H521: 842 lb (382 kg) / 48 lb/sq. ft. (235 kg/m2)

OPERATING GALLONAGE

62 U.S. Gal. (235 Liters)

PRODUCT WEIGHT

H520, H519: 100 lb (45 kg)

H521: 76 lb (35 kg)

SKIRT MOUNTING

Optional U-Frame

ELECTRICAL SPECIFICATIONS MODELS H520, H519 ONLY

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 15 AMP, 60 Hz.

RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

HEATER (OPTIONAL) MODELS H520, H519 ONLY

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N S750000

INSTALLATION NOTES

Refer to installation instructions included with xture before

beginning installation. Please conrm product availability and

specications before commencing with any installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT

TO CHANGE WITHOUT NOTICE.

#FR70000 01/08

H520

Mito™ 5 Whirlpool Bath, Right Hand Pump

H519

Mito™ 5 Whirlpool Bath, Left Hand Pump

H521 Mito™ 5 Bath

• Center Drain Location

• Accessories / Hardware:

Trip-Lever Drain Kit #X559

Rotary Drain Kit, 26” Cable #8730

HTC Jet Trim Kit: #D095

2 X BMH Jet Trim Kit: #J869

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(849) – Oil Rubbed Bronze

Mito™5

SOAKER BATH

Electrical Components and Electrical Speciﬁcations do not apply

to non-jetted baths.

30"

42"

60"

10" x 4"*

11-7/8"

Motor

12" H x 18" L

Service Access

Opt. Service

Access

5-3/8"

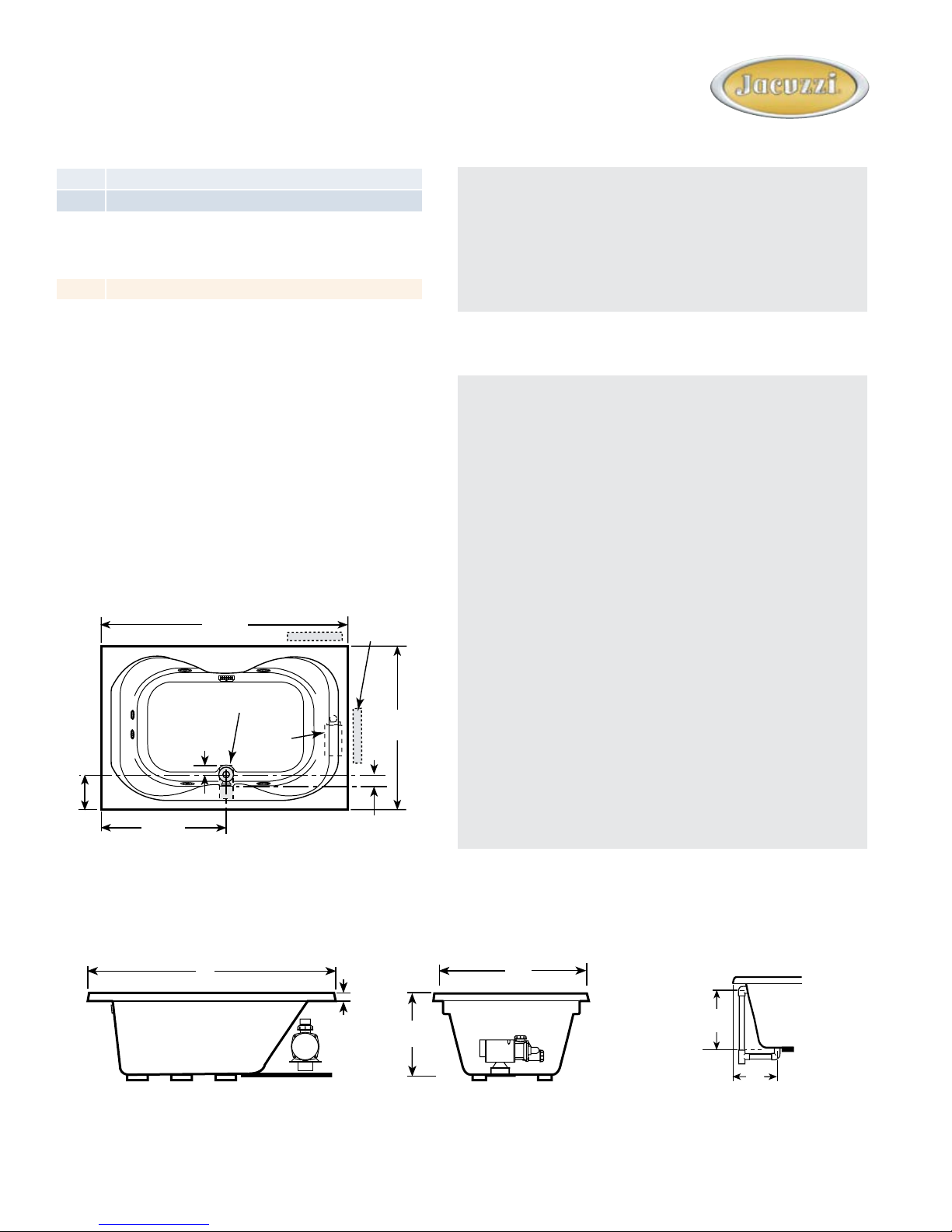

END VIEW

SIDE VIEW

DRAIN/OVERFLOW

Product Shown: Mito™5 Whirlpool Bath Right

Hand Shown Model: H520

* Measurements inside unit represent cutout in

ﬂoor to allow for drain/overﬂow.

Minimum Service Access dimensions given.
