Janome MC 11000 - Manuale utente

MC 11000

Replacing LCD Unit (1)

To remove:

1 Remove the front cover.

2 Remove the printed circuit board A.

3 Remove the 4 screws (A) and remove the LCD guide

shaft unit.

4 Loosen the screw (B) with the 5.5 mm wrench and

remove the Stopper plate.

5 Loosen the 2 screws (C).

6 Remove the LCD unit.

(Fig. 1)

LCD unit

Flexible cord unit

(Fig. 1)

(A)

(A) (A)

(C)

(B)

LCD guide shaft unit

Stopper plate

MC 11000

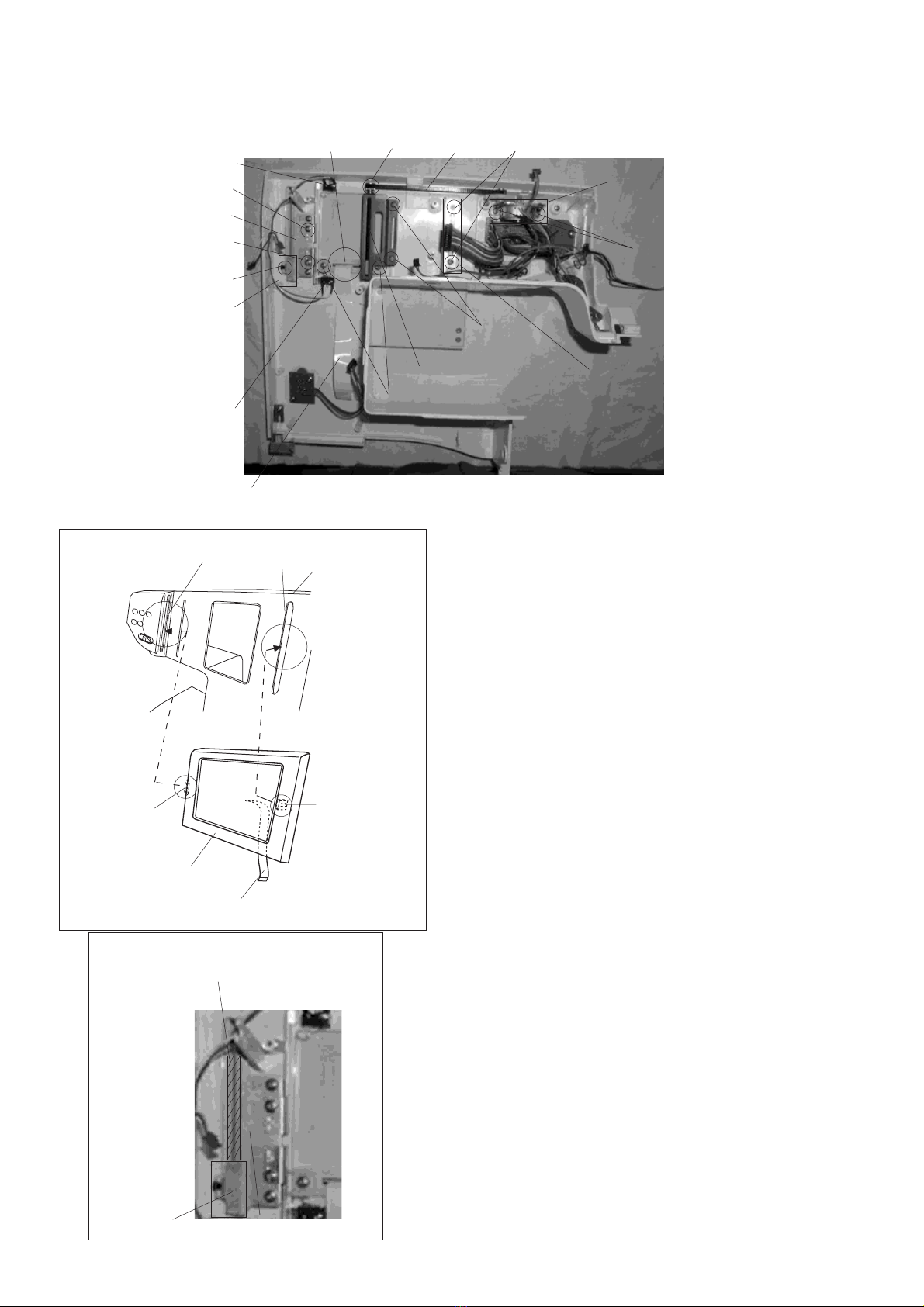

Replacing LCD Unit (2)

To attach:

1 Attach the LCD unit, inserting the tabs into the

LCD guide slits of the front cover. (Fig. 2)

2 Push the guide plate lightly to the right and tighten

the screw (C).

3 Put the Stopper plate on the Supporter plate and

tighten the screw (B).

* Check that the LCD unit should slide down by itself.

* If not, loosen the screw (B) and (C) and adjust again.

4 Apply the white grease on the Stopper plate and the

supporter plate. (Fig. 3)

5 Pass the flexible cord through the LCD movable

body hole of the LCD guide shaft unit.

6 Attach the LCD guide shaft unit with 4 screws (A).

* Set the belt to the pulley of the LCD guide shaft

unit.

* Adjust the belt tension by moving the LCD

motor to the right or left after loosen the screw (F).

* Check if the LCD moves up and down smoothly by

turning the LCD motor gear with your finger. If it

does not move smoothly, loosen the 4 screws(A) of

the LCD guide shaft unit and adjust again.

Belt

Pulley

LCD guide shaft unit

Flexible cord unit

Micro switch

(E)

Micro switch

LCD movabl body

(Fig. 2)

Stopper plate

Supporter plate

(B)

LCD unit

Flexible cord unit

LCD guide slits Front cover

(C)

(D)

(A)

(F)

LCD motor

Stopper plate Supporter plate

dêÉ~ëÉ=ÜÉêÉ

(Fig. 3)

Guide plate

Tab Tab

MC 11000

7 Adjusting the Microswitch

(1) Adjustment of lower stop position of LCD

Match the top side of the LCD unit with the upper

surface of the front cover by turnng the LCD motor

gear with finger.(Fig. 4)

Loosen the screw (E) and adjust the position of

the micro switch (2), so it turns on, then tighten the

screw.

(2) Adjustment of upper stop position of LCD

Match the bottom side of the LCD unit with the

lower surface of the front cover by turnng the

LCD motor gear with finger.(Fig. 4)

Loosen the screw (D) and adjust the position of

the micro switch (1), so it turns on, then tighten the

screw.

8 Attach the circuit board A.

9 Connect the each cord.

10 Attach the front cover.

Replacing LCD Unit (3)

(Fig. 5)

Front cover lower surface

(Fig. 4)

Gear

Micro switch(2)

Micro switch(1)

LCD motor

LCD guide shaft unit

(A)

(A)(E)

(D)

Front cover upper surface LCD top side

LCD bottom side
