Janome Memory Craft 11000 Manuale utente

Installation for

Version 2.0

Trim Upgrade Kit

id23920281 pdfMachine by Broadgun Software - a great PDF writer! - a great PDF creator! - http://www.pdfmachine.com http://www.broadgun.com

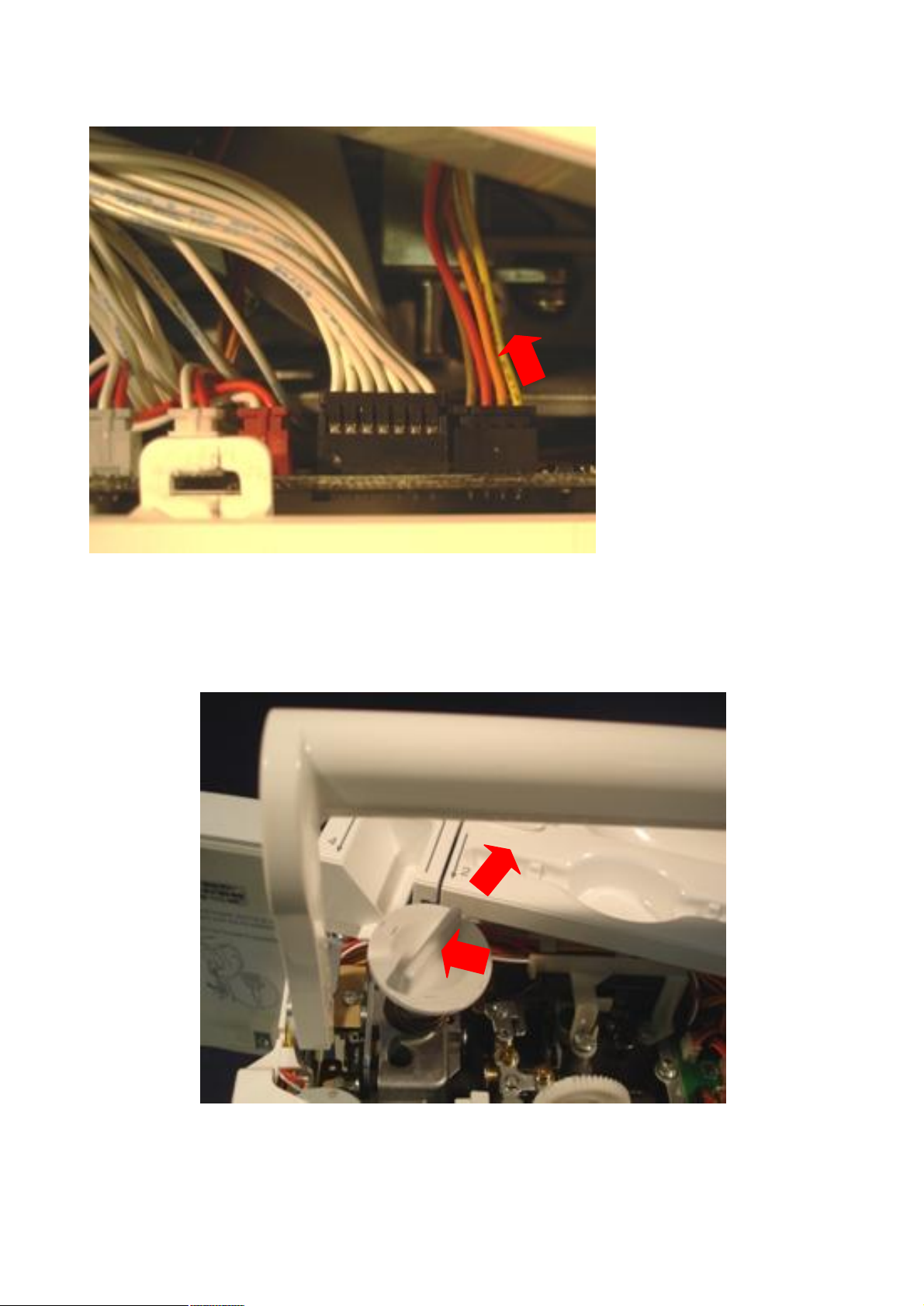

4. Slowly remove the top

cover slightly away

exposing the bobbin

winder motor plug.

Gently disconnect the

bobbin winder plug from

the top of the A-board.

5. Remove the top cover and

the pressure dial.

Removing the Top Cover

Removing the Belt Cover

1. Lift the handle and

loosen (do not remove)

the screw on the right

hand side.

2. Remove the large

white cap under the

hand wheel and the

large white cap under

the machine socket.

3. Remove the two screws.

4. Gently start

removing the cover

from the top rear side,

pulling the cover

away from the rear

panel

5. Make sure to

go carefully

around the

power ports and

machine socket.

6. Remove the

belt cover.

Locking Tab

Removing the Front Cover

1. Remove the screw

and the thread guide.

2. Loosen the screw

underneath the

free arm.

Thread guide

3. Remove the screw that

is holding the Front Cover

from this Bracket

6. Loosen the

screw above the

hand wheel.

4. Loosen the

screw above the

USB box making

sure not to pinch

your base plug

connector wires.

5. Remove Bracket

7. As you pull out the

front cover, disconnect

the hooks that hold

the front and the rear

covers together.

Push

Front

Cover

8. Lift Front Panel up

and out from the

bottom to unclip it

from the base unit.

Please make sure you

don’t pull the Front

Panel out to far as it is

still connect to the

machine.

9. Front Panel should be only sitting out from the machine as shown.

Please make sure you don’t pull the Panel out to far as some

connection may disconnect from the machine.

Tension Unit Removal

2. Remove the screw

from the top bracket of

the tension unit.

3. Open the face cover and remove the

screw from the bottom of the tension unit

that goes into the grey plastic tension

guide. Remove the tension unit.

1. Unplug the two wires

coming from the tension unit

going into circuit board U.

(Black 3-Pin, Grey 7-Pin).
