JASON Hydrotherapy Alexia SL Istruzioni per l'installazione e il funzionamento

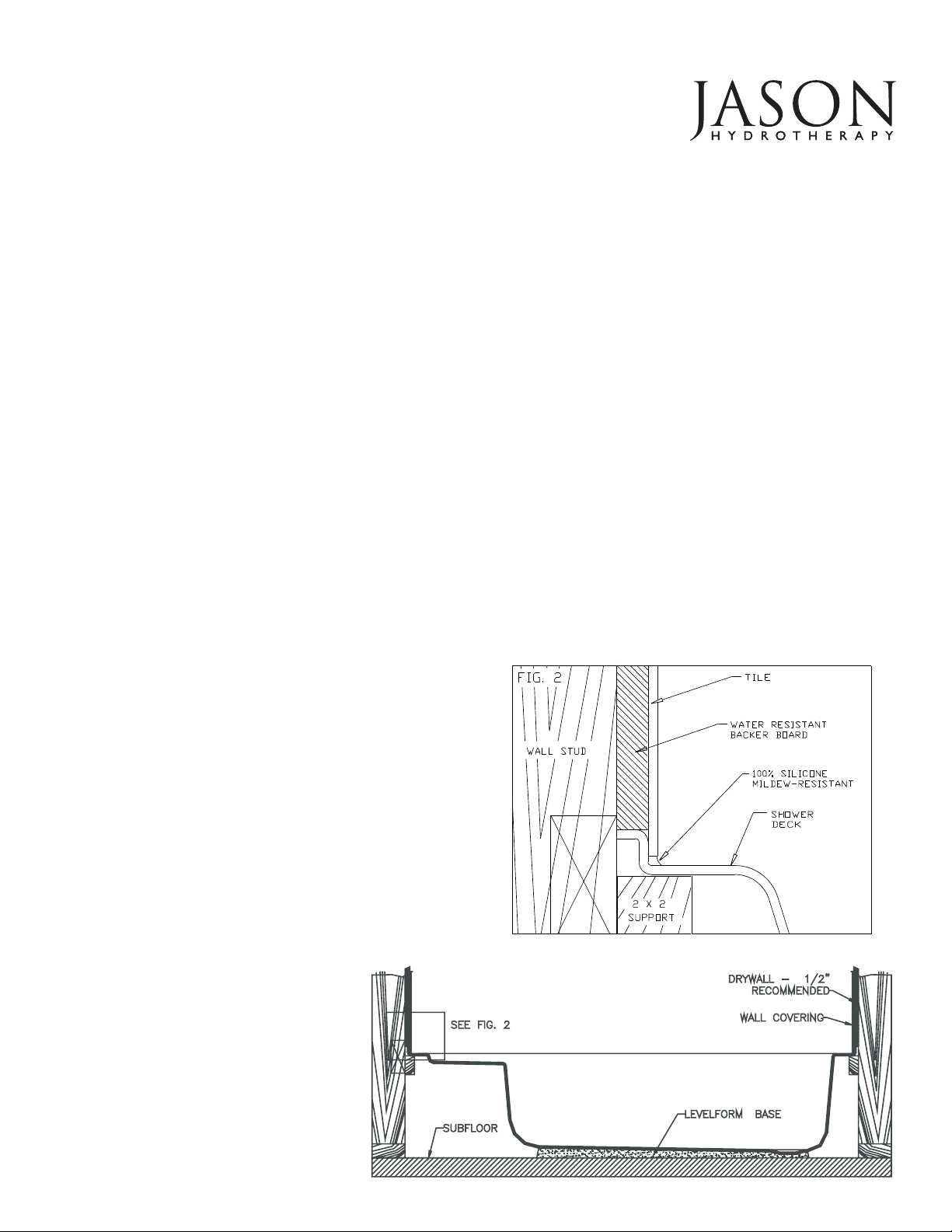

TYPICAL CROSS SECTION VIEW

FIGURE 1

INSPECTION

Thoroughly inspect the shower bath upon receipt, especially if

the shipping carton is damaged, to insure it was not damaged

during transit. If damage is discovered it must be noted on the

bill of lading and a freight claim must be properly filed with the

carrier. The installer is responsible for insuring that the unit is

free from defects or damage before installation. In the event of

a problem the unit MUST NOT be installed.

Damage to the unit during installation is the

responsibility of the installer. ALL WARRANTY CLAIMS ON

ACRYLIC SURFACE MUST BE MADE PRIOR TO

INSTALLATION. Inspect the base and accessories for

missing or damaged components. Alert your distributor of any

discrepancies. To protect unit from damage, keep shower bath

in carton until ready for installation.

INSTALLATION RECOMMENDATIONS

Read all instructions carefully before beginning installation.

Protect the acrylic shower bath surface from damage during

installation with a suitable material, i.e., cardboard and/or

plastic film. Position the shower bath in the area of intended

installation. The approximate shower bath dimensions are

shown in Figure 3, "SHOWER BATH DIMENSIONS."

Construct the framing to support the shower bath's lip if the

shower bath is to be installed in an alcove (See Figure 1). A

finish frame should be constructed under the shell rim to

support the shower bath lip and level the shower bath deck to

assist the draining of any water on the deck of the shower bath

into the bath well. This frame is not intended to support the full

shower bath weight (See Figure 1).100% Silicone with mildew

resistant properties should be applied between the water

resistant backer board and the deck of the bath.

Install the drain and overflow assembly to the shower bath shell

according to the instructions and position the shower bath in

the area of intended installation.

NOTE: The shower bath is equipped with a pre-leveled

full support base designed to provide level support if installed

on a firm, level, and flat surface (See Figure 1). Mortar is

required when the subfloor is not smooth and level.

See USER MAINTENANCE INSTRUCTIONS on page 2 for

humidity and mold prevention suggestions prior to Instal-

lation.

Page 1 of 2

OWNER'S MANUAL

AlexiaTM SL/SR Shower Bath

INSTALLATION, OPERATION AND MAINTENANCE

Jason International, Inc.

8328 MacArthur Drive

North Little Rock, AR 72118

Tel: 501-771-4477 Fax: 501-771-2333

Cust. Serv.: 800-255-5766

www.jasoninternational.com

email: [email protected]

49-2007-003

Date 04/04

HUMIDITY

Warning: Avoid high humidity levels in your home. Mold,

mildew, fungi and bacteria which may be harmful to health thrive

in areas with continued high humidity levels; therefore, every

precaution should be taken to make sure your plumbing fixtures

including bathtubs, therapy baths or showers do not become a

source of high humidity due to improper installations or leaks.

To avoid having your plumbing fixtures become a source

of unwanted humidity, please make sure the following

steps are taken prior to installation.

1. Make sure the area where the bathtub or shower is installed

is well vented and allows enough ventilation and air circulation

to dry the bathroom environment within a short time after

taking a bath or shower.

2. If your bath or shower unit is tiled-in, use units with an integral

tile flange or make sure a tile flange kit or a similar mechanical

barrier is installed to prevent shower spray, splash or

overflow to leak behind the bathtub.

3. Make sure the plumber properly tests your therapy bath

before it is roughed in to make sure there are no leaks and

it is installed with proper access to bath equipment.

4. Make sure that all the plumbing and fixtures in the bathroom

are in good working order and have no leaks.

5. Do not use carpeting or other materials or furniture, which can

hold moisture in your bathroom.

6. Use disinfectant to clean any bathroom surfaces, which are

regularly exposed to moisture.

7.Cleanhumidifiers,dehumidifiersandairconditioningcondensing

units regularly with a disinfectant such as chlorine bleach and

replace filters as needed.

8. Clean moldy surfaces as soon as any mold appears by

using a detergent/soapy solution and appropriate household

cleaner. Always use gloves during cleaning. Dispose of

any sponges or rags used to clean mold.

CLEANING

With minimum care, the acrylic surface of your shower bath will

retain its high luster finish for many years. For regular cleaning

use a soft, wet cloth or sponge and a mild nonabrasive liquid

detergent. Rinse the base thoroughly after cleaning. (Never use

abrasive or grit type powder cleaners or pads to avoid dulling of

the acrylic surface.)

SURFACEMAINTENANCE

Areas with minor scratches or dull surfaces can be restored by

applying commercially available plastic polish (i.e. Novus Plas-

tic Polish No. 2, available from a Jason distributor and where

automotive supplies are sold), followed by an application of

acrylic paste wax. Buff the surface with a clean soft cloth. Do

not use sandpaper, steelwool, or abrasive rubbing compounds.

If scratches are too deep to rub out, or if the damage penetrates

the acrylic surface, consult your dealer for recommendations on

surface repair.

NOTE:

All dimensions

are approximate.

Shower bath

should be at the

site before

framing.

SHOWER BATH

DIMENSIONS

FIGURE 3

NOTE: These products conform to the "American National

Standard for Plastic Shower Receptors and Shower Stalls",

ANSI Z124.2-1995.

OWNERSRECORD

Model: _______________________________________

Serial : _______________________________________

Dealer: _______________________________________

Purchased: ___________________________________

Installer: ______________________________________

Installed:_______________________________________

Jason International, Inc. (Jason), warrants its Products to be free from defects in workmanship and materials

as provided in the enclosed Warranty Statement and Warranty validation card.

The pre-addressed warranty registration card MUST be filled out by the purchaser within thirty (30) days from

purchase and mailed to Jason International, Inc., in order for limited warranty to become effective.

WARRANTY

USER MAINTENANCE INSTRUCTIONS

Page 2 of 2
