JASON Hydrotherapy Carrera CB553P Manuale utente

Page 1 of 5

“to be removed for use by the occupant.”

INSPECTION

Inspecting the unit prior to installation is the responsibility of

the installer. The bath unit is cleaned and inspected prior to

leaving the factory.

Damage sustained in transit is the responsibility of the carrier.

The owner or installer MUST open, uncrate, and inspect the

unit for damage when it is delivered. If damage is discovered,

the carrier must be immediately notied in writing with a re-

quest for a representative to inspect the unit. Failure of the

carrier to respond should be reported to the seller and carrier.

Always le a freight claim promptly.

49-1000-300

Date 05/07

place serial number card with

product configuration in this box

OWNER’S RECORD

Dealer: _____________________________________________

Date Purchased: ______________________________________

Date Installed: ________________________________________

Installer: ____________________________________________

OWNER’S MANUAL

Carrera™ Collection Soaking Baths

INSTALLATION, OPERATION, AND MAINTENANCE

Jason International, Inc.

8328 MacArthur Drive

North Little Rock, AR 72118

Tel: 501-771-4477 Fax: 501-771-2333

Cust. Serv.: 800-255-5766

www.jasoninternational.com

email: [email protected]

The installer is responsible for insuring that the unit is free

from defects or shipping damage. In the event of a problem,

DO NOT install the unit. The factory is not responsible for

damage that might have been avoided by inspection or test-

ing prior to installation.

Damage to the unit during installation will not be covered by

warranty and is the responsibility of the installer. ALL WAR-

RANTY CLAIMS ON CARRERA™ COMPOSITE SURFACE

DAMAGE MUST BE MADE PRIOR TO INSTALLATION.

Inspect the bath for damage. Alert your dealer of any dis-

crepancies.

To protect the unit from damage, keep the bath in its carton

until ready for installation.

Model Overall Dimensions

L x W x H (In.)

Operating

Capacity

GAL.

Floor

lbs./ft3

CB553P 66” x 36” x 24”/30” 80 Gal. 99 lbs./ft3

CR553P 66” x 36” x 24 88 Gal. 97 lbs./ft3

Page 2 of 5

INSTALLATION INSTRUCTIONS

These instructions are to be followed in installing the soaking

bath vessel, overows, ll spouts, and faucetry. Electrical

connection is not needed.

See the USER MAINTENANCE INSTRUCTIONS section on page 3 for

humidity and mold prevention suggestions prior to Installation.

INSTALLATION

Remove the product from its packaging. Read the entire

instructions prior to installing this product. Each bath is

provided with a cardboard bath well protector that should be

kept in the unit throughout the bathroom construction process.

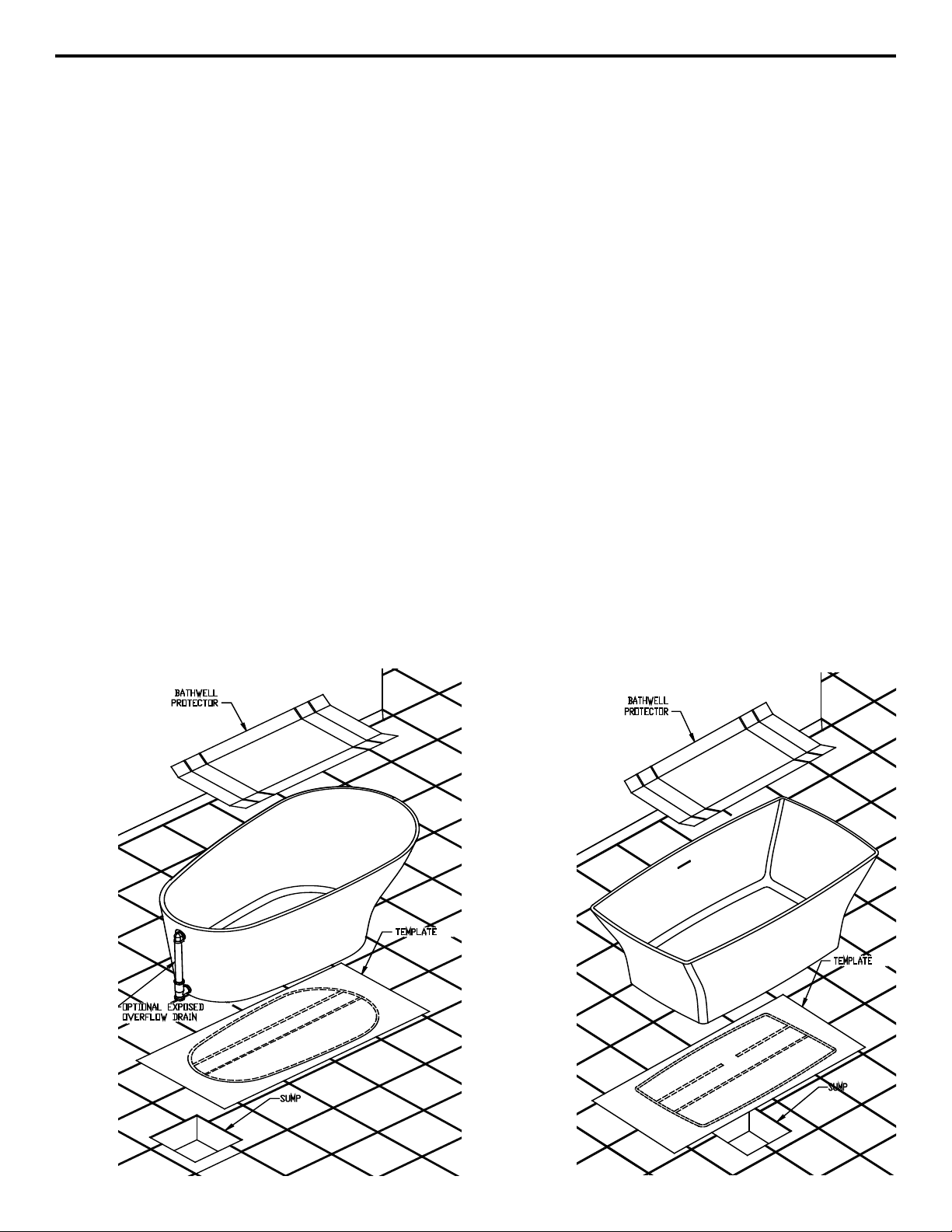

See Figure 1 and Figure 1-A.

1. Position the template to the nished oor in its desired

location. Transfer the centerlines of the template to the

nished oor. CAUTION: Use a marker, or tape that can

be removed from the nished oor after installation. Tape

the template to the nished oor using care to align both

centerlines and assure that the template is laying at on

oor. See Figure 2 and Figure 2-A.

2. Cut or punch through the template and mark the oor

where the two lines will represent the location of the interior

bottom supports.

3. Cut or fold back the template to mark the outside of the

base lines. This will locate where the outside of the base

will be aligned. (NOTE: Tape may be used instead of marks

where the bath is being placed on a nished oor.) With

a straight edge and the marks from earlier, mark the two

lines on the oor, where the two bottom support ribs will

Figure 1-A

sit. The supports are approximately ½” wide and run the

length of the base.

4. Dry t the drain to the bath per instructions included to

determine the proper t.

5. Attach the bath drain to the oor drain “P” trap. CAUTION:

Only dry t the drain to the “P” trap at this time. Leave the

drain assembly free standing in the “P” trap.

6. Place the bath using caution not to scratch the surface.

Align the bath with the centerlines of the template. Assure

that the drain is positioned properly. Remove the bath and

the template.

7. Apply 1/4” to 3/8” bead of adhesive approximately 2” from

the end opposite the sump, and all the way to the sump

area. Apply the adhesive in a zig-zag pattern, back and

forth across the lines. This will insure the supports locate

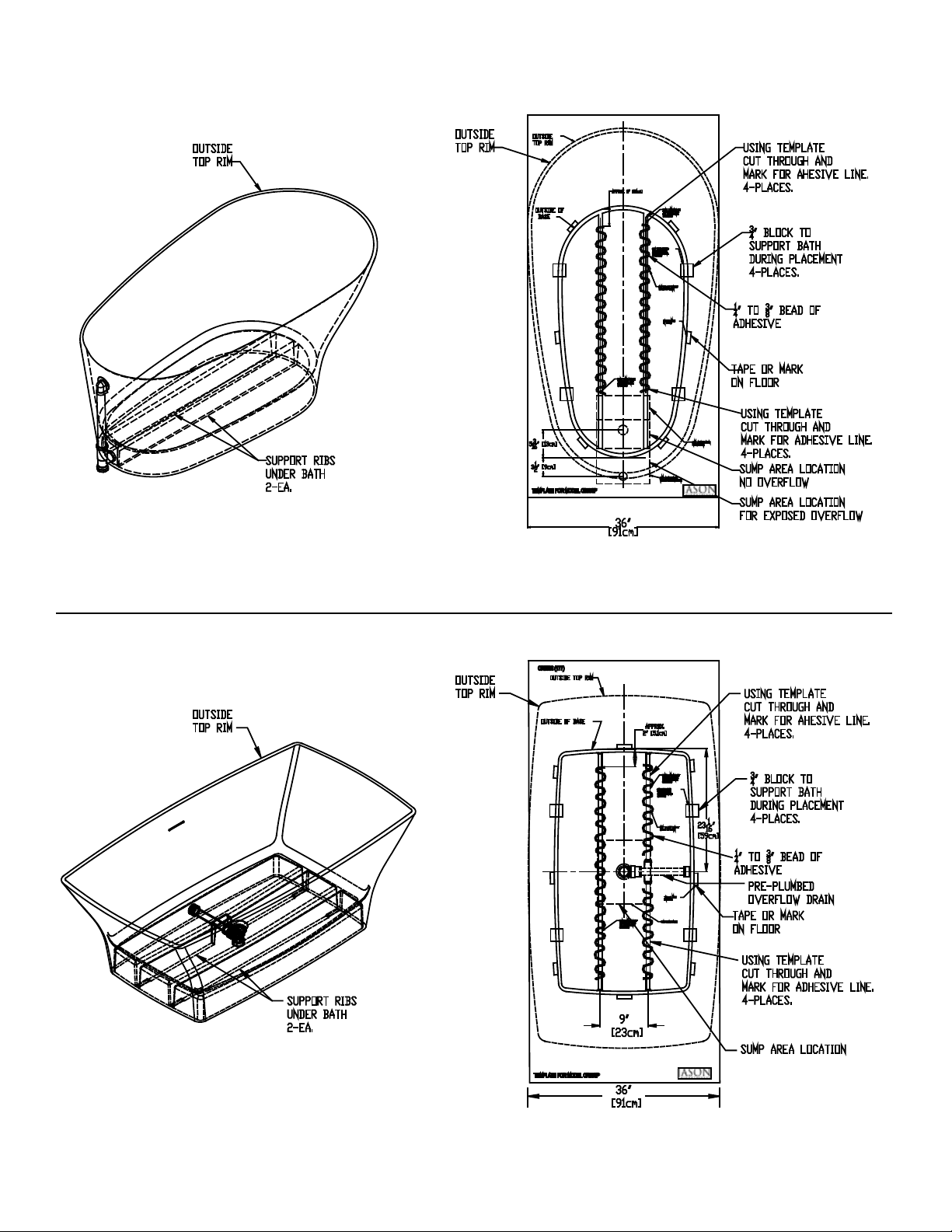

in the adhesive. See Figure 2 and Figure 2-A..

8. Place 4 small blocks, 3/4” thick at the edge line of the base,

to support the bath above the adhesive, until it is aligned

into place. Place the bath on the blocks and align it with

the marks created in step 1 above.

9. Once the bath is placed, remove the blocks one at a time,

and assure alignment with the marks. Now permanently

attach the drain tee to the “P” trap.

10.Fill the bath and check for any leaks.

Allow 24 hours before using the bath to insure that the

adhesive has fully cured.

Figure. 1

Page 3 of 5

Figure 2

Figure 2-A

Page 4 of 5

USER MAINTENANCE INSTRUCTIONS

HUMIDITY

Warning: Avoid high humidity levels in your home. Mold, mildew,

fungi,and bacteriawhich may be harmful tohealth thrivein areas with

continued high humidity levels; therefore, every precaution should

be taken to make sure your plumbing xtures including bathtubs,

therapy baths, or showers do not become a source of high humidity

due to improper installations or leaks.

To avoid having your plumbing xtures become a source of

unwanted humidity, please make sure the following steps

are taken prior to installation.

1. Make sure the area where the bathtub or shower is

installed is well vented and allows enough ventilation and

air circulation to dry the bathroom environment within a

short time after taking a bath or shower.

2. If your bath or shower unit is tiled-in, use units with an

integral tile ange or make sure a tile ange kit or a similar

mechanical barrier is installed to prevent shower spray,

splash, or overow to leak behind the bathtub.

3. Make sure the plumber properly tests your therapy bath

before it is roughed in to make sure there are no leaks

and it is installed with proper access to bath equipment.

4. Make sure that all the plumbing and xtures in the bathroom

are in good working order and have no leaks.

5. Do not use carpeting or other materials or furniture, which

can hold moisture, in your bathroom.

6. Use disinfectant to clean any bathroom surfaces, which

are regularly exposed to moisture.

7. Clean and disinfect humidier and dehumidiers as

recommended by the manufacturer. Replace the air lter

on the HVAC unit once a month.

8. Clean moldy surfaces as soon as any mold appears by using

a detergent/soapy solution and appropriate household

cleaner. Always use gloves during cleaning. Dispose of

any sponges or rags used to clean mold.

CLEANING and SURFACE MAINTENANCE

The Carrera™ Composite solid surface is nonporous. Stains,

mold, mildew, or bacteria cannot penetrate the surface.

When frequently cleaned, the Carrera™ Composite solid

surface will maintain its original beauty and resist any signs

of wear and aging for years to come. Since the Carrera™

Composite solid surface is homogeneous and evenly solid,

surface damage can be easily removed by using extra ne

abrasive paper and cleaning with traditional abrasive deter-

gents.

Formostdirtandresidue,usesoapywaterorammoniacleaner;

rinse and wipe dry. For the occasional stubborn residue, use

a cleaner like Clorox Soft Scrub and a 3M Scotch Brite pad

(green) to remove the residue.

Occasional disinfecting can be preformed by wiping the sur-

face with diluted household bleach (1 part water and 1 part

bleach). Rinse the surface with water and wipe dry. When

using a bleach solution, care must be taken not to get any in

your eyes or on bare skin. You should always wear gloves

and eye protection when working with bleach.

The Carrera™ Composite solid surface should not be exposed

to strong chemicals, such as, paint remover, oven cleaners,

hydrochloric acid, sodium hydroxide, chloride solvents (tri-

chloroethylene) or any strong acids or bases.

REPAIR

Refer all plumbing or surface repair to a qualied service

technician. Remember when contacting your dealer or service

representative to always have your serial number, proof of

purchase, and model number. This will ensure a quick re-

sponse on warranty items. The serial number can be found

on the label adhered to the bath.

PLEASE NOTE: ALL WARRANTY REPAIRS MUST BE

AUTHORIZED BY THE MANUFACTURER BEFORE WORK IS

STARTED.

Page 5 of 5

IMPORTANT SAFETY INSTRUCTIONS

INSTRUCTIONS PERTAINING TO THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY

TO PERSONS

WARNING: When using this unit, basic precautions should always be followed, including the following:

This manual contains information and instructions for proper operation and maintenance of your bath. Failure to follow

these instructions could result in personal injury, electrical shock or re.

READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY

DANGER: TO REDUCE THE RISK OF INJURY FOLLOW THESE PRECAUTIONS:

A. Do not permit children to use this product unless they are closely supervised at all times.

B. Use this unit only for its intended use as described in this manual. Do not use attachments not recommended by the

manufacturer.

C. The water in a therapy bath should never exceed 40°C (104°F). Water temperatures between 38°C (100°F) and 40°C

(104°F) are considered safe for a healthy adult. Use time should be limited to approximately 30 minutes, followed by

a shower to cool down. Longer exposures may result in hyperthermia. The symptoms of this condition are nausea,

dizziness, and fainting, and it can be fatal. Lower water temperatures are recommended for extended use (exceeding

10 -15 minutes) and for young children.

D. Since excessive water temperatures have a high potential for causing fetal damage during the early months of preg-

nancy, pregnant or possibly pregnant women should limit therapy bath water temperatures to 38°C (100°F).

E. The use of drugs or alcoholic beverages before or during therapy bath use may lead to unconsciousness with the

possibility of drowning. Never use the therapy bath while under the inuence of alcohol, anticoagulants, stimulants,

antihistamines, vasoconstrictors, vasodilators, hypnotics, narcotics, or tranquilizers.

F. Persons with a medical history of heart disease, low or high blood pressure, circulatory system problems, or diabetes

should consult a physician before using a therapy bath.

G. Persons using medication should consult a physician before using a therapy bath since some medication may induce

drowsiness while other medication may affect heart rate, blood pressure, and circulation.

DANGER: To reduce the risk of injury, enter and exit the bath slowly.

WARNING: Never operate electrically connected devices in or near the bath.

Electrical outlets in the bath area must be connected to a supply circuit that is protected by a GFCI. Such a device should

be installed by a licensed electrician and should be tested on a regular basis (at least monthly). To test the GFCI, push the

TEST button. The GFCI should interrupt the power. Push the RESET button and the power should be restored. If the GFCI

fails to operate in this manner, there is the possibility of an electric shock. DO NOT USE. Disconnect the unit and have the

problem corrected by a qualied service technician.

To avoid the possibility of personal injury and discoloration of the acrylic surface, the inlet water temperature should not

exceed 40°C (104°F). The bath should be drained after each use. Each bather should start their bath with fresh water. Do

not use oil base additives in your therapy bath.

CAUTION: Do not use harsh abrasives or solvents for cleaning this unit.

INSTALLER/OWNER BEARS ALL RESPONSIBILITY TO COMPLY WITH ALL STATE

AND LOCAL CODES WHEN INSTALLING THIS PRODUCT.

SAVE THESE INSTRUCTIONS

JASON INTERNATIONAL, INC.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali JASON Hydrotherapy Vasca

JASON Hydrotherapy

JASON Hydrotherapy AirMasseur Madeline MA635P Manuale utente

JASON Hydrotherapy

JASON Hydrotherapy Integrity AirMasseur B3260 Manuale utente

JASON Hydrotherapy

JASON Hydrotherapy Integrity A6060 Istruzioni per l'installazione e il funzionamento

JASON Hydrotherapy

JASON Hydrotherapy forma AC553 Manuale utente

JASON Hydrotherapy

JASON Hydrotherapy forma AirMasseur RC553PS Manuale utente

JASON Hydrotherapy

JASON Hydrotherapy AC635PS Manuale utente

JASON Hydrotherapy

JASON Hydrotherapy Designer AN-P Series Manuale utente

JASON Hydrotherapy

JASON Hydrotherapy forma RC630P Manuale utente

JASON Hydrotherapy

JASON Hydrotherapy BY630 Manuale utente

JASON Hydrotherapy

JASON Hydrotherapy forma Series Manuale

JASON Hydrotherapy

JASON Hydrotherapy Vivere Series Manuale utente

JASON Hydrotherapy

JASON Hydrotherapy Integrity K3060 SR Manuale utente

JASON Hydrotherapy

JASON Hydrotherapy Excel Series Manuale utente

JASON Hydrotherapy

JASON Hydrotherapy forma AC553 Manuale utente

JASON Hydrotherapy

JASON Hydrotherapy BY635 Manuale utente

JASON Hydrotherapy

JASON Hydrotherapy BY630 Manuale utente

JASON Hydrotherapy

JASON Hydrotherapy forma AirMasseur RE630PS Manuale utente

JASON Hydrotherapy

JASON Hydrotherapy forma AirMasseur RE630PS Manuale utente

JASON Hydrotherapy

JASON Hydrotherapy KT525 SR Manuale utente

JASON Hydrotherapy

JASON Hydrotherapy Integrity B3260 TL Manuale utente

JASON Hydrotherapy

JASON Hydrotherapy Forma AirMasseur AC635P Manuale utente

JASON Hydrotherapy

JASON Hydrotherapy Alexia SL Istruzioni per l'installazione e il funzionamento

JASON Hydrotherapy

JASON Hydrotherapy Carrera 5184.00.00.01 Manuale

JASON Hydrotherapy

JASON Hydrotherapy forma Manuale utente

Manuali Vasca popolari di altre marche

Agua

Agua BARTOLI-66 Manuale utente

PAA

PAA PRELUDE Manuale utente

BETTE

BETTE SILHOUETTE Manuale utente

Kohler

Kohler K-820-GC Guida rapida

American Standard

American Standard Whirlpool/Bathing Pool 2748.XXXW Manuale utente

Oliveri

Oliveri Naples Manuale utente

Lyons

Lyons Elite ETLxx663219 Series Manuale utente

Woodbridge

Woodbridge BJ500 Istruzioni per il montaggio

Whirlpool

Whirlpool Ariel ARL-702 Manuale utente

TEIKO

TEIKO EXCELLENT DUO Manuale utente

American Standard

American Standard Colony 5-1/2' x 32" Manuale utente

American Standard

American Standard 3052OD.X0X Guida rapida

Kohler

Kohler K-1111-H2 Guida rapida

agape

agape MARSIGLIA AVAS1075 Manuale utente

Kohler

Kohler K-1151 Istruzioni per il montaggio

Kohler

Kohler K-1158 Guida rapida

Kohler

Kohler K-1244 Istruzioni per il montaggio

Kallista

Kallista P50045-G5 Istruzioni per il montaggio
