Jason.L Horizon Workstation Manuale utente

Tools Required: Power screwdriver.

2 persons required for installation

Special Note: Nut inserts are provided. Line up Desktops with nut inserts to

secure legs to underside of desk top. Only the outside legs use the nut inserts.

The middle shared leg uses wood screws only.

ASSEMBLY INSTRUCTIONS

Horizon Workstation

6 Person

Size: 1600mm

Page 1 of 5

Need help!

Call us on

1300 527 665

www.jasonl.com.au

All manuals and user guides at all-guides.com

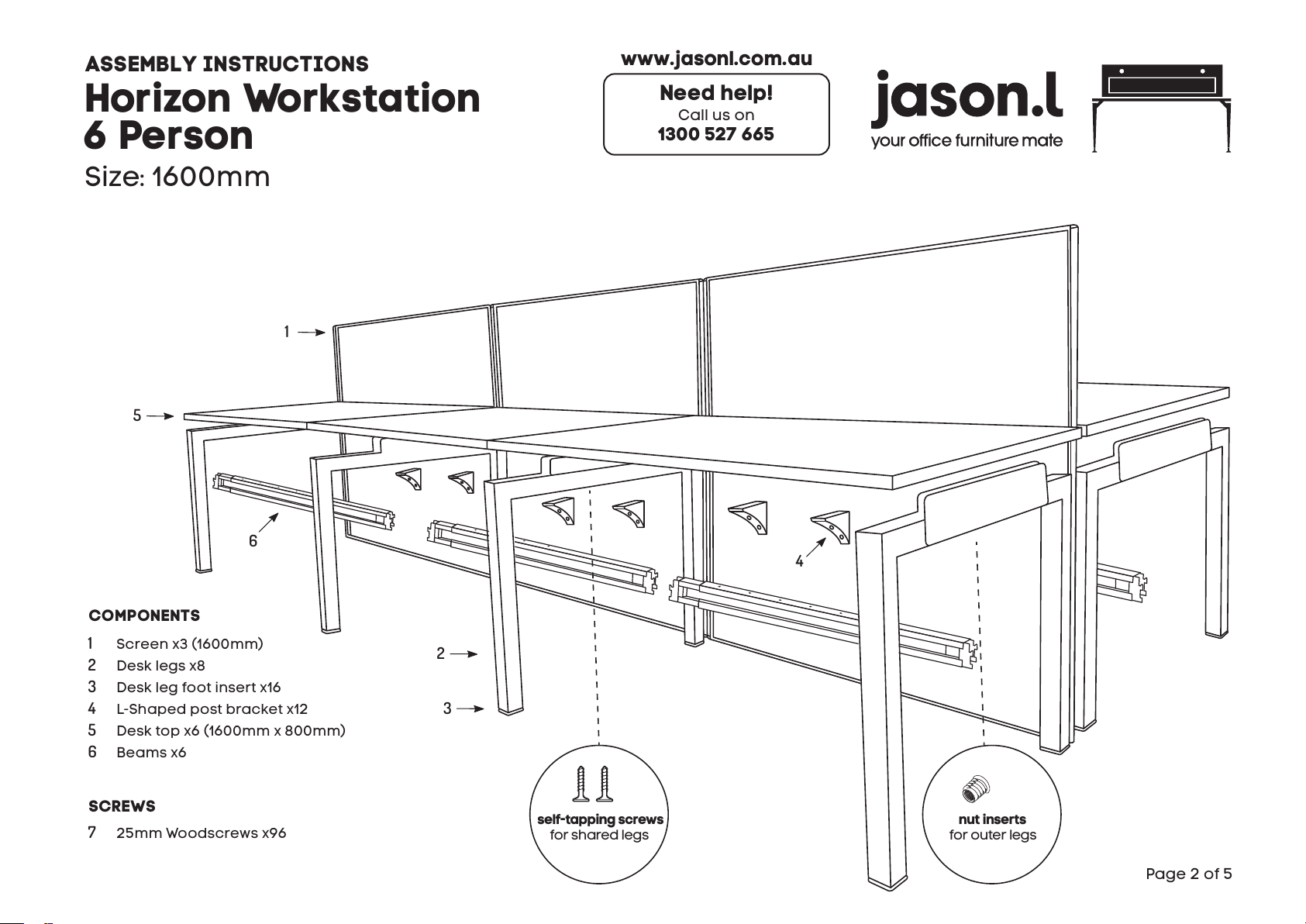

Screen x3 (1600mm)

Desk legs x8

Desk leg foot insert x16

L-Shaped post bracket x12

Desk top x6 (1600mm x 800mm)

Beams x6

25mm Woodscrews x967

COMPONENTS

SCREWS

Page 2 of 5

Need help!

Call us on

1300 527 665

www.jasonl.com.au

ASSEMBLY INSTRUCTIONS

Horizon Workstation

6 Person

Size: 1600mm

self-tapping screws

for shared legs

nut inserts

for outer legs

All manuals and user guides at all-guides.com

Need help!

Call us on

1300 527 665

www.jasonl.com.au

ASSEMBLY INSTRUCTIONS

Horizon Workstation

6 Person

Size: 1600mm

Attach the top plates to the outside legs.

Page 3 of 5

Using an Allen key remove top 2 caps from all screens uprights. Bring two

partition towards one another and slide the 2 way connector rod - down

between the two screen uprights.

Build the centre legs without top plate.

Use the beams to connect the legs.

All manuals and user guides at all-guides.com

Page 4 of 5

Need help!

Call us on

1300 527 665

www.jasonl.com.au

ASSEMBLY INSTRUCTIONS

Horizon Workstation

6 Person

Size: 1600mm

Nut inserts and ﬂat base screws to be used at holes identiﬁed with dotted lines.

Wood Screws to be used in centre of desks for middle leg.

Table top representation:

All manuals and user guides at all-guides.com

Page 5 of 5

Need help!

Call us on

1300 527 665

www.jasonl.com.au

ASSEMBLY INSTRUCTIONS

Horizon Workstation

6 Person

Size: 1600mm

Under the desktops, use l-shaped panel brackets to secure

the screens to the desktops. Place two brackets in each

side of each screen (12 L-Shaped bracket in total).

Attach outer legs + beams to Desks Top by tightening Screws into nut inserts.

Attach middle legs + beams to Desks Top by tightening Screws.

Use woods screws, and ignore nut inserts here.

All manuals and user guides at all-guides.com
