Jason.L ST SUPREME E23T Manuale utente

ASSEMBLY INSTRUCTION

MODEL : ST SUPREME E23T

Electric Straight Desk Frame

(1200mm - 1800mm Length)

V1.2

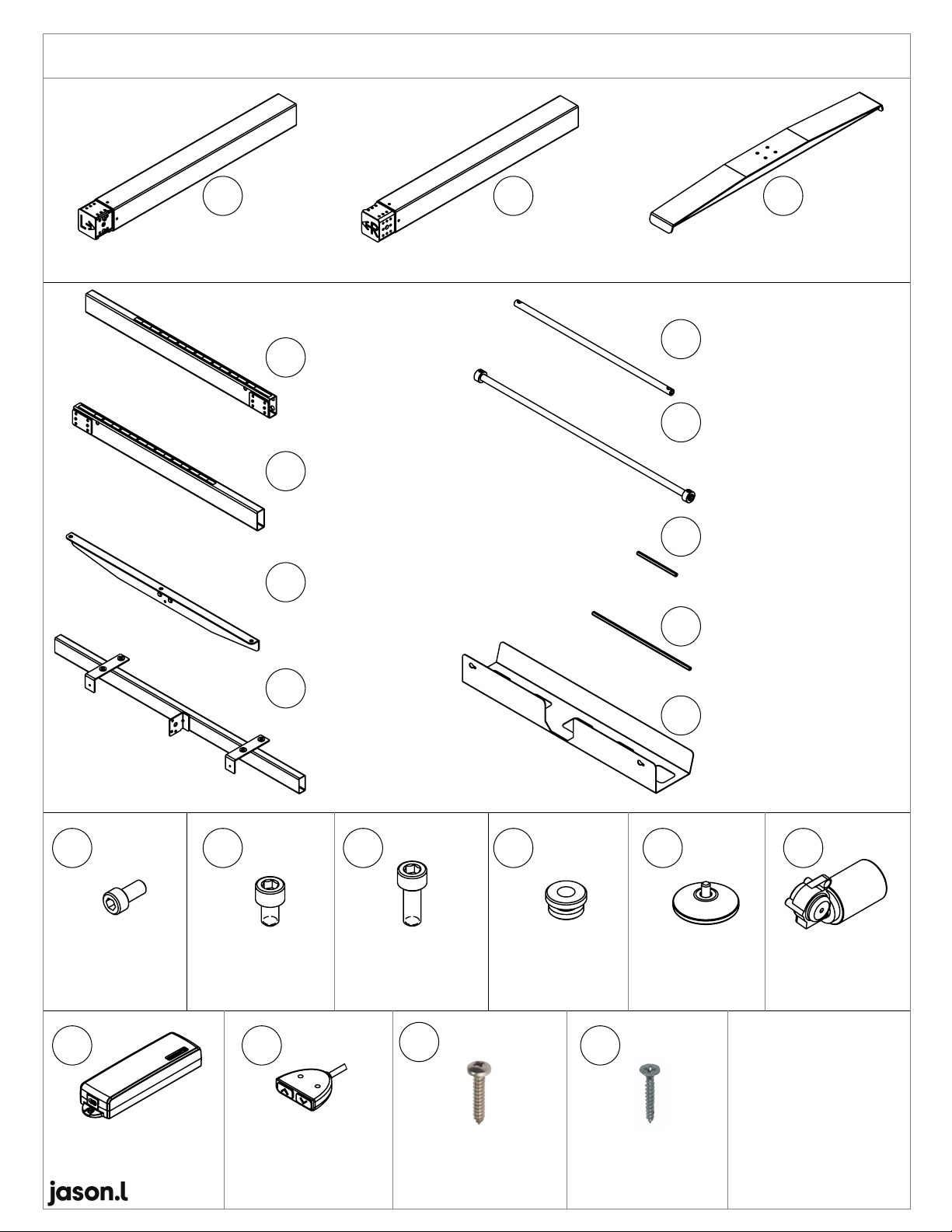

Component List - ST SUPREME E23T_V1.2

Axle Drive L400mm

Qty : 2

Hex Shaft L250mm

Qty : 3

Screw M5 X L10

Qty : 14

Left Column

Qty:1

Crossbar Motor Model

Qty : 1

Cable Tray

Qty : 1

Right Column

Qty: 1

Crossbar Assy. Left

Qty: 1

Screw M6XL10

Qty : 3

Leveling Base

Qty: 4

Control Box

TC11

Qty : 1

Motor

TGM1-2252-003

Qty : 1

Handset TH14

Qty : 1

Rubber Type-A

Qty: 10

Crossbar Assy. Right

Qty: 1

Axle Drive L550mm

Qty : 2

Side L Plate

Qty: 2

Screw M6 X L16

Qty : 8

Hex Shaft L100mm

Qty : 2

3mm

4mm

5mm

RHD Woodscrew

M5X25

Qty: 10

CSK Woodscrew

M4X30

Qty: 2

NIL

Foot

Qty: 2

01 02 03

13 14 15 16 17 18

19 20 21

V1.2 Pg.1/12

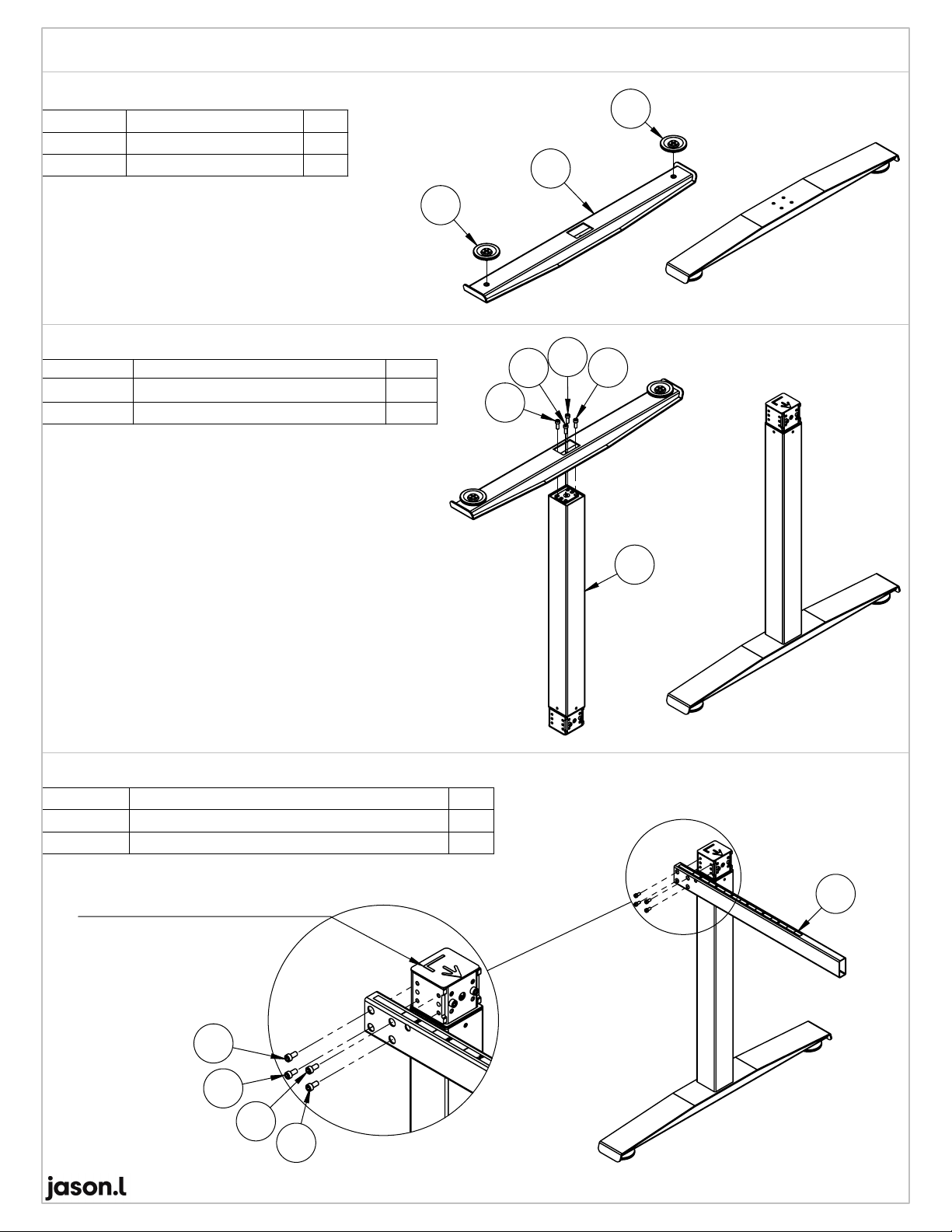

Marking 'L' column

direction must be follow

STEP 2 : Install Foot

STEP 3 : Install Crossbar Left Assy.

Step 1 : Install Leveling Base

ITEM NO.

DESCRIPTION

QTY.

Foot

Leveling Base

ITEM NO.

DESCRIPTION

QTY.

Left Column

Screw M6 XL16

ITEM NO.

DESCRIPTION

QTY.

Crossbar Assy. Left

Screw M5 XL10

Assembly Instruction: Left Stand Assembly

V1.2 Pg.2/12

15 15

Marking 'R' column

direction must be follow

STEP 2 : Install Foot

STEP 3 : Install Crossbar Right Assy.

Step 1 : Install Leveling Base

ITEM NO.

DESCRIPTION

QTY.

Foot

Leveling Base

ITEM NO.

DESCRIPTION

QTY.

Right Column

Screw M6 XL16

ITEM NO.

DESCRIPTION

QTY.

Crossbar Assy. Right

Screw M5 XL10

Assembly Instruction: Right Stand Assembly

Set Screw M6

(X4)

V1.2 Pg.3/12

Notes :

1.Please follow arrow left and right direction to

adjust the frame length fixed table top size.

2.Tighten set screw M6(X4) after fixed frame length.

(Recommended length 115cm,145cm,175cm)

ITEM NO.

DESCRIPTION

QTY.

Crossbar Motor Model

Assembly Instruction: Integrate Left & Right Stand

V1.2 Pg.4/12

ITEM NO.

DESCRIPTION

QTY.

Screw M6 XL10

Motor TGM1-2252-003

Assembly Instruction: Install Motor Assembly

For Length 115cm

PRESS DOWN

Remarks; Lock Bush

Item No. 08 (Axle Drive L400mm)

Lock Bush (X4) dismantle from

Item No. 09 (Axle Drive L550mm)

Set Screw M6(x4)

(50~60) (50~60)

Figure No.1

Notes:

1.Before Insert Hex Shaft, make sure

Left Stand & Right Stand are at lowest position.

Please see attachment caution ! (Refer Pg8/12.)

2. After insert Hex Shaft

and Axle Drive

align according as per

Figure No.1

dimension.

3. Locking Set Screw M6 (x4)

V1.2 Pg.5/12

ITEM NO.

DESCRIPTION

QTY.

Axle Drive L400mm

Hex Shaft L100mm

Hex Shaft L250mm

Assembly Instruction: Axle Drive And Hex Shaft Assy.

For Length 145cm

PRESS DOWN

(50~60) (50~60)

Figure No.2

Set Screw M6(x4)

Notes:

1.Before Insert Hex Shaft, make sure

Left Stand & Right Stand are at lowest position.

Please see attachment caution ! (Refer Pg8/12).

2. After insert Hex Shaft

and Axle Drive

align according as per

Figure No.2

dimension.

3. Locking Set Screw M6 (x4)

V1.2 Pg.6/12

ITEM NO.

DESCRIPTION

QTY.

Axle Drive L550mm

Hex Shaft L100mm

Hex Shaft L250mm

Assembly Instruction: Axle Drive And Hex Shaft Assy.

For Length 175cm

PRESS DOWN

(50~60) (50~60)

Figure No.3

Set Screw M6(x4)

Notes:

1.Before Insert Hex Shaft, make sure

Left Stand & Right Stand are at lowest position.

Please see attachment caution ! (Refer Pg8/12).

2. After insert Hex Shaft

and Axle Drive

align according as per

Figure No.3

dimension.

3. Locking Set Screw M6 (x4)

V1.2 Pg.7/12

ITEM NO.

DESCRIPTION

QTY.

Axle Drive L550mm

Hex Shaft L250mm

Assembly Instruction: Axle Drive And Hex Shaft Assy.

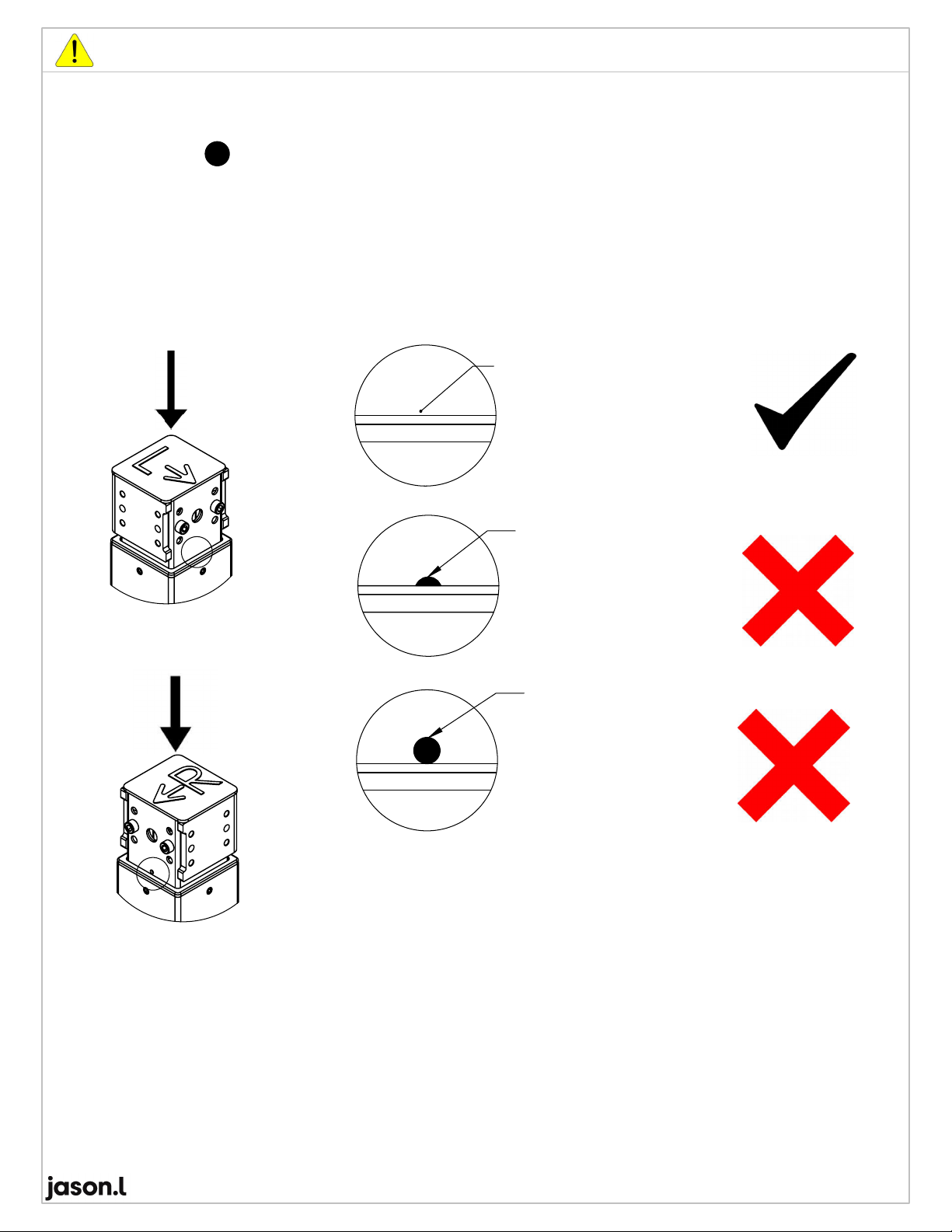

Press down the column make sure it is at lowest postion.

The marking O not appear means it is at lowest position

refer to below diagram.

Marking

fully seen

Marking

partially seen

Marking not seen

(Means at lowest position)

Press

V1.2 Pg.8/12

Caution: Column Must Be At Lowest Position Before Install Hex Shaft
