Jaton 3DForce4MX440-8X Manuale utente

3DForce4 MX440-8X Series

nVIDIA GeForce4™MX 440 with AGP8X

User’s Manual

Version 9.00

Contents

INTRODUCTION.............................................................4

FEATURES.....................................................................5

AGP BUS INTERFACE ........................................................5

GRAPHICS PROCESSOR UNIT (GPU)..................................5

PERFORMANCE..................................................................5

COMPATIBILITY..................................................................6

HDTV/DVD PLAYBACK .....................................................6

SYSTEM REQUIREMENT..............................................6

CHECK LIST...................................................................7

HARDWARE DESCRIPTION .........................................7

DISPLAY DEVICES OUTPUT........................................9

Device Output Connection (TVout) .............................9

Device Output Connection (Dual RGB out)...............10

Device Output Connection (PCB revision - 82198B) 10

HARDWARE INSTALLATION ......................................11

INSTALLATION PROCEDURES............................................11

STEPS: ...........................................................................11

SOFTWARE INSTALLATION......................................12

WINDOWS®98 DRIVER INSTALLATION......................12

WINDOWS®ME DRIVE INSTALLATION .......................17

MICROSOFT WINDOWS®NT™4.0............................21

WINDOWS®2000 DRIVER INSTALLATION..................25

WINDOWS®XP DRIVER INSTALLATION .....................29

TECHNICAL ASSISTANCE..........................................32

FREQUENTLY ASKED QUESTIONS (FAQ) ..........................32

PINOUT AND SYNC FREQUENCIES..........................34

ANALOG COLOR DISPLAY PINOUTS (DB 15) .....................34

CONVERSION TABLE:PIN ADAPTERS................................35

9-TO-15 PIN CONVERSION TABLE.....................................35

TECHNICAL SUPPORT ......................................................36

LIMITED WARRANTY. .................................................38

OTHER LIMITS.................................................................38

EXCLUSIVE OBLIGATION...................................................39

OTHER STATEMENTS.......................................................39

TERMS AND CONDITIONS. ................................................39

SERVICES AGREEMENT:...................................................40

ENTIRE OBLIGATION. .......................................................40

REDUCING WARRANTY CLAIM REJECTIONS.........41

Introduction

The 3DForce4 MX440-8X Series video accelerators are

excellent 2D/3D multimedia video adapters for AGP 8X local

bus desktop PCs’. Based on nVIDIA GeForce4 MX440-8X core

technology, built-in with 64MB or 128MB DDR SDRAM

memory module, these video cards will provide multiple display

outputs onboard for TVout (Analog and Digital) or Dual RGBout

(Twin) all together in optional.

As the previously core technology from nVIDIA, the

GeForce4™MX440-8X Graphics Processing Unit (GPU)

shakes up the gaming industry with its extremely performance,

unusual visual effects, and speedy frame rates-injecting life into

the artificial world of computer-generated graphics.

The significant enhancement is the new high quality image

control. The nVIDIA GeForce4™MX GPU has added two more

rendering pipelines and the DirectX 8-compliant T&L unit into

its graphic engine, which enables the maximum flexibility and

high quality 4Xs mode control capabilities; gathered with the

data bus Double Data Rate RAM (DDR) circuit, the PC users

can ultimately enjoy the virtual environment of 3D scenes, and

ambiance textures appear photo-realistic and custom lighting

heightens at a highest resolution with astonishingly fast frame

refresh rate.

Another feature of the 3DForce4 MX440-8X Series is the video

accelerator, which integrates the HDVP (High Definition Video

Processor) and DVD (Digital Versa Display) for video playback

with higher definitions at greatly increased frame rates.

A leverage of the combination of hardware and software

technology, nVIDIA GeForce4™ MX GPU will provide many of

the new features and benefits you look for in your desktop

computing as well as the best performance, combining usual

quality and exceeding crisp resolution. With all of this, the

3DForce4 MX440-8X Series video cards bring a new level of

graphics accomplishment and flexibility to the mainstream

desktop PC market!

Features

AGP Bus Interface

•AGP 8x/4x/2x compatible

•AGP 3.0 supported

Graphics Processor Unit (GPU)

•256-bit graphics engine

•64MB/128MB DDR SDRAM memory access bus.

•Integrated dual 270 MHz RAMDACs drives CRT

display

•2 dual 128bit pixel pipelines rendering

•Surface engine for high-order surfaces and patches

•Programmable Vertex Shader

•Programmable Pixel Shader

•HRAA - high - resolution anti-aliasing

•Integrated hardware transform engine

•Integrated hardware lighting engine

•DirectX®and S3TC®texture compression

•Dual cube environment mapping capability

•Hardware accelerated real-time shadows

performance

•Up to 1.1billion AA samples per second fill rate

•Up to 8.0 GB/sec memory bandwidth

•Up to 34 Million triangles/sec.

•True, reflective bump mapping

•High-performance 2D rendering engine

•API support - DirectX®8.1 and lower

Compatibility

•nVIDIA Unified Driver Architecture

•Industry’s first fully compliant professional OpenGL

1.3 support for Windows® operating systems

•Windows® 98, Windows®Me, Windows®NT™4.0,

Windows® 2000, and Windows®XP

HDTV/DVD Playback

•High-Definition Video Processor (HDVP) for full-

screen, full-frame video playback of HDTV and DVD

resolutions

•Independent hardware color controls for video

overlay

•Hardware color space conversion (YUV 4:2:2 and

4:2:0)

•Motion compensation

•5-tap horizontal by 3-tap vertical filtering

•Per-pixel color keying

•Multiple video windows with hardware Color Space

Conversion and filtering

System Requirement

•Intel Pentium® II, III or P4, or compatible system

with AGP 2x/4x/8x Bus Extension Slot

•CD-ROM drive, Double speed or faster

•Hard Drive with at least 100MB Free space

•MS Windows® 98/Me/NT 4.0/2000/XP operating

systems

Check List

•3DForce4 MX440-8X-64TV or 3DForce4 MX440-8X-

64Twin, or 3DForce4 MX440-8X-128TV, or

3DForce4 MX440-8X-128Twin Multimedia

Accelerator

•Software & Documents CD

•Quick Start Guide (Printed)

•TVout convert cable may vary in package, which

depends the offering from manufacturer. Please, see

the PCB Layout diagrams below for details.

Hardware Description

3DForceMX4408X Twin series

nVIDIA

GeForce4

DB 15 VGA

(RGB out)

Display Memory

Bracket

Width

Height

Y200

Product Name / PCB Version

3DForce4 MX440-8X-64Twin

3DForce4 MX440-8X-128Twin

82198D

Core Chipset PCB Size Memory / Size

nVIDIA GeForce4 MX440-8X

W = 6.6" x H = 2.587"

8M*16 DDR SDRAM x 4

16M*16 DDR SDRAM x 4

64MB

128MB

AGP Bus 2x 4x 8x

CON4

DB 15 VGA

(RGB out)

nVIDIA

GeForce4

DB 15 VGA

(RGB out)

Display Memory

Bracket

Width

Height

Y200

Product Name / PCB Version

3DForce4 MX440-8X-64Twin 82198E

Core Chipset PCB Size Memory / Size

nVIDIA GeForce4 MX440-8X W = 5.6" x H = 2.5" 8M*16 DDR SDRAM x 4 64MB

AGP Bus 2x 4x 8x

Special Bracket(s) Alternative

P223 DB 15 VGA + DB 15 VGA L = 3.118", W= 0.725" For low profile PC use only

DB 15 VGA

(RGB out)

3DForceMX4408X TVout series

MX440-8X

nVIDIA

DIM-4Pin Display

Memory

RCA Composite

(TV out)

DB 15 VGA

(RGB out)

3DForce 4 MX440-8X-128TV

8M*16 x4 DDR TSSOP

Product Name / PCB Version

16M*16 x2 DDR TSSOP

64MB

Core Chipset

64MB

3DForce 4 MX440-8X-64TV

82208D 16M*16 x4 DDR TSSOP

nVIDIA GeForce4 MX440-8X

82208D

PCB Size

W = 6.25" x H= 2.45"

82198D nVIDIA GeForce4 MX440-8X W = 6.25" x H = 2.45"

MemorySize

nVIDIA GeForce4 MX440-8X

8M*16 x4 DDR TSSOP

128MB

nVIDIA GeForce4 MX440-8X

64MB

W = 6.25" x H= 2.45"82208D

W = 6.25" x H= 2.45"

Special Bracket(s) Alternative

For low profile PC use onlyL = 3.118" , W = 0.725"DB 15 VGA +MD 4Pin+ RCA CompositeP203

Alternative brackets can be purchased at http://store.anvshopper.net/index.html

MD 4pin

(TVout)

nVIDIA

GeForce4

MX 440 Display Memory

Bracket

DB 15 VGA

(RGB out)

Width

Height

Y200

Product Name / PCB Version

3DForce4 MX440-8X-64TV 82198B

Core Chipset PCB Size Memory / Size

MX440SE with AGP8X W = 6.6" x H = 2.587" 4M*32 DDR SDRAM x 4 64MB

AGP Bus 4x 8x

Special Bracket(s) Alternative

P201 DB 15 VGA + MD 4Pin L = 3.118", W = 0.725" For low profile PC use only

MD 4Pin TVout port built-in onboard which has bundled an 3” converter cable for MD 4Pin to RCA Composite from

manufacturer.

Display Devices Output

Device Output Connection (TVout)

Plate

TV set

DB 15 VGA

Connector

S_Video

Connector

RCA Composite

Connector

CRT Monitor

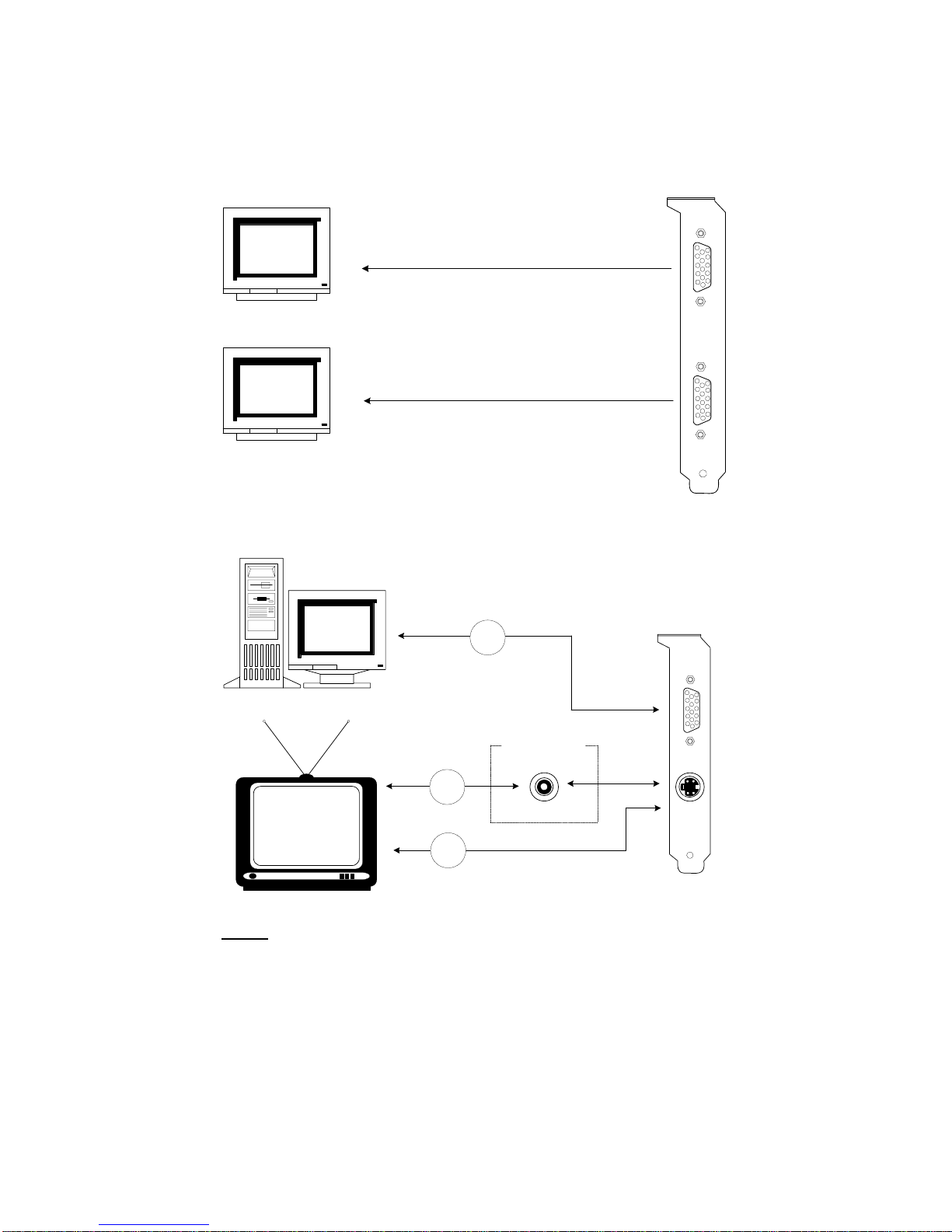

Device Output Connection (Dual RGB out)

AGP Plate

DB 15 VGA Connector

CRT Monitor 2

CRT Monitor 1 (Default output Connector)

(Additional output Connector)

Device Output Connection (PCB revision - 82198B)

Plate

TV set

PC Computer DB 15 VGA

Connector

S_Video

Connector

Composite RCA

Convert Cable

MD 4Pin

Note: TVout convert cable that describes above is bundle

within the package from manufacturer.
