Jaton 3DForceFX5200 Manuale utente
3DForce FX5200 series
nVIDIA GeForceFX™5200
User’s Manual
Version 5.00
Copyright © 2005 Jaton Corporation, USA
Contents
INTRODUCTION.............................................................5
FEATURES.....................................................................6
CINEFX ENGINE................................................................6
HIGH-PRECISION GRAPHICS...............................................6
NVIEW MULTI-DISPLAY TECHNOLOGY..................................6
DIGITAL VIBRANCE CONTROL (DVC)..................................6
UNIFIED DRIVER ARCHITECTURE (UDA).............................7
AGP 8X............................................................................7
0.15μMICRON PROCESS TECHNOLOGY .............................7
8PIXELS/CLOCK RENDERING PIPELINE ..............................7
ARCHITECTED FOR CG.......................................................7
MICROSOFT®DIRECTX® 9.0 OPTIMIZATIONS AND SUPPORT
........................................................................................8
NEW 64-PHASE VIDEO SCALER..........................................8
OPENGL® 1.4 OPTIMIZATIONS AND SUPPORT ....................8
VIDEO MIXING RENDERER (VMR) ......................................8
DVI (OPTIONAL)................................................................8
OVERALL PERFORMANCE ...................................................8
COMPATIBILITY..................................................................9
OPERATING SYSTEMS........................................................9
SYSTEM REQUIREMENT..............................................9
CHECK LIST...................................................................9
HARDWARE DESCRIPTION .......................................10
DISPLAY DEVICES OUTPUT......................................10
2
HARDWARE INSTALLATION ......................................12
INSTALLATION PROCEDURES............................................12
STEPS: ...........................................................................13
SOFTWARE INSTALLATION......................................14
á
WINDOWS®98 DRIVER INSTALLATION......................14
á
WINDOWS®ME DRIVE INSTALLATION .......................18
á
MICROSOFT WINDOWS®NT™4.0............................22
á
WINDOWS®2000 DRIVER INSTALLATION..................26
á
WINDOWS®XP DRIVER INSTALLATION .....................30
TECHNICAL ASSISTANCE..........................................34
FREQUENTLY ASKED QUESTIONS (FAQ) ..........................36
PINOUT AND SYNC FREQUENCIES..........................39
ANALOG COLOR DISPLAY PINOUTS (DB 15) .....................39
CONVERSION TABLE:PIN ADAPTERS................................39
9-TO-15 PIN CONVERSION TABLE.....................................40
DIGITAL VISUAL INTERFACE (DVI) CONNECTOR ................40
TECHNICAL SUPPORT ......................................................41
HOW TO OBTAIN WARRANTY SERVICE..............................42
LIMITED WARRANTY. .................................................44
OTHER LIMITS.................................................................44
EXCLUSIVE OBLIGATION...................................................45
OTHER STATEMENTS.......................................................45
TERMS AND CONDITIONS. ................................................45
SERVICES AGREEMENT:...................................................46
3
ENTIRE OBLIGATION. .......................................................46
REDUCING WARRANTY CLAIM REJECTIONS.........47
4
Introduction
3DForce FX5200 series video accelerators are NVIDIA
GeForceFX™5200 core technology based 128MB DDR
memory modules built-in onboard totally. These AGP 8x-bus
video accelerators are capable of driving very complex
geometry and character animation images on your PC desktop
incomparably, with truly genuine filling experience you may
anticipate like never before. The particular emphasis of these
AGP’s ability that is very ease of play all fancy PC games with
preferred resolution, unique visual effects, life-like, and these
much of realistic graphical improvements must be performed
on high-end computers.
The NVIDIA®GeForce FX5200 Graphics Processing Unit
(GPU) is 0 .15μMicron Process Technology, which delivers
high performance through faster clock rates. CineFX engine
produces gaming effects on par with the hottest motion
pictures. Combined with 128-bit studio quality color processing
technology, 3D worlds and characters are more real than
anything is that’s come before. Powered by the CineFX engine,
the GeForce FX shifts the focus from simple pixel fill rate to
sophisticated pixel shading. To maximize programming choice,
the NVIDIA CineFX engine includes the most complete
hardware feature implementation for both OpenGL®and
Microsoft®DirectX®environments, including total support for
the Directx 9.0-vertex and pixel shader specification.
Well-developed CineFX engine features include the support of
1024 instructions in a single rendering pass, allowing for
complex effects that aren’t practical in any other architecture.
Complex lighting can dramatically improve the realism of
images, but traditionally adds the rendering time. With GeForce
FX all of these gorgeous enhancements are possible without
sacrificing performance.
New NVIDIA GPUs and PC platforms will incorporate AGP 8X
capabilities and take full advantage of AGP 3.0 specification.
As always, NVIDIA solution incorporate new technology and
advances without compromising the overall stability and quality
of the system, and NVIDIA Unified Driver Architecture (UDA)
makes it painless to take advantage of new capabilities as they
are introduced.
5
A matchless of hardware and software technology combination,
the primary principles of 3DForce FX5200 series video
accelerators that will contribute many of new features and more
benefits to your desktop computing as well as the best-
performance integrated, unusual quality and exceedingly
resolution.
Features
CineFX Engine
Power cinematic effects beyond imagination. With
advanced vertex and pixel shader capabilities, stunning
and complex special effects are possible. In addition,
this feature increases horsepower which will deliver
faster and smoother gameplay.
High-Precision Graphics
By combining the incredible dynamic range of today's
state-of-the-art 3D motion pictures with 128-bit studio-
precision color, the GeForce FX brings you the
industry’s best image quality for the most demanding
applications.
nView Multi-display Technology
The nView hardware and software technology
combination delivers maximum flexibility for multi-display
options, and provides unprecedented end-user control of
the desktop experience.
Digital Vibrance Control (DVC)
Allows the user to adjust color controls digitally to
compensate for the lighting conditions of their
workspace and to achieve accurate and bright colors in
all conditions.
6
Unified Driver Architecture (UDA)
Guarantees forward and backward compatibility with
software drivers. Simplifies upgrading to a new NVIDIA
product because all NVIDIA products work with the
same driver software.
AGP 8X
Provides double the bandwidth of AGP 4X—2.1GB/sec.
vs. 1.1BG/sec. AGP 8X enables more complex models
and detailed textures, creating richer and more lifelike
environments. Uninterrupted data flow allows for
smoother video streaming and faster, more seamless
gameplay.
0.15
μ
Micron Process Technology
Delivers high performance through faster clock rates.
8 Pixels/Clock Rendering Pipeline
Makes all of your favorite games run faster.
Architected for Cg
Ensures that the newest, cutting-edge special effects in
applications will run flawlessly. Speeds up content
creation so game developers can get their new games
out to PC users faster than ever before.
7
Microsoft® DirectX® 9.0 Optimizations and
Support
Ensures the best performance and application
compatibility for all DirectX 9 applications.
New 64-phase Video Scaler
Highest quality for scaling DVD and other video to full-
screen HDTV resolutions.
OpenGL® 1.4 Optimizations and Support
Ensures the best performance and application
compatibility for all OpenGL applications.
Video Mixing Renderer (VMR)
Harnesses the power of the 3D graphics engine to
empower the user to view multiple video windows
simultaneously with superior quality, and avoids the
problems associated with video overlay.
DVI (Optional)
Able to drive large displays with up to 1600x1200
resolutions.
Overall performance
•1.3 billion texels per second fill rate
•81 Million vertical per second fill rate
•Up to 10.4 GB per second on memory bandwidth
•128MB DDR TSSOP onboard supported up to 128-
bit data bus access
8
Compatibility
•NVIDIA Unified Driver Architecture (UDA)
•Fully compliant professional OpenGL 1.4
•Microsoft DirectX 9.0
•WHQL-certified for windows XP, Windows 2000,
Windows NT, Windows Me, and Windows 98
Operating Systems
•Windows®95/98, Windows® Me, Windows® 2000,
Windows® NT (all), Windows® XP
System Requirement
•Intel Pentium® P4, or compatible system with AGP
2x/4x/8x Bus Extension Slot
•CD-ROM drive, Quad speed or faster
•Hard Drive with at least 50MB Free space
•MS Windows® 98/Me/NT 4.0/2000/XP operating
systems
Check List
•3DForce FX5200, 3DForce FX5200LE or 3DForce
FX5200TV Multimedia Accelerator
•3” cable (TV-Out) converts MD 4pin to Composite
RCA (3DForce FX5200 and 3DForce FX5200LE
only)
•DVI to RGB converter for Dual RGB out (3DForce
FX5200 only)
•Software & Documents CD
•Quick Start Guide (Printed)
9

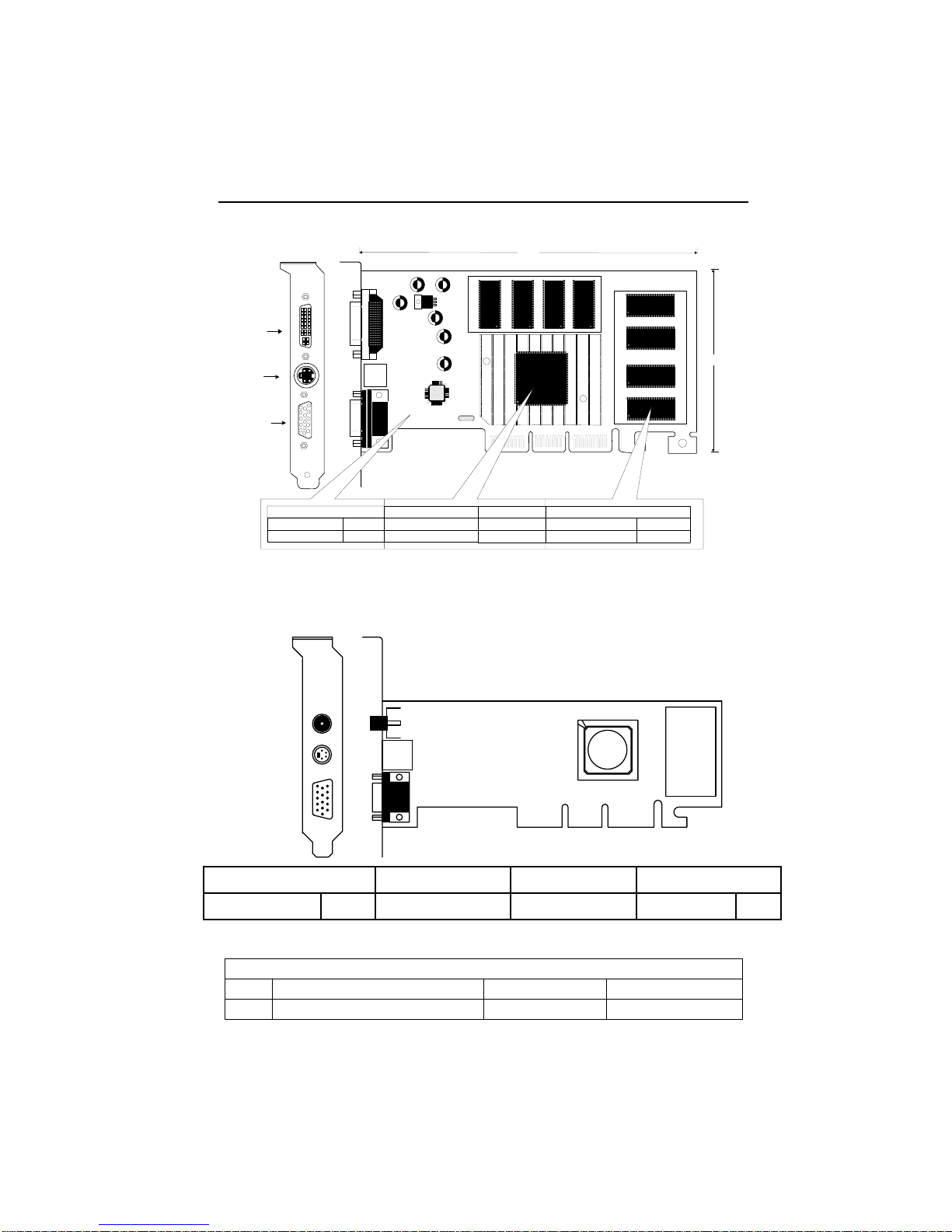

Hardware Description
(I) 3DForce FX5200 / FX5200LE
NVIDIA
GeForce FX
5200
Display Memory
Bracket
DB 15 VGA
(RGB out)
Width
Height
Y201
Product Name / PCB Version
3DForceFX 5200
3DForceFX 5200LE
82228A
82228A
Core Chipset PCB Size Memory / Size
nVIDIA GeForce FX 5200
nVIDIA GeForce FX 5200
W = 6.6" x H = 4"
W = 6.6" x H = 4"
8M*16 x 8 DDR TSSOP
16M*16 x 4 DDR TSSOP
128MB
128MB
AGP Bus 8x
DVI-I 24Pin
(DVI out)
MD-4PIN
(TVout)
Note: 3DForce FX5200LE’s memory data bus access limits on 64-bit
only.
(II) 3DFORCE FX5200TV
DIM-4Pin nVIDIA
FX5200
Display
Memory
(TV out)
(TV out)
RCA Composite
DB 15 VGA
(RGB out)
Product Name / PCB version Core Chipset PCB Size Memory / Size
3DForce FX5200TV 82208D Nvidia GeForceFX 5200 W = 6.25" x H = 2.45" 16M*16 x 4 DDR 128MB
P203 DB 15 VGA + MD 4Pin+ RCA Composite For low profile PC use onlyL = 3.118" , W = 0.725"
Special Bracket(s) Alternative
Alternative brackets can be purchased at http://store.anvshopper.net/index.html
10
Indice
Altri manuali Jaton Scheda video
Jaton
Jaton Video-PCX5750 Manuale utente
Jaton
Jaton 3DForce2MX Manuale utente
Jaton
Jaton Video-118PCI-32 Manuale utente
Jaton
Jaton NVIDIA GeForce PX8000 Manuale utente
Jaton
Jaton 3DForceFX 5600 Manuale utente
Jaton
Jaton 3DForceXabre400-64Q Manuale utente
Jaton
Jaton 3DForce6200-256 Manuale utente
Jaton
Jaton Video-338PCI Series Manuale utente
Jaton
Jaton 3DForceS-128 Manuale utente
Jaton
Jaton 3DForceFX5700-256DE Manuale utente
Jaton
Jaton Video-PX6600-256 Manuale utente
Jaton
Jaton Video-208PCI-128TV Manuale utente
Jaton
Jaton Video-PX8000 series Manuale utente
Jaton
Jaton Video-117PCI-16 Manuale utente
Jaton
Jaton Video-348PCI Series Manuale utente
Jaton
Jaton Video-248PCI-DVI Manuale utente
Jaton
Jaton Video-PX7800GT Manuale utente
Jaton
Jaton Video-PX7600GS-256 Manuale utente
Jaton
Jaton Video-198PCI-64 Manuale utente
Jaton
Jaton 3DForce4Ti4200-8X Manuale utente
Manuali Scheda video popolari di altre marche
Gainward
Gainward GeForce GTX 690 4GB Manuale utente
ATI Technologies
ATI Technologies RADEON 137-40225-20 Manuale utente
MSI
MSI N220GT series Manuale utente
ATI Technologies
ATI Technologies RADEON 7000 MAC EDITION Manuale utente
SIIG
SIIG aurora Manuale utente
ClearSpeed
ClearSpeed ClearSpeed Advance e720 Manuale utente
