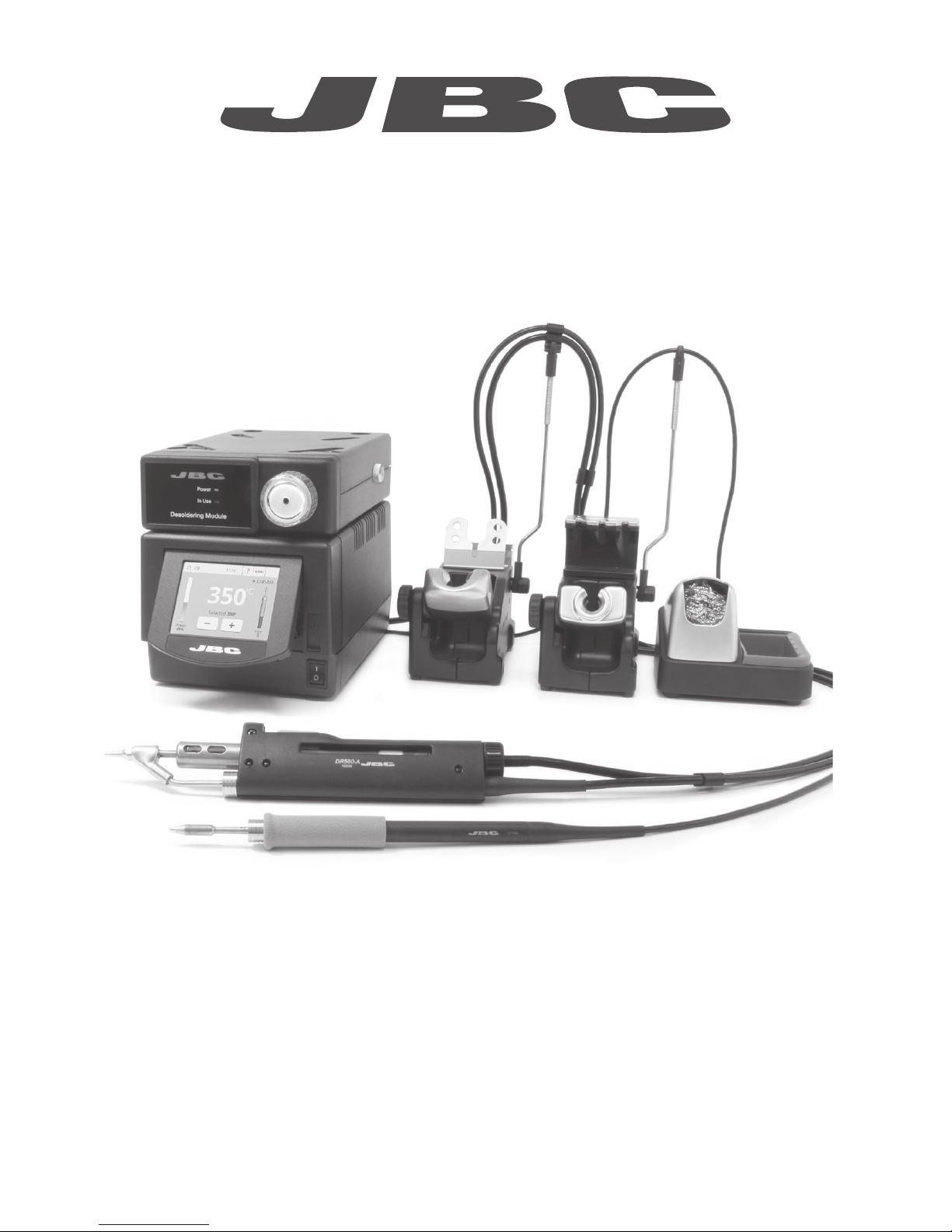

Jbc DMVE-1A Manuale utente

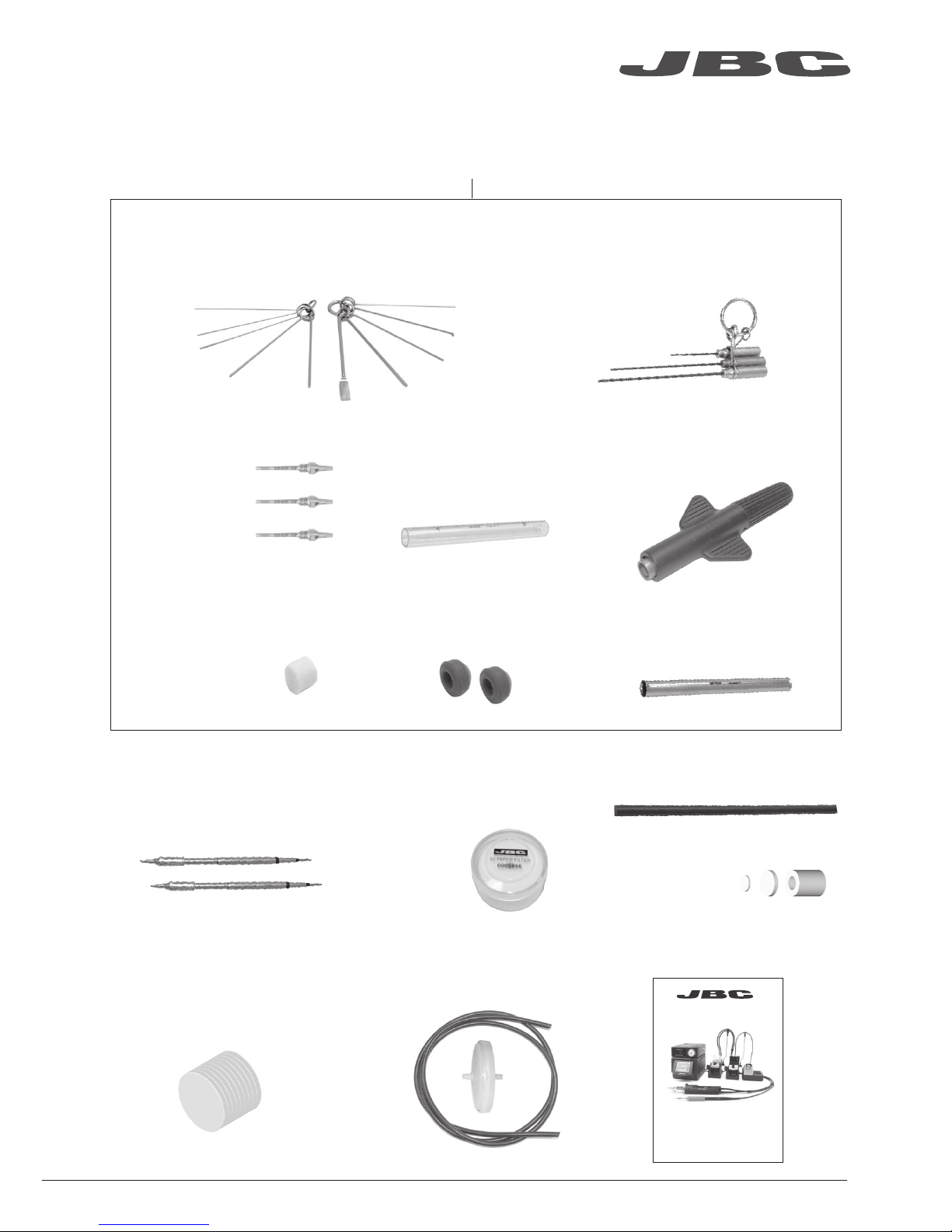

Premium

4 Tools Rework station

with Pneumatic Pump

Ref. DMVE-A

www.jbctools.com

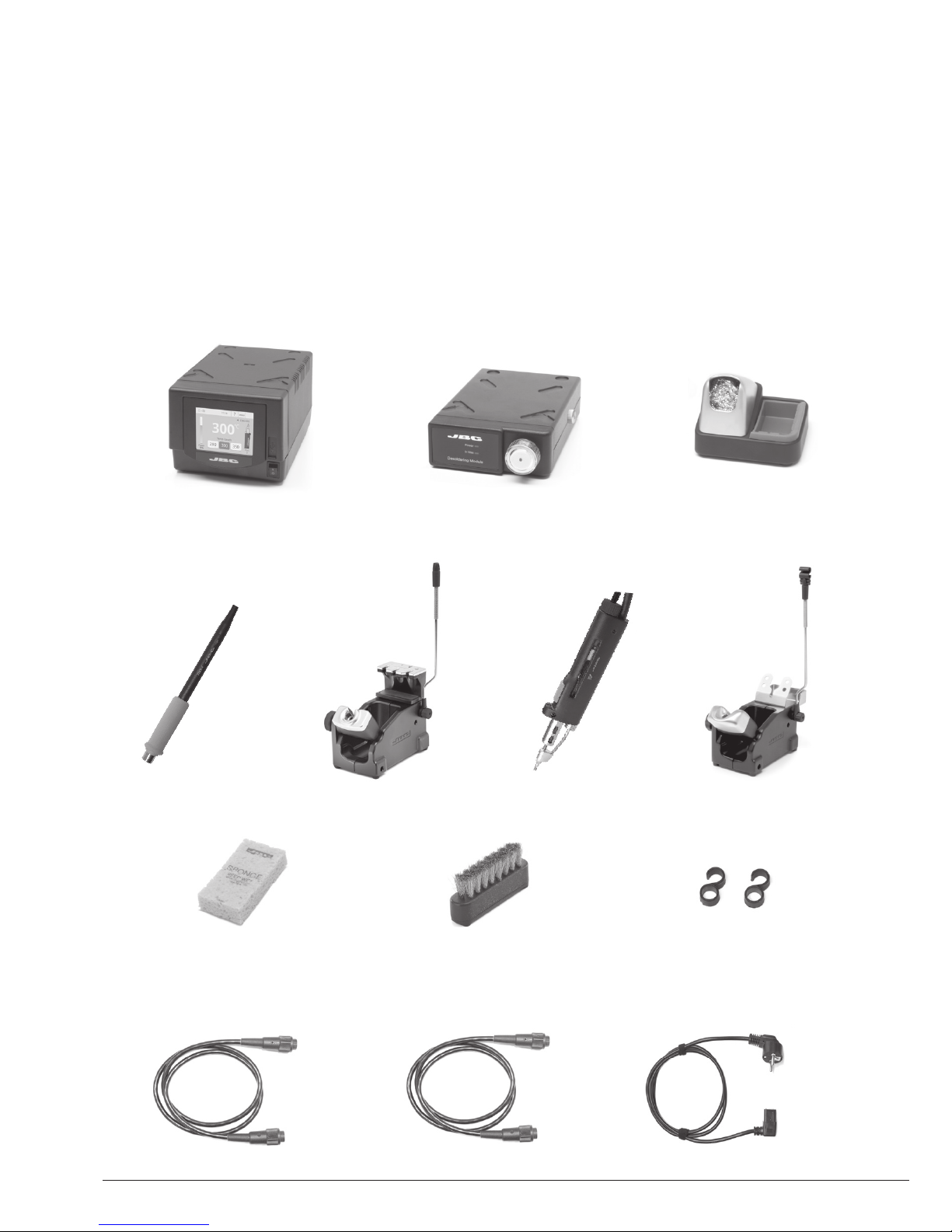

Packing List

The following items should be included:

Stand Cable ................ 2 units

Ref. 0011283

Stand ................ 1 unit

Ref. AD-SD

Sponge ............................. 1 unit

Ref. S0354

Metal Brush .................... 1 unit

Ref. CL6217

Pneumatic Desoldering

Module .............................. 1 unit

Ref. MVE-A

Tip Cleaner.........1 unit

Ref. CL9885

Module Cable ............... 1 unit

Ref. 0014874

DME Control Unit ................. 1 unit

Ref. DME-1A (120V)

DME-2A (230V)

DME-9A (100V)

Union Flanges ................. 1 unit

Ref. 0011356

Desoldering

Iron ..................... 1 unit

Ref. DR560-A

Stand ................. 1 unit

Ref. DR-SD

Power cord .................... 1 unit

Ref. 0010569 (230V)

0013671 (100/120V)

General Purpose

Handle ............... 1 unit

Ref. T245-A

Manual ............................. 1 unit

Ref. 0016078

Premium

4 Tools Rework station

with Pneumatic Pump

Ref. DMVE-A

Suction Filter .................1 unit

Ref. 0821830

Cotton Filter ................. 1 unit

Ref. 0781046

It contains 10 filters

DR560 Accessories

Ref. 0010211

Internal gasket ................ 2 u.

Ref. 0812360

Tip cleaning set .......................................... 1 unit

Ref. 0965970

Filter Box .................... 1 unit

Ref. 0780840

It contains 10 filters

Spanner ....................... 1 unit

Ref. 0780550

Tin deposit .................... 1 unit

Ref. 0812620

Long Tip Cleaning set ....................... 1 unit

Ref. 0965760

Metal tin diposit ....... 1 unit

Ref. 0812630

Tips ............................. 3 units

Ref. C560005

Ref. C560013

Ref. C560004

Cleaning stick ................1 unit

Ref. 0786640

Cartridges ..................... 2 units

Ref. C245903 (x1)

C245906 (x1)

Filter Box .........................1 unit

Ref. 0005966

It contains

50 filters Venturi Filter ...................1 unit

Ref. 0008446

www.jbctools.com

www.j bct ool s.c om

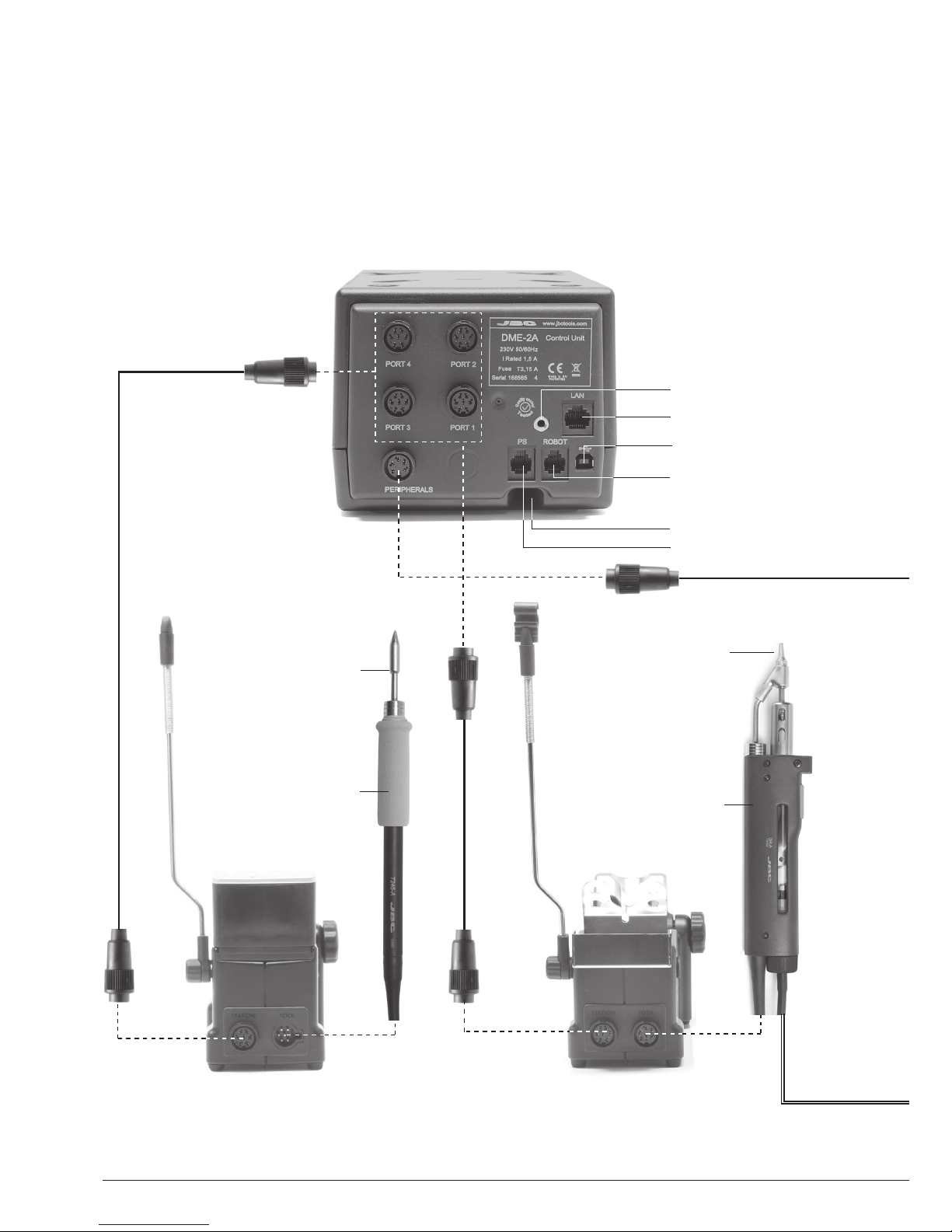

Features

Work simultaneously with up to 2 tools and join each station port with 1 module + 1 pedal (Peripherals).

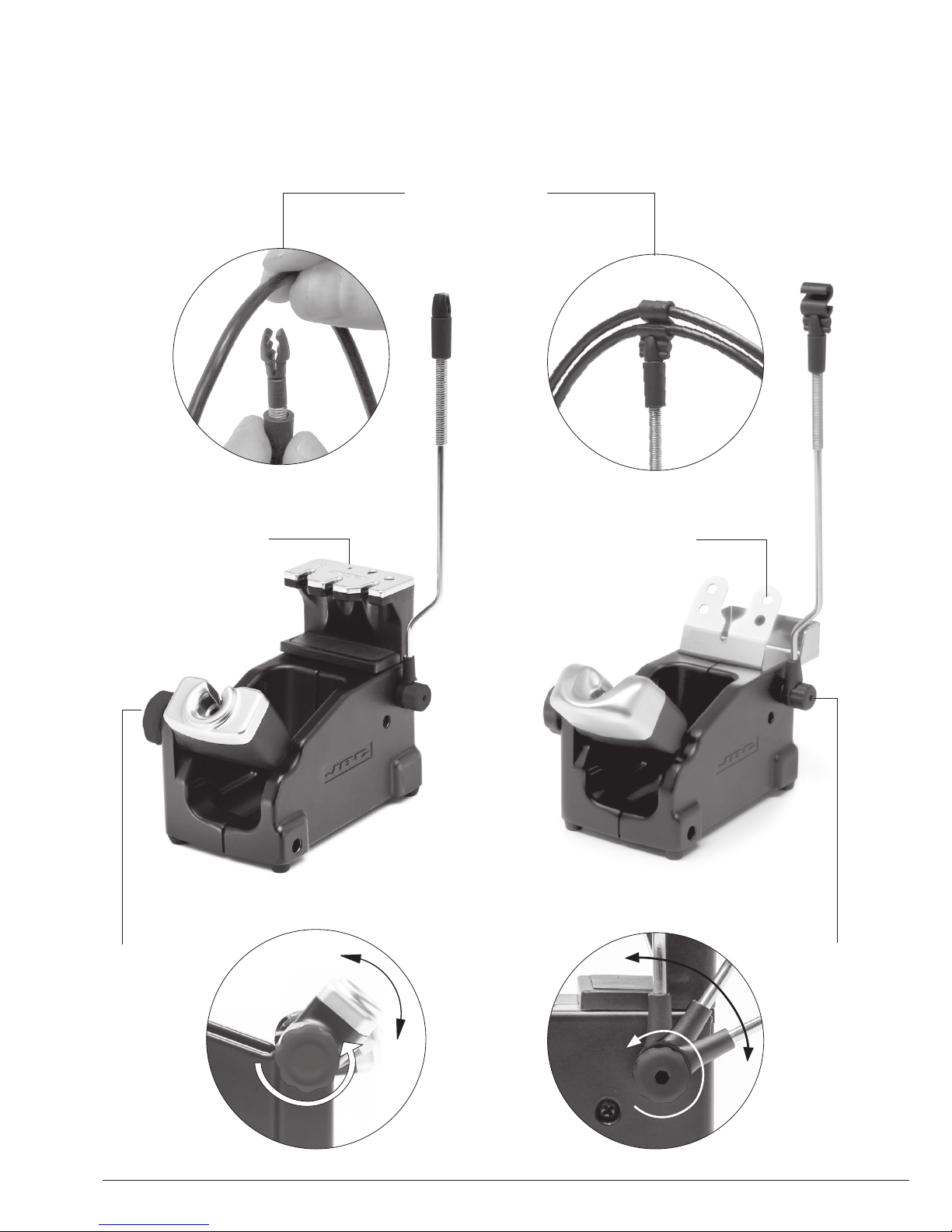

Stand

Ref. AD-SD

General

Purpose

Handle

Ref. T245-A

Desoldering Iron

Ref. DR560-A

Cartridge

Ref. C245903

Ref. C245906

Tip

Ref. C560004

Ref. C560005

Ref. C560013

Stand

Ref. DR-SD

Stand Cable

Ref. 0011283

RJ12 connector for Robot

USB-B connector

Equipotential connection

Power Socket

RJ12 connector for PSE

RJ45 connector for LAN

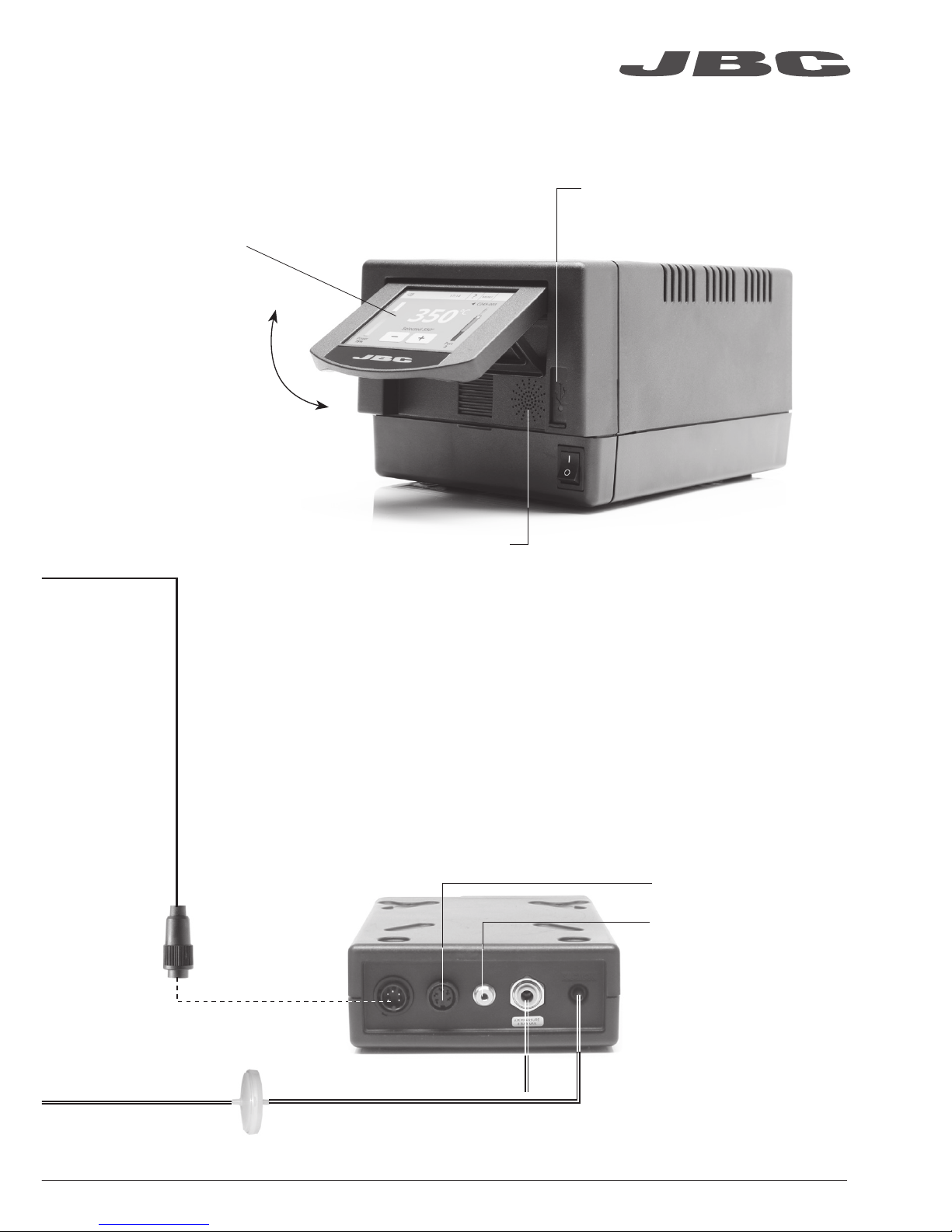

Pneumatic Desoldering Module

Ref. MVE-A

To another peripheral

To Pedal

Ref. P-005

USB-A connector

3.5” Color TFT

Touch screen

Tilt the display for

easy reading

Suction Filter

Ref. 0821830

Module Cable

Ref. 0014874

Speaker

Air pressure

(4-6 bar)

www.jbctools.com

Stand

Ref. AD-SD

Quick tip changer

Permits switching

cartridges without

interrupting

your work.

Adjustable

tool holder

Suits your

work

position.

Adjustable

cable

collector

Adjustable Stands

Stand

Ref. DR-SD

Quick tip changer

Holding tip system

for easy change.

Cable collector

Keeps working area free of cable.

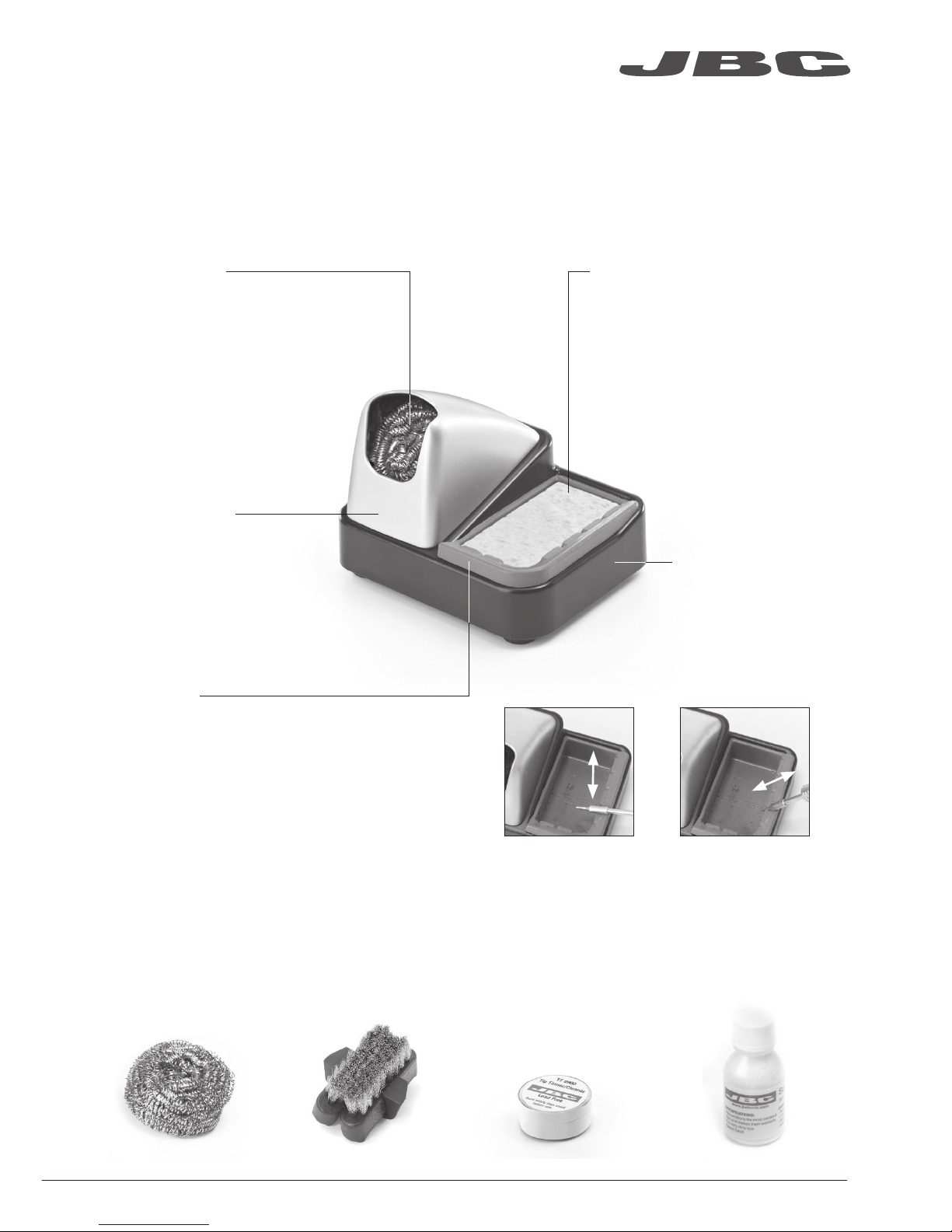

Improve thermal transfer by cleaning the tip after each solder joint.

Tip Cleaner

Optional

Brass wool

Ref. CL6210

Inox wool

Ref. CL6205

Brushes

Ref. CL6220

Tip-tinner

Ref. TT-A

Sand

Ref. CL6211

Splashguard

Non-slip base

Sponge

Ref. S0354

Wiper

Ref. CL0236

Very effective cleaning

method. It leaves a small layer

of solder on the tip to prevent

oxidation between cleaning

and rewetting.

It prevents splashing of

solder particles when

using the brass wool. Heavy weighted non-

slip base for simple-

handed cleaning.

The least harmful cleaning

method. Keep the sponge damp

with distilled water when working

to avoid tip wear.

A temperature resistant receptacle lets

the operator remove excess solder by

gentle tapping or wiping. It can be easily

removed for cleaning.

Tapping: Wiping:

Tap gently to remove

excess solder.

Use the slots to

remove remaining

particles.

www.jbctools.com

ø 1

ø 1,5

ø 3,5

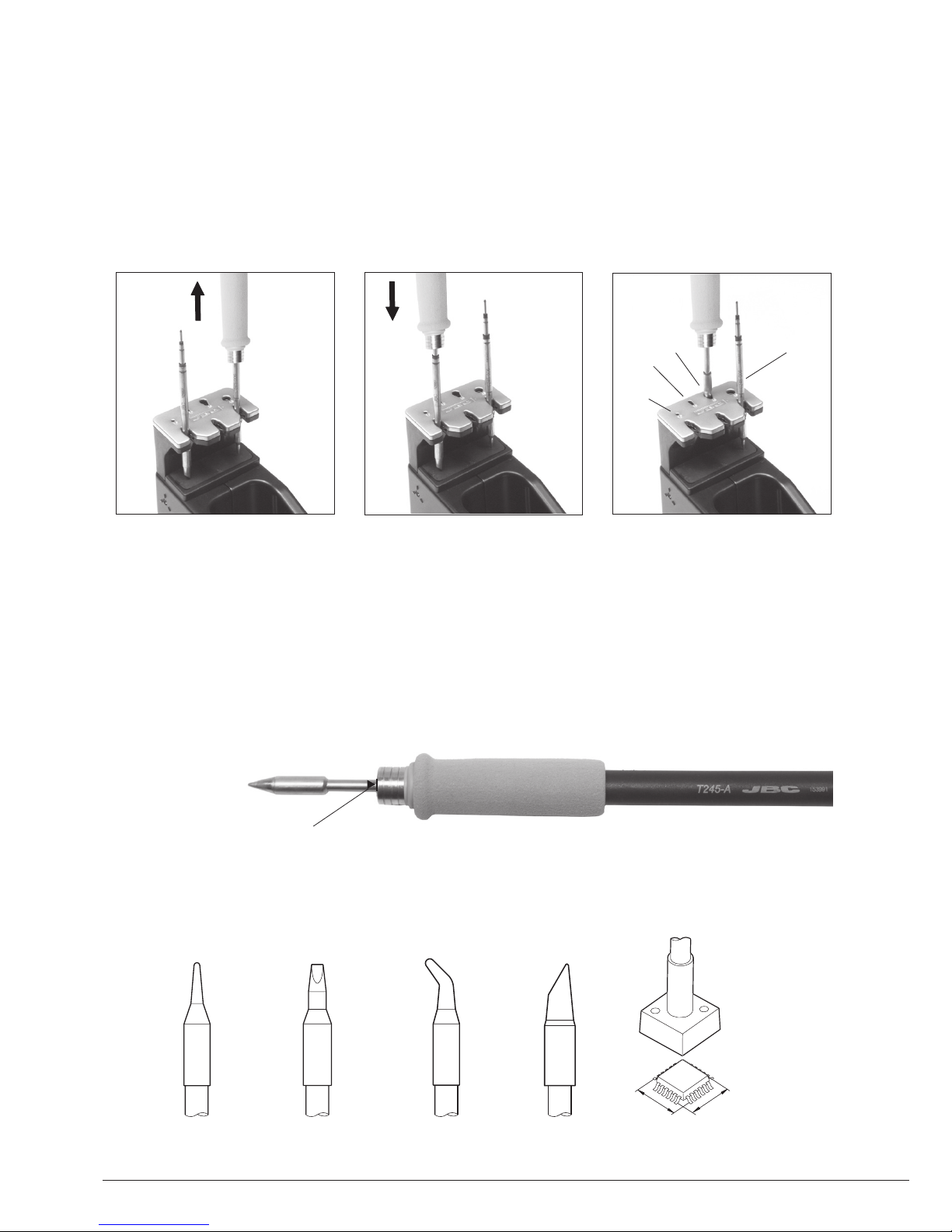

T245 Changing Cartridges

1. Removing 2. Inserting 3. Fixing

Place the handle in the

extractor and pull to

remove the cartridge.

Place the handle on top of

the new cartridge and press

down slightly.

Use the holes for fixing the

cartridge* as follows:

A. For straight C210.

B. For curved C210.

C. For curved C245.

D. For straight C245.

*Important

It is essential to insert the cartridges as far as the mark for a proper connection.

Compatible cartridges

The T245 handle works with C245 cartridges. Find the model that best suits your soldering needs

in www.jbctools.com

Round Chisel Round bent Bevel Special models

Save time and change cartridges safely without switching the station off.

Mark

A ø

Bø

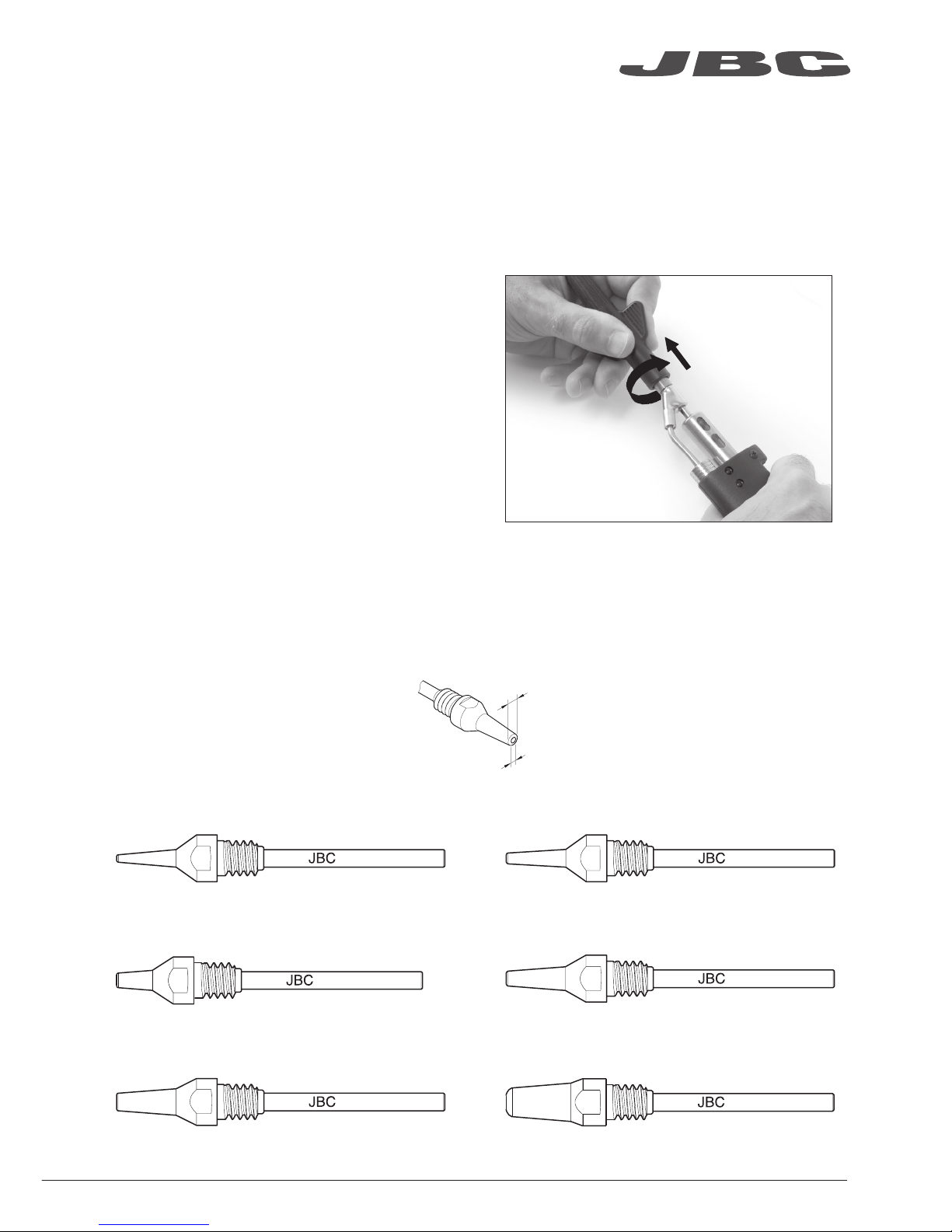

DR560 Changing Tips

This operation should be done while the tip is hot, not below 250°C, so that any tin left inside is in

molten state.

250ºC minimum

C560-001 C560-002

C560-003

C560-004 C560-009

C560-014

C560-001 ØA=1,4 ØB=0,6 Ømax. pin=0,4 C560-002 ØA=1,8 ØB=0,8 Ømax. pin=0,6

C560-003 ØA=2,7 ØB=1 Ømax. pin=0,8

C560-004 ØA=3,2 ØB=1,3 Ømax. pin=1,1 C560-009 ØA=5 ØB=1,3 Ømax. pin=1,1

C560-014 ØA=2,5 ØB=0,8 Ømax. pin=0,6

1. Removing

Unscrew the tip using the spanner

supplied.

2. Inserting

Fit the new tip and tighten with the

spanner to make sure it is air tight.

Compatible Tips

The DR560 works with C560 tips. Find the model that best suits your soldering needs in www.jbctools.com

Here are some C560 tips in real size (mm):

www.jbctools.com

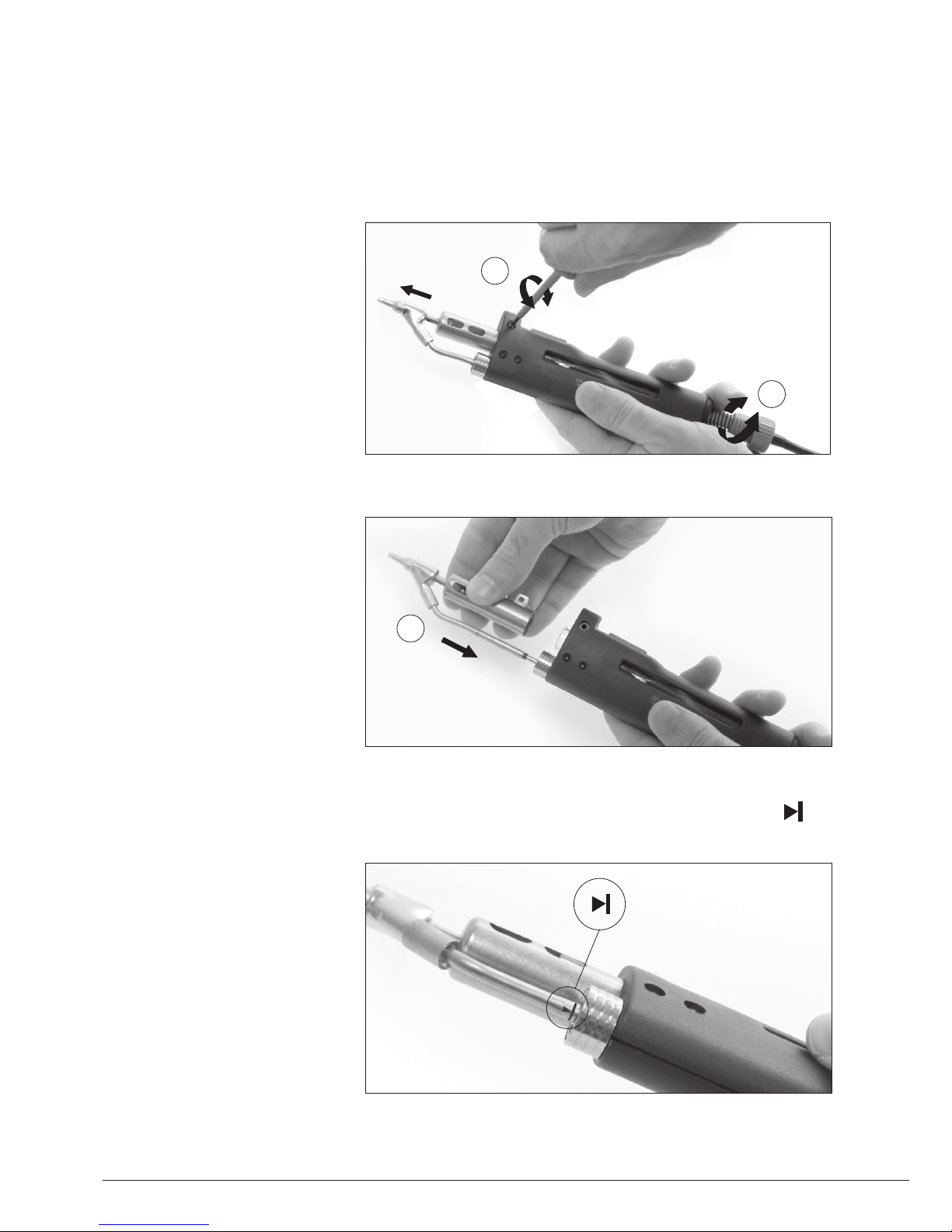

DR560 Changing the Heating Element

1. Loosening

The deposit lid needs to be

loosened.

2. Removing

Loosen the screw as shown

and remove the

Heating Element.

3. Placing

Place the new Heating

Element and follow the steps

conversely.

To perform this operation, turn off the station or disconnect the tool.

Important

For a proper connection it is essential to insert the cartridge by lining it up to the mark .
