JBL GTO1020 Manuale di istruzioni

SPECIFICATIONS

DIAMETER: 10" (254.0 MM)

SENSITIVITY (2.83 V @ 1 M): 89 dB

POWER HANDLING: 300 WRMS (1,200 WPEAK)

FREQUENCY RESPONSE: 25 ~ 500 HZ

NOMINAL IMPEDANCE:2OHMS

VOICE-COIL DIAMETER: 3.0" (76.2 MM)

DIMENSIONS:

THIELE-SMALL PARAMETERS

VOICE COIL DCRESISTANCE:R

EVC (OHMS) . . . . . . 1.94

VOICE COIL INDUCTANCE @ 1 KHZ:L

EVC (MH) . . . . . . . 0.17

DRIVER RADIATING AREA:S

D(IN2) . . . . . . . . 48.67

SD(CM2) . . . . . . 314.00

MOTOR FORCE FACTOR:BL(TM) . . . . . . . . . 8.58

COMPLIANCE VOLUME:V

AS (FT3) . . . . . . . . 1.39

VAS (LITERS) . . . . . 39.29

SUSPENSION COMPLIANCE:C

MS (µM/N) . . . . 280.62

MOVING MASS, AIR LOAD:M

MS (GRAMS). . . . 106.46

MOVING MASS, DIAPHRAGM:M

MD (GRAMS) . . . 103.26

FREE-AIR RESONANCE:F

S(HZ) . . . . . . . . 29.12

MECHANICAL Q: QMS . . . . . . . . . . . 5.93

ELECTRICAL Q: QES . . . . . . . . . . . . 0.51

TOTAL Q: QTS . . . . . . . . . . . . 0.47

MAGNETIC-GAP HEIGHT:H

AG (IN) . . . . . . . . . 0.39

HAG (MM) . . . . . . . 10.00

VOICE-COIL HEIGHT:H

VC (IN) . . . . . . . . . 1.28

HVC (MM) . . . . . . . 32.50

MAXIMUM EXCURSION:X

MAX (IN) . . . . . . . . 0.44

XMAX (MM) . . . . . . 11.25

SEALED BOX VOLUME

(INCLUDES DRIVER DISPLACEMENT)

SEALED

FREQUENCY RESPONSE @ 2.83 V

SEALED

TRANSDUCER EXCURSION @ 300 W

JBL Consumer Products • 250 Crossways Park Drive • Woodbury, NY 11797 • VOICE: 516-496-3400 • FAX: 516-496-4868 • www.jbl.com

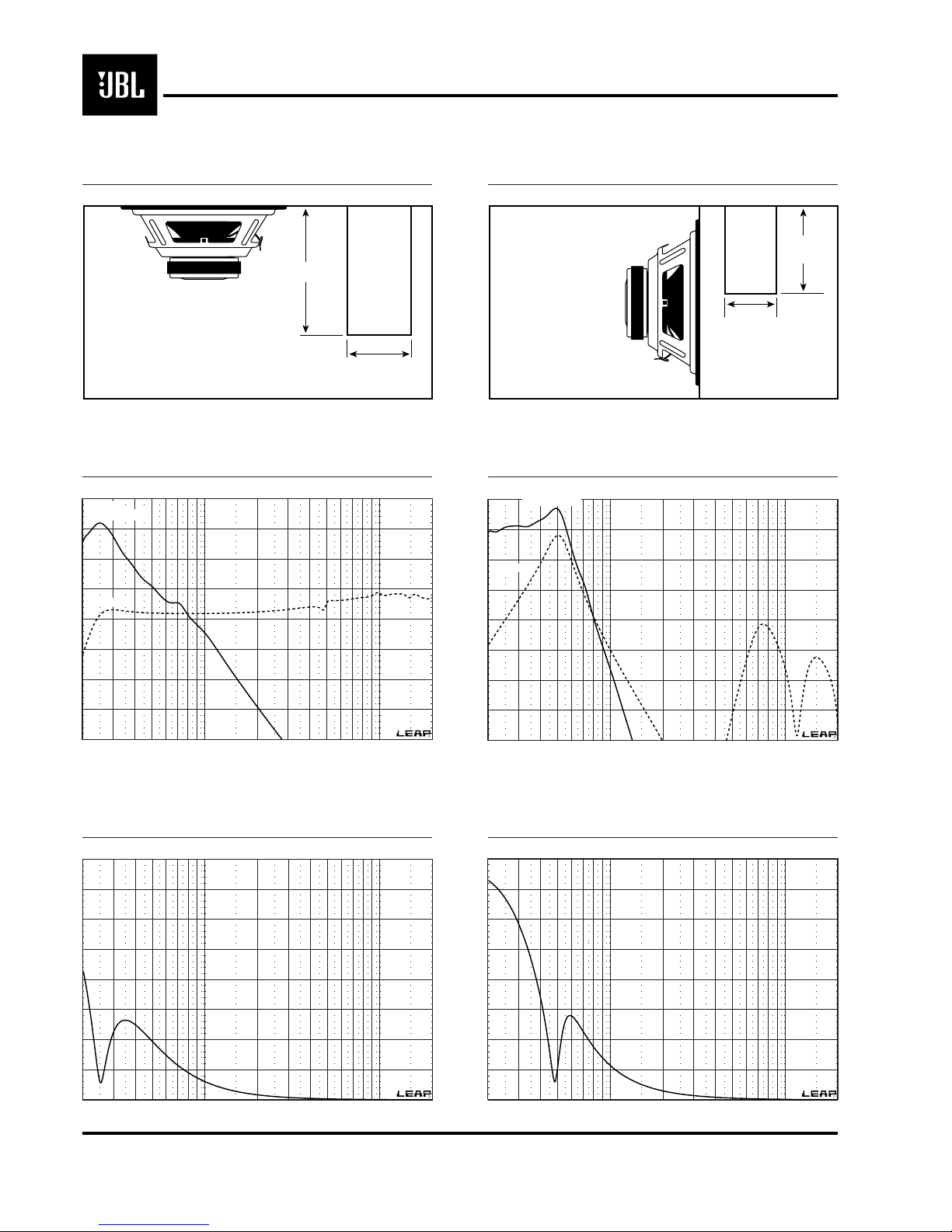

GTO1020 10" Woofer – Technical Data

mounting depth

6.06 (154.00 mm)

cutout diameter

9.00" (229.00 mm)

outer diameter

10.00" (254.00 mm)

VBOX = 0.75 ft3 (21.24 liters)

(stuffed with loosely-packed fiberfill)

GTO1020

(side view)

100

20 Frequency 50 100 Hz 200 500 1k 2k

Out-Of-Car

In-Car

12 dB LP @ 80 Hz

Xd mM

20.0

17.5

15.0

12.5

10.0

7.5

5.0

2.5

0.0

20 Frequency 50 100 Hz 200 500 1k 2k

VENTED BOX VOLUME

(INCLUDES DRIVER/PORT DISPLACEMENTS)

VENTED

FREQUENCY RESPONSE @ 2.83 V

VENTED

TRANSDUCER EXCURSION @ 300 W

SEALED BANDPASS BOX VOLUME

(INCLUDES DRIVER/PORT DISPLACEMENTS

)

SEALED BANDPASS

FREQUENCY RESPONSE @ 2.83 V

SEALED BANDPASS

TRANSDUCER EXCURSION @ 300 W

JBL Consumer Products • 250 Crossways Park Drive • Woodbury, NY 11797 • VOICE: 516-496-3400 • FAX: 516-496-4868 • www.jbl.com

GTO1020 10" Woofer – Technical Data

GTO1020

(side view)

Port

fo= 25.0 Hz

diameter = 3"

length = 11.96"

VBOX = 1.75 ft3 (49.56 liters)

(stuffed with loosely-packed fiberfill)

110

105

100

20 Frequency 50 100 Hz 200 500 1k 2k

Out-Of-Car

In-Car

12 dB LP @ 80 Hz

Xd mM

20 Frequency 50 100 Hz 200 500 1k 2k

VFRONT =

1.25 ft3

(35.40 liters)

(stuffed with loosely-packed

fiberfill)

diam. = 4"

Port

fo= 47.0 Hz

length =

6.81"

VREAR =

1.75 ft3 (49.56 liters)

(stuffed with loosely-packed fiberfill)

GTO1020

(side view)

105

100

20 Frequency 50 100 Hz 200 500 1k 2k

Out-Of-Car

In-Car

12 dB LP @ 80 Hz

Xd mM

20 Frequency 50 100 Hz 200 500 1k 2k

20.0

17.5

15.0

12.5

10.0

7.5

5.0

2.5

0,0
