QUICK SPECS
JBL SYNTHESIS S4S/S4SBB IN-WALL SUBWOOFER
NOVEMBER 29, 2006 Page of 2
JBL Synthesis – S4S Quickspecs Page
DOC# 09 404 WB-TP / FB-XX
Specs
Frequency Response 20Hz – 150Hz (THX®/LFE mode)(–6dB)
Maximum Recommended Amplifier Power
500 Watts per channel
Impedance 4 Ohms nominal
Sensitivity 88dB (2.83V/1m), both woofers driven
Woofer Dual 10" polymer-coated aluminum cones w/rubber surrounds

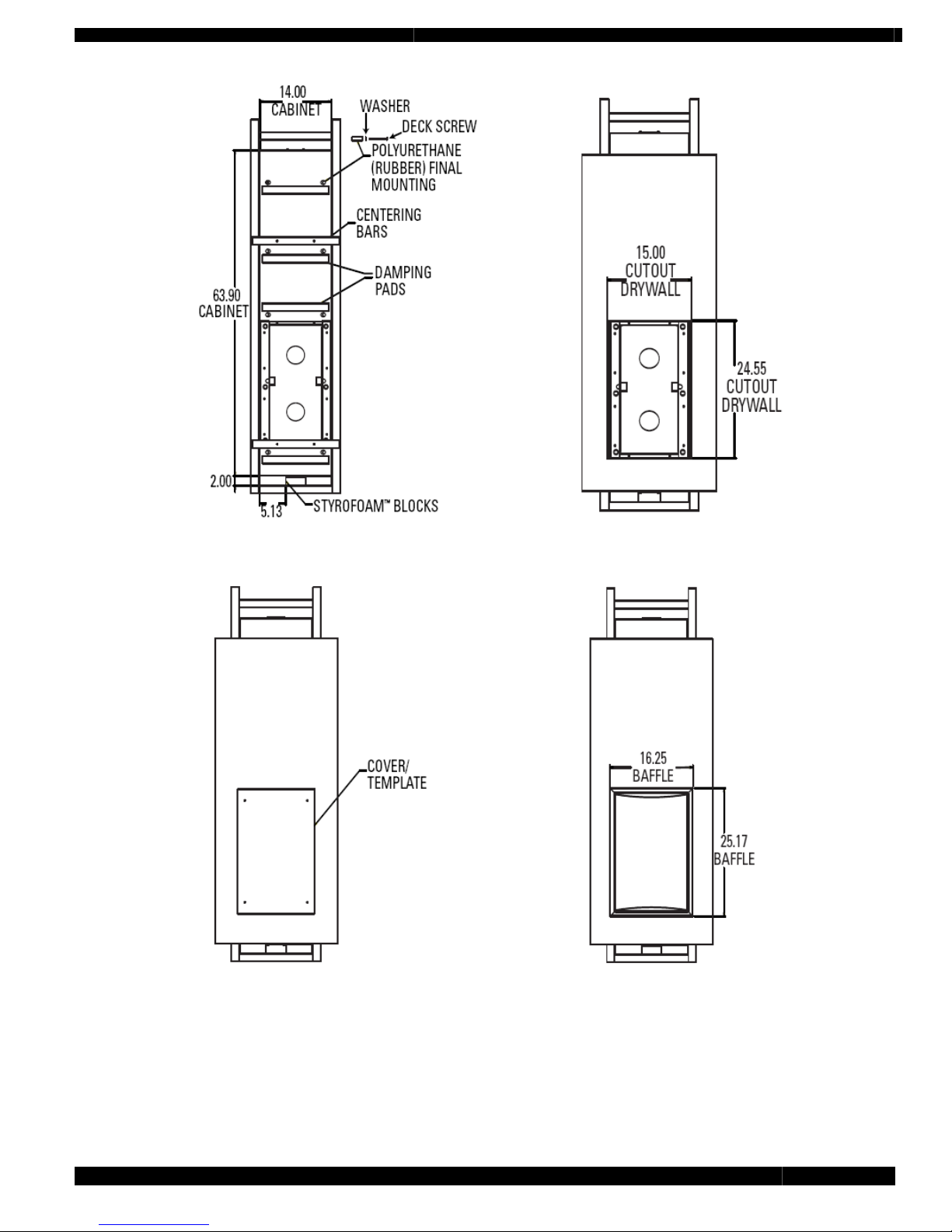

Cutout Dimensions (H x W) 15" x 24.55" (381mm x 624mm)
Mounting Depth 64" x 14" x 5.1" (1626mm x 356mm x 130mm) mounted in S4SBB enclosure, not including Styrofoam™
blocks.
Back Box A complete S4S loudspeaker system includes the S4S in-wall subwoofer and the S4SBB back box, which
must be purchased separately.
Weight per Speaker 24 lb (10.9kg)
Details
A single S4S subwoofer system meets THX® Select requirements for a 3000-cubic-foot room. However, to meet THX Ultra2™ requirements for a
3000-cubic-foot room, two or more S4S subwoofer systems are required, using a total of four woofers. For every additional 3000 cubic feet of room
volume, it is recommended that one additional S4S system be added.
S4S Quick Specs Page 2
