JBL GTO1220D Manuale di istruzioni

SPECIFICATIONS

DIAMETER: 12" (304.8 MM)

SENSITIVITY (2.83 V @ 1 M): 94 dB

POWER HANDLING: 300 WRMS (1,200 WPEAK)

FREQUENCY RESPONSE: 20 ~ 450 HZ

NOMINAL IMPEDANCE:2OHMS (PER COIL)

VOICE-COIL DIAMETER: 3.0" (76.2 MM)

DIMENSIONS:

THIELE-SMALL PARAMETERS*

VOICE COIL DCRESISTANCE:R

EVC (OHMS) . . . . . 1.000

VOICE COIL INDUCTANCE @ 1 KHZ:L

EVC (MH) . . . . . . 0.193

DRIVER RADIATING AREA:S

D(IN2) . . . . . . . . 74.71

SD(CM2) . . . . . . 482.00

MOTOR FORCE FACTOR:BL(TM) . . . . . . . . . 8.68

COMPLIANCE VOLUME:V

AS (FT3) . . . . . . . . 1.96

VAS (LITERS) . . . . . 55.46

SUSPENSION COMPLIANCE:C

MS (µM/N) . . . . 168.09

MOVING MASS, AIR LOAD:M

MS (GRAMS). . . . 212.93

MOVING MASS, DIAPHRAGM:M

MD (GRAMS) . . . 206.84

FREE-AIR RESONANCE:F

S(HZ) . . . . . . . . 26.60

MECHANICAL Q: QMS . . . . . . . . . . . 6.69

ELECTRICAL Q: QES . . . . . . . . . . . . 0.47

TOTAL Q: QTS . . . . . . . . . . . . 0.44

MAGNETIC-GAP HEIGHT:H

AG (IN) . . . . . . . . . 0.47

HAG (MM) . . . . . . . 12.00

VOICE-COIL HEIGHT:H

VC (IN) . . . . . . . . . 1.28

HVC (MM) . . . . . . . 32.50

MAXIMUM EXCURSION:X

MAX (IN) . . . . . . . .0.40

XMAX (MM) . . . . . . 10.25

*VOICE COILS CONNECTED IN PARALLEL

SEALED BOX VOLUME

(INCLUDES DRIVER DISPLACEMENT)

SEALED

FREQUENCY RESPONSE @ 2.83 V

SEALED

TRANSDUCER EXCURSION @ 400 W

JBL Consumer Products • 250 Crossways Park Drive • Woodbury, NY 11797 • VOICE: 516-496-3400 • FAX: 516-496-4868 • www.jbl.com

GTO1220D 12" Woofer – Technical Data

mounting depth

6.81" (174.00 mm)

cutout diameter

10.88" (277.00 mm)

outer diameter

12.31" (313.00 mm)

VBOX = 1.00 ft3 (28.32 liters)

(stuffed with loosely-packed fiberfill)

GTO1220D

(side view)

100

20 Frequency 50 100 Hz 200 500 1k 2k

Out-Of-Car

In-Car

12 dB LP @ 80 Hz

Xd mM

20.0

17.5

15.0

12.5

10.0

7.5

5.0

2.5

0.0

20 Frequency 50 100 Hz 200 500 1k 2k

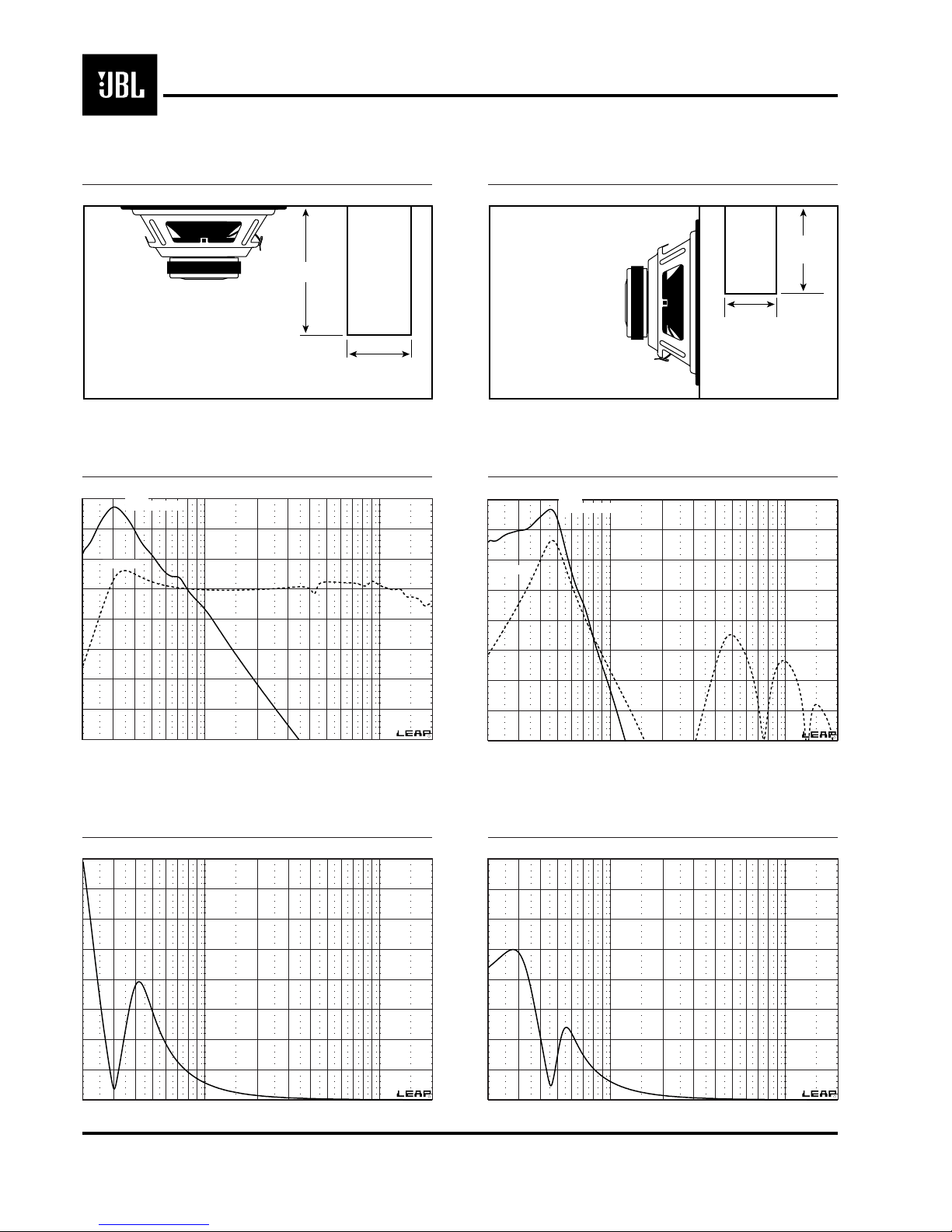

VENTED BOX VOLUME

(INCLUDES DRIVER/PORT DISPLACEMENTS)

VENTED

FREQUENCY RESPONSE @ 2.83 V

VENTED

TRANSDUCER EXCURSION @ 400 W

SEALED BANDPASS BOX VOLUME

(INCLUDES DRIVER/PORT DISPLACEMENTS

)

SEALED BANDPASS

FREQUENCY RESPONSE @ 2.83 V

SEALED BANDPASS

TRANSDUCER EXCURSION @ 300 W

JBL Consumer Products • 250 Crossways Park Drive • Woodbury, NY 11797 • VOICE: 516-496-3400 • FAX: 516-496-4868 • www.jbl.com

GTO1220D 12" Woofer – Technical Data

GTO1220D

(side view)

Port

fo= 30.0 Hz

diameter = 4"

length = 13.31"

VBOX = 2.25 ft3 (63.72 liters)

(no fiberfill)

110

105

100

20 Frequency 50 100 Hz 200 500 1k 2k

Out-Of-Car

In-Car

12 dB LP @ 80 Hz

Xd mM

20.0

17.5

15.0

12.5

10.0

7.5

5.0

2.5

0.0

20 Frequency 50 100 Hz 200 500 1k 2k

VREAR =

1.50 ft3 (42.48 liters)

(stuffed with loosely-packed fiberfill)

GTO1220D

(side view)

VFRONT =

2.00 ft3

(56.64 liters)

(stuffed with loosely-packed

fiberfill)

diam. = 6"

Port

fo= 45.0 Hz

length =

10.57

110

105

100

20 Frequency 50 100 Hz 200 500 1k 2k

Out-Of-Car

In-Car

12 dB LP @ 80 Hz

Xd mM

20.0

17.5

15.0

12.5

10.0

7.5

5.0

2.5

0.0

20 Frequency 50 100 Hz 200 500 1k 2k
