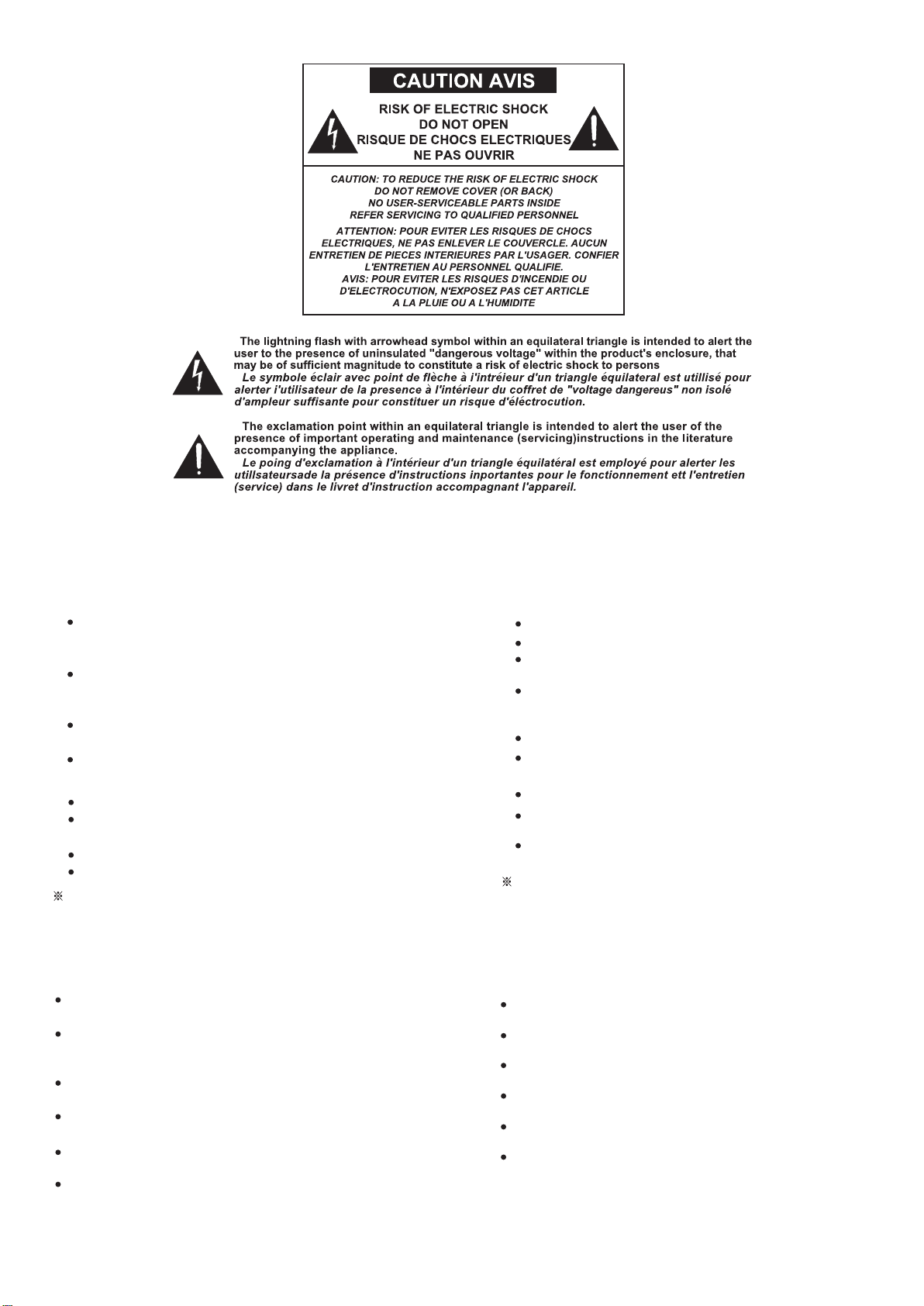

SAFETY INSTRUCTIONS
FEATURES
Read all safety instruction before operating the JDR-104.
1. Install equipment as follow conditions.
One JDR-104+4pcs of JRA-051A (basic)
(Two JDR-104+8pcs JRA-051A (expendable)
The apparatus shall not be exposed to dripping or splashing and
no object filled with liquids, such as vases, shall be place on the
apparatus.
Install at the place, not bending curved.
Do not install this apparatus in a confined space such as a book
case or similar unit.
Locate this apparatus away from heat source, such as radiators
or other device that produce heat.
Do not drop objects or spill liquids into the inside of the apparatus.
2. Keep in mind the following when connecting the apparatus.
Connect the apparatus after reading of O/P manuals.
Connect each connection of amplifier perfectly, if not, it maybe
Caused hum, damage, electric shock in case of mis-connecting.
To prevent electric shock, do not open top cover.
Connect the power cord with safety after check of AC power.
This apparatus should be serviced by qualified service person.
안 전 사 항
특징
제품을 운용하기전에 모든 안전사항을 읽어 보십시오.
1. 이런 장소에 설치하여 주십시오.
리모트 앰프(JRA-051A)를 4대 연결하여 운용가능.
(JDR-104 2대 사용시 리모트 앰프(JRA-051A) 8대까지 사용가능)
진동이나 경사가 심하지 않고 바닥이 평평한 장소.
통풍이 잘되고 물기나 습기가 많지 않은 장소.
직사광선을 받지 않는 장소 또는 난방기구(발열체)에서 멀리 떨어진
장소.
인화성 물질(화학약품)이 없는 장소.
2. 설치시 이런점을 주의하십시오.
사용설명서 시스템 연결방법을 완전히 읽으신 후에 연결해 주십시오.
각종 연결선을 완전하게 연결해 주십시오.
(주전원 코드를 뽑은 상태에서 연결.)
불완전한 연결은 잡음, 제품의 손상 또는 안전사고의 원인이 됩니다.
전기적 충격 또는 감전사고의 위험이 있으므로 뚜껑을 열지 말아주십
시오.
주 교류 전원 플러그를 연결하기 전에 사용전압을 확인하신 후 안전
하게 연결하십시오.
제품을 수리시는 규정된 부품과 자격이 있는 사람이 수리를 하여야 함.
REALT GROUP(JRG-220A)과 연결하여 렉 시스템의 리모트 방송시, 리모
트 앰프의 DATA 및 AUDIO 신호를 송신하는 기능.
EMERGENCY, 리모트 1, 2, 3, 4순위로 우선권이 부여되도록 설계되어 있
으며 동작되는 상태 표시는 전면의 BUSY LED지시기로 확인가능.
리모트 앰프를 연결하면 전면의 POWER LED가 켜짐.
(고장 및 POWER OFF상태 확인가능)
TX function of audio signal and selected speaker line data of relay
group from data and audio signal of remote amplifier when remote
announcement.
DETAILS
Permissible 1~8 pcs of JRA-051A with one JDR-104 to be easy
configuration for mormal announcement or emergency announcements.
용도
본 기기는 비상방송 및 안내방송 시스템을 보다 편리하게 사용하고자 할
때 리모트 앰프(JRA-051A)를 8대까지 확장 연결하여, 메인시스템의 위
치와떨어진 곳에서 방송할 때 용이하게 사용하실 수 있습니다.
Priority, emergency, remote, 1, 2, 3, 4, operating details can be
checked on the busy LED indicator.
Permissible communication distance at 1Km(max) with data circuit
of RS-485 and remote amplifier.
Superior trans method audio circuit for long distance TX.
Power LED indicator on the front will be flashed when connecting
remote amplifier. (Possible to confirm "fault" or "power off")
오디오 회로는 장거리 전송에 성능이 우수한 트랜스방식 채택.
리모트 앰프와 RS-485방식의 DATA 회로를 채택하여 통신거리는 1Km 까
지 가능.
