Operator Instructions
Powerpette
Powerpette Plus
Powerpette Turbo
,
&
1
OPERATOR
Instructions
Introduction
The Jencons POWERPETTE, POWERPETTE Plus and POWERPETTE have
been carefully designed and manufactured as lightweight, cordless pipetting aids for use with all
plastic or glass pipettes from 1– 100ml.
These new POWERPE T TES are constructed in recyclable materials and operate on two
rechargeable, long life, environmentally friendly, 1.2V nickel metal hydride batteries.
POWERPE T TES have uniquely formed finger triggers to minimize any high pressure points.
These triggers also control intake and dispense speeds.
A battery warning light (4) is triggered whenever the charge in the batteries is low and they
should then be recharged. Pipetting with POWERPE T TES can also take place while the units
are connected to their chargers (5).
POWERPE T TES have a conveniently located slide switch (3) which allows the user to select
between three modes of operation:
Slide switch position ‘High’ (top) Suction and dispense at full speed (Blow-out)
Slide switch position ‘Low’ (middle) Suction and dispense at reduced speed (Blow-out)
Slide switch position ‘G’ (bottom) Suction at reduced speed, dispense by gravity (To Deliver)
Technical Data
Batteries 2 x 1.2V nickel metal hydride
Battery service Life 500 – 1000 cycles from empty
Charger 75m A /h for 14 hours plug-in; UK, European, USA, Indian,
Japanese or Australian versions
Installation (over voltage) category II
Double insulation indicated on charger by symbol
Overall weight 180 g without stand
Filter (8) Hydrophobic 25 mm dia 0.45 µm (fitted) plus two
additional spare filters
1x 0.45 µm
1x 0.20 µm
Manifold material ABS
Case material ASA
Nosecone material Polypropylene (10)
Pipette holder Silicone (9)
Pipette types Plastic or glass 1 – 100 ml
2
OPERATOR
Instructions

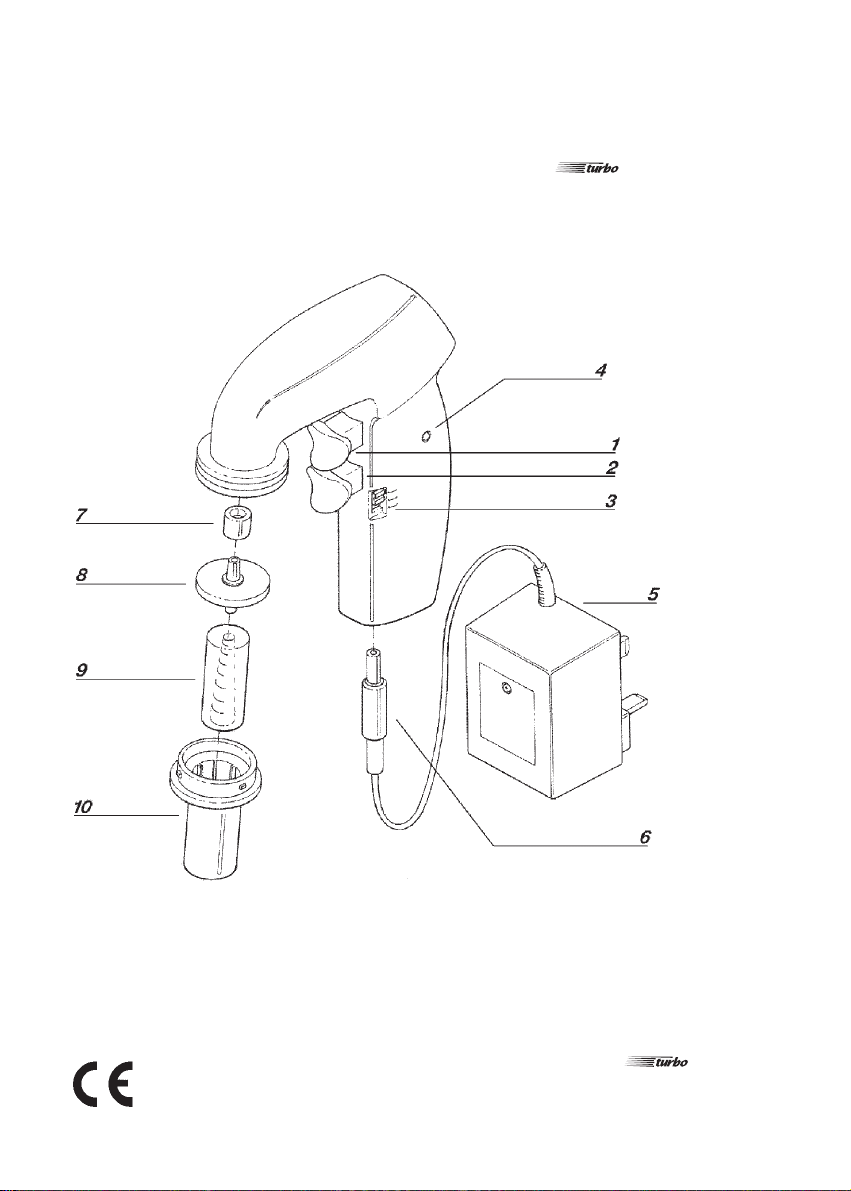

Aspirate trigger
Dispense trigger
Charging jack
Silicone
pipette holder
Polypropylene
nosecone
Low battery
indicator
Mode selection slide switch

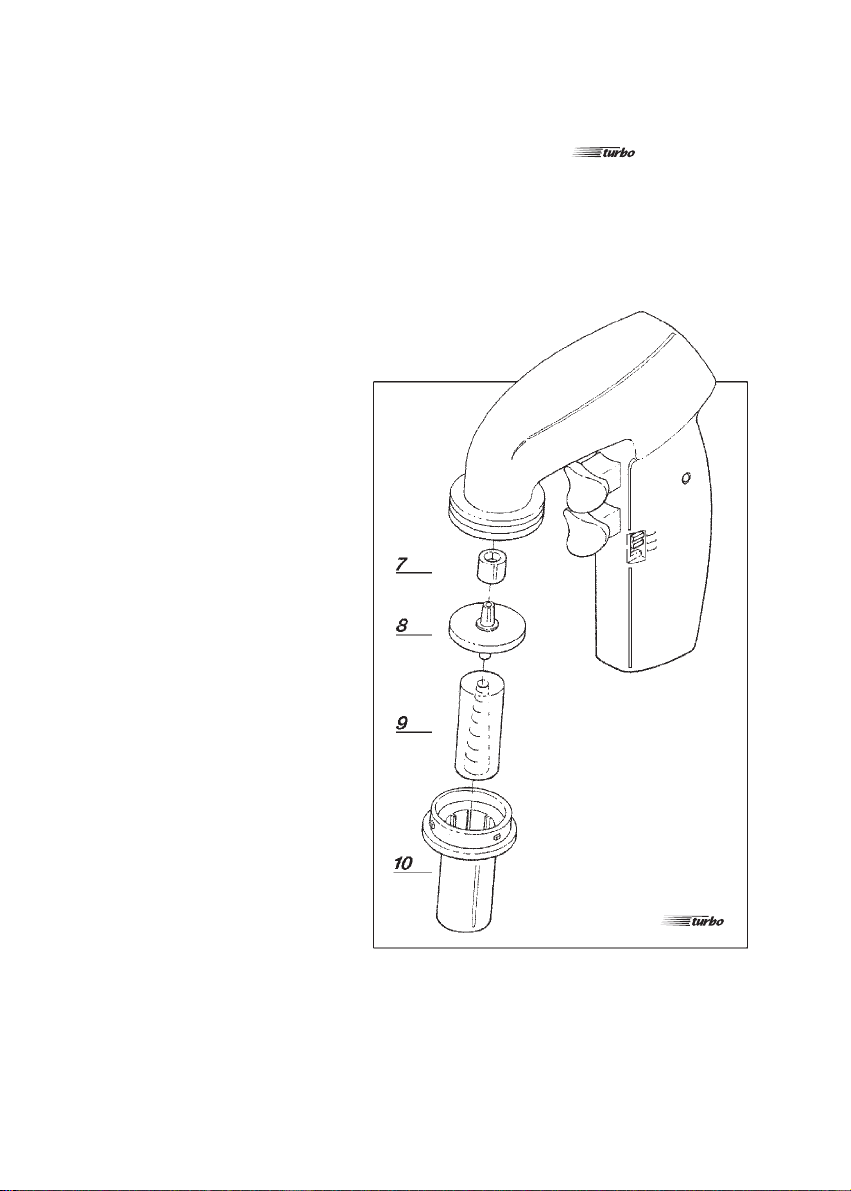

Filter adaptor
Filter
Charger
POWERPETTE, POWERPETTE Plus and POWERPETTE
are CE marked to Low Voltage Directive 73/23/EEC and
Electromagnetic Compatibility Directive 89/336/EEC
All reference numbers below are applicable to both
POWERPETTE, POWERPETTE Plus and POWERPETTE
3
OPERATOR
Instructions
The POWERPETTE / POWERPETTE Plus / POWERPETTE kit comprises
(a) POWERPETTE pipette controller
(b) Charger; either
220V-240V 50/60Hz 3-pin (UK), 220V-240V 50/60Hz 2-pin (Europe),
100V-120V 50/60Hz 2-pin (USA), 100V-120V 50/60Hz 2-pin (Japan),
220V-240V 50/60Hz 3-pin (India) or 220V-240V 50/60Hz 2-pin (Australia)
(c) Two spare hydrophobic filters, 1x 0.45 µm and 1x 0.20 µm
(d) Bench stand (POWERPETTE also has a wall bracket)
(e) Instruction manual
Safety Instructions
The POWERPE TTE, POWERPETTE Plus and POWERPETTE have been
designed with safety in mind. They are lightweight and balance safely in the hand. The triggers
have been carefully designed to eliminate pressure points and control of intake and delivery is
therefore made easier.
It is recommended when using deleterious liquids that the user wears protective clothing
including goggles and gloves. If in doubt ask your safety officer. Please consult and establish
appropriate health and safety practices applicable to the liquid being dispensed within your
working environment.
WARNING!
• Only use this instrument within the recommended limits of its chemical resistance.
• Never use with fuming liquids which are incompatible with polypropylene or silicone.
• Never use with highly flammable liquids.
• Observe the reagent manufacturer’s safety information.
• Never use the instrument in an atmosphere with danger of explosion.
• When not in use store on bench stand or wall bracket.
• Never use force when in use.
• Should the instrument fail to work to specification stop pipetting and check instructions
headed Trouble Shooting (page 7).
• Only recharge with manufacturer’s original charger.
• All repairs must be carried out by an authorized dealer.
• Only use the manufacturer’s accessories and spare parts.
• Charger must only be used indoors and protect against moisture.
4
OPERATOR
Instructions
Recharging the POWERPETTE / POWERPETTE Plus / POWERPETTE
Before starting to operate, carefully check mains voltage and recharge batteries.
To charge the POWERPETTE / POWERPETTE Plus / POWERPETTE
1 Recharging temperature +10°C to +35°C.
2 Plug the charger jack (6) into the base of the POWERPE TTE.
3 Plug the charger (5) into a suitable wall socket. The red indicator on the charger will light up.
4 Place POWERPETTE onto bench stand.
5 Allow unit to charge for 14 hours from empty to fully charged.
6 Once the POWERPETTE is fully charged, the charger automatically switches to a trickle
charge operation and the red indicator will turn off. If the charge to the POWERPETTE is
interrupted and then re - started, the charger starts its full 14 hour charging cycle again.
This will not damage the battery.
Only use the charger indoors and protect against moisture.
Fitting the POWERPETTE wall bracket
The POWERPETTE wall bracket can be attached by removing the adhesive protective film
from the double sided tape and pressing firmly to a grease free smooth surface. Alternatively,
it can be attached using the two stainless steel screws provided. Care should be taken in
positioning the screws.
Fitting the POWERPETTE Plus / POWERPETTE
into the bench stand

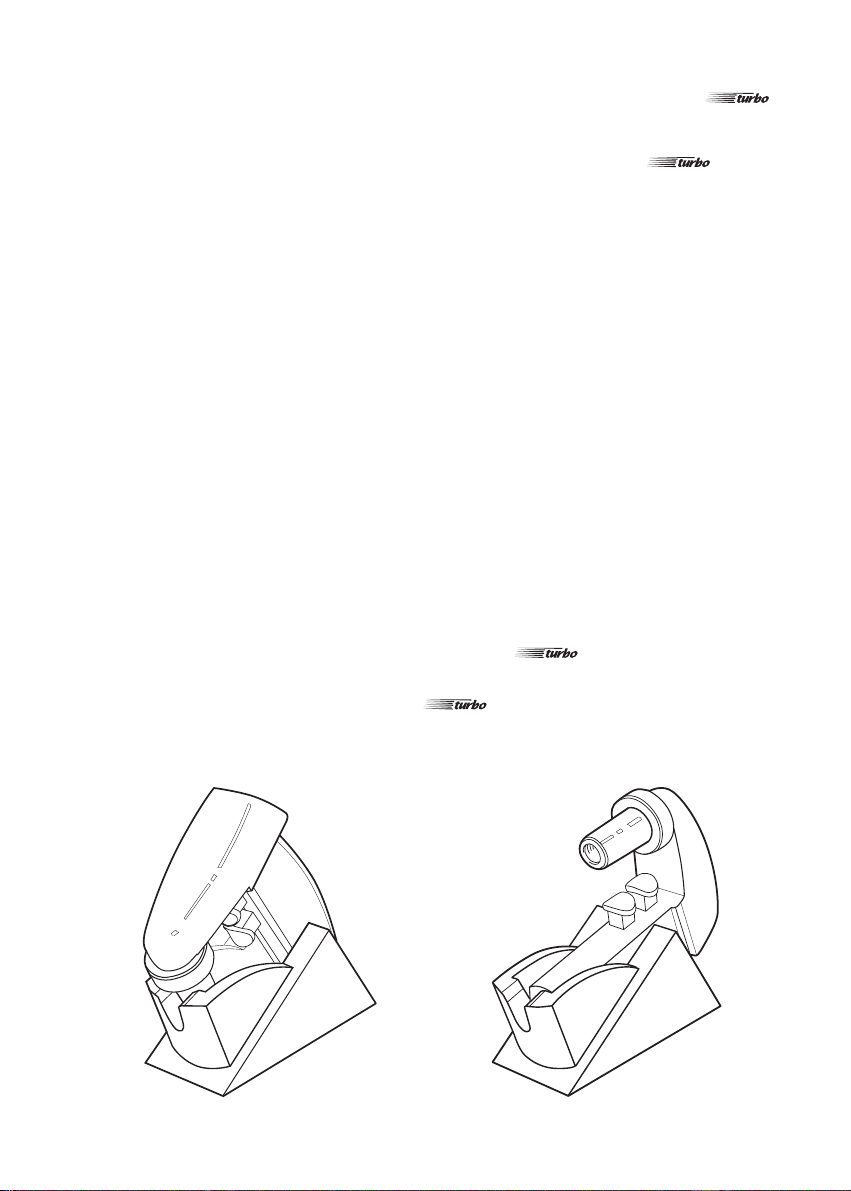

The POWERPETTE Plus / POWERPETTE can be fitted in the bench stand in one
of the two positions shown. It can be charged in either position.
5
OPERATOR
Instructions
Cleaning
Before cleaning disconnect from the mains charger. Do not clean the mains charger.
The POWERPETTE / POWERPETTE Plus / POWERPETTE can be cleaned
with most common laboratory disinfectants. The polypropylene nosecone (10) and silicone
pipette holder (9) can be autoclaved.
To remove the nosecone and pipette holder turn the nosecone anti-clockwise. When the nosecone
is removed the silicone pipette holder can also be disengaged from the filter by gently turning.
The hydrophobic filter (8) will require occasional replacement when wetted by the liquid and
whenever suction capacity is slowing.
Replacing the Filter
The hydrophobic filter (8) will require
occasional replacement, particularly
when suction capacity is slowing.
Note
Only use genuine manufacturer’s
recommended filters and accessories.
These parts are common to
both the POWERPE T TE,
POWERPETTE Plus and
POWERPETTE
6
OPERATOR
Instructions
Pipetting
To aspirate
1 Carefully hold the pipette and insert it securely into the polypropylene nose cone and silicone holder.
2 Select mode of operation – High, Low, or ‘G’.
3 Depress upper trigger (1) (The harder the pipetting triggers are pressed the faster the
aspiration.)
To dispense
1 In BLOW-OUT mode, (mode switch on high or low) depress the lower trigger (2) (The
harder the pipetting triggers are pressed, the faster the dispense).
2 If ‘G’ gravity mode is chosen, the upper aspirate trigger automatically operates at low speed
while the lower trigger opens the pipette to atmosphere, allowing liquid to run out.
WARNING!
Please ensure that no liquid enters the instrument. The POWERPETTE /
POWERPETTE Plus / POWERPETTE should never be used without the filter (8).
The filter also prevents liquid from entering the instrument. Where liquid has entered please
clean and replace filter.
Trouble Shooting
The POWERPETTE / POWERPETTE Plus / POWERPETTE are virtually
service-free. If the recommendations above do not resolve the problem, please contact your
authorized dealer.
Note
When the meniscus level has been reached liquid should not drip out of the pipette. If the
pipette does drip, check that the adaptor assembly and filter are correctly assembled and the
pipette is properly located into the silicone pipette holder.
TROUBLE POSSIBLE CAUSE REMEDY
Filter blocked, dirty or damaged Clean or replace
Suction capacity slow membrane filter
Batteries low Recharge
Pipette not securely positioned Re-attach
Pipette drips in silicone pipette holder
Pipette holder or pipette damaged Replace
7
OPERATOR
Instructions
Return for Repair
In the unlikely event of repair, or where the damage to the unit necessitates return to your
distributor or the manufacturer, please decontaminate the unit and complete the required
decontamination certificate where appropriate. Please also give details of the fault.
Voltages
UK 220V-240V 50/60Hz 3-pin
Europe 220V-240V 50/60Hz 2-pin
USA 100V-120V 50/60Hz 2-pin
Japan 100V-120V 50/60Hz 2-pin
India 220V-240V 50/60Hz 3-pin
Australia 220V-240V 50/60Hz 2-pin
Ordering Data
POWERPETTE complete with charger, bench stand and wall bracket with two spare
membrane filters.
UK Europe USA Japan India Aust./NZ
Cat. No. Cat. No. Cat. No. Cat. No. Cat. No. Cat. No.
Grey 266-007 266-008 266-009 266-016 266-106 266-118
Yellow 266-069 266-070 266-071 266-072 266-107 266-119
Pink 266-073 266-074 266-075 266-076 266-108 266-120
Mauve 266-077 266-078 266-079 266-080 266-109 266-121
Blue/green 266-081 266-082 266-083 266-084 266-110 266-122
Mint green 266-085 266-086 266-087 266-088 266-111 266-123
Box of 5 spare 0.45 µm filters ………………266-003
Box of 5 spare 0.20 µm filters ………………266-089
0.45 µm sterile filter (1 off) …………………266-006
Silicone Pipette holder ………………………266-004
Polypropylene nosecone ……………………Please specify colour at time of order
POWERPETTE Plus complete with charger, bench stand and two spare membrane filters.
UK Europe USA Japan India Aust./NZ
Cat. No. Cat. No. Cat. No. Cat. No. Cat. No. Cat. No.
Grey 266-000 266-001 266-002 266-015 266-100 266-112
Yellow 266-049 266-050 266-051 266-052 266-101 266-113
Pink 266-053 266-054 266-055 266-056 266-102 266-114
Mauve 266-057 266-058 266-059 266-060 266-103 266-115
Blue/green 266-061 266-062 266-063 266-064 266-104 266-116
Mint green 266-065 266-066 266-068 266-068 266-105 266-117
Box of 5 spare 0.45µm filters…………………266-003
Box of 5 spare 0.20µm filters…………………266-089
0.45µm sterile filter (1 off) …………………266-006
Silicone Pipette holder ………………………266-004
Polypropylene nosecone ……………………Please specify colour at time of order
POWERPETTE complete with charger, bench stand and two spare membrane filters.
UK Europe USA Japan India Aust./NZ
Cat. No. Cat. No. Cat. No. Cat. No. Cat. No. Cat. No.
Powerpette
Turbo 266-130 266-131 266-132 266-133 266-154 266-160
Box of 5 spare 0.45µm filters…………………266-003
Box of 5 spare 0.20µm filters…………………266-089
0.45µm sterile filter (1 off) …………………266-006
Silicone Pipette holder ………………………266-004
Polypropylene nosecone ……………………Please specify colour at time of order
