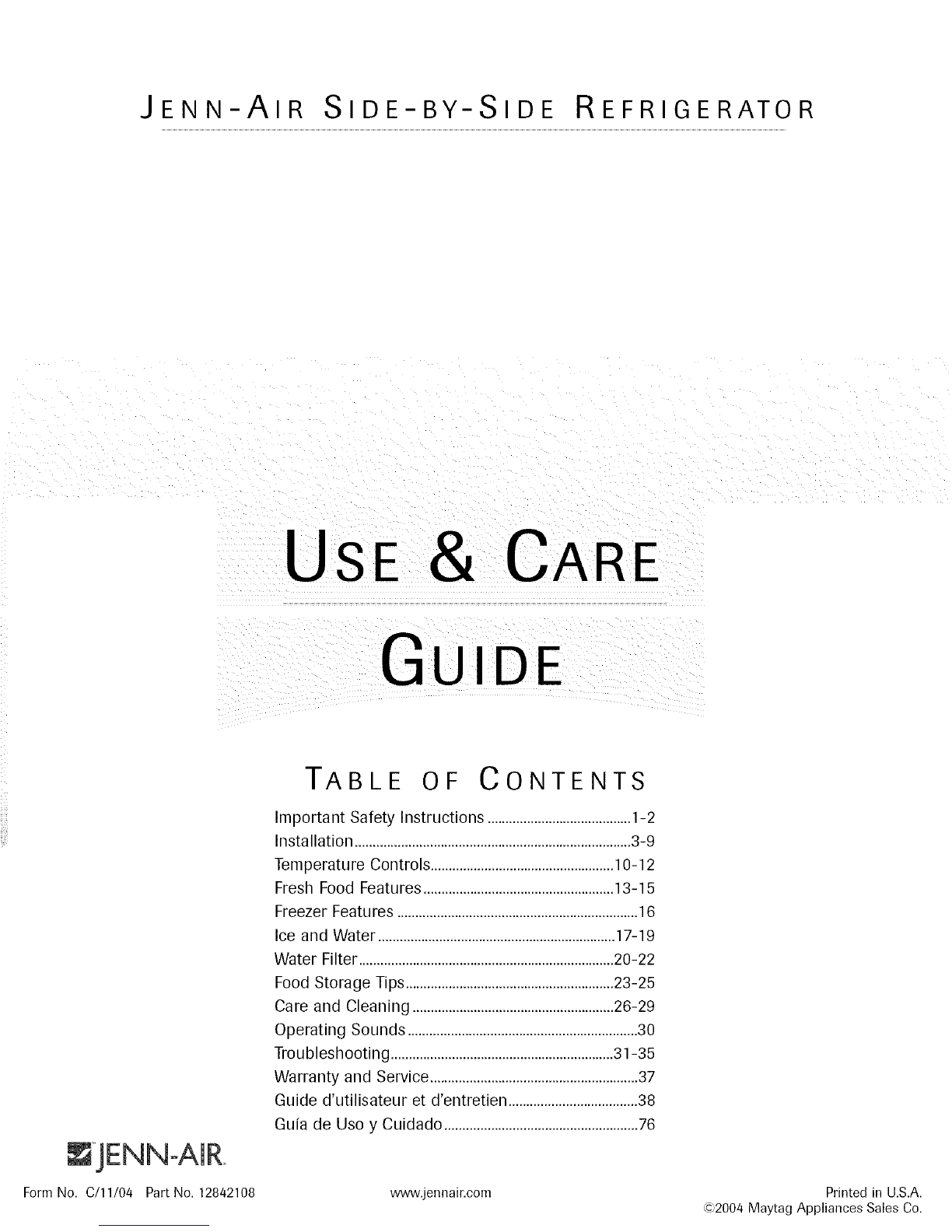

JENN-AIR SIDE-BY-SIDE REFRIGERATOR

TABLE OF CONTENTS

Important Safety Instructions ........................................1-2

Installation .............................................................................3-9

Temperature Controls ...................................................10-12

Fresh Food Features .....................................................13-15

Freezer Features ...................................................................16

Ice and Water ..................................................................17-19

Water Filter .......................................................................20-22

Food Storage Tips ..........................................................23-25

Care and Cleaning ........................................................26-29

Operating Sounds ................................................................30

Troubleshooting ..............................................................31-35

Warranty and Service ..........................................................37

Guide d'utilisateur et d'entretien ....................................38

Guia de Uso y Cuidado ......................................................76

Form No. C/11/04 Part No. 12842108 www.jennair.com Printed in U.S.A.

_,2004 Maytag Appliances Sales Co.

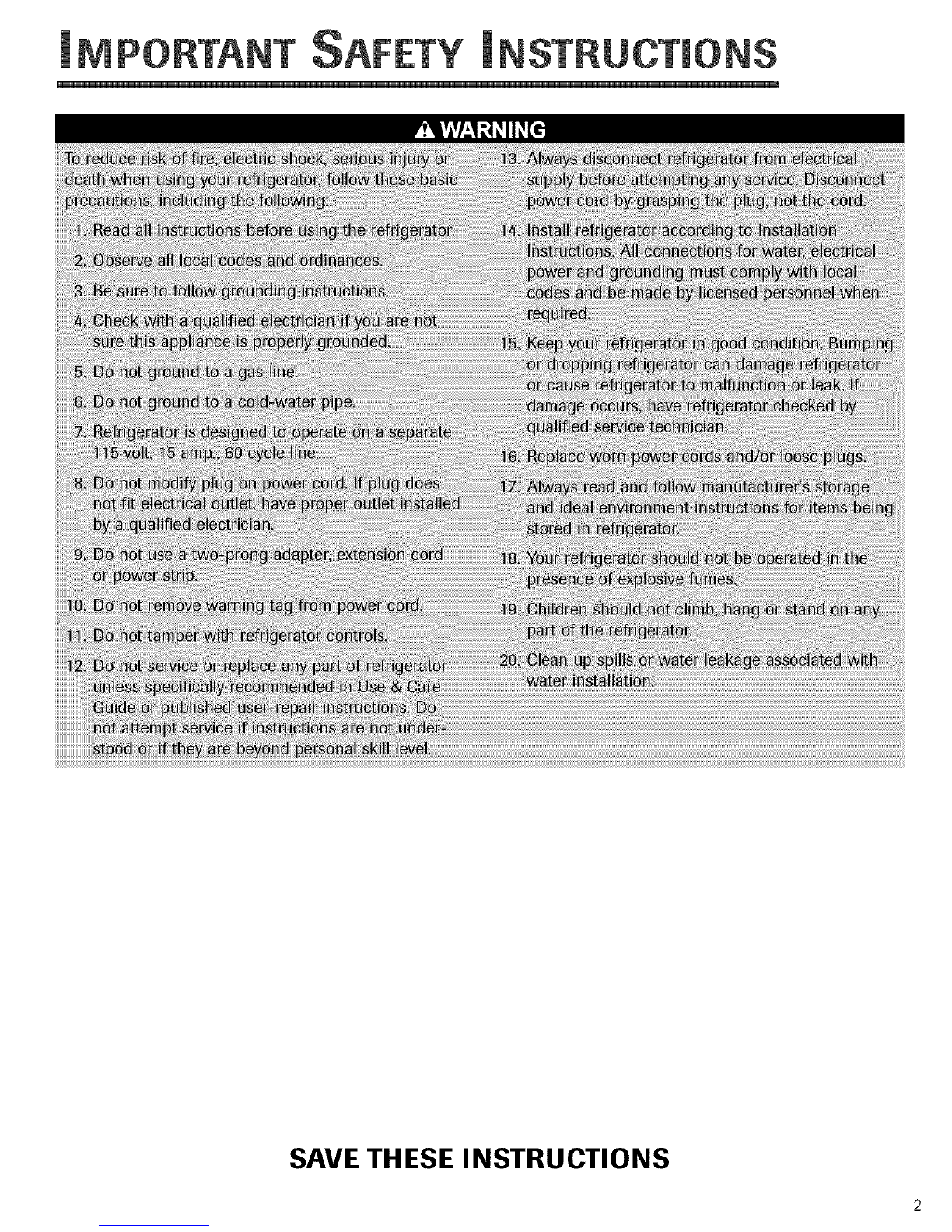

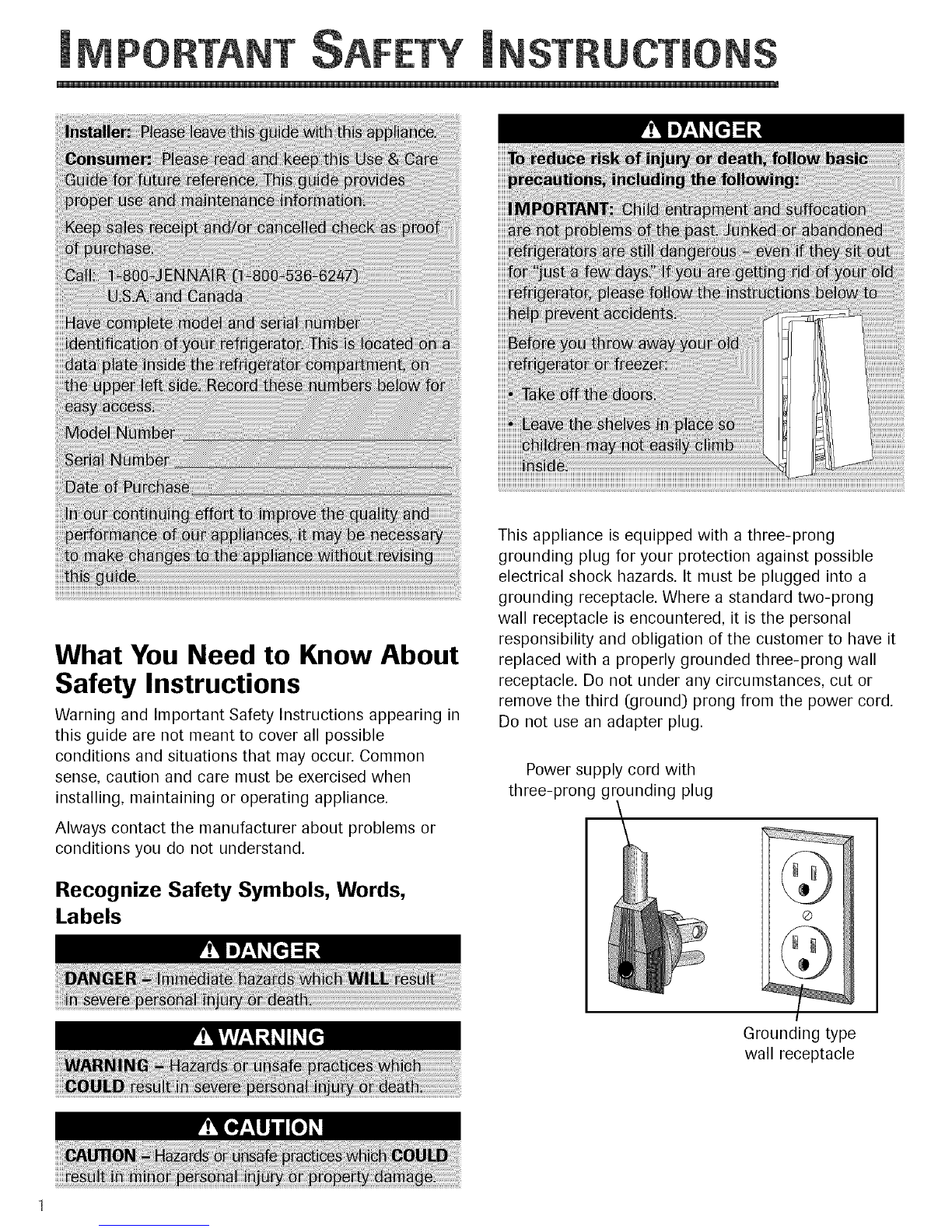

What You Need to Know About

Safety Instructions

Warning and Important Safety Instructions appearing in

this guide are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining or operating appliance.

Always contact the manufacturer about problems or

conditions you do not understand.

Recognize Safety Symbols, Words,

Labels

This appliance is equipped with a three-prong

grounding plug for your protection against possible

electrical shock hazards. It must be plugged into a

grounding receptacle. Where a standard two-prong

wall receptacle is encountered, it is the personal

responsibility and obligation of the customer to have it

replaced with a properly grounded three-prong wall

receptacle. Do not under any circumstances, cut or

remove the third (ground) prong from the power cord.

Do not use an adapter plug.

Power supply cord with

three-prong grounding plug

Grounding type

wall receptacle

SAVE THESE INSTRUCTIONS

Do not install refrigerator near oven, radiator or other

heat source. Wfnot possible, shield refrigerator with

cabinet material.

Do not install where temperature falls below 55° F

(13° C) or rises above 110° F (43° C). Malfunction

may occur at this temperature.

Refrigerator is designed for indoor household

application onlyo

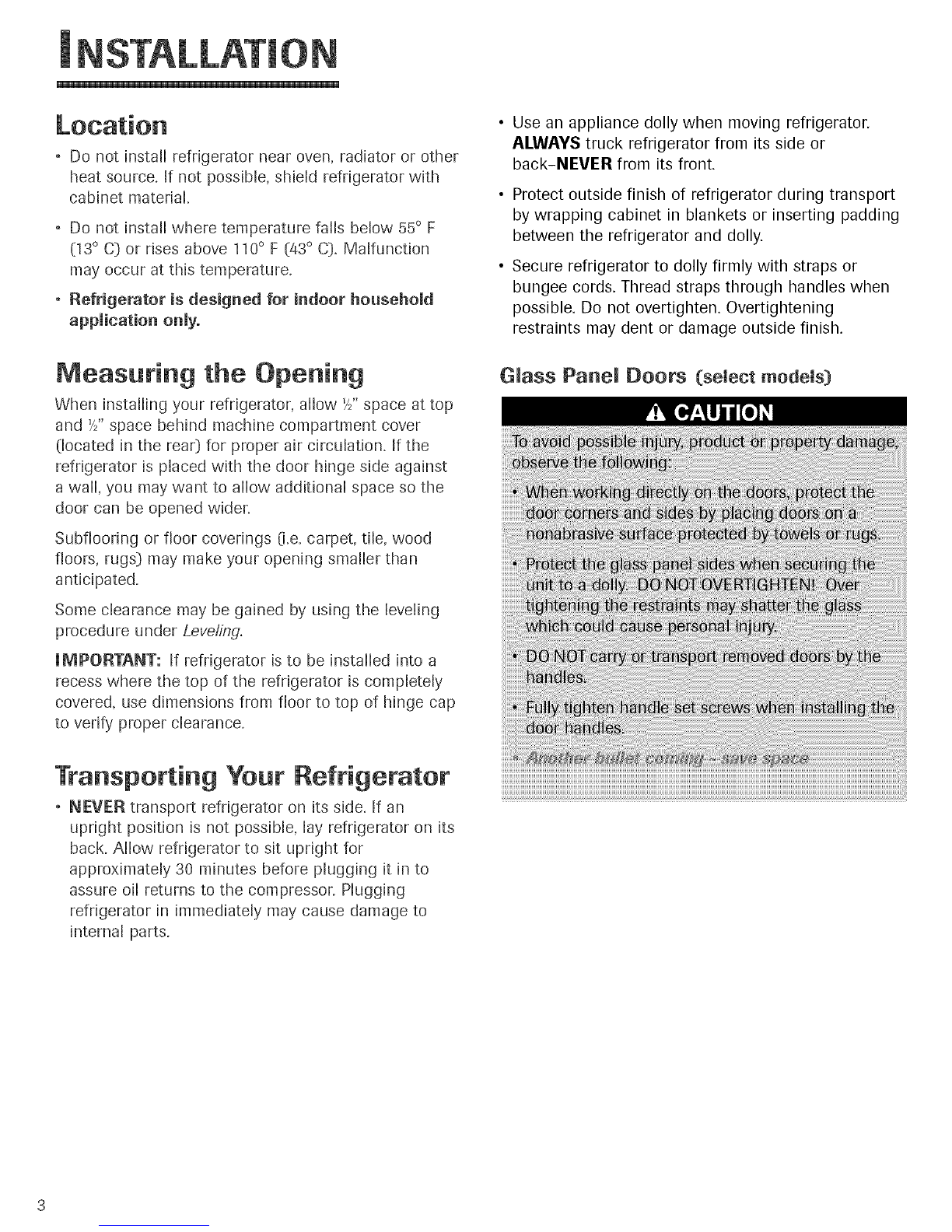

Measuring the Opening

When installing your refrigerator, allow '/_"space at top

and '/_"space behind machine compartment cover

(located in the rea0 for proper air circulation. If the

refrigerator is placed with the door hinge side against

a wall, you may want to allow additional space so the

door can be opened wider.

Subfiooring or floor coverings (i.e. carpet, tile, wood

floors, rugs) may make your opening smaller than

anticipated.

Some clearance may be gained by using the leveling

procedure under Leveling.

UMPORTANT: If refrigerator is to be installed into a

recess where the top of the refrigerator is completely

covered, use dimensions from floor to top of hinge cap

to verify proper clearance.

• Use an appliance dolly when moving refrigerator.

ALWAYS truck refrigerator from its side or

back-NEVER from its front.

• Protect outside finish of refrigerator during transport

by wrapping cabinet in blankets or inserting padding

between the refrigerator and dolly.

• Secure refrigerator to dolly firmly with straps or

bungee cords. Thread straps through handles when

possible. Do not overtighten. Overtightening

restraints may dent or damage outside finish.

G ass PaneH Doors (select models)

Transporting Your Refrigerator

NEVER transport refrigerator on its side. If an

upright position is not possible, lay refrigerator on its

back. Allow refrigerator to sit upright for

approximately 30 minutes before plugging it in to

assure oil returns to the compressor. Plugging

refrigerator in immediately may cause damage to

internal parts.

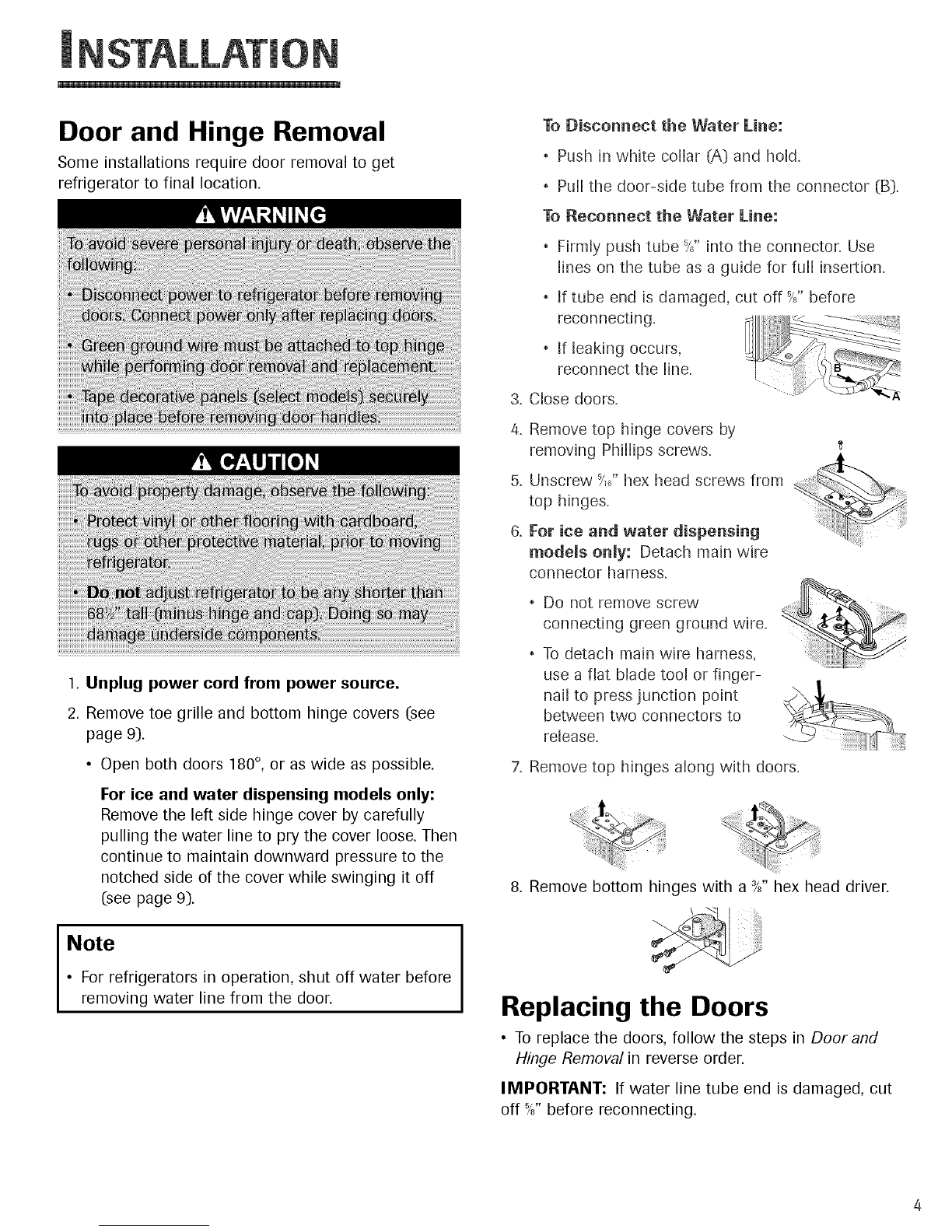

Door and Hinge Removal

Some installations require door removal to get

refrigerator to final location.

1. Unplug power cord from power source.

2. Remove toe grille and bottom hinge covers (see

page 9).

• Open both doors 180°, or as wide as possible.

For ice and water dispensing models only:

Remove the left side hinge cover by carefully

pulling the water line to pry the cover loose. Then

continue to maintain downward pressure to the

notched side of the cover while swinging it off

(see page 9).

Note

• For refrigerators in operation, shut off water before

removing water line from the door.

To Disconnect the Water Line:

Push in white collar (A_)and hold.

Pull the door-side tube from the connector (B_).

To Reconnect the Water Line:

Firmly push tube _" into the connector. Use

lines on the tube as a guide for full insertion.

If tube end is damaged, cut off %" before

reco nnecti ng.

If leaking occurs,

reconnect the line.

3. Close doors.

Remove top hinge covers by

removing Phillips screws.

Unscrew Y,_"hex head screws from

top hinges.

For ice and water dispensing .............

modems onmy: Detach main wire

connector harness.

Do not remove screw

connecting green ground wire.

To detach main wire harness,

use a flat blade tool or finger-

nail to press junction point

between two connectors to

release.

7. Remove top hinges along with doors.

8. Remove bottom hinges with a _8"hex head driver.

Replacing the Doors

• To replace the doors, follow the steps in Door and

Hinge Removal in reverse order.

IMPORTANT: If water line tube end is damaged, cut

off %" before reconnecting.

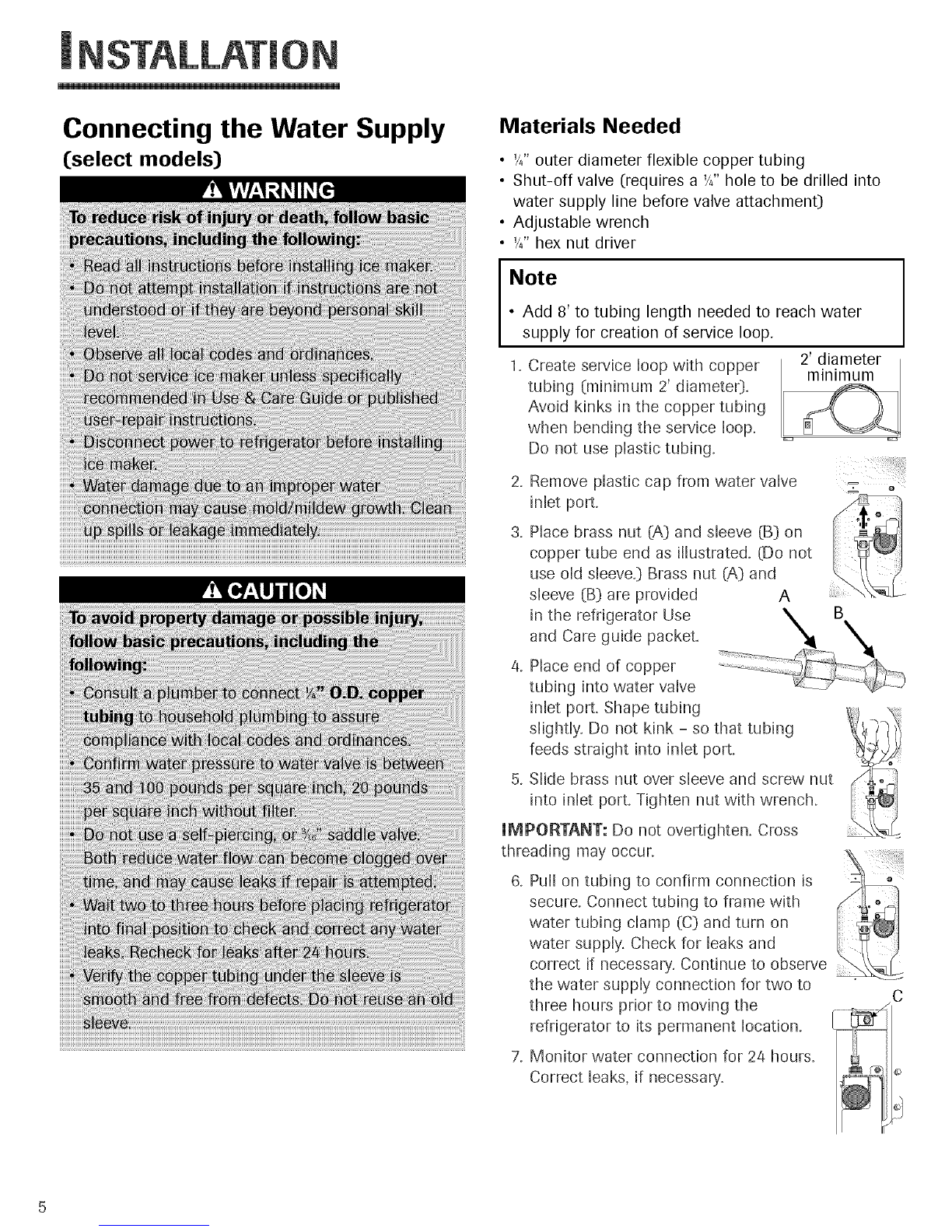

Connecting the Water Supply

Cselect models)

Materials Needed

• '/4"outer diameter flexible copper tubing

• Shut-off valve (requires a '/4"hole to be drilled into

water supply line before valve attachment)

• Adjustable wrench

• '/4"hex nut driver

Note

• Add 8' to tubing length needed to reach water

supply for creation of service loop.

Create service loop with copper

tubing (minimum 2' diamete0.

Avoid kinks in the copper tubing

when bending the service loop.

Do not use plastic tubing.

Remove plastic cap from water valve .= o

inlet port.

Place brass nut (A} and sleeve (B} on

copper tube end as illustrated. (Do not

use old sleeve.} Brass nut (A} and

sleeve (B) are provided A

in the refrigerator Use

and Care guide packet,

Place end of copper

tubing into water valve

inlet port. Shape tubing

slightly. Do not kink - so that tubing

feeds straight into inlet port.

5. Slide brass nut over sleeve and screw nut

into inlet port. Tighten nut with wrench.

[MPORTANT: Do not overtighten. Cross

threading may occur.

6_ Pu[[ on tubing to confirm connection is

secure_ Connect tubing to frame with

water tubing clamp (C} and turn on

water supply. Check for leaks and

correct if necessary, Continue to observe

the water supply connection for two to

three hours prior to moving the

refrigerator to its permanent location.

7_ Monitor water connection for 24 hours.

Correct leaks, if necessary.

ili_i:

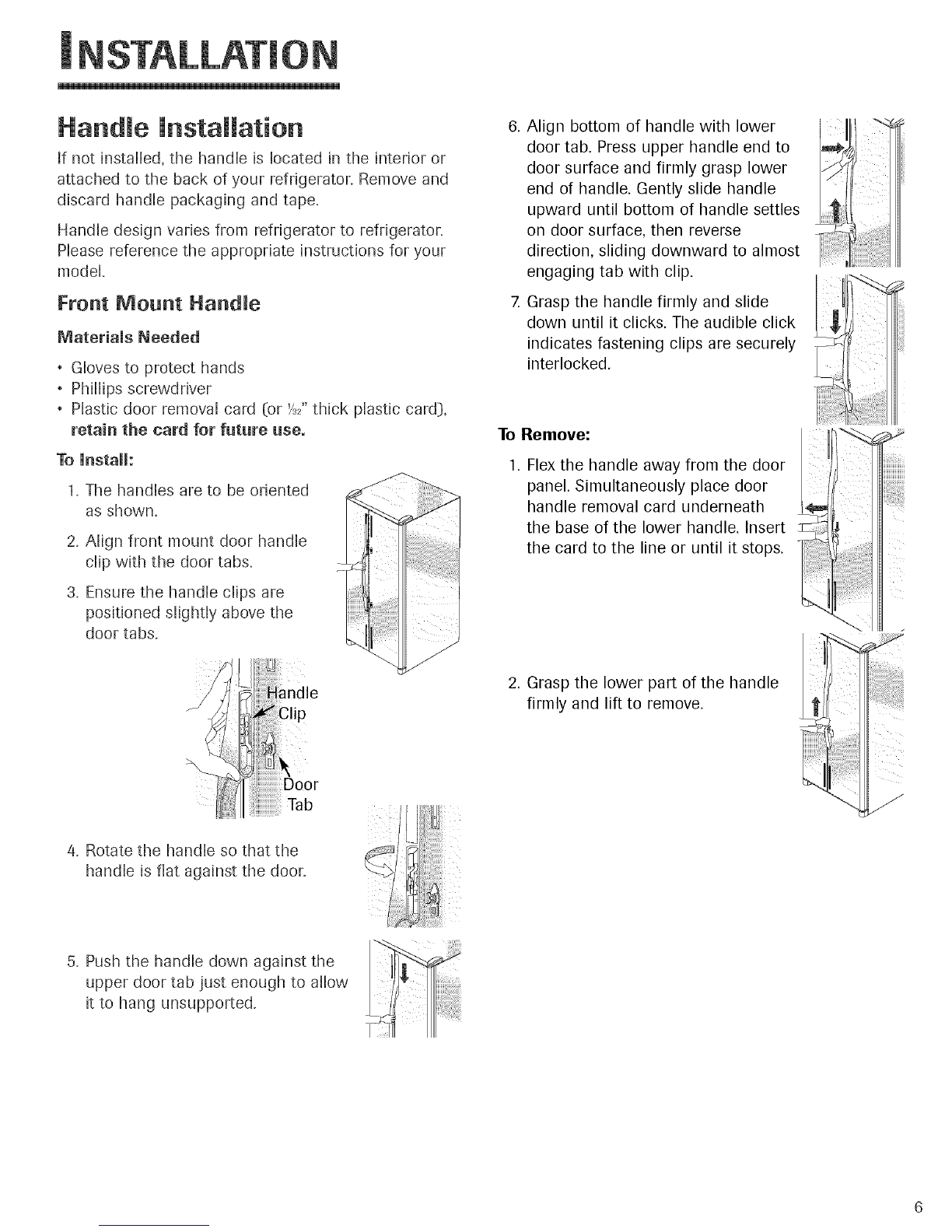

Handme installation

If not installed, the handle is located in the interior or

attached to the back of your refrigerator. Remove and

discard handle packaging and tape.

Handle design varies from refrigerator to refrigerator.

Please reference the appropriate instructions for your

model.

Front Mount Handle

Materiams Needed

Gloves to protect hands

Phillips screwdriver

Plastic door removal card (or '/X' thick plastic card}},

retain the card for future use.

To UnstaH:

1. The handles are to be oriented

as shown.

2,Align front mount door handle

clip with the door tabs.

3. Ensure the handle clips are

positioned slightly above the

door tabs.

Door

Tab

/4. Rotate the handle so that the

handle is flat against the door.

Align bottom of handle with lower

door tab. Press upper handle end to

door surface and firmly grasp lower

end of handle. Gently slide handle

upward until bottom of handle settles

on door surface, then reverse

direction, sliding downward to almost

engaging tab with clip.

Grasp the handle firmly and slide

down until it clicks. The audible click

indicates fastening clips are securely

interlocked.

To Remove:

1. Flex the handle away from the door

panel. Simultaneously place door

handle removal card underneath

the base of the lower handle. Insert

the card to the line or until it stops.

2. Grasp the lower part of the handle

firmly and lift to remove.

5. Push the handle down against the

upper door tab just enough to allow

it to hang unsupported.

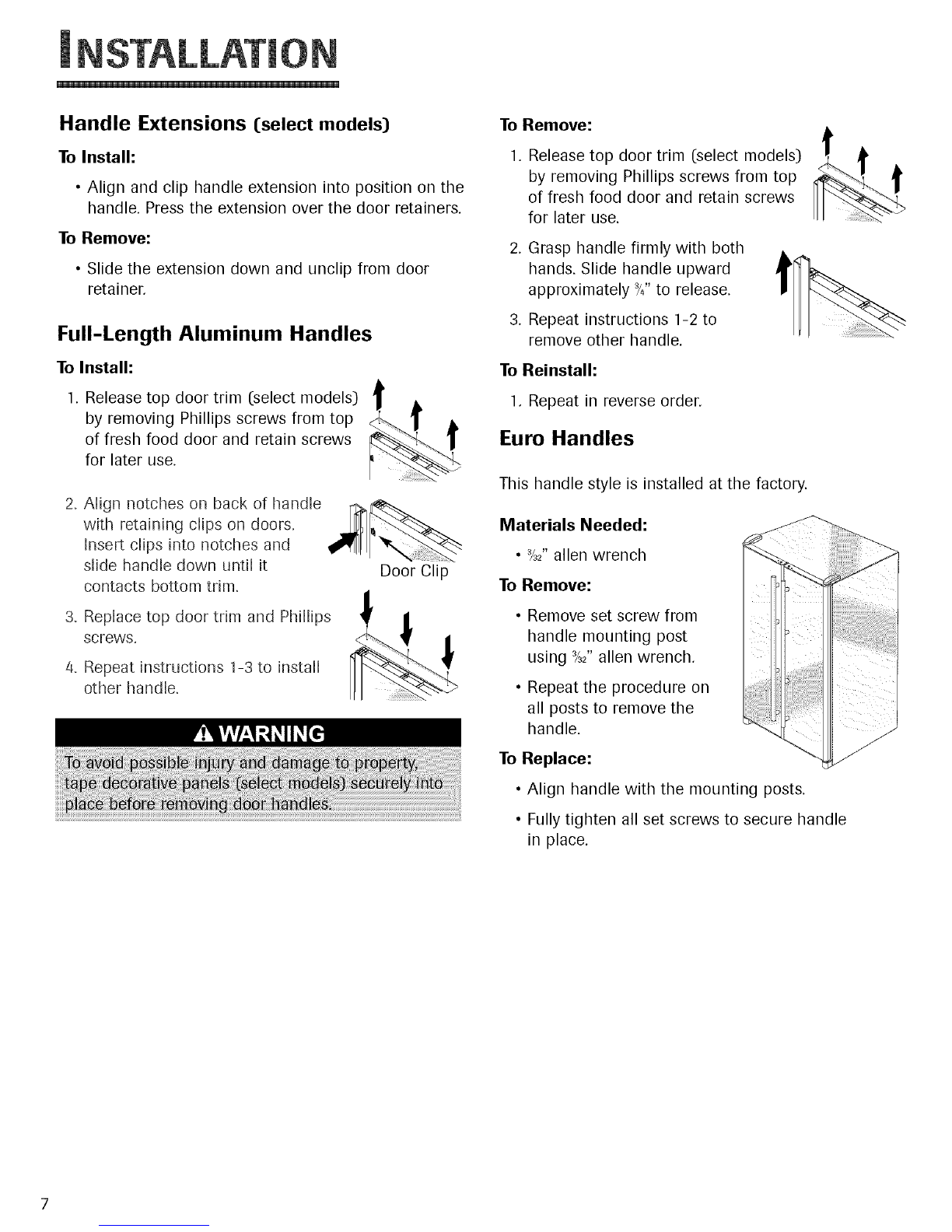

Handle Extensions [select models)

To Install:

• Align and clip handle extension into position on the

handle. Press the extension over the door retainers.

To Remove:

• Slide the extension down and unclip from door

retainer.

Full-Length Aluminum Handles

To Install:

Release top door trim (select models)

by removing Phillips screws from top

of fresh food door and retain screws

for later use.

Align notches on back of handle

with retaining clips on doors.

Insert clips into notches and

slide handle down until it

contacts bottom trim,

Replace top door trim and Phillips

screws.

Repeat instructions 1-3 to install

other handle.

Door Clip

To Remove:

.Release top door trim (select models)

by removing Phillips screws from top

of fresh food door and retain screws

for later use.

Grasp handle firmly with both

hands. Slide handle upward

approximately _4"to release.

Repeat instructions 1-2 to

remove other handle.

To Reinstall:

1. Repeat in reverse order.

Euro Handles

This handle style is installed at the factory.

Materials Needed:

•3/32"allen wrench

1"oRemove:

• Remove set screw from

handle mounting post

using 3/_;,allen wrench.

• Repeat the procedure on

all posts to remove the

handle.

To Replace:

• Align handle with the mounting posts.

• Fully tighten all set screws to secure handle

in place.

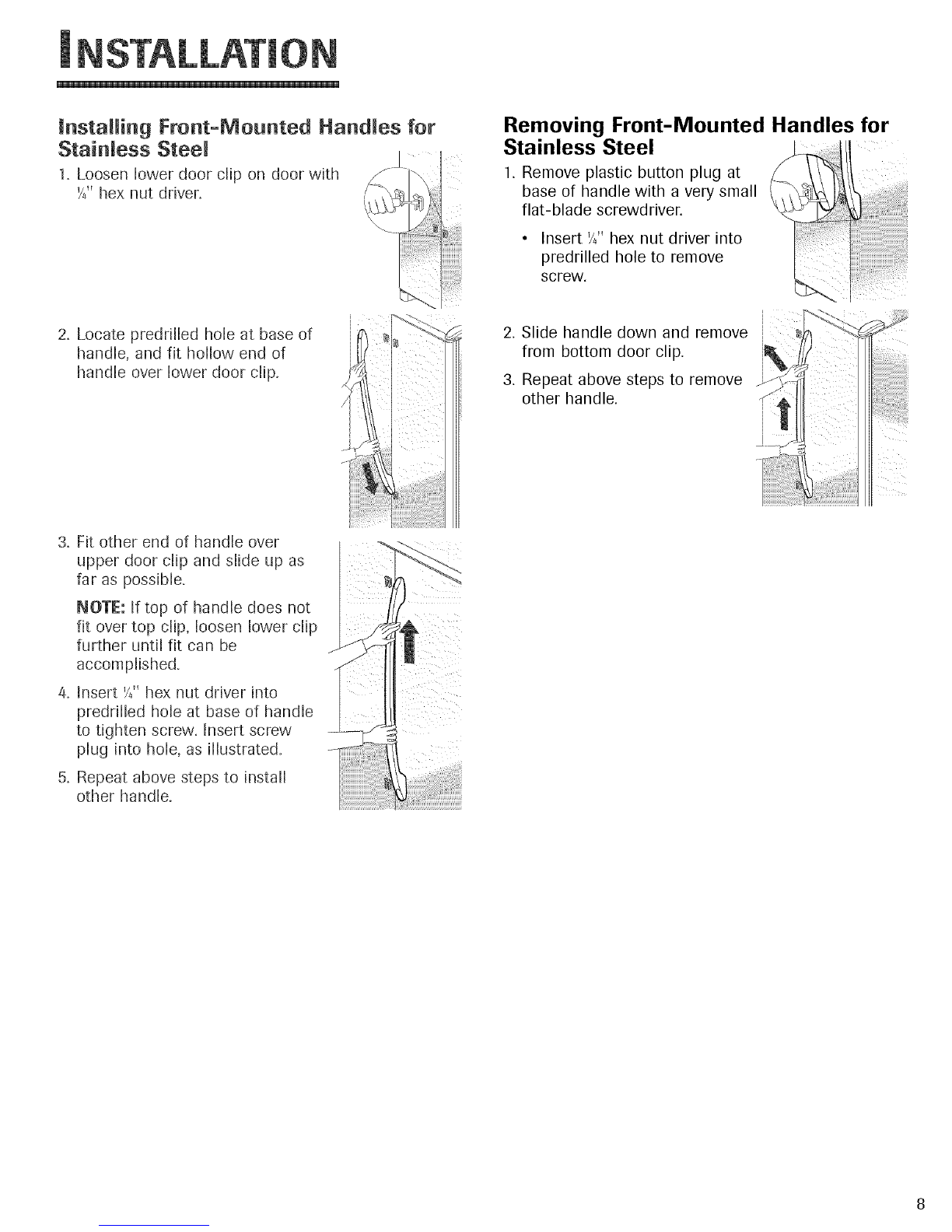

installing Front-Mounted Handles for

Stainless Stee_

1. Loosen lower door clip on door with

¼" hex nut driver.

Removing Front-Mounted Handles for

Stainless Steel

1. Remove plastic button plug at

base of handle with a very small

flat-blade screwdriver.

• Insert '/4" hex nut driver into

predrilled hole to remove

screw.

2. Locate predrflled hole at base of

handle, and fit hollow end of

handle over lower door clip.

i2. Slide handle down and remove

from bottom door clip.

3. Repeat above steps to remove

other handle.

3. Fit other end of handle over

upper door clip and slide up as

far as possible.

NOTE: If top of handle does not

fit over top clip, loosen lower clip

further until fit can be

accomplished.

4. Insert '/4"hex nut driver into

predrflled hole at base of handle

to tighten screw. Insert screw

plug into hole, as illustrated.

5. Repeat above steps to install

other handle.

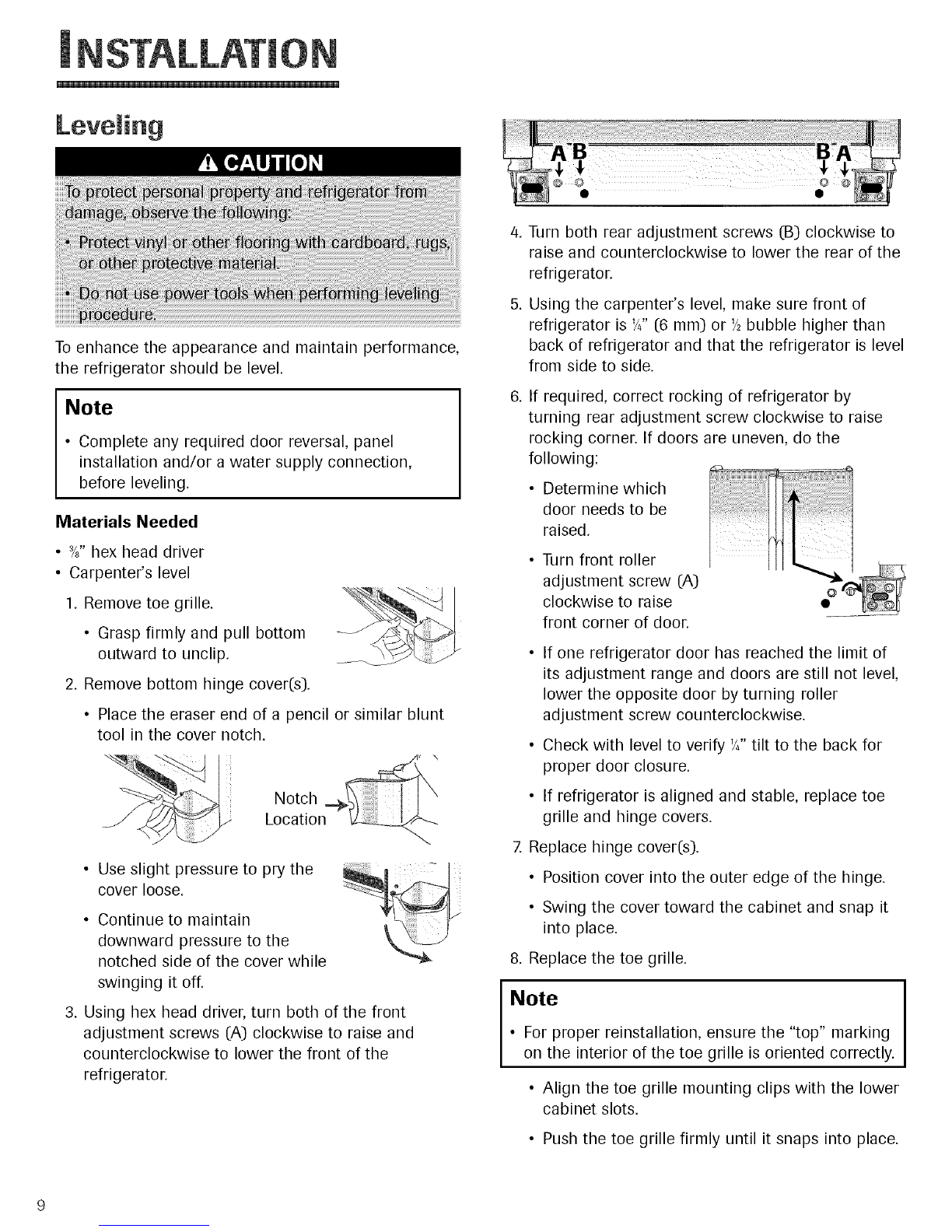

To enhance the appearance and maintain performance

the refrigerator should be level.

Note

• Complete any required door reversal, panel

installation and/or a water supply connection,

before leveling.

Materials Needed

• 3/8"hex head driver

• Carpenter's level

1. Remove toe grille.

• Grasp firmly and pull bottom

outward to unclip.

2. Remove bottom hinge cover(s).

• Place the eraser end of a pencil or similar blunt

tool in the cover notch.

Notch

Location

• Use slight pressure to pry the

cover loose.

• Continue to maintain

downward pressure to the

notched side of the cover while

swinging it off.

3. Using hex head driver, turn both of the front

adjustment screws (A) clockwise to raise and

counterclockwise to lower the front of the

refrigerator.

Turn both rear adjustment screws (B) clockwise to

raise and counterclockwise to lower the rear of the

refrigerator.

Using the carpenter's level, make sure front of

refrigerator is '/4"(6 ram) or '/2bubble higher than

back of refrigerator and that the refrigerator is level

from side to side.

.If required, correct rocking of refrigerator by

turning rear adjustment screw clockwise to raise

rocking corner. If doors are uneven, do the

following:

• Determine which

door needs to be

raised.

• Turn front roller

adjustment screw (A)

clockwise to raise

front corner of door.

If one refrigerator door has reached the limit of

its adjustment range and doors are still not level,

lower the opposite door by turning roller

adjustment screw counterclockwise.

• Check with level to verify '/4"tilt to the back for

proper door closure.

• If refrigerator is aligned and stable, replace toe

grille and hinge covers.

7. Replace hinge cover(s).

• Position cover into the outer edge of the hinge.

• Swing the cover toward the cabinet and snap it

into place.

8. Replace the toe grille.

Note

• For proper reinstallation, ensure the "top" marking

on the interior of the toe grille is oriented correctly.

• Align the toe grille mounting clips with the lower

cabinet slots.

• Push the toe grille firmly until it snaps into place.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Jenn-Air Frigorifero

Jenn-Air

Jenn-Air JS42NXFXDW00 Manuale utente

Jenn-Air

Jenn-Air JUR248RBCX Manuale utente

Jenn-Air

Jenn-Air REFRIGERATOR Manuale utente

Jenn-Air

Jenn-Air JUDFP242HM Manuale utente

Jenn-Air

Jenn-Air JBZFR18IGX Foglio di istruzioni

Jenn-Air

Jenn-Air JBZFR18IGX Manuale utente

Jenn-Air

Jenn-Air Refrigerators Manuale utente

Jenn-Air

Jenn-Air JUCFP242HL11 Manuale utente

Jenn-Air

Jenn-Air JFC2290VEP1 Manuale utente

Jenn-Air

Jenn-Air JS42NXFXDW Manuale utente

Jenn-Air

Jenn-Air JCB2581WES Manuale utente

Jenn-Air

Jenn-Air JFI2089AEP Manuale utente

Jenn-Air

Jenn-Air JBZFR18IGX Manuale utente

Jenn-Air

Jenn-Air JS48CSDBDA Manuale utente

Jenn-Air

Jenn-Air JCD2295KE Manuale utente

Jenn-Air

Jenn-Air Euro-Style Design JS42SSDUDE Manuale utente

Jenn-Air

Jenn-Air REFRIGERATOR Manuale utente

Jenn-Air

Jenn-Air JB36SSFXLA Istruzioni per il montaggio

Jenn-Air

Jenn-Air BOTTOM MOUNT BUILT-IN Manuale utente

Jenn-Air

Jenn-Air JCD2595WES00 Manuale utente

Jenn-Air

Jenn-Air JUD24FCECX Manuale utente

Jenn-Air

Jenn-Air 12642718 Manuale utente

Jenn-Air

Jenn-Air JB36PPFXRB00 Manuale utente

Jenn-Air

Jenn-Air jb36ssfxra Manuale utente

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
