CABINET PARTS

For Models: JFC2089HPR10

(Oiled Bronze)

6−07 Litho In U.S.A. (pl) Part No. W10142024 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: JFC2089HPR10

(Oiled Bronze)

W10142024

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

67006616 Tech Sheet

12828168 Owners Manual

67005575 Tag, Energy

W10137519

Elbow, Fill Tube

3 67003405 Block, Pivot

4 B5759649 Gasket

5 67005127 Roller

6 67006642 Pin, Center Hinge

7 67006118 Roller Assy. (4)

8 67006287 Screw

9 67006521 Screw

10 12456801 Bracket, Roller

11 67006380 Screw (6)

12 67006611 Bolt, Adjusting

(Front)

13 Cover, Left Hinge

67006726 Black

14 67006303 Screw (6)

15 Hinge, Center (RT)

67002960 Black

16 67004092 Block, Fill Tube

17 Cover, Corner (2)

67003485 Black

12626908ED

Hinge, Top Left

19 67007174 Bracket, Foot (2)

20 67006564 Screw (8)

21 12579702 Shim, Hinge

22 Grille, Toe

67006375 Black

23 67004102 Track, Waterline

24 Hinge, Center (LT)

67002960 Black

25 67006425 Screw (10)

26 67003331 Cover, Water Line

27 67004098 Cover, Water Valve

28 67006669 Screw (2)

29 67004101 Sweep, Dual Tube

30 67006101 Cover, Unit

31 M0286708 Nut, Speed

32 67006506 Cord, Power

33 67003796 Insulation, Sound

34 67003868 Foot Brake

35 67006697 Bolt, Adjusting

(Rear)

36 M0104106 Clip (2)

37 67001066 Tube, Drain

38 67001067 Clip, Drain Tube

39 M0108105 Clamp, Tube

40 Cabinet (Not a

Servicable Part)

12626907ED

Hinge, Top Right

42 Cover, Right Hinge

12629801B

Black

43 A3076901 Plug, Button

44 M1205302 Pin

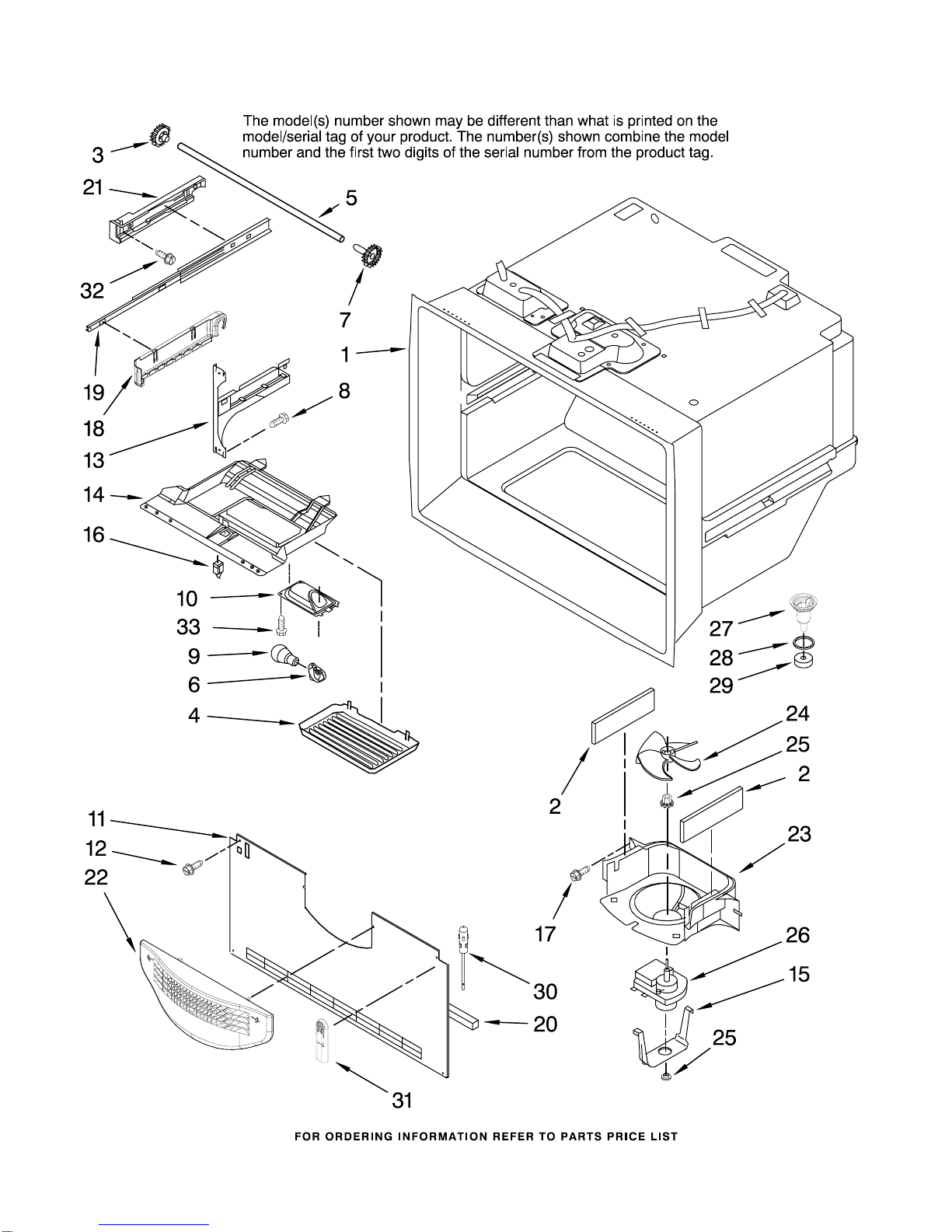

FREEZER LINER PARTS

For Models: JFC2089HPR10

(Oiled Bronze)

W10142024

FREEZER LINER PARTS

For Models: JFC2089HPR10

(Oiled Bronze)

W10142024

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam

3 12002497 Gear (Left)

(Includes Item 7)

4 67003905 Cover, Light

5 67004017 Shaft

6 12570701 Socket, Light

7 12002497 Gear (Right)

(Includes Item 3)

8 67006473 Screw (8)

9 A0282812 Bulb, Light

10 67001035 Housing, Light

11 67005873 Cover, Evaporator

12 67006425 Screw (4)

13 Bracket, Door

67004732 Left

67004733 Right

14 67003906 Housing, Lighting

15 67005633 Clip, Evap Motor

16 67005653 Switch, Light

17 67006287 Screw (2)

18 Cradle, Basket

67004728 Left

67004729 Right

19 13031602 Slide, Drawer (2)

20 67002492 Gasket, Bottom

21 Adapter, Slide

67004971 Left

67004972 Right

22 13024802 Grille, Fz Air

23 67002777 Shroud, Evap Fan

24 12217201 Blade, Fan

(Evaporator)

25 67002780 Grommet (2)

26 67003636 Motor, Evaporator

27 D7753903 Funnel, Drain

28 M0500703 Seal

29 B8381501 Gasket

30 12002355 Thermistor

31 67003924 Cover, Thermistor

32 67006406 Screw (6)

33 67006530 Screw

Following Parts Not Illustrated

67006094 Harness, Fz Module

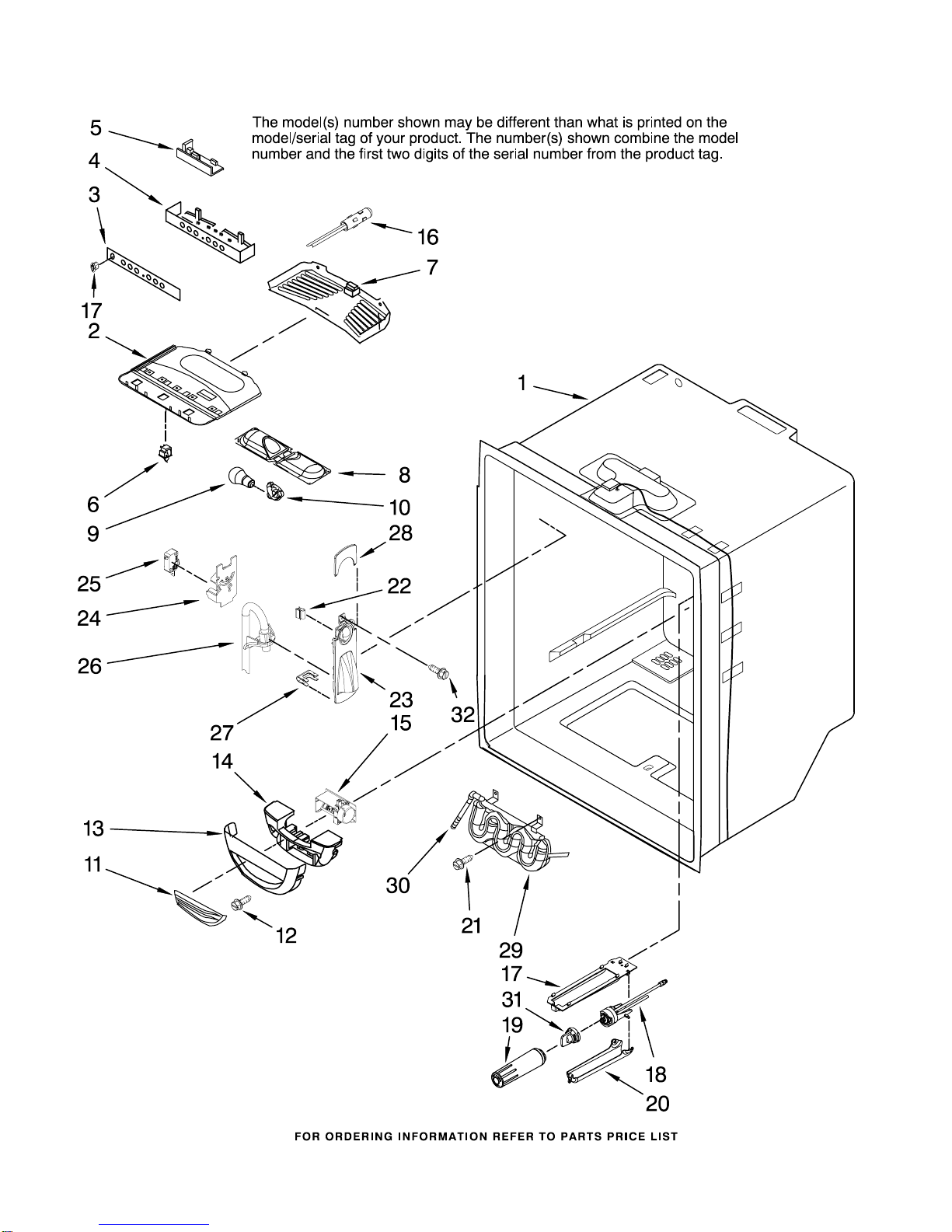

REFRIGERATOR LINER PARTS

For Models: JFC2089HPR10

(Oiled Bronze)

W10142024

REFRIGERATOR LINER PARTS

For Models: JFC2089HPR10

(Oiled Bronze)

W10142024

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 67004078 Bracket, Control

and Lights

3 67005445 Overlay

4 67005444 Housing, Control

5 67005397 Board, Control

6 C3680310 Switch, Light (2)

7 67003897 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light (2)

10 12570701 Socket, Light (2)

11 67003900 Insert,

Damper Cover

12 67006602 Screw

13 67003899 Cover, Damper

14 67006604 Insulation

15 67006116 Control, Damper

16 12002355 Thermistor

17 67001668 Plate

18 67006524 Head, Water Filter

UKF8001AXX

Filter, Water

20 12568001 Cover, Filter

21 67006287 Screw (2)

22 B8390302 Clip, Facade (2)

23 67002979 Facade, Disp.

24 67002742 Plate, Switch

25 12575501 Switch, Limit

26 67003728 Guide, Waterline

27 67002816 Clip, Waterline

28 67005674 Facade, Disp (Top)

29 67004091 Tank, Water

30 61006182 Union

31 61003146 Plug, Bypass

32 67006400 Screw

Following Parts Not Illustrated

67005417 Harness, Control

(Refrigerator)

REFRIGERATOR DOOR PARTS

For Models: JFC2089HPR10

(Oiled Bronze)

W10142024

REFRIGERATOR DOOR PARTS

For Models: JFC2089HPR10

(Oiled Bronze)

W10142024

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Door, Left

W10143255

Oiled Bronze

2 Door, Right

W10143254

Oiled Bronze

3 67003637 Door, Dairy

4 67001279 Tray, Dairy

5 67004748 Bin, Shelf (3)

(Medium)

6 67006783 Screw

W10133608

Screw

8 Gasket, Door (2)

12723206B

Black

9 Door Handle

67004780 Stainless

10 67006109 Mount, Handle

11 67002731 Bushing, Door

(Bottom Right)

12 67004749 Bin, Shelf (2)

(Gallon)

13 67002721 Bushing, Door

(Bottom Left)

14 Mullion, Door

67003264 Black

15 67005569 Extension, Door

(Right−Black)

16 Closure, Door

67003639 Black

17 Stop, Door

67003780 Black

18 Plug, Button

67004838 Black

19 Bushing, Door

(Upper Left)

12395501B

Black

20 Bushing, Door

(Upper Right)

67004978 Black

21 67006287 Screw

22 67005567 Extension, Door

(Left−Black)

23 67006679 Screw, Extension

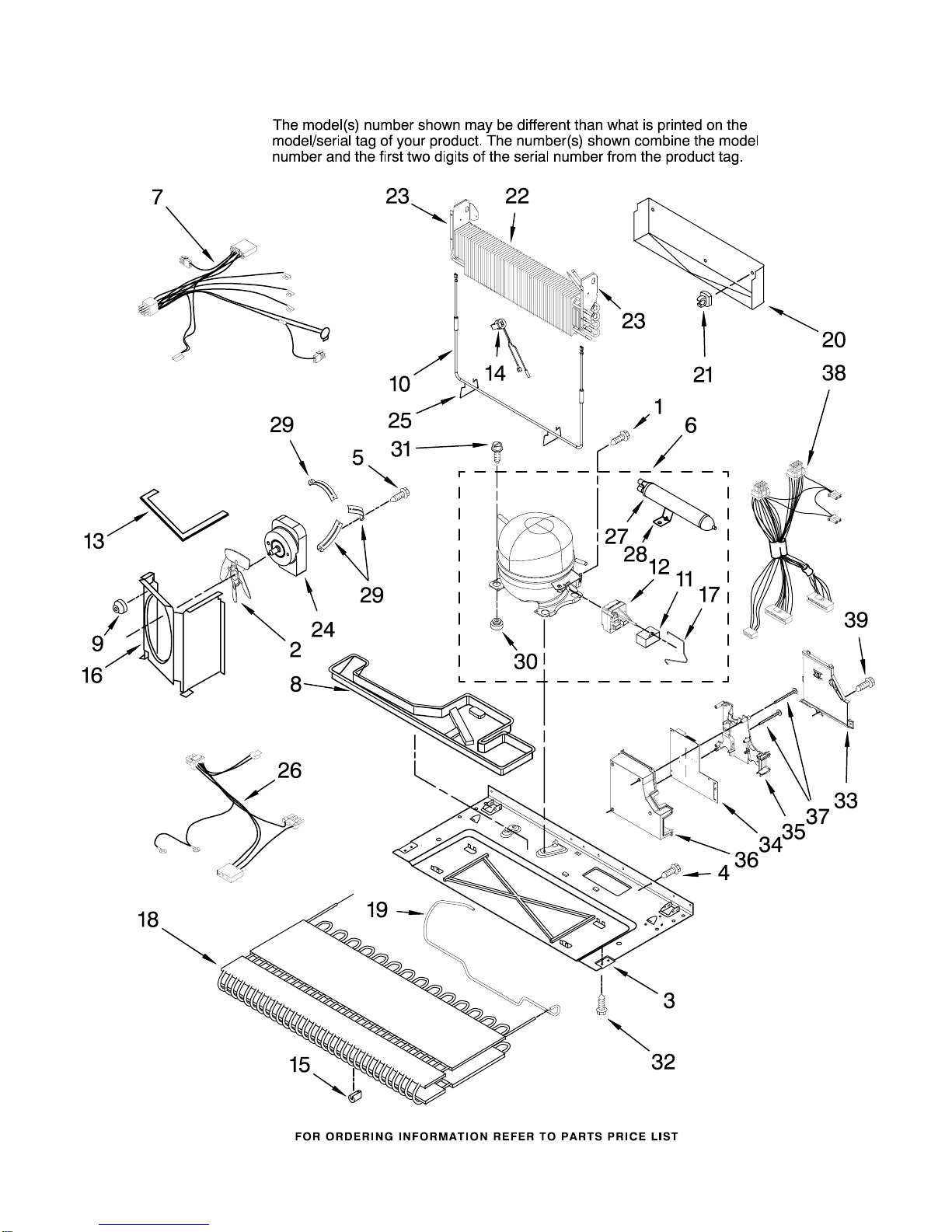

UNIT PARTS

For Models: JFC2089HPR10

(Oiled Bronze)

W10142024

UNIT PARTS

For Models: JFC2089HPR10

(Oiled Bronze)

W10142024

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 67006433 Screw

2 67004952 Blade, Fan

3 67005889 Basepan

4 67006425 Screw (2)

5 67004954 Screw (3)

6 12002634 Compressor Kit

(Includes items

11,12,17,27, &

30)

7 67005574 Harness, Evap

Heater

8 67007175 Pan, Drain

9 61004743 Grommet (3)

10 67002493 Heater, Defrost

11 67005562 Capacitor

12 67005560 Relay Assy.

(Incl. Capacitor)

13 61003210 Gasket

14 67003426 Thermostat, Def.

15 67005680 Grommet (6)

16 12575305 Shroud

17 67007052 Clip, Capacitor

18 67006131 Condenser

19 67004700 Tube, Discharge

20 67002490 Tray, Drip

21 10623002 Clip, Evaporator

22 12002041 Evaporator Kit

(Incl. Evap., Heat

Shield, & Instr.

Sheet)

23 Dam

67001084 Right Side

67001083 Left Side

24 67004432 Motor, Fan

25 10428101 Clip, Heater

26 67005435 Harness, MC

27 B2150504 Drier

28 10547003 Clip, Drier

29 67004953 Bracket, Fan Motor

30 67003493 Grommet (4)

31 67006432 Screw (3)

32 67006573 Screw (4)

33 67005421 Cover, HV Box

34 12782025 Board, HV Control

(Inc. Inst. Sheet)

35 67005418 Spacer, HV Box

36 67004969 Box, HV

37 67006550 Screw (2)

38 67005419 Harness, HV

39 67006615 Screw, Cover

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.0 Ozs.

(R−134A)
