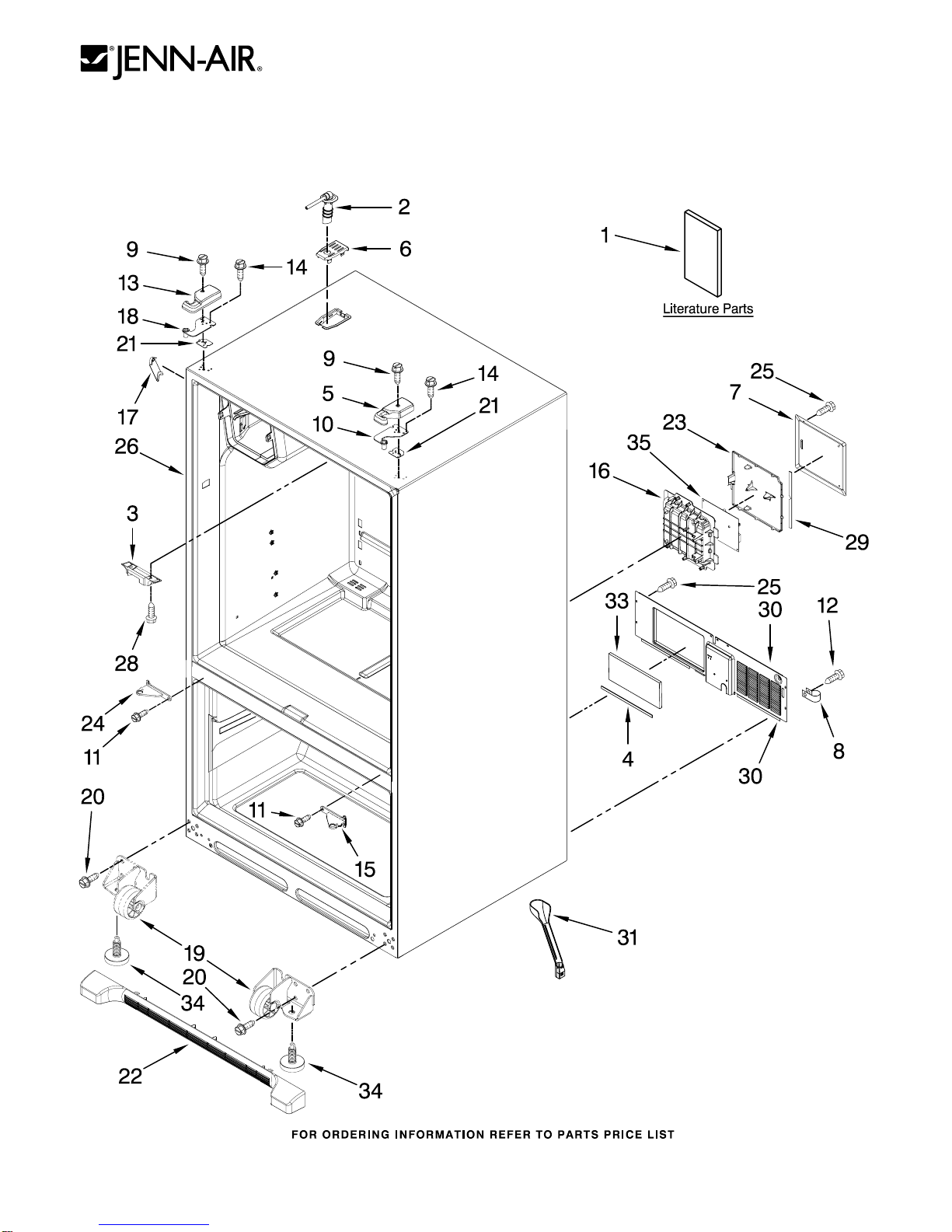

CABINET PARTS
1
For Model: JFI2089ATS2
(Stainless Steel)
6−09 Litho In U.S.A. (rrm) (eeb) Part No. W10274769 Rev. A
REFRIGERATOR
CABINET PARTS
2
For Model: JFI2089ATS2
(Stainless Steel)
W10274769
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10238851
Tech Sheet
12828144SP
Use & Care Guide
W10202395
Guide, Energy
2 12961401 Tube W/Waterline,
Fill−IM
3 12698403 Block, Pivot
4 B5759655 Gasket, MC Back
5 Cover, Top Hinge
(Right)
12962302B
Black
6 Cover, Fill Tube
12981401B
Black
7 12961602 Cover, Control Box
8 M0108107 Clamp, Tube
9 12992602 Screw, Hinge Cover
10
12963205ED
Hinge, Top Right
11 12992201 Screw, Center
Hinge
12 12990511 Screw (3)
13 Cover, Top Hinge
(Left)
12962301B
Black
14 12992403 Screw, Top Hinge
15 Hinge, Center (RT)
13000008ED
Black
16 12957601 Box, HV Control
17 Cover, Corner (2)
12587703B
Black
18
12963204ED
Hinge, Top Left
19 Roller Assy.
(Front)
W10212381
Right
W10212382
Left
20 12991302 Screw (8)
21 Shim, Top Hinge
12999501 Left
12999502 Right
22 Grille, Toe
W10244561
Black
23
12957701SP
Lid, HV Control
24 Hinge, Center (LT)
13000007ED
Black
25 12990702 Screw, Cover
26 Cabinet (Not A
Servicable Part)
28 12990302 Screw, Block
29 12957801 Gasket, HV Control
30
W10211858
Cover, MC Back
31
W10210988
Tube, Drain
33 12820505 Fiber, Acoustic
34
W10141622
Brake, Foot
35
W10213583
Board, HV Control

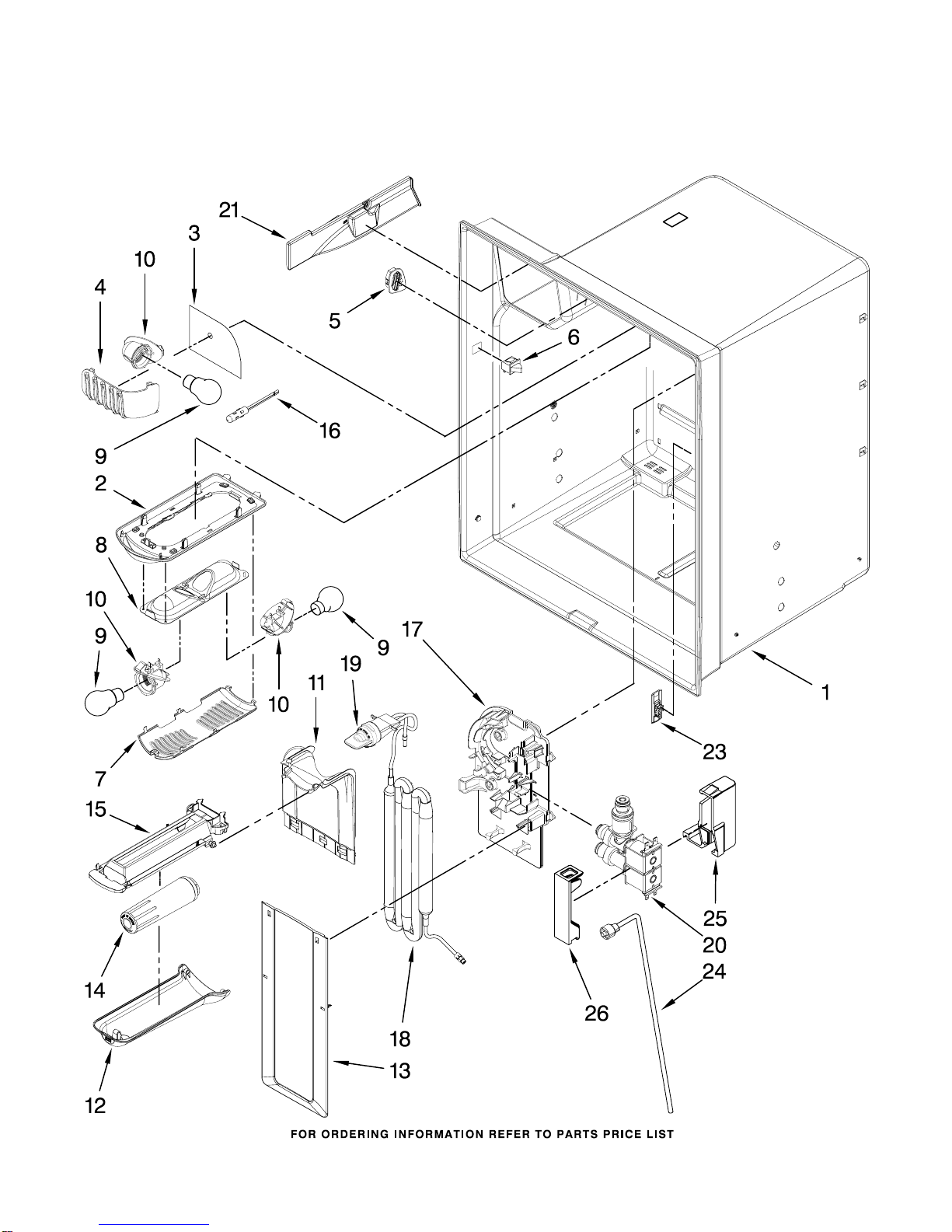

REFRIGERATOR LINER PARTS
3
For Model: JFI2089ATS2
(Stainless Steel)
W10274769
REFRIGERATOR LINER PARTS
4
For Model: JFI2089ATS2
(Stainless Steel)
W10274769
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 12905803 Module, Light
3 12691605 Foil, Light
4 12921801 Cover, Light
5 13008201 Grille, Air
6 12466103 Switch, Light (2)
7 12905902 Cover, Light
8
12806601V
Housing, Light
9
W10194422V
Bulb, Light
10 12570701 Socket, Light
11 12960101 Cover, Water Tank
(Upper)
12 12960301 Lid, Water Filter
13 12960001 Cover, Water Tank
(Lower)
14 13040216 Filter, Water
15 12955901 Bracket, Filter
Base
16 12002355 Thermistor
17 12956001 Bracket, Water
Tank & Valve
18 12956202 Water Tank &
Head Assembly
19
12664501SP
Plug, Bypass
20 12956102 Valve, Water Inlet
21 13033601 Cover, Ice Box
Harness
23 12987301 Cover, Chiller
Vent
24 12962202 Waterline, Cabinet
(W/Nut)
25
W10118193
Enclosure, Water
Valve Connector
26
W10118194
Lid, Enclosure

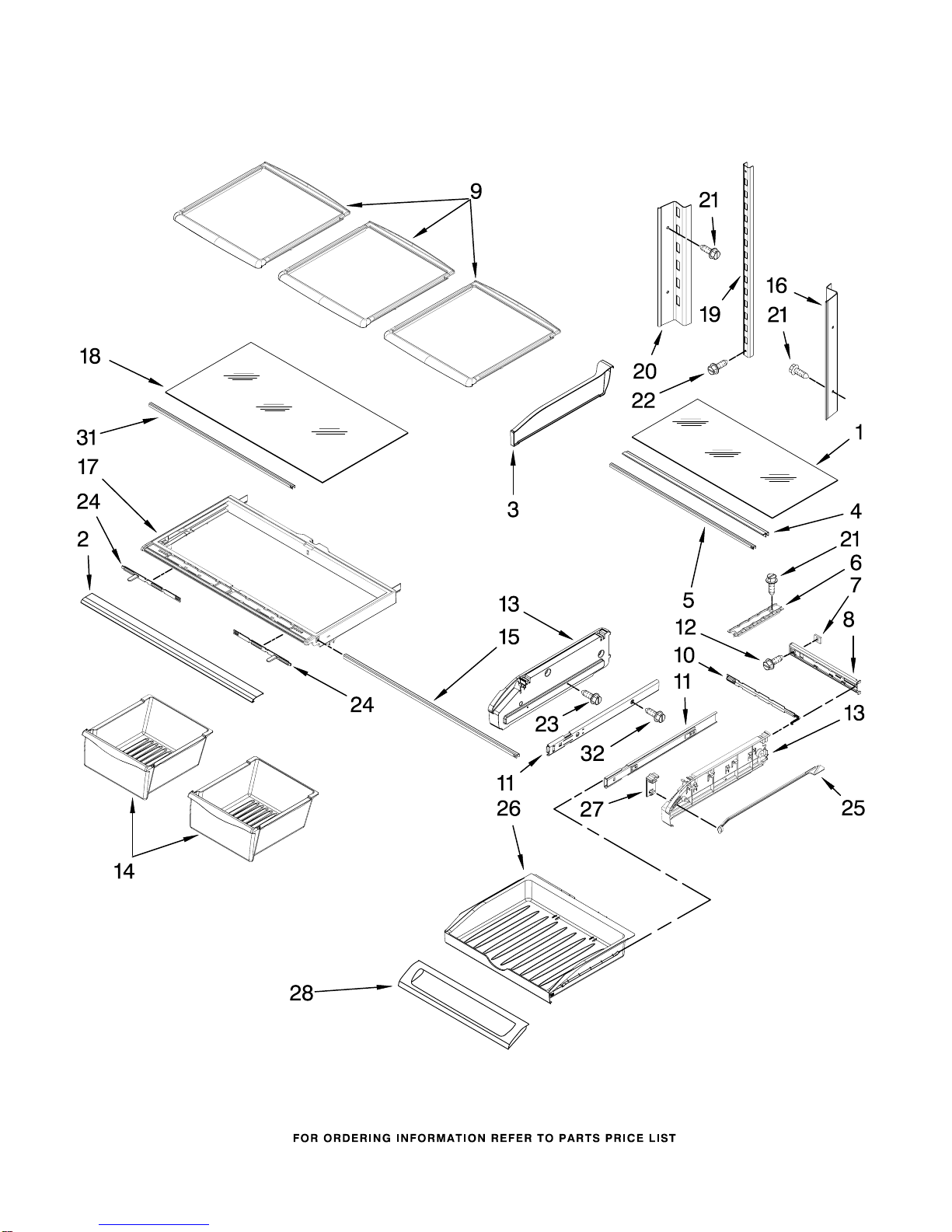

SHELF PARTS
5
For Model: JFI2089ATS2
(Stainless Steel)
W10274769
SHELF PARTS
6
For Model: JFI2089ATS2
(Stainless Steel)
W10274769
Illus. Part
No. No. DESCRIPTION
1 12204829 Glass, Pantry
2
W10231478
Trim, Crisper
3 12709301 Divider−Pantry
4
12655902SP
Support, Pantry(2)
5
12227305WD
Brace, Pantry (2)
6 12531901 Track, Pantry
7 12656901 Gasket, Pantry
8 12656202 Housing, Control
9 12463912 Shelf, Glide (3)
10 12655402 Slide, Temperature
11
13058101V
Glide, Drawer (2)
12 12990513 Screw
13 Endcap, Pantry
12656105 Left
12656020 Right
14
12531105SP
Pan, Crisper (2)
15
12227305WD
Support, Crisper
Cover
16 13039303 Ladder, Side RH
17
12531202SP
Frame, Crisper
18 12204821 Glass, Crisper
Cover
19 12435809 Ladder, Center
20 13039302 Ladder, Side LH
21 12990513 Screw
22 12990515 Screw
23 12990512 Screw
24
12530805SP
Slide, Humidity
Control
25 12655303 Bar, Temperature
Control
26 12655702 Drawer, Pantry
27
12655204V
Knob, Temperature
Control
28 12656813 Lid, Pantry
Drawer
Crisper Frame
31
12227304WD
Brace, Crisper
32 12990504 Screw

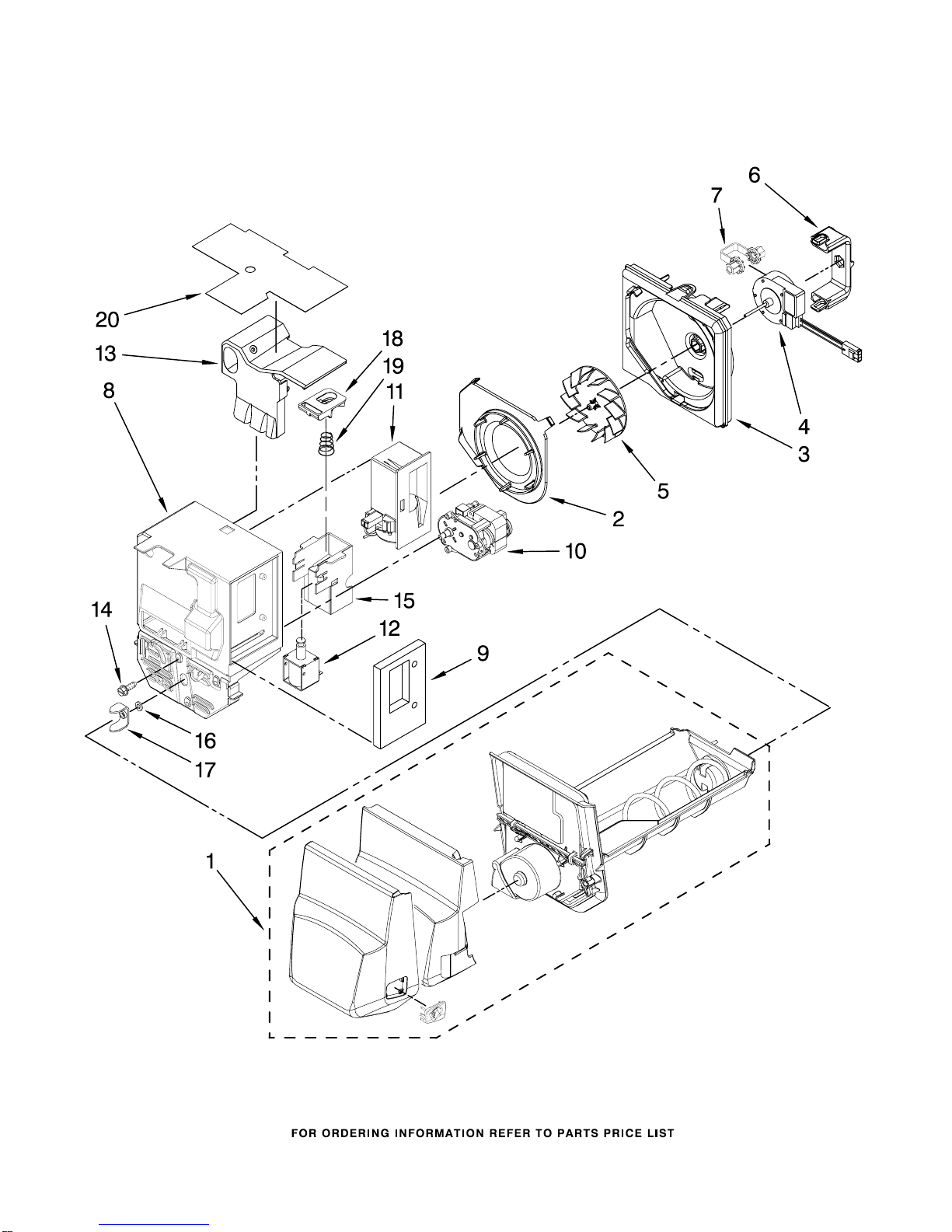

MOTOR AND ICE CONTAINER PARTS
7
For Model: JFI2089ATS2
(Stainless Steel)
W10274769
MOTOR AND ICE CONTAINER PARTS
8
For Model: JFI2089ATS2
(Stainless Steel)
W10274769
Illus. Part
No. No. DESCRIPTION
1 13012604 Ice Bin Assembly
(Includes Auger)
2
W10121282
Inlet, Blower
3
W10121281
Scroll, Blower
4
W10162697
Motor, Fan
5
W10123444
Wheel, Blower
6
12956603SP
Clip, Fan Motor
7
W10151687
Grommet, Fan Motor
8
12958407SP
Divider, Ice Box
9
12920001SP
Gasket, Damper
10 12955405 Motor, Auger
11
W10127427
Damper, Control
12
13028201SP
Solenoid
13
W10118612
Liner, Divider
14 12990511 Screw (3)
15
12958602SP
Bracket, Solenoid
16
420107A700
Washer
17
63052A001
Yoke, Ice
Dispenser
18
12958502SP
Yoke, Solenoid
19
12942401SP
Spring, Solenoid
20
W10142628
Foil, Ice Box

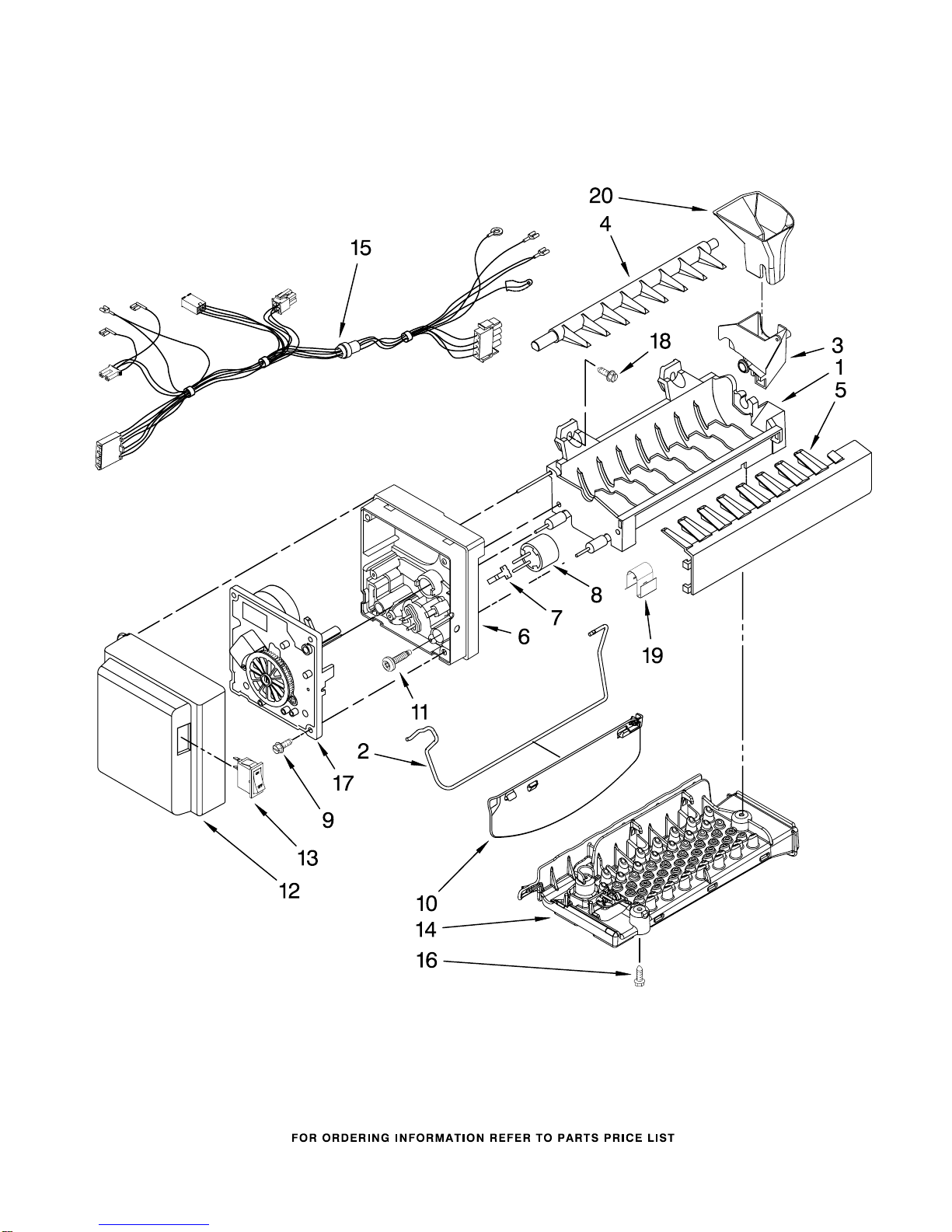

ICEMAKER PARTS
9
For Model: JFI2089ATS2
(Stainless Steel)
W10274769
ICEMAKER PARTS
10
For Model: JFI2089ATS2
(Stainless Steel)
W10274769
Illus. Part
No. No. DESCRIPTION
1
W10122527
Mold & Heater
Assembly (Also
Order 542638
Grease)
2
W10175514
Arm, Shutoff
3 628515 Cup, Fill
4 627843 Ejector
5 2182124 Ice Stripper
6 2194712 Support, Housing
7 2315522 Retainer,
Thermostat
8 628397 Thermostat
(Also Order 542369
Cement)
9 489276 Screw (3)
10
W10121440
Extension, Shutoff
Arm
11 8533917 Screw (2)
12
W10121444
Cover
13 2313326 Switch, On−Off
14
W10121269
Impinger Assy.
15
W10123395
Harness, Icemaker
16 12990511 Screw, Impinger
17
W10223929
Module Assembly
18 489276 Screw (3)
19 628379 Clip
20
W10121434
Insert, Fill Cup
100
W10190981
Icemaker Assembly
Following Parts Not Illustrated
10244904SP
Coupling
