Jensen VX6628 Manuale utente

VX6628

6.2" Multimedia Receiver

DVD / NAV / SiriusXM Ready™ / Built-In Bluetooth /

iPhone® - iPod® / Pandora® / USB / AV In

Operation Manual

160

Watts Peak

40wx 4

“Made for iPod” and “Made for iPhone” means that an electronic accessory has

been designed to connect specically to iPod or iPhone, respectively, and has

been certied by the developers to meet Apple performance standards. Apple

is not responsible for the operation of this device or its compliance with safety

or regulatory standards. Please note that the use of this accessory with iPod or

iPhone may aect wireless performance.

Android is a trademark of Google Inc.

The Bluetooth® word mark and logos are registered trademarks owned by

Bluetooth SIG, Inc. and any use of such marks by the Dual Electronics Corporation

is under license. Other trademarks and trade names are those of their respective

owners.

microSD is a trademark or registered trademark of SD-3C, LLC in the United States,

other countries or both.

Pandora is a registered trademark of Pandora Media, Inc.

Sirius, XM and all related marks and logos are registered trademarks of Sirius XM

CONTENTS

FEATURES ��5

CONTROLS AND INDICATORS ��8

EXTERNAL DEVICES ��10

QUICK START GUIDE ��11

EQUALIZER CONTROL MENU ��.��.14

SYSTEM SETTINGS ��16

DISC OPERATION ��25

RADIO TUNER OPERATION ��37

USB OPERATION ��42

iPod®/iPhone® OPERATION ��47

AV-In1/AV-In2 OPERATION ��..��50

BLUETOOTH OPERATION ��51

REAR CAMERA OPERATION ��.��58

STEERING WHEEL CONTROLS (SWC) OPERATION ��.��59

PANDORA RADIO OPERATION ��.��60

SiriusXM® RADIO OPERATION ��.��64

WALLPAPER...........................��.��.��76

SPECIFICATIONS ��.��82

TROUBLESHOOTING ��.�� 77

BLUETOOTH CALL WHILE NAVIGATING..... ��..��...57

COMMON REPLACEMENT PARTS��.��84

FCC Statement

1. This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference

that may cause undesired operation.

2. Changes or modications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation.

This equipment generates,uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined

by turning the equipment o and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with

minimum distance of 20 centimeters between the radiator and your body.

Thank you for choosing an Jensen product. We hope you will find the instructions

in this owner’s manual clear and easy to follow. If you take a few minutes to look

through it, you’ll learn how to use all the features of your new VX6628 Multimedia

Receiver for maximum enjoyment. Please save this manual for future reference.

We recommend having your VX6628 Multimedia Receiver installed by a reputable

installation shop.

FEATURES

DVD

•Audio Equalizer

•Next Chapter and Previous Chapter

•Play/Pause

•Track Direct Entry

•Disc Menu

•Selection Repeat / Track Repeat

•Disc Audio

•Disc Language

•Picture Control

CD / MP3 / WMA

•CD-Text Compatible

•ID3 Tag Compatible

•Directory Search (MP3 / WMA Only)

•Audible Forward / Reverse Track Search (CD-DA Only)

•Random, Repeat and Intro

•Play, Pause, Stop, Next Track and Previous Track

AM-FM

•USA, China, Japan, Europe, Europe (LW) and Orient (OIRT)

•30 Station Presets (18 FM / 12 AM)

•Auto Stereo / Mono

•Local / Distance

•Auto Store (AS)

iPod®/iPhone®

•iPod®/ iPhone® via USB

•High Speed Direct Connect Interface to Access iPod® Playlists, Artists, Albums

and Songs.

•Power Management Charges iPod® while Connected

SiriusXM-Ready®

•Satellite Channel Name, Artist, Song, and Categories Displayed on Monitor

(Vehicle Tuner / Subscription Required and Sold Separately)

Chassis

•2.0 DIN (Import / ISO-DIN Mountable)

•Fixed Front Panel

•6.2” High Definition 800h x 480v WVGA TFT, LED Backlight

General

•Beep Tone Confirmation

•Built-In Bluetooth® providing Hands-Free operation for safety and convenience

and A2DP for streaming music from your smartphone or other Bluetooth®

device.

•One Composite Video Output for Additional Screens

•Front Panel 3.5mm AV Input

•Rear Chassis RCA AV Input

•Front Panel USB - Playback Music / Video Files via Portable Hard Drives / USB

Sticks, 1 Amp Charging

•10 Band EQ w/ Loudness Control

•4VRMS Front / Rear / Subwoofer RCA Line Output

•Rear Camera Input

•Rotary Encoder Audio Control

Rear Camera

•The VX6628 is “Camera Ready.” Before accessing any camera features, you must

purchase and install a rear video camera.

Navigation

•iGo Primo Next Gen w/ Text to Speech (TTS)

•US, Alaska, Hawaii, Puerto Rico, USVI Map Data (TomTom)

•Over 10 Million Points of Interest (POI)

•4GB microSD Card w/ Navigation Software

•Latest Map Guarantee (Must Be Redeemed within 30 Days of Initial

Activation)

WARNING

Never install this unit where operation and viewing could interfere with

safe driving conditions.

To reduce the risk of a traffic accident (except when using the rear view

video camera) do not view the video display while driving the vehicle. This

is a violation of federal / state / local laws in most states.

Never disassemble or adjust the unit. No user serviceable parts inside.

To prevent injury from electric shock or fire, never expose this unit to moisture

or water.

Never use irregular sized discs.

Using an improper fuse may cause damage to the unit and result in fire.

CONTROLS AND INDICATORS

AV INPUT

EJECT

MUTE

OPEN

Controls and Indicators

1. Disc Slot:

Accepts DVD/CD/MP3 discs. If the unit is turned on, playback begins when a

disc is inserted.

2. LCD Screen and Touch Screen:

Touch icons on this screen to access menus or control functions.

3.3�5mm AV IN Port:

This connector accepts a 3.5 mm connector through which signals from

various audio/video devices can be sent to the unit.

4.microSD Card Slot (For navigation use only):

Contains microSD card with navigation software. Do not remove SD card.

Do not delete / modify SD card folder structure.

5.USB Port:

Connect an Apple device (iPhone/iPod). For playback of audio/video files

from USB memory drives or portable hard drives. 1 Amp charging support.

6.Interface Cover:

Covers the AV IN connector, microSD card and USB slot.

7.Reset Button:

Press this button to reset the system settings (except password and parental

lock settings) and to correct a system halt or other illegal operation. Use the

tip of a pen to press the reset button.

8.Power On/Off ( ) / Rotary Control ( ) / Mute Button: Press to turn the

unit ON. Press and hold to turn the unit OFF.

Rotate the control to adjust the volume from 0 to 50.

Press the control momentarily to mute the audio. Press the control again to

restore the audio.

9.Menu Button:

Press this button to access the Main Source Menu.

10.Eject ( ) Button:

Press this button to eject a DVD/CD/MP3 disc. Disc play is stopped, the disc is

ejected and the unit will change to radio operation. If the disc is not removed

from the unit and the button is pressed again, the disc will be re-loaded. If the

disc is not removed from the disc slot within 10 seconds of being ejected, it

will be automatically reloaded to prevent it from being accidentally damaged.

EXTERNAL DEVICES

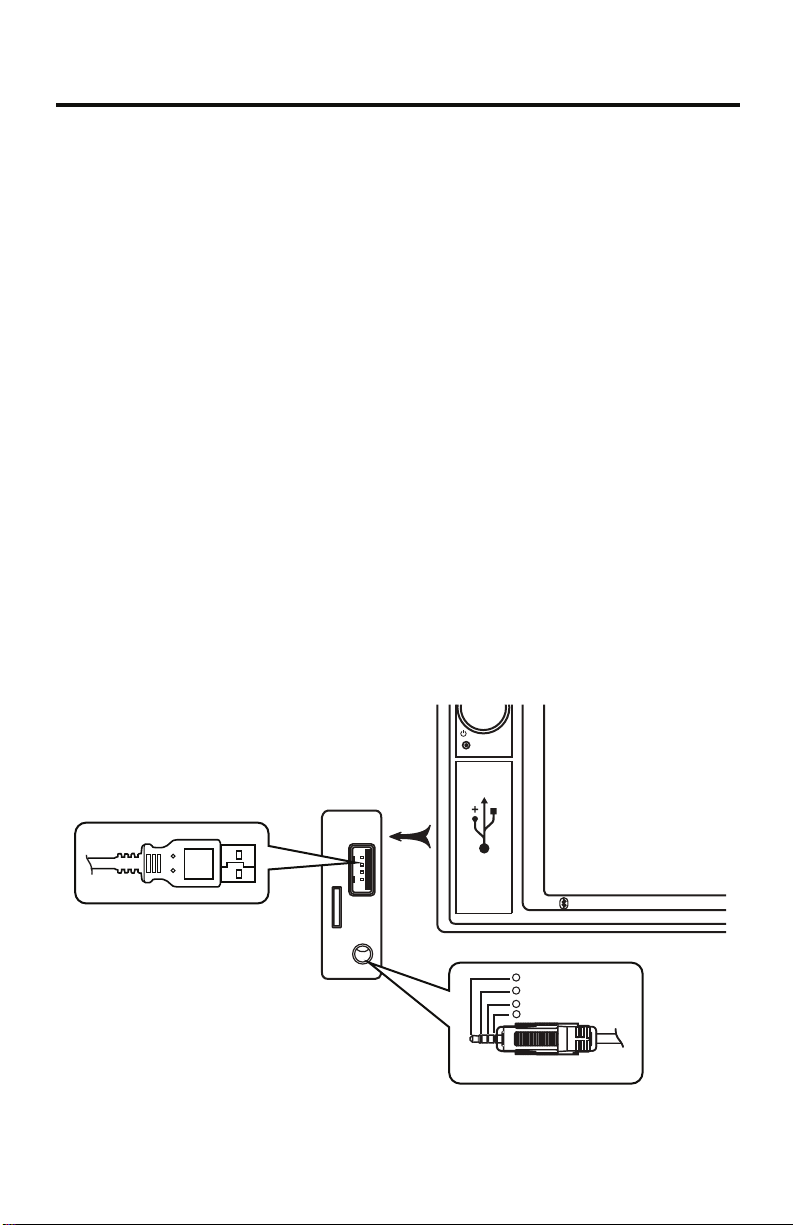

Connecting External Devices to AV 1 or AV 2

External devices, which include a composite video output and left / right audio

outputs can be connected to this unit using its front 3.5mm port (AV In 1) or the

rear RCA connectors (AV In 2).

You cannot directly control external devices connected to the AV Input using the

front panel controls.

AV In 1

AV In1 is used for playback of audio/video from an external device connected to

the unit through a 3.5mm port. The unit can increase or decrease the volume of

the connected device; all other controls are done on the connected device.

Select “AV In 1” to access the connected device.

AV In 2

AV In 2 is used for playback of audio/video from an external device connected

through RCA connectors located on the back of the unit (see the VX6628

Installation Guide). The unit can increase or decrease the volume of the

connected device; all other controls are done on the connected device. Select

“AV In 2” to access the connected device.

AV INPUT

Bluetooth

OPEN

3.5mm AV Cable (not included)

V ideo

Left Audio

Right Audio

Ground

USB Cable (not included)

Connecting External Devices
