Jet JWL-1220 Manuale utente

jettools.com

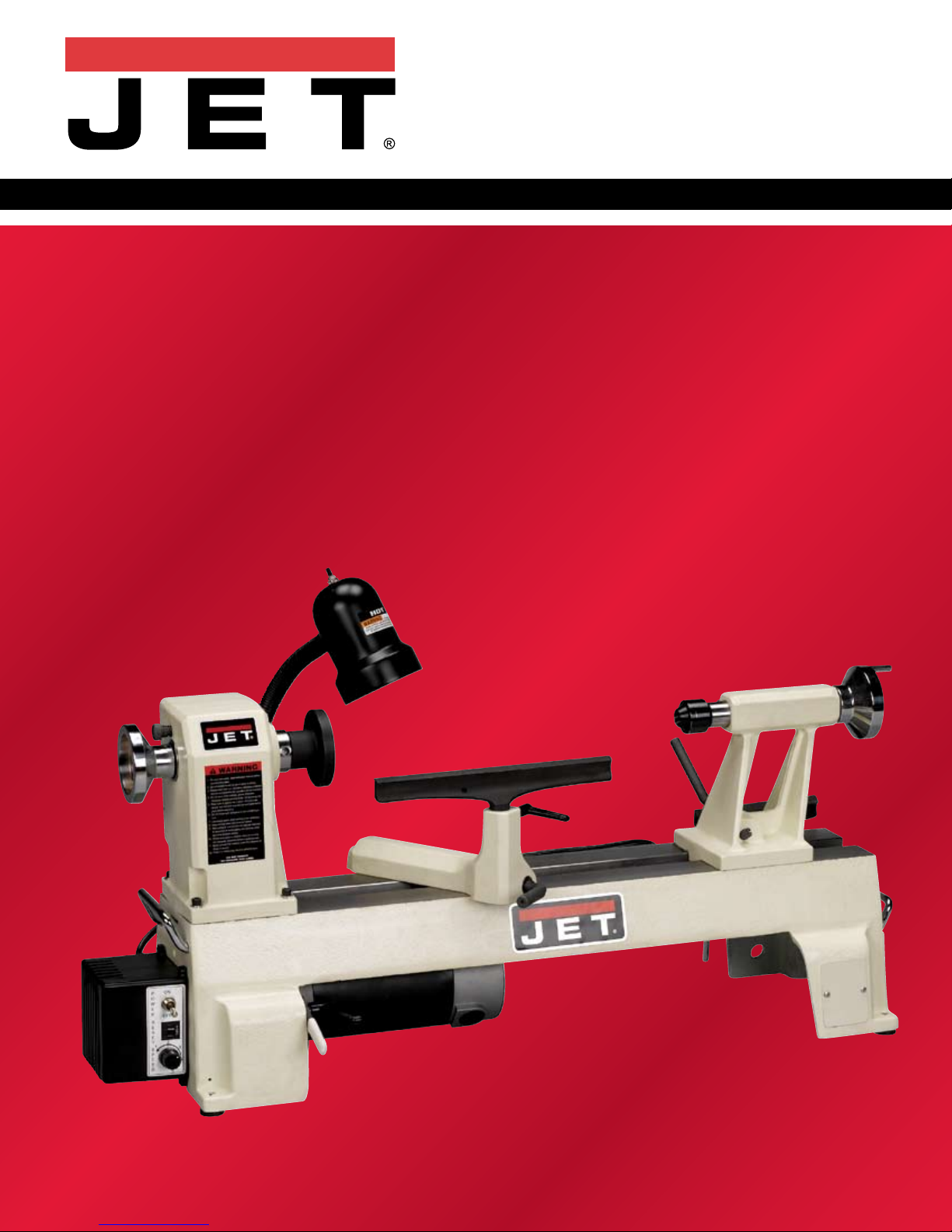

12" x 20" VARIABLE SPEED

WOOD LATHE

STOCK NO. 900493

The newest addition to our JET®line of Woodturning Lathes is the model JWL-1220VS.This new

variable speed, 3/4HP lathe supports stock up to 12” in diameter and 20” in length.This little

powerhouse features variable 270-4200RPM continuous speed operation, a self-ejecting tailstock

for added safety, spindle lock and indexing capability for ﬂuting and veining applications, builtin

work light to illuminate your work piece, and much more. If you are looking for a big lathe for

your shop, but are short on space, give the Jet JWL-1220VS a try, you’ll be glad you did.

jettools.com

12"x 20" VARIABLE SPEED

WOOD LATHE

•Continuously variable speed operation from 270-4200 RPM

•Heavy-duty cast iron lathe bed adds stability while limiting vibration during operation

•Indexing mechanism allows for ﬂuting and veining operations

•Self-ejecting tailstock for safe and easy removal of tooling

•Cam-lock mechanisms allow adjustments of the tailstock and tool rest base

•Hollow tailstock and removable tip on live center allows for hole boring through stock

•Convenient worklight allows better lighting right on the workpiece

•Includes: 6" and 10" tool rests, storage tray, integrated cord wrap and 3" face plate

JWL-1220VS: 12"x 20" VARIABLE

SPEED WOOD LATHE

STOCK NUMBER 708376VS

Model Number JWL-1220VS

Net Weight (lbs.) 125

Swing Over Bed (in.) 12

Swing Over Tool Rest Base (in.) 9-1/2

Distance Between Centers (in.) 20

Speeds (RPM) Variable 270–4200

Headstock Taper MT-2

Spindle Nose (in. x TPI) 1 x 8TPI

Tailstock Taper: MT-2

Hole Through Tailstock (in.) 3/8

Ram Travel (in.) 2

Spindle Taper MT-2

Motor HP 3/4HP

Motor Phase 1Ph

Motor Voltage 115V

Spindle

with

Indexing

Capability

3/4 HP Motor

Quick

Cam

Locks

Live

Center

Cast-Iron

Construction

10" Tool

Rest

Worklight

Chrome

Plated

Handwheel

Variable Speed

Control Dial
