John Lewis SBSKITB Manuale utente

SBSKITB

Side by Side

Instruction manual

Important information

• Do not install the unit on your own or have unqualified personnel install it.

• Improper installation may result in damage, malfunctioning or risk of electric shock.

• This Side by Side unit must have the cooler section on the right side and the beverage storage/freezer

section on the left side; the positions are not reversible.

• The power cords must be connected separately to a suitable socket.

• All information regarding each section of this equipment is given in the user instructions to be found inside

the cooler section. Please read the instructions carefully before carrying out any operation.

• Removal and reinstallation of this unit must only be carried out by authorised personnel.

• Please keep these installation instructions for future reference or further installation.

WRENCH 24 mm

SET SCREW WRENCH 4 mm

LEVEL

HAMMER

SCREW DRIVER PHILIPS 2

SCREW DRIVER WRENCH 7 mm

WRENCH 13 mm

Tools required for installation

(not supplied)

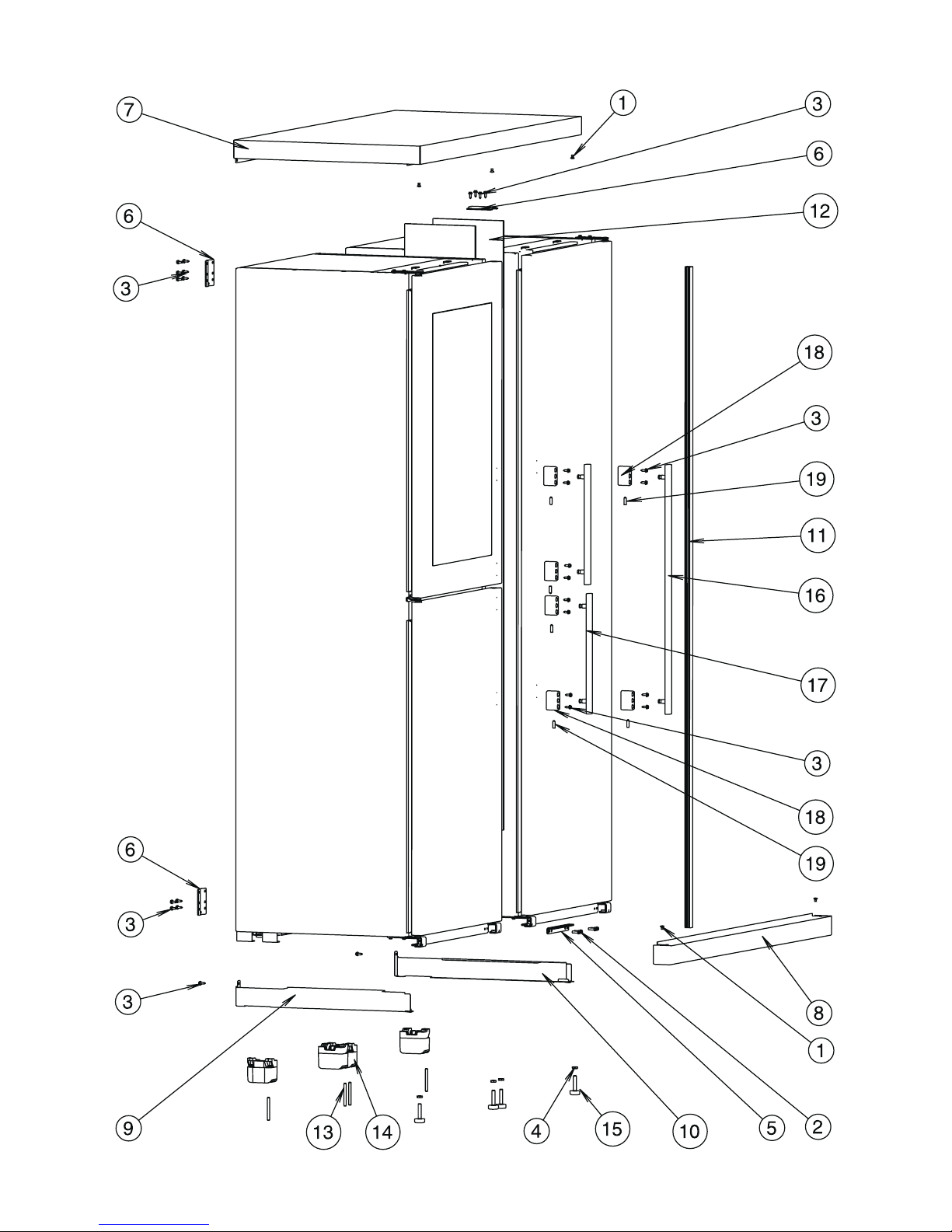

CONNECTION BRACKET

UPPER CONNECTION BRACKET

PLINTH

TOP PANEL

LEFT SIDE

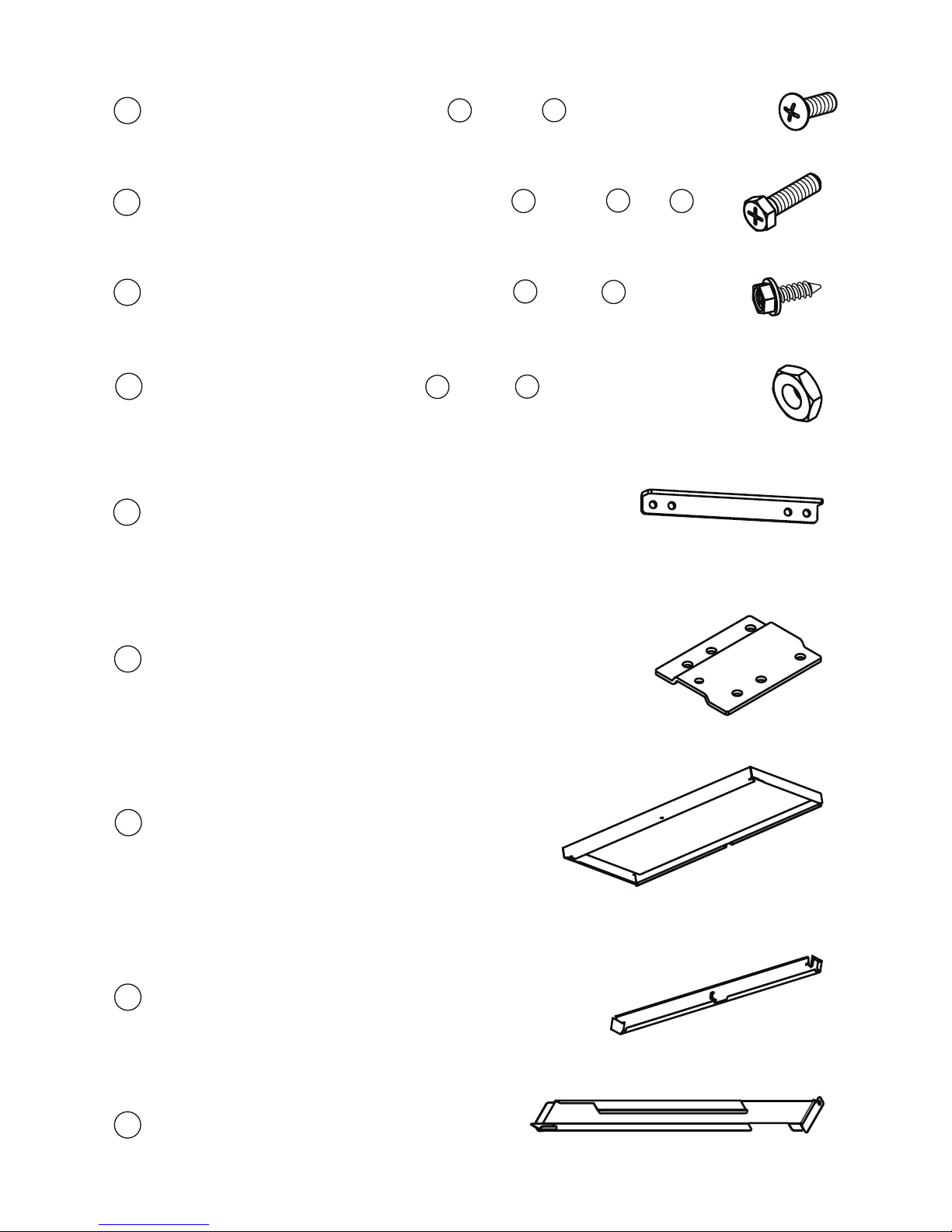

CUPHEAD SCREW M x12 (bag 1 ) TOOL U

HEXAGON-HEAD SCREW M x18 (bag 2 ) TOOL V OR U

HEXAGON-HEAD SCREW 4.2x13 (bag 3 )TOOL V

HEXAGON NUT M8 C1 (bag 4 )TOOL W

REAR FOOT

FRONT FOOT TOOL X

HANDLE ASSEMBLED

WINE/FREEZER

HANDLE ASSEMBLED

COOLER

SCREW M6x20 HEXAGON SOCKET CONE TOOL Y

MOUNTING BLOCK

RIGHT SIDE

MAGNETIC GASKET

SPACER SPONGE

REAR FOOT PIVOT TOOL T

40mm

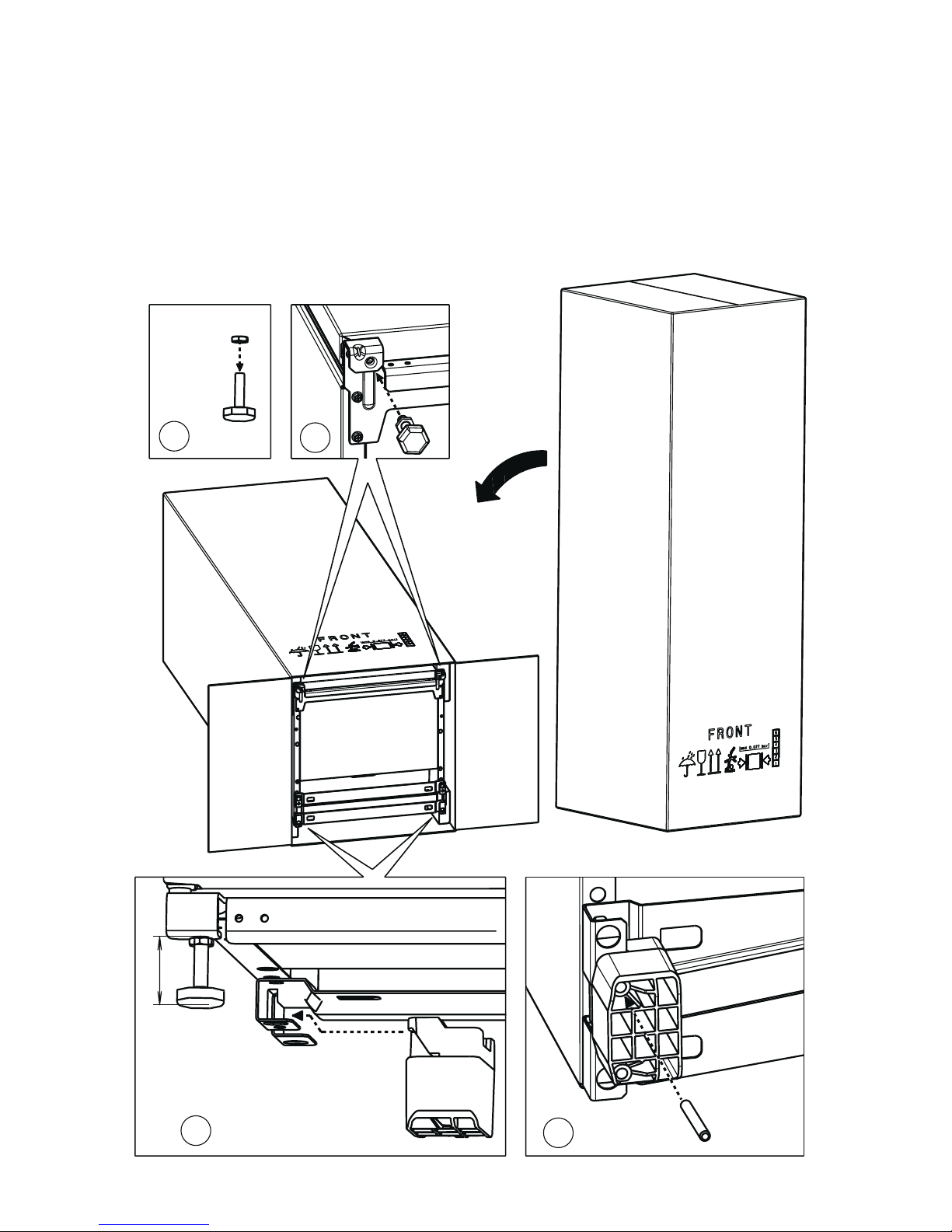

• Carefully place the unit on the floor, following the instructions on the packaging to make sure the unit is

facing upwards.

• Open the bottom part of packaging and remove the corner protection.

• «A» Screw the M8 nuts (bag «4») on the respective front feet.

• «B» Screw the front feet on the bracket of the unit using the dimension indicated in fig. «C».

• «C» Position the rear feet on the compressor support plate.

• «D» Insert the pin, using a hammer, so that it does not protrude outside the foot.

• Carefully reposition the appliance in the upright position and remove completely the packaging.

• Operation to be carried out on both units.

Right side

• Glue the spacer sponge on the right side of the wine cooler-freezer, using the distances indicated in the fig.

under neath.

• Bring the units near to each other.

• «A» If necessary adjust the front feet so that the units are both the same height.

• «B» Insert the bottom “L” joining bracket.

• «C» Fix the bracket with four M5x18 screws (bag «2»).

• «A» Fix the joining bracket with four 4.2x13 self-tapping screws (bag «3») using the holes in the sides.

• The bracket must be positioned so that the side of the bracket with the hole in the centre part protrudes

as shown in fig. «A».

• «B» Fix the joining bracket with six 4.2x13 self-tapping screws (bag «3») using the holes in the sides.

• «C» Fix the joining bracket with four 4.2x13 self-tapping screws (bag «3») using the holes in the sides.

• The bracket must be positioned so that the side with middle hole is turned down as shown in fig. «C».
